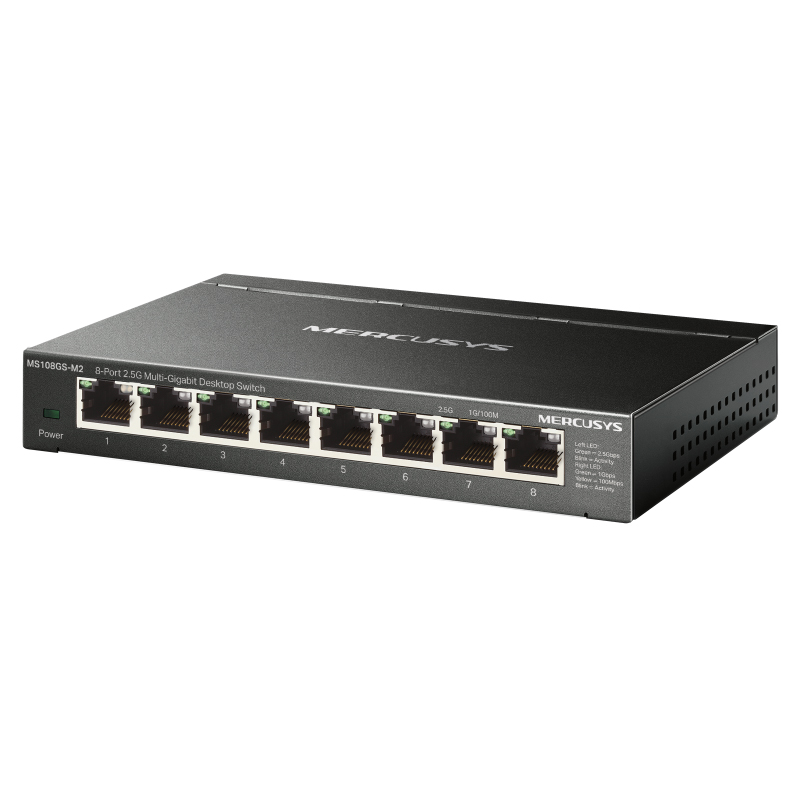

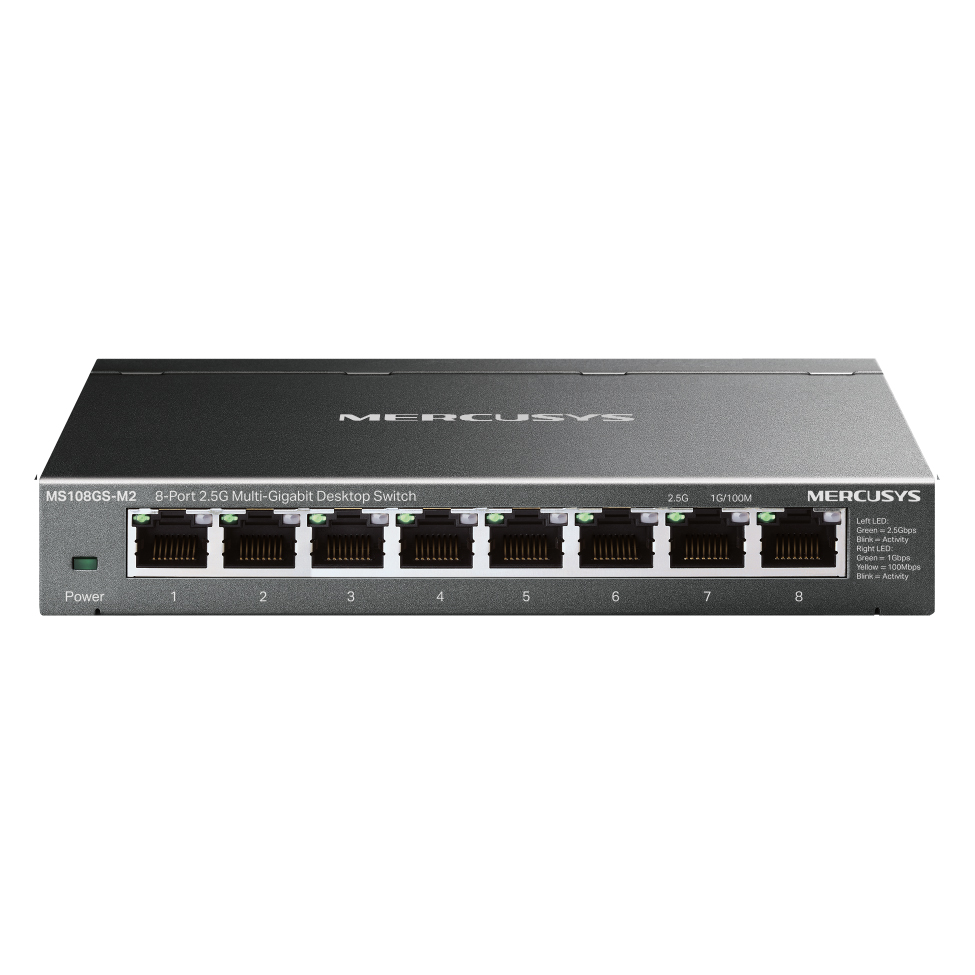

Mercusys 8 Port 2.5G Multi Gigabit Desktop Switch

MS108GS-M2 | MERCUSYS
$75
In stock
Buy now, pay later!
Epic Price ! The Mercusys 8 Port 2.5G Multi Gigabit Desktop Switch (MS108GS-M2 v2) is an unmanaged network hardware solution engineered to anchor your home or office infrastructure with absolute next gen performance. At the centre of your local network ecosystem, this high performance device features eight auto negotiation 2.5 Gbps RJ45 ports that unlock a massive 40 Gbps switching capacity, ensuring rapid, fluid data transmission to 2.5G gaming computers, local NAS storage arrays, media servers, and WiFi 7 access points. Housed in a durable, compact metal casing suitable for desktop or wall-mount configurations, its premium fanless design guarantees entirely silent operation and highly efficient passive thermal management for noise sensitive workspace deployments. Complete with seamless plug and play functionality that provides an instant 2.5x speed boost using your existing Cat5e or better cables without a costly wiring overhaul, this robust switch serves as a durable, future-proof cornerstone to unlock uncompromised, high-bandwidth connectivity across your entire computing environment.

Features


8-Port 2.5G Multi-Gigabit Desktop Switch

  • Eight 2.5 Gbps Ports. 8x 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, providing up to 40 Gbps of switching capacity.
  • Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 7/6E/6 AP, 4K video, and more.
  • Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle. (Only Cat5e or better cables do not need to be replaced)
  • Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations.
  • Silent Operation. Industry-leading fanless design ensures silent operation, ideal for noise-sensitive environments.
  • Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
  • Plug and Play. Easy installation, no configuration required.

Specifications


General Data

Model Number MS108GS-M2
Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25.4 mm)
Certifications CE, RoHS
Package Contents 8-Port 2.5G Multi-Gigabit Desktop Switch MS108GS-M2
Power Adaptor
Installation Guide
Rubber Feet
Environment Operating Temperature: 0–40 °C (32–104 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Software

Transfer Method Store and Forward

Hardware

Interfaces 8 100 Mbps/1 Gbps/2.5 Gbps Auto-Negotiation RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
External Power Supply External Power Adaptor (Output: 12 VDC / 1.0 A)
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3bz, IEEE802.3x, IEEE802.1p
Fan Quantity Fanless
Jumbo Frame 12 KB
Switching Capacity 40 Gbps
LED Power, Link/Act
Mac Address Table 4K, Auto-learning, Auto-aging
Max Power Consumption 8.87 W
Max Heat Dissipation 30.16 BTU/h

Performance

Packet Forwarding Rate 29.8 Mpps
Backed by a 5 year MERCUSYS warranty.
