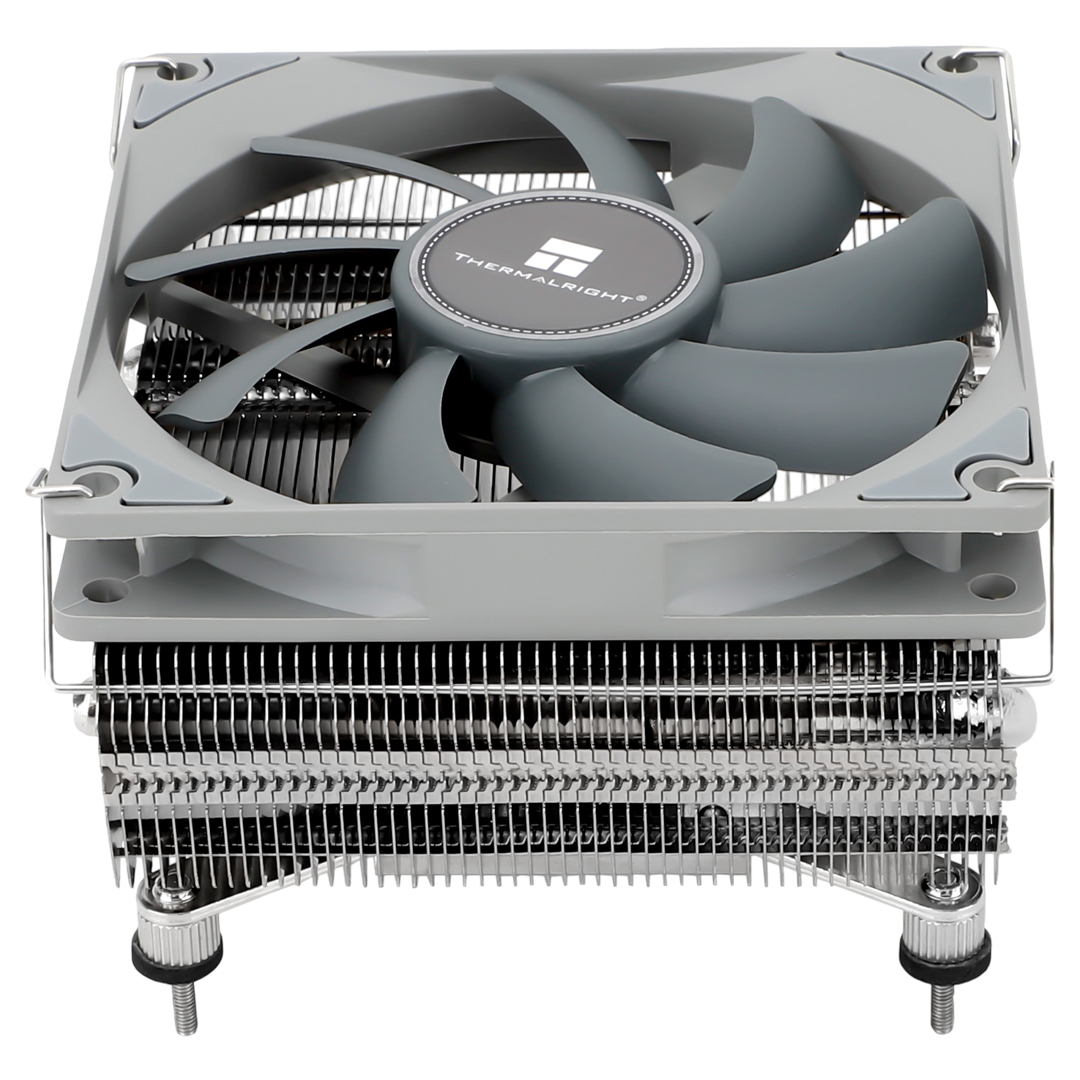

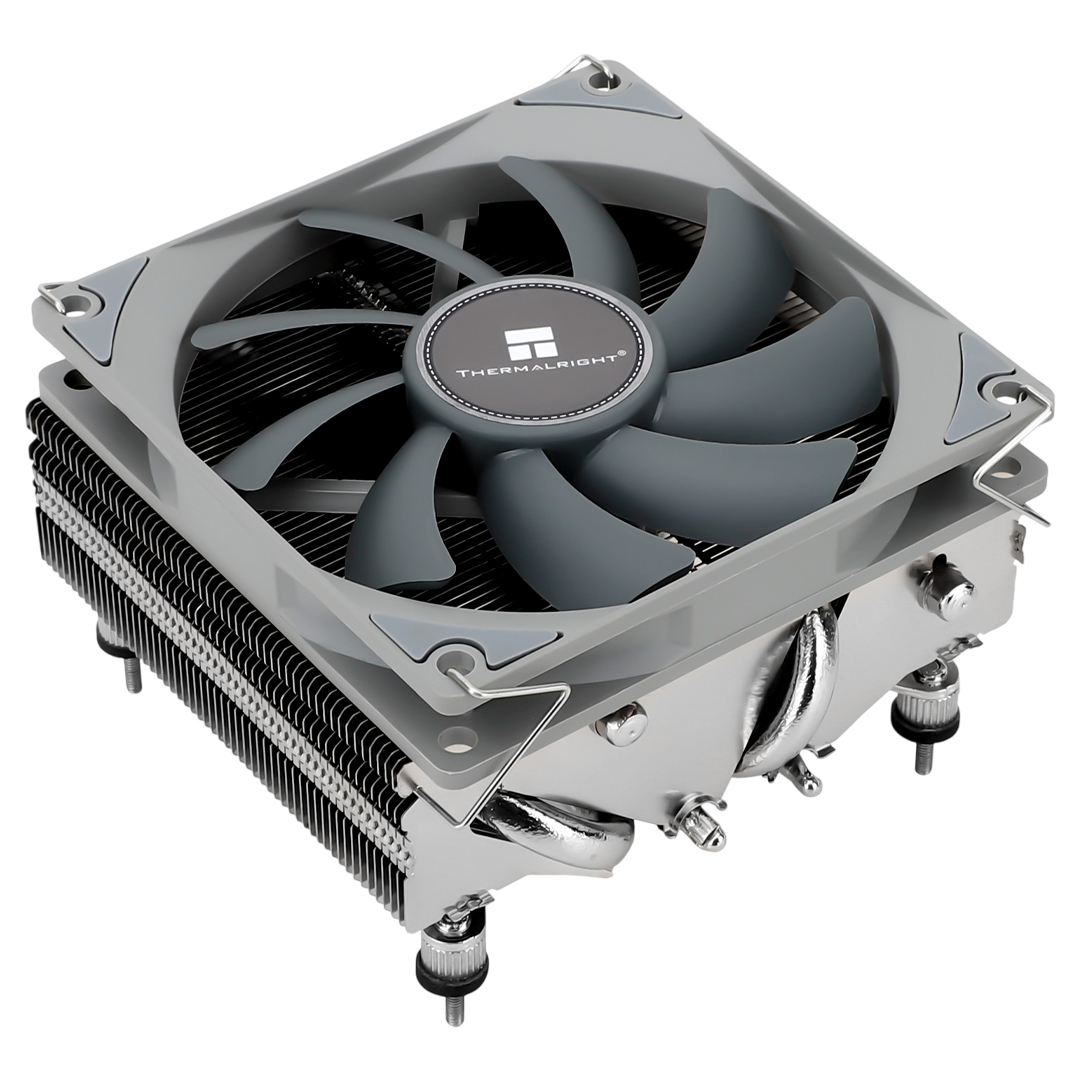

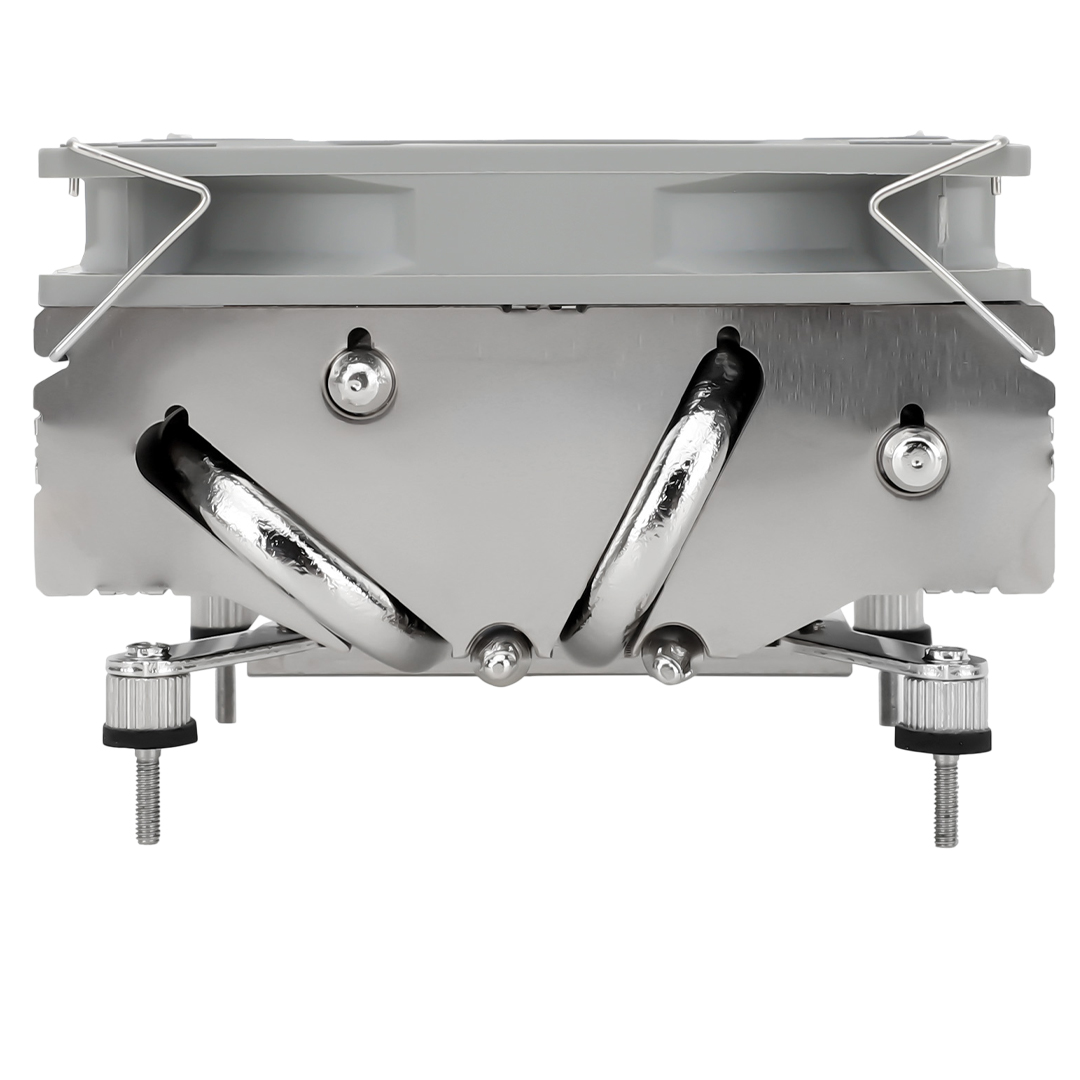

The Thermalright AXP-90 X53 Low Profile CPU Air Cooler is a compact cooling solution designed for small form factor builds. It features four 6mm thick heat pipes and one 92mm PWM controlled fan with a maximum noise level of 22.4 dBA, airflow of 42.58 CFM and speed of 2700RPM. Compatible with AMD and Intel sockets.
Features
AXP-90 X53 Low Profile CPU Air Cooler Silver
Compact High-Performance Cooling
The Thermalright AXP90-X53 is a slim, low-profile CPU cooler designed for small form factor builds, providing powerful cooling performance without sacrificing space. Its compact design is ideal for mini-ITX cases and HTPCs, ensuring efficient cooling in tight spaces.
Advanced Heat Dissipation

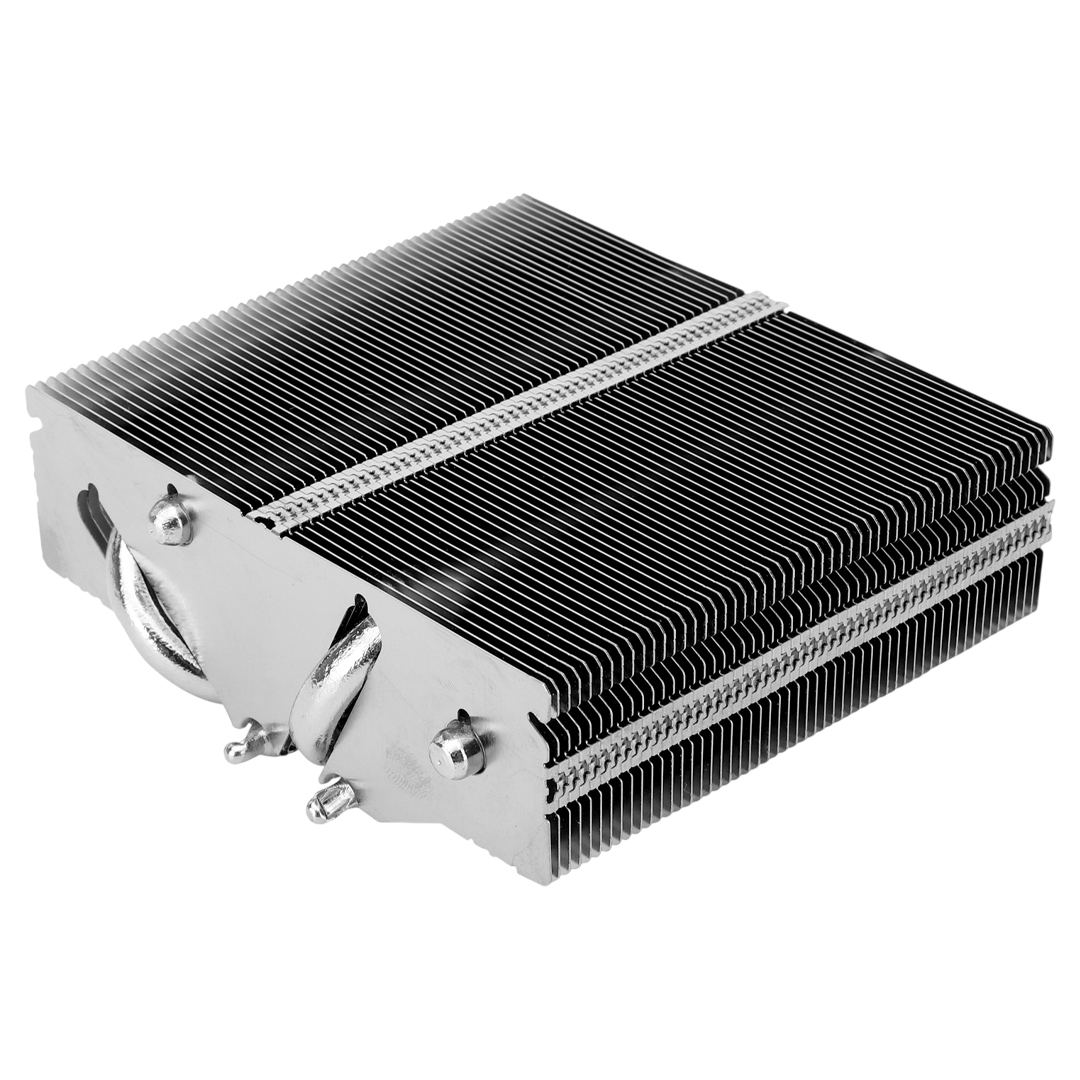

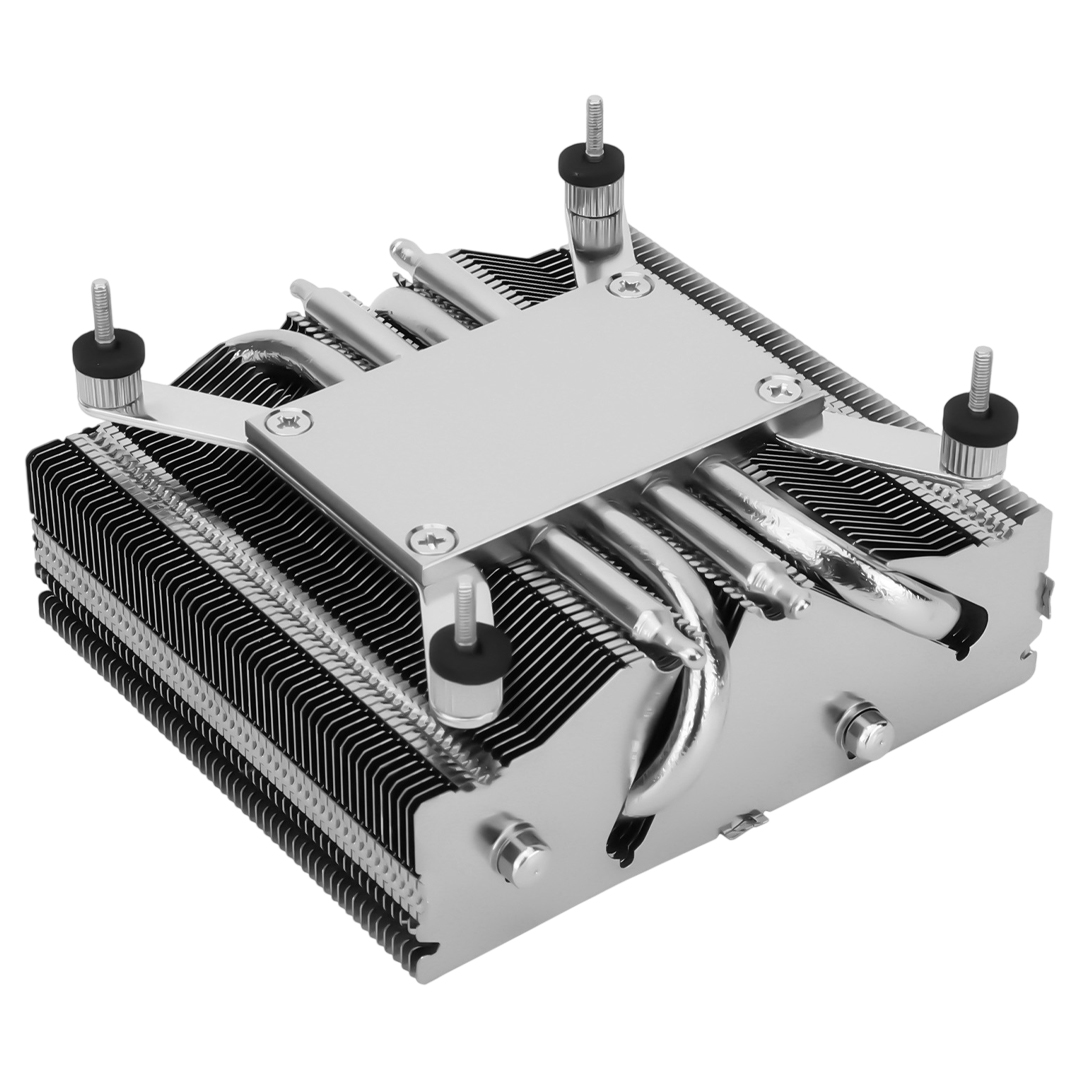

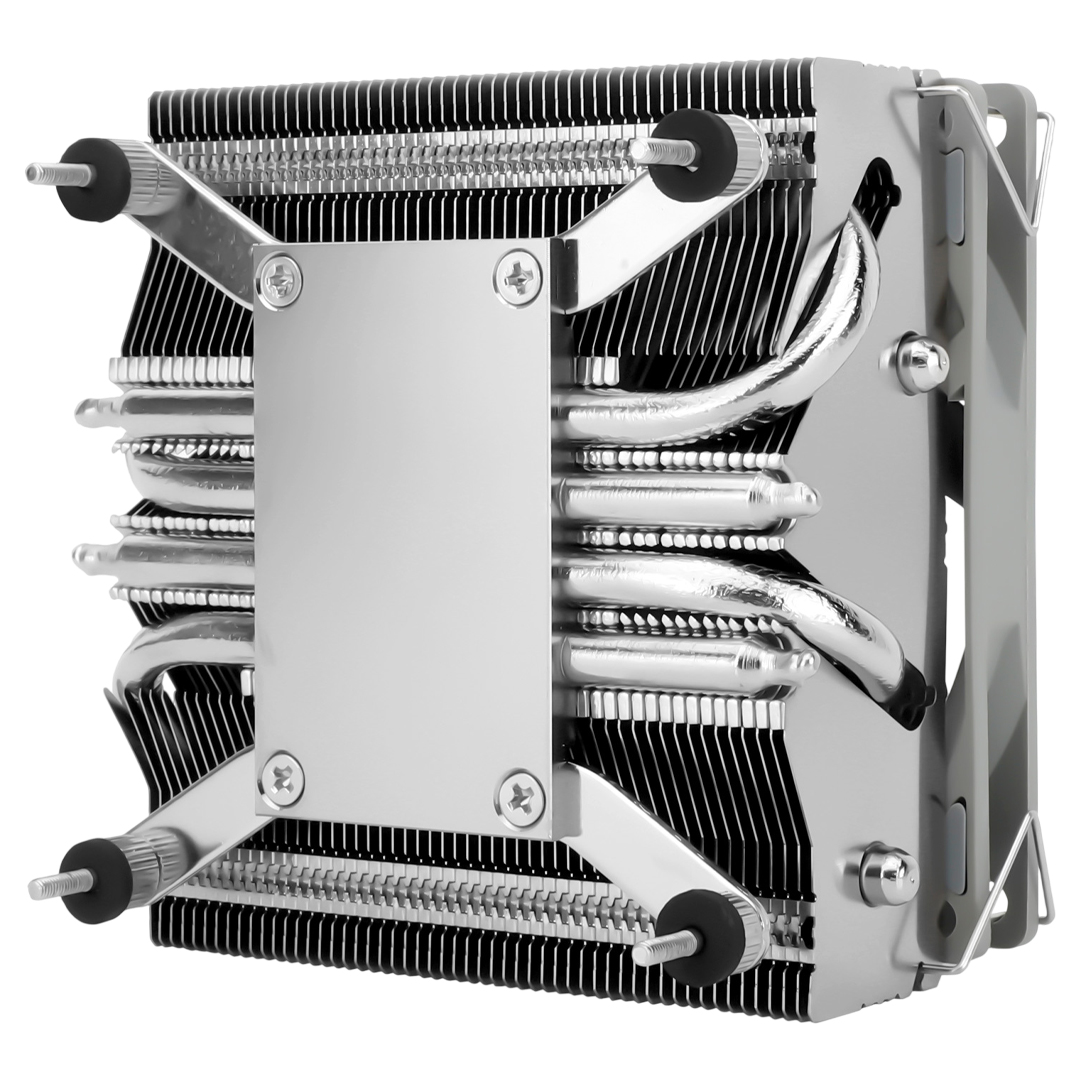

Featuring a high-density heatsink with four heat pipes and a large copper base, the AXP90-X53 maximises heat dissipation to keep your CPU cool under heavy loads. This cooler is perfect for users seeking reliable thermal performance in a compact package.
Whisper-Quiet 92mm Fan
Equipped with a 92mm TL-9015 PWM fan, the AXP90-X53 delivers strong airflow while maintaining quiet operation. The fan's slim profile allows it to fit in tight spaces without compromising on cooling efficiency, making it an excellent choice for low-noise systems.
Pristine Silver Design
The AXP90-X53 boasts a pristine silver design that complements any build. Its durable construction and stylish appearance make it a perfect addition to both gaming and professional systems that require efficient cooling in a minimal footprint.
Wide Compatibility and Easy Installation

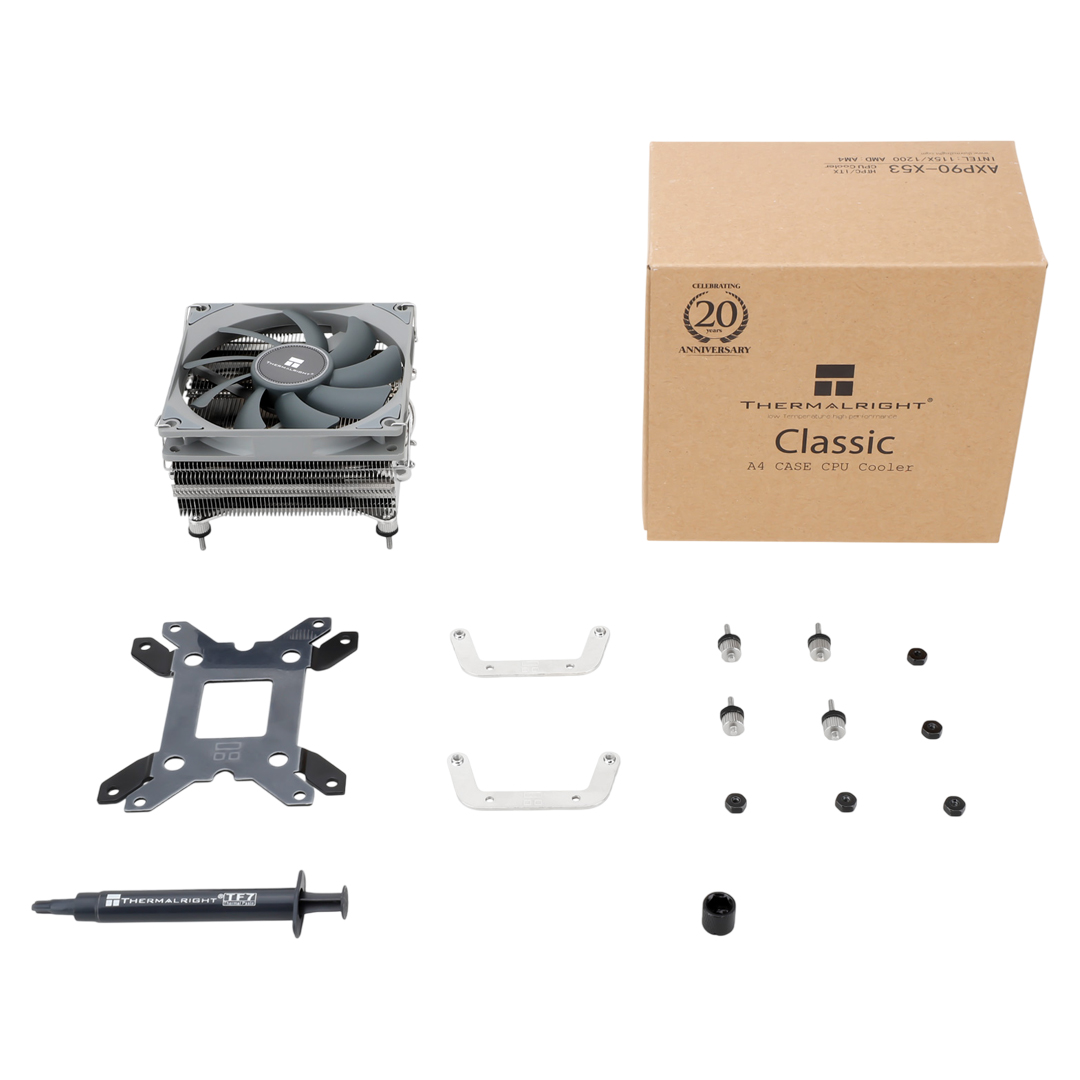

Compatible with a range of CPU sockets, including Intel LGA 1851 and 1700 and AMD AM5 and AM4, the AXP90-X53 is designed for versatile use in various systems. The included mounting kit ensures easy installation, providing a secure and stable fit for both Intel and AMD platforms.
Note: Feature images are used for illustrative purposes only, please refer to title, specifications and product images for correct model upon purchase.
Specifications
General Data
| Model Number |
AXP-90-X53 |
| Colour |
Silver |
| Compatibility |
Intel: 115X/1200/1700/1851
AMD: AM4/AM5 |
Heatsink
| Dimensions (L x W x H) |
94.5 mm x 95 mm x 38 mm |
| Weight(With Fan) |
320g |
| Heat Pipes |
6 mm heatpipe x 4 units |
| Fin |
T = 0.3 mm; Gap=1.6 mm |
| Copper Base |
C1100 Pure Copper Nickel Plated |
Fan
| Model |
TL-9015 |
| Dimensions (L x W x H) |
92 mm x 92 mm x 15 mm |
| Rated Speed |
2700 RPM±10% (Max) |
| Noise Level |
22.4 dBA |
| Air Flow |
42.58 CFM (Max) |
| Air Pressure |
1.33 mm H2O (Max) |
| Ampere |
0.18 A |
| Connector |
4 Pin (PWM Fan Connector) |
| Bearing Type |
HYDRAULIC Bearing |
Backed by a 6 year Thermalright warranty.
