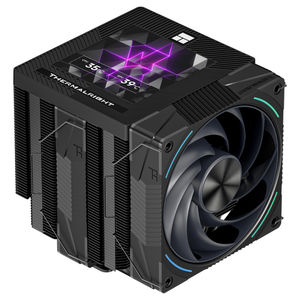

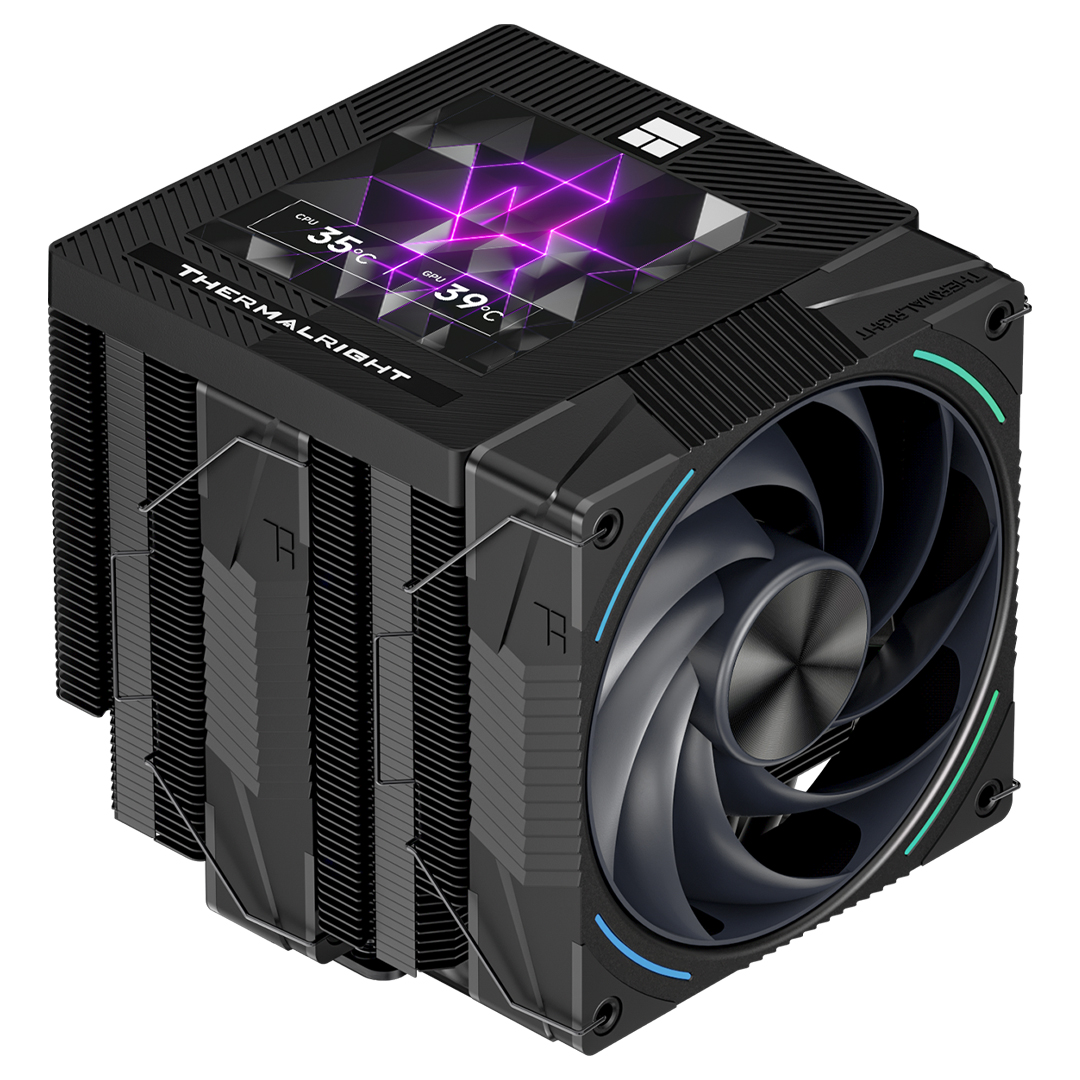

The Thermalright Phantom Spirit 120 Vision Evo is an elite-tier dual-tower air cooler engineered to deliver next-gen performance and professional-grade heat dissipation for power-dense processors. At its centre, the cooler features a premium 3.95 inch customisable LCD display with a crisp 480x480 resolution, enabling real-time monitoring of vital system metrics or custom visuals via a high-bandwidth USB 2.0 motherboard connection. This advanced cooling solution is optimised for the latest Intel LGA1851 and AMD AM5 platforms, utilising seven high-efficiency 6mm pure copper nickel-plated heat pipes and an asymmetrical dual fin-stack design to ensure broad hardware compatibility without sacrificing surface area. Driven by dual high-pressure TL-K12-X28-R9 PWM fans operating at up to 2150 RPM, the Phantom Spirit 120 Vision Evo pushes a massive 92 CFM of airflow to maintain absolute thermal management even during prolonged, intensive workloads. Equipped with low-noise S-FDB V2 bearings, the cooling system keeps acoustics perfectly stabilised while providing the robust cooling velocity typically reserved for bulkier liquid setups. With its sleek jet-black aesthetic, subtle ARGB accents, and an all-metal multi-platform mounting kit, this dual-tower cooler stands as a durable and future-proof foundation for any sophisticated workstation.
Features
Phantom Spirit 120 Vision EVO
Integrated 3.95-Inch IPS LCD Display
The Thermalright Phantom Spirit 120 Vision Evo features an integrated 3.95-inch square IPS LCD screen built directly into the top cover. Boasting a sharp 480×480 resolution, this full-colour panel accurately restores colours to enhance your build's aesthetics while displaying real-time system metrics.
Advanced Thermal Architecture with 7 Heat Pipes
Engineered for high-end processors, this heavy-duty dual-tower cooler is armed with seven 6mm copper heat pipes. Utilising AGHP (Anti-Gravity Heat Pipe) 5.0 technology, the heat pipes maximise thermal conduction efficiency regardless of whether the cooler is mounted in a vertical or horizontal orientation. The system is built around a nickel-plated C1100 pure copper base paired with a precision-engineered aluminum fin stack.
High-Performance TL-K12-X28-R9 PWM Fans
The heatsink is paired with specialised 120mm PWM fans designed with a thicker 28mm frame (compared to standard 25mm fans) to deliver superior static pressure and airflow. Operating at speeds up to 2150 RPM, these fans push a massive 92 CFM of maximum airflow and 3.0 mm H2O of static pressure. Equipped with a premium S-FDB V2 bearing, they balance extreme thermal performance with long-term acoustic comfort.
Granular Control with TRCC Software
System configuration is powered by Thermalright's specialised TRCC software, allowing you to freely monitor system parameters, implement custom text, adjust backgrounds, and fine-tune dynamic sensor readouts. Data transmission runs through a standard internal motherboard 9-pin USB 2.0 header, while power is supplied via a standard SATA connector to ensure seamless compatibility without heavy driver overhead.
Excellent Case and Component Clearance
With an optimised total heatsink height of 160mm, the Phantom Spirit 120 Vision Evo offers widespread compatibility with medium and large mid-tower cases. The structural layout features an intentional offset and asymmetrical memory cutout design to prevent interference with high-profile RAM modules or top PCIe graphics card slots.
Universal Socket Support
The cooler comes bundled with robust, dual-platform mounting fasteners to ensure simple, secure installation across all modern desktop configurations:
- Intel Sockets: LGA 1851, 1700, 1200, and 115X
- AMD Sockets: AM5 and AM4
Backed by a 3 year Thermalright warranty.
