The Ubiquiti Dream Machine Beast is a high performance 1U rackmount cloud gateway and network management solution built to support large scale UniFi deployments with support for over 750 managed UniFi devices and 7,500+ connected users. Featuring dual 25G SFP28 ports, 25Gbps IDS/IPS throughput, integrated 128GB SSD storage, dual 3.5in NVR HDD bays, and advanced security features, and VPN support. The Dream Machine Beast delivers enterprise-grade networking in a single powerful platform.

Features

Ubiquiti Dream Machine Beast Feature 1

Dream Machine Beast

Ubiquiti Dream Machine Beast Feature 2

Deployment

Build Features

Ubiquiti Dream Machine Beast Feature 3

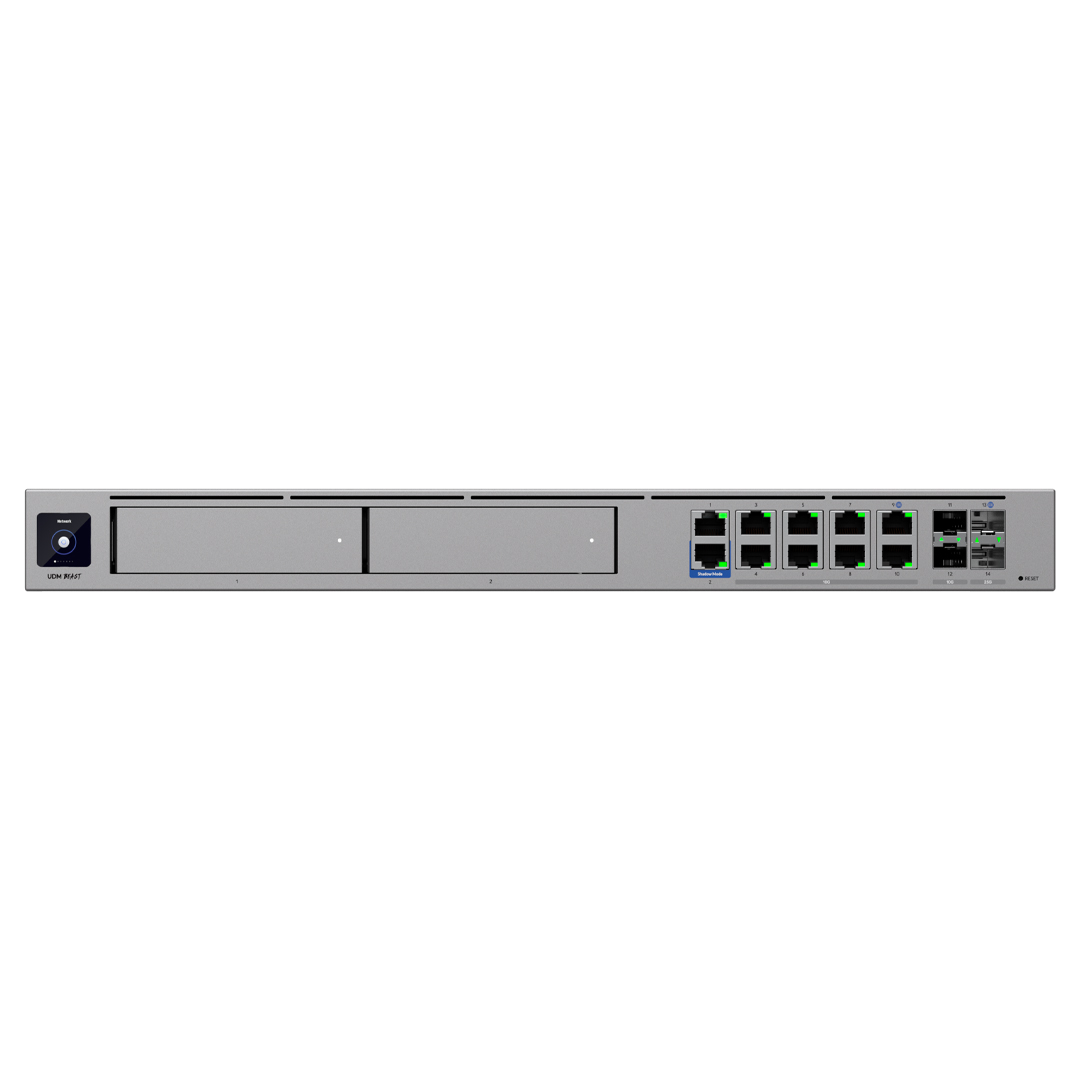

Front View

Ubiquiti Dream Machine Beast Feature 4

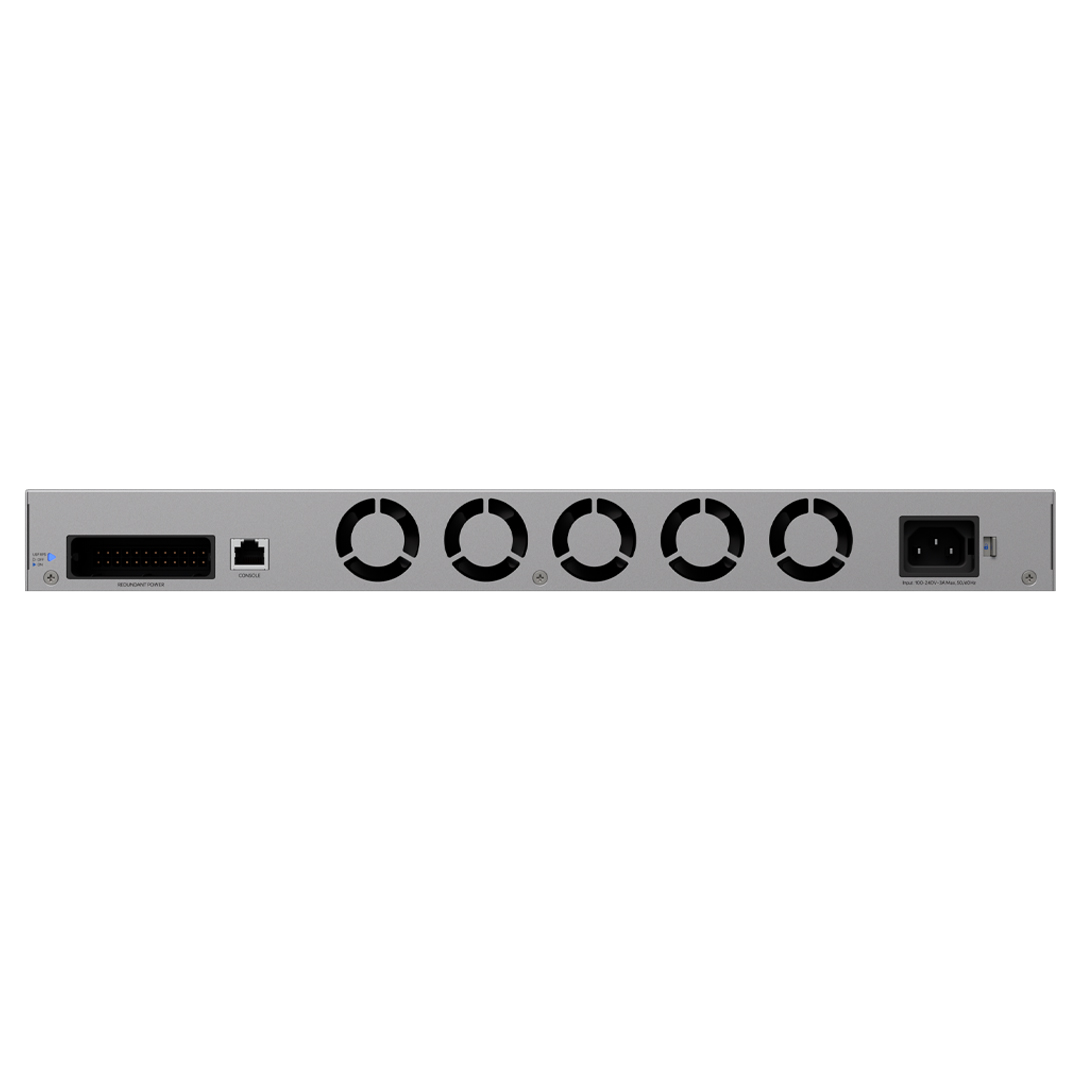

Back View

*Requires UniFi Power Backup.

Ubiquiti Dream Machine Beast Feature 5

Dimensions

Specifications

General Data

Model Number UDM-BEAST
Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
UniFi Application Suite Network: Yes (Powerful gateways, WiFi access points, and switches enabling next-gen security and scalable SD-WAN.)
Protect: Yes (Al-powered camera system with flexible alarm integrations, and smart detections for streamlined incident management.)
Access: Yes (Secure Ethernet-based access control for doors, gates, and elevators, featuring flexible unlock mechanisms.)
Talk: Yes (Plug-and-play VoIP system with advanced call routing and automations for seamless communication.)
Connect: Yes (Manage digital signage, EV chargers, and Lutron lighting systems with ease.)
Managed UniFi Devices 750+
Managed Cameras (100) HD
(60) 2K
(40) 4K
Managed Access Hubs 200 (Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits.)
Simultaneous Users Connected 7,500+
Max. WAN Port Count 8
Default WAN Ports (1) 25G SFP28
(1) 10 GbE RJ45
Port Layout 1 GbE RJ45: 2 (1G/100M/10M)
10 GbE RJ45: 8 (10G/5G/2.5G/1G/100M)
10G SFP+: 2 (10G/1G)
25G SFP28: 2 (25G/10G/1G)
Console: 1
IDS/IPS Throughput 25 Gbps
Form Factor Rack mount (1U)
Redundancy Shadow Mode (VRRP) Gateway Failover
DC Power Backup (Enable DC power backup using UniFi RPS)

Security

Stateful Firewall Yes
Application-Aware Layer 7 Firewall Yes
DPI & Traffic Identification Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes
Content Filtering Yes
Intrusion Prevention (IPS/IDS) Yes
Ad Blocking Yes
IDS/IPS Signatures 55,000+ with CyberSecure

VPN & SD-WAN

Licence-Free SD-WAN Yes
Site-to-Site VPN Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client OpenVPN: Yes
WireGuard: Yes

Networking

Multi-WAN Load Balancing Yes
Shadow Mode (VRRP) High Availability Yes
LACP Port Aggregation Yes
Dynamic Routing OSPF: Yes
BGP: Yes
Advanced QoS Yes
Multicast DNS (mDNS) Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes
Integrated RADIUS Server Yes
RADIUS over TLS (RadSec) Yes
Additional Internet Failover with UniFi LTE Backup Yes
Internet Quality and Outage Reporting Yes
MAC Address Table Size 32,000
Policy-based WAN and VPN Routing Yes
Customisable DHCP Server Yes
IPv6 ISP Support Yes
IGMP Proxy Yes
All Traffic Flows Yes

Hardware

NVR Storage (2) 3.5" NVR HDD bays
Built-in 128 GB SSD for Faster Experience
Max. Power Consumption 100W
Power Method (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 13.05A
Power Supply AC/DC, internal, 150W
Supported Voltage Range 100–240V AC
Heat Dissipation 342 BTU/hr
Processor Octa-core ARM® v9 at 2.1 GHz
System Memory 16 GB
On-Board Storage Integrated 128 GB SSD
Weight 5.5 kg (12.13 lb)
Enclosure Material Aluminium CNC, SGCC steel
Mount Material SGCC steel
LCM Display 1.3" touchscreen
Management Ethernet
Bluetooth
LEDs Ethernet: Yes
SFP+: Yes
SFP28: Yes
RPS: Yes
HDD: Yes
Button (1) Factory reset
ESD/EMP Protection Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications CE, FCC, IC

Software

Application Requirements Mobile App
UniFi iOS™: Version 10.34.0 and later
UniFi Android™: Version 10.37.1 and later
Backed by a 1 year Ubiquiti warranty.
