TP-Link EAP727 BE5000 Ceiling Mount WiFi 7 Access Point

The TP-Link EAP727 BE5000 Ceiling Mount WiFi 7 Access Point delivers ultra fast multi-gigabit wireless performance for modern networks. This high capacity access point features next-generation WiFi 7 technologies like Multi-Link Operation and 4K-QAM, offering speeds up to 4324Mbps on the 5GHz band and 688Mbps on the 2.4GHz band. Equipped with a 2.5G PoE+ port, it ensures optimal wired throughput and clean, flexible installation. Seamlessly integrating into the Omada Software Defined Networking platform, it allows centralised cloud management, robust WPA3-personal/enterprise security, and flexible deployment, making it perfect for crowded environments demanding low latency and reliable connections.

Features

---

Omada 5-Stream BE5000 Ceiling Mount Wi-Fi 7 Access Point

• 5-Stream Wi-Fi 7: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.)
• 1x 2.5G PoE+ Port: Ensures high-speed connectivity throughout the network.
• Low Latency and Interference: 160 MHz bandwidth, Multi-Link Operation, Multi-Rus, and 4K-QAM ensure high performance for your connectivity. (Use of Wi-Fi 7 (802.11be), and features including Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA requires clients to also support the corresponding features.)
• Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply (not included) for flexible installation with Omada SDN for one-click setup.
• Advanced Features: Supports centralised cloud management, PPSK, multiple portals, mesh, and seamless roaming. (These features require the use of an Omada controller.)
• More Connections and Wider Coverage: Supports 510+ concurrent connections (The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.) and covers up to 2,000 ft² (185 m²) (Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.) for reliable and extensive wireless connectivity.

Wi-Fi 7: Swifter, Smoother, Stronger

Dual-Band Wi-Fi 7 Throughput (Use of Wi-Fi 7 (802.11be), and features including Multi-Link Operation (MLO), 160 MHz Bandwidth, 4K-QAM, Multi-RUs, and OFDMA requires clients to also support the corresponding features.).

• 5 GHz - 4,324 Mbps
• 2.4 GHz - 688 Mbps

Higher Efficiency with 4K-QAM

Higher Reliability and Speeds with MLO

Optimised Wired Performance with 2.5G PoE+ Port

With a 2.5 Gigabit Ethernet Port, EAP727 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.

Boosted Network Security

• Secure Guest Network with up to 16 SSIDs
• Boost Your Business with SMS Login
• WPA3 for Worry-Free Open Public Networks
• Rogue AP Detection

Seamless Integration into Omada SDN

Build Features

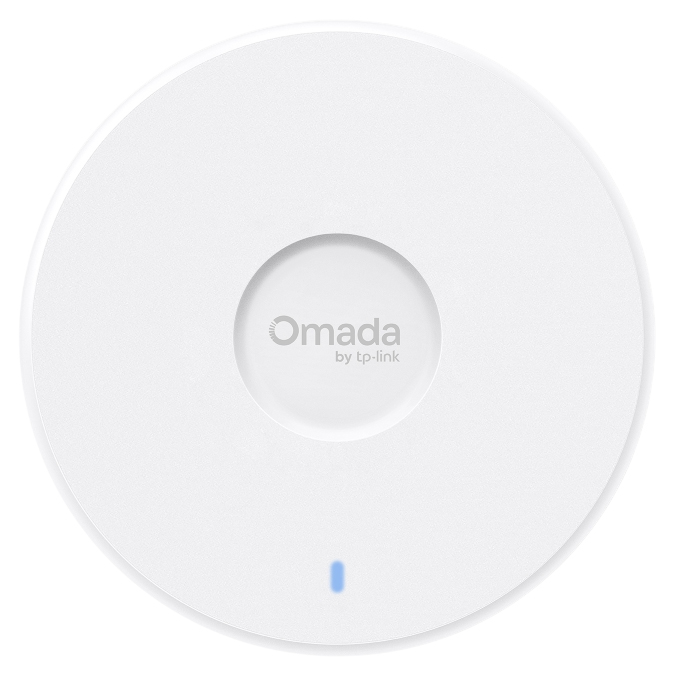

Front View

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

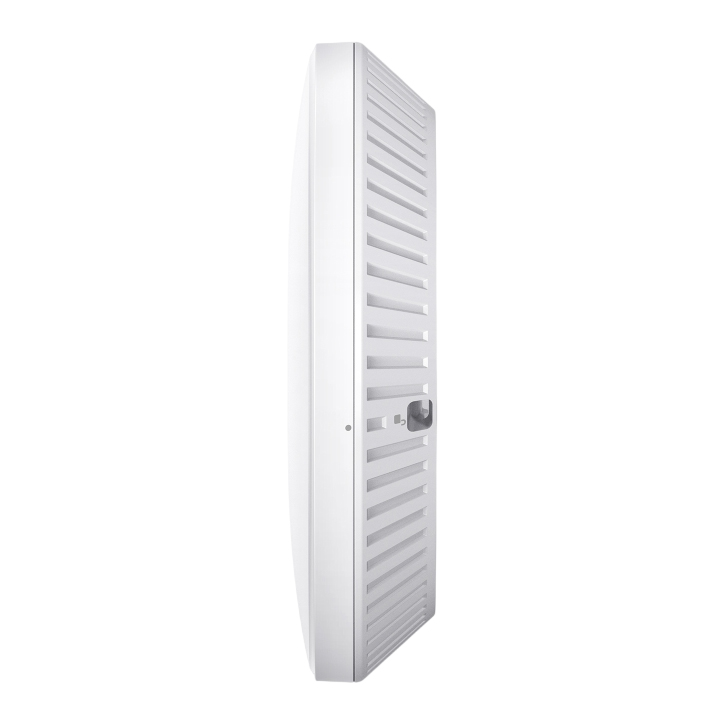

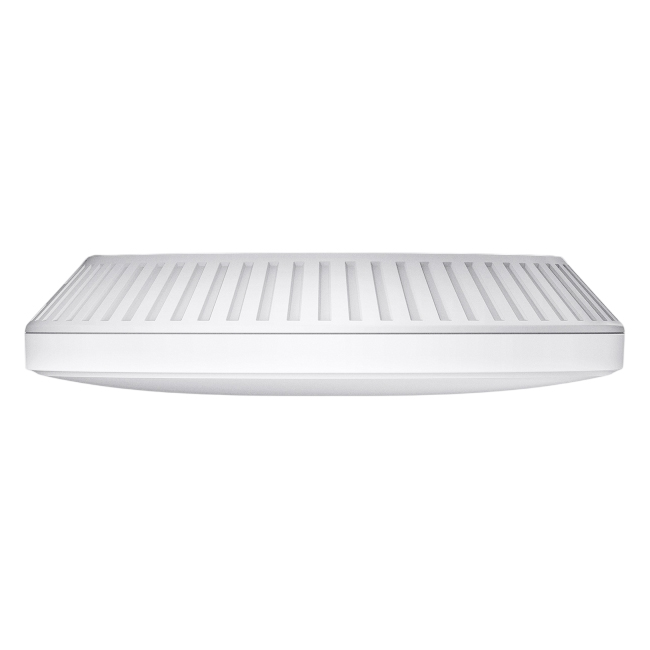

Side View

§Coverage value is calculated based on laboratory testing Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

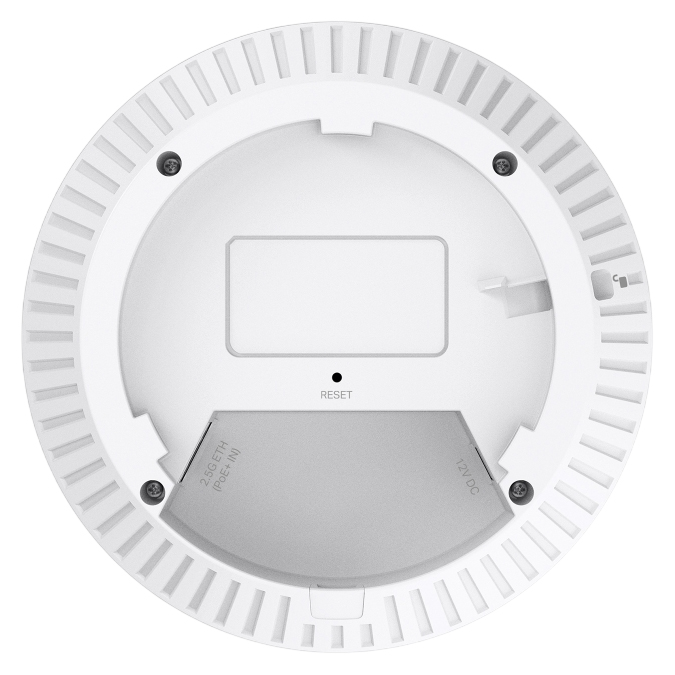

Back View

ErP Information

1) Power consumption in networked standby: 6 W

2) Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 6.5 W

3) The default period of time after which the power management function switches the equipment automatically into a condition providing networked standby: 20 minutes

4) Recommended DC power supply: T120100-2C1

5) How to activate and deactivate wireless network: Enter the webpage of product through wired connecting. The wireless function can be turn on/off via ‘Wireless > Wireless Settings > Enable Checkbox’
