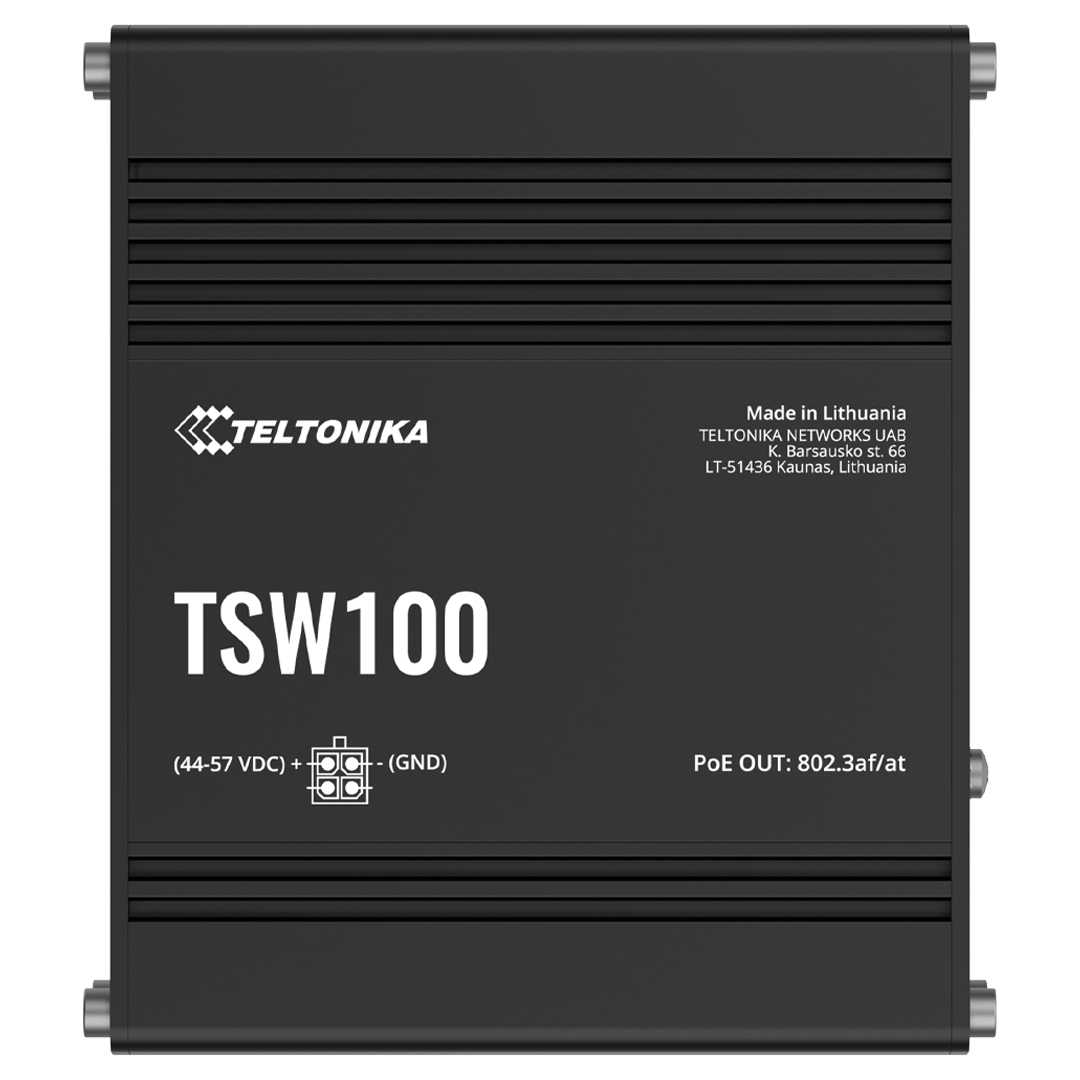

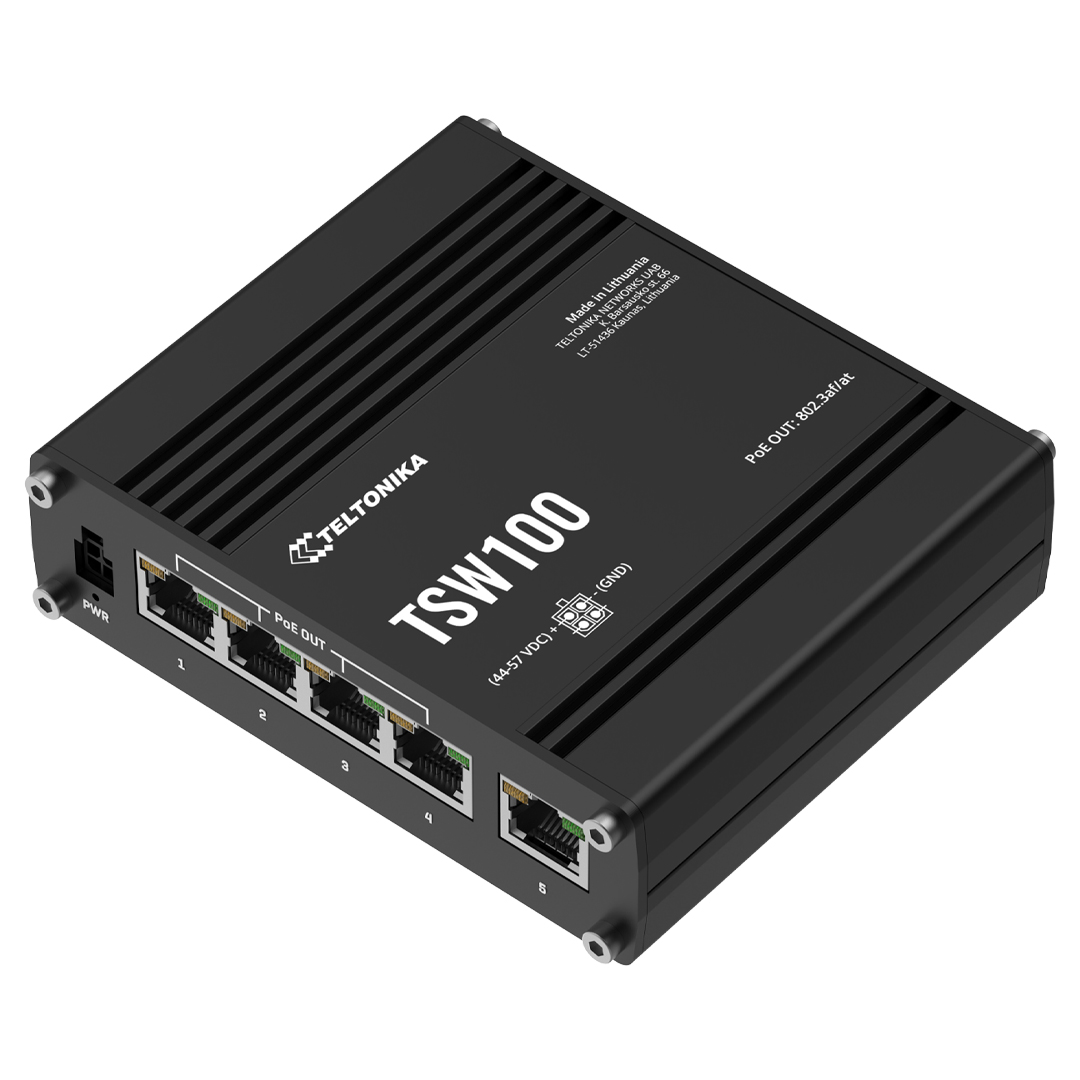

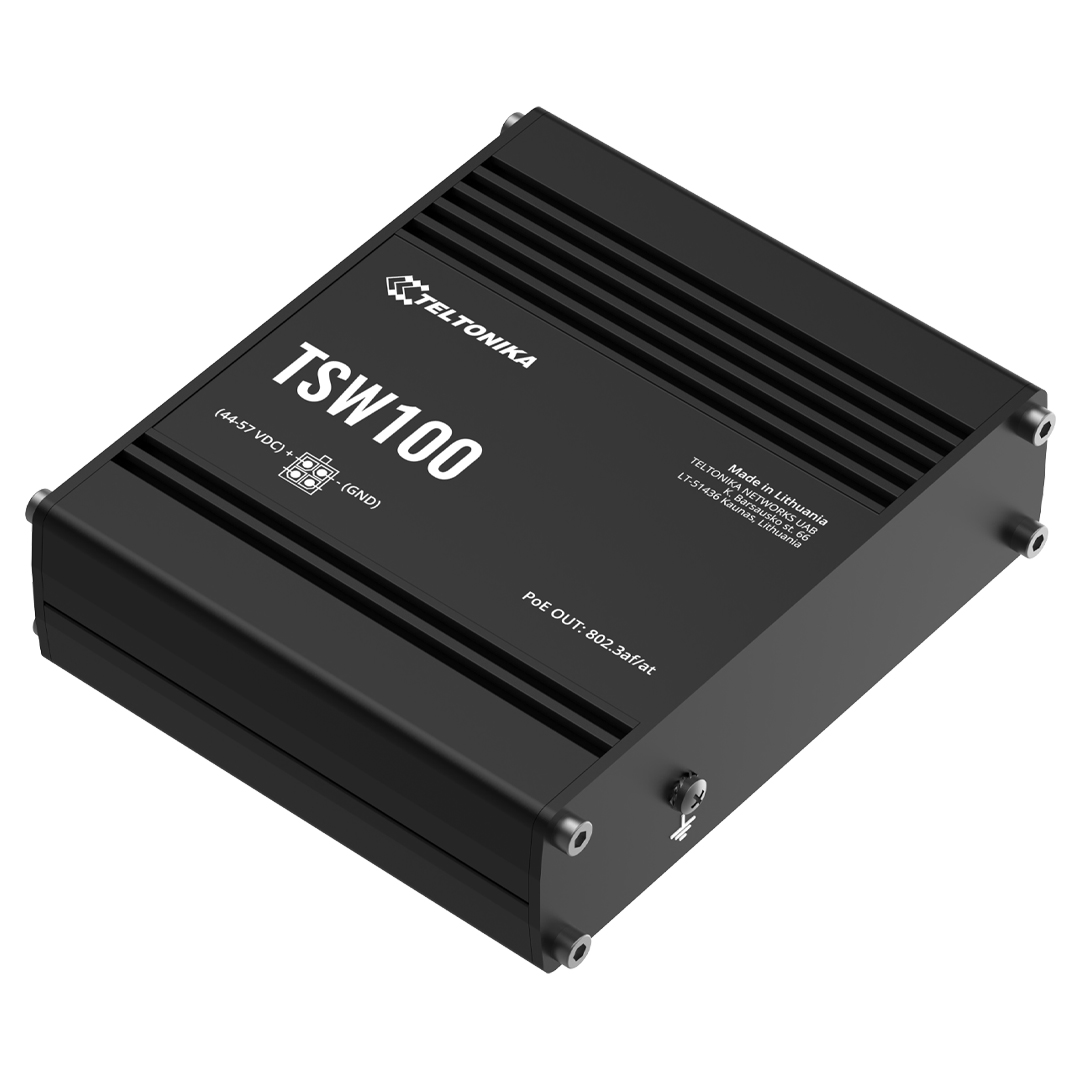

Teltonika TSW100 Industrial POE+ 5 Port Ethernet Switch
zzzzTSW100010020 | TeltonikaThis product has been discontinued
The Teltonika TSW100 Industrial PoE+ Ethernet Switch delivers reliable high-speed networking with five Gigabit Ethernet ports and four PoE+ outputs supporting at PSE up to 30W per port and a total 120W power budget. Built for demanding industrial environments, it features a durable aluminium housing, DIN rail mounting support, 10Gbps non-blocking bandwidth, and wide operating temperatures from -40degC to 75degC for stable deployment in enterprise, transport, and smart city applications.
Features
TSW100 Industrial PoE+ Ethernet Switch
TSW100 is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralises the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.
- POE+: 4 x PoE+ ports with 802.3af and 802.3at support
- Power Budget: Total power budget at PSE up to 120 W
- Ethernet: 5 x Gigabit Ethernet with speeds up to 1000 Mbps
- Mounting: DIN rail and surface mounting options
Remote Management System
Use Case
Smart City - Mobile Router for Medical Supply Inventory Management
Transportation - Simplifying Border Control with a Cellular Router
Enterprise - PoE Technology Simplifying Office Network Integrations
Wiki Knowledge Base
In Teltonika's extensive Wiki knowledge base you can find everything from the latest firmware, usage scenarios and changelogs to certificates and first start guides.
Specifications
General Data
| Model Number | TSW100010020 |
Ethernet
| ETH Ports | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 Series Standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
Industrial Protocols
| Profinet | Profinet Class A conformance (available with optional order code) |
PoE Out
| PoE+ Ports | Ports 1 – 4 |
| PoE Standards | IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Order code: TSW100 *1****) IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Order code: TSW100 *0****) |
| PoE Max Power per Port (at PSE) | 30 W |
| PoE Power Budget (at PSE) | 120 W |
Performance
| Bandwidth (Non-blocking) | 10 Gbps |
| Packet Buffer | 128 KB |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9216 bytes |
Power
| Connector | 4-pin industrial DC power socket |
| Input Voltage Range | 7 – 57 VDC |
| PoE-Out Input Voltage Range | 44 – 57 VDC |
| Power Consumption | Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W |
Physical Interfaces

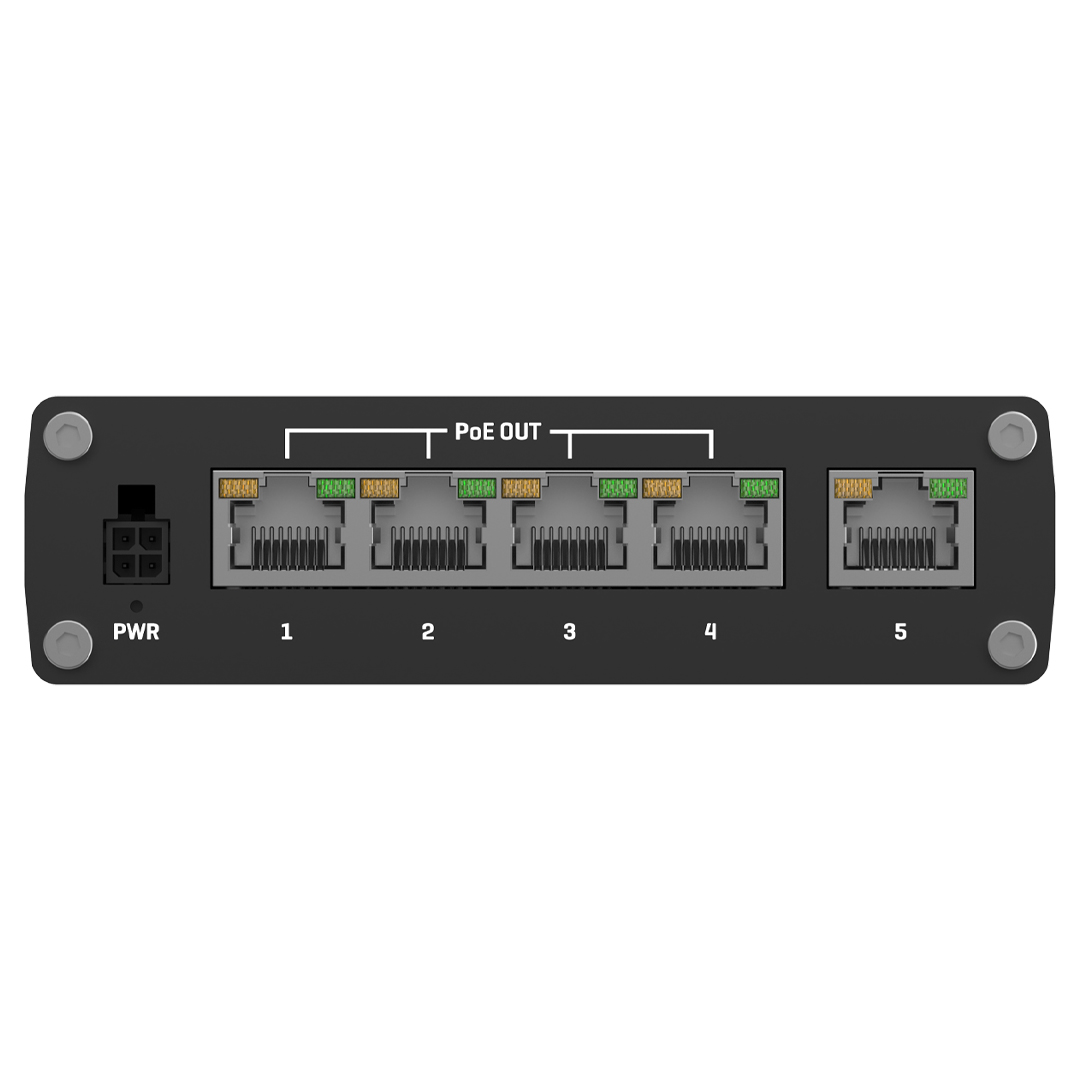

| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs |
| Power | 1 x 4-pin power connector |

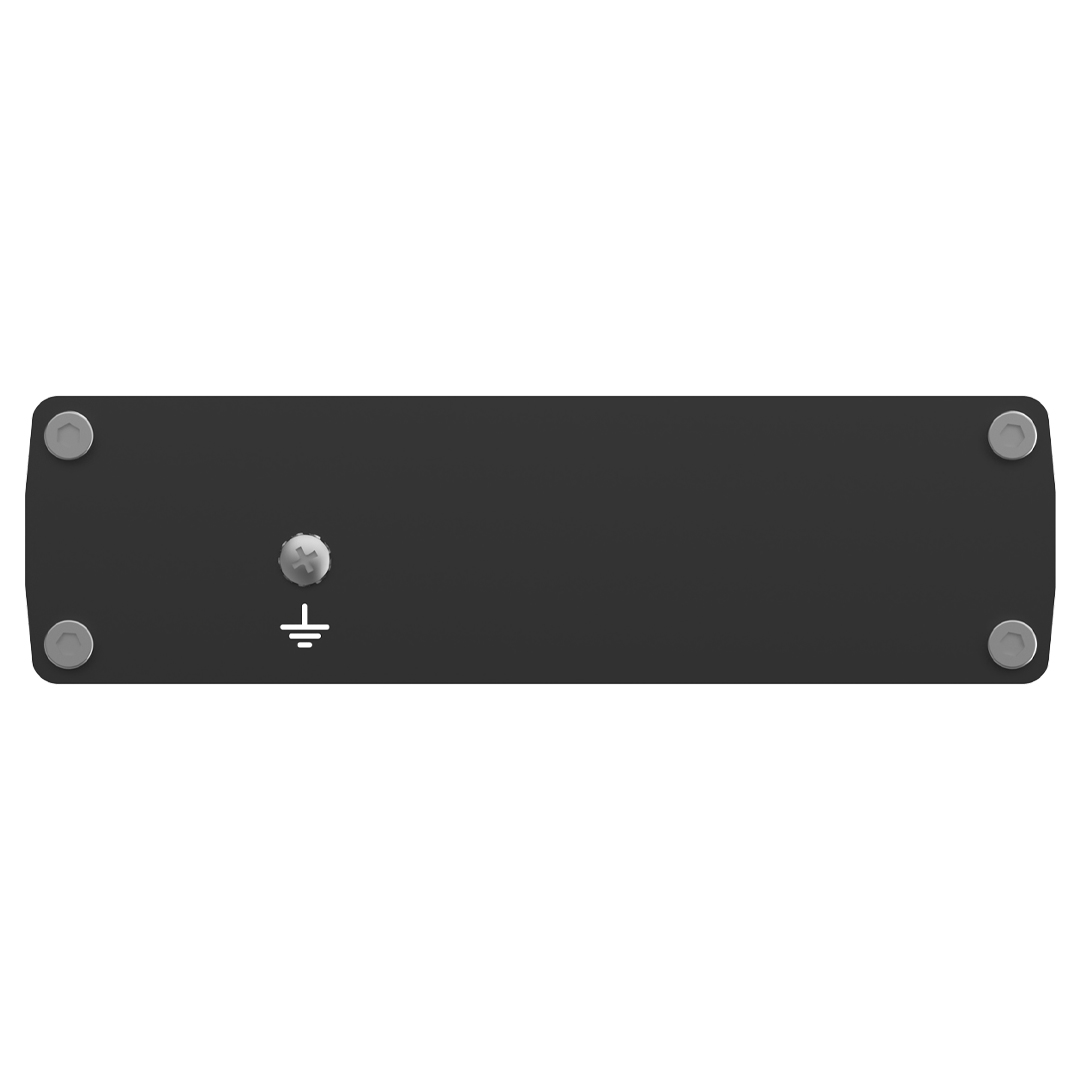

| Other | 1 x Grounding screw |
Physical
| Casing Material | Full aluminium housing |
| Dimensions (W x H x D) | 115 x 32.2 x 101.2 mm |
| Weight | 350 g |
| Mounting Options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP30 |
Regulatory & Type Approvals
| Regulatory | CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark |
EMC Emissions & Immunity
| Standards | EN 55032:2015 EN 55035:2017 EN 301 489-1 V2.2.3 |
| ESD | EN 61000-4-2:2009 |
| Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 |
| EFT | EN 61000-4-4:2012 |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 |
| CS | EN 61000-4-6:2014 |
| DIP | EN 61000-4-11:2004 |
Safety
| Standards | IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020 |
Backed by 2 year Teltonika warranty.
