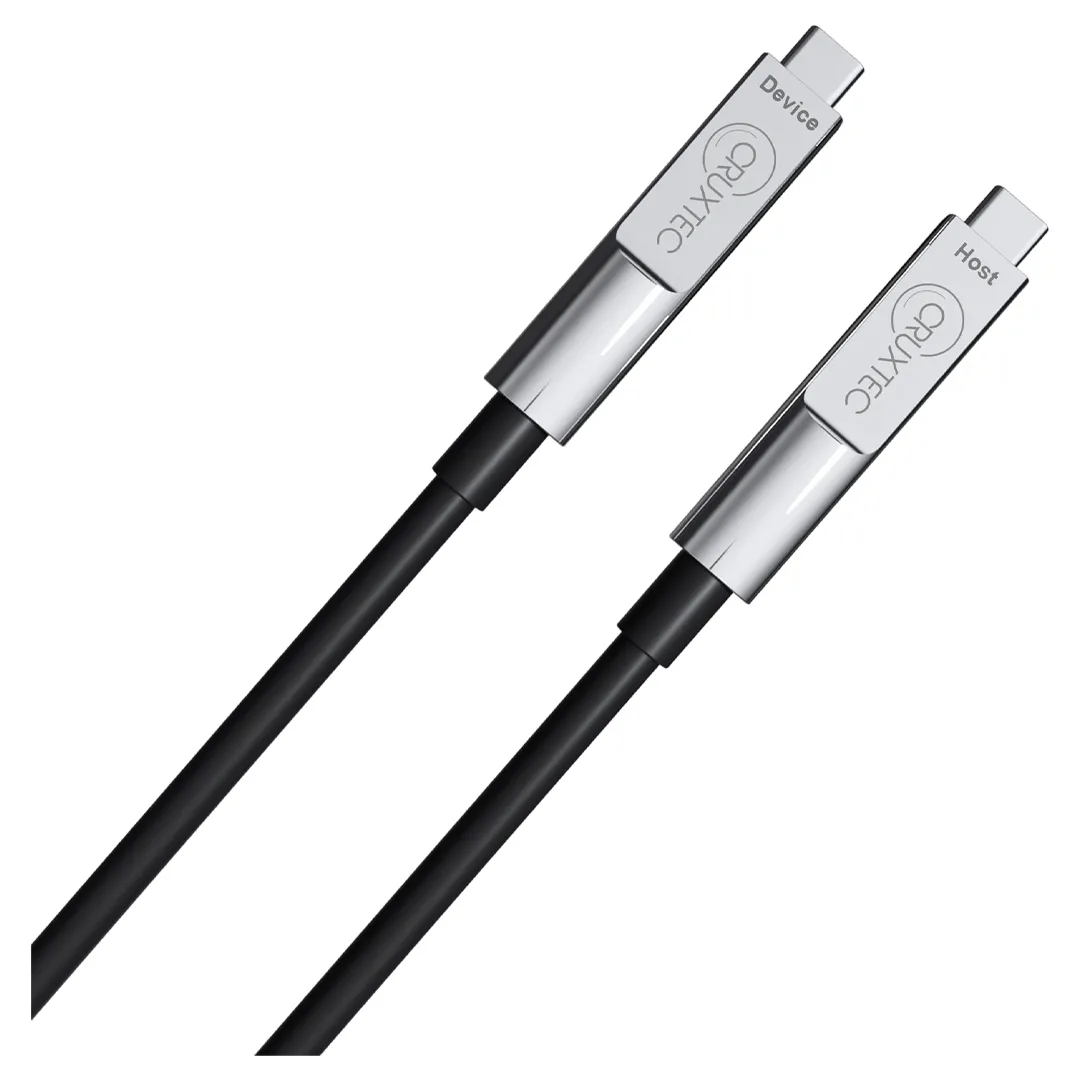

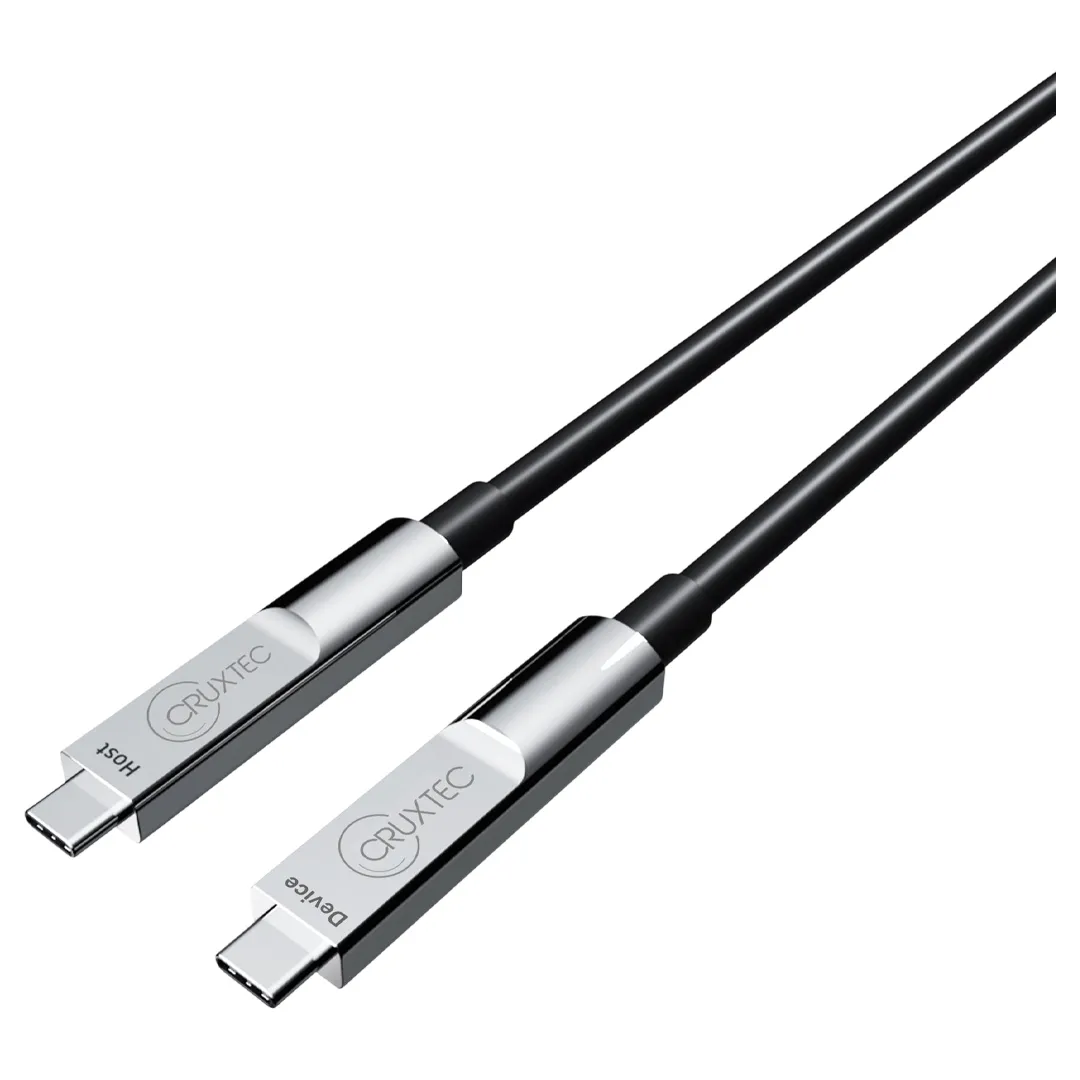

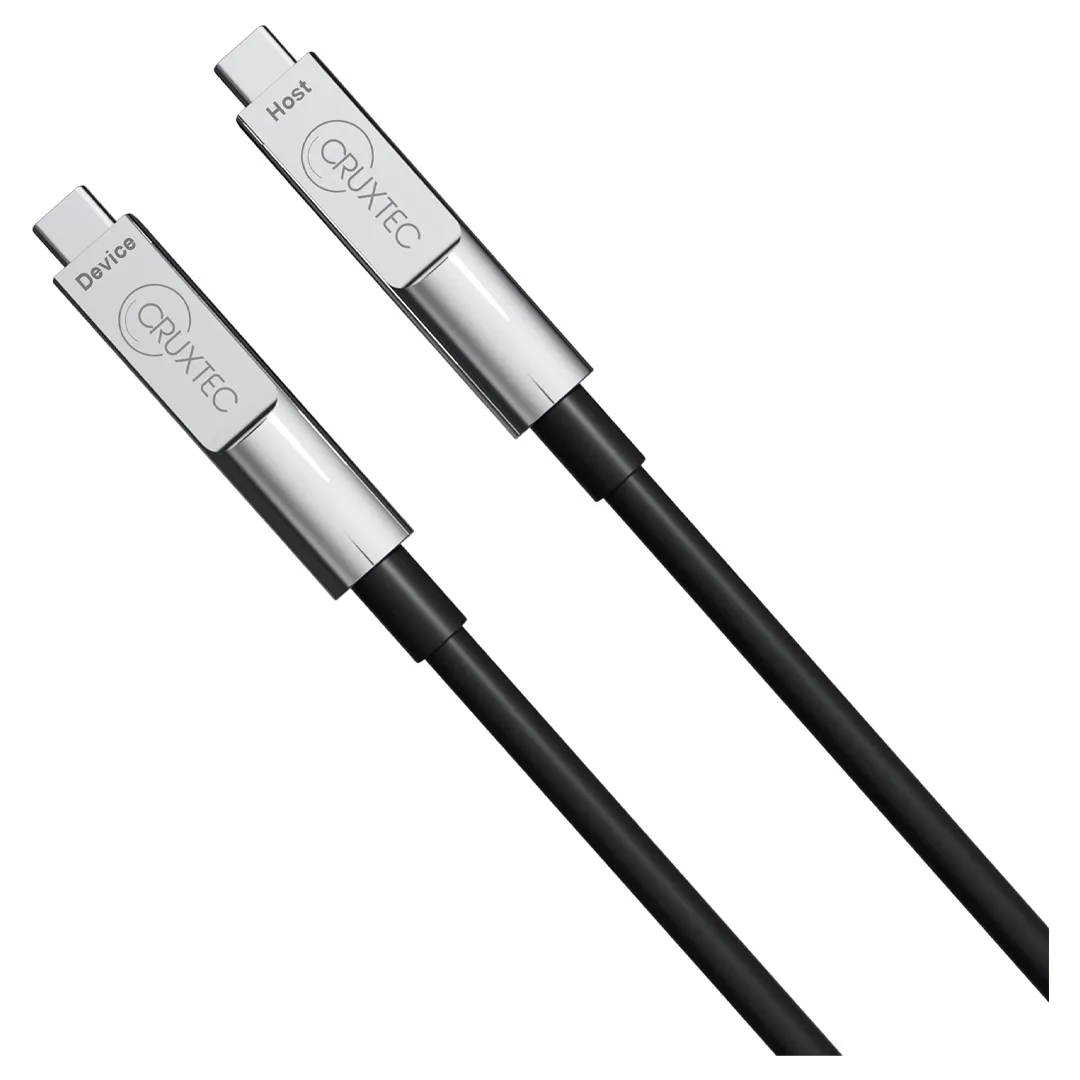

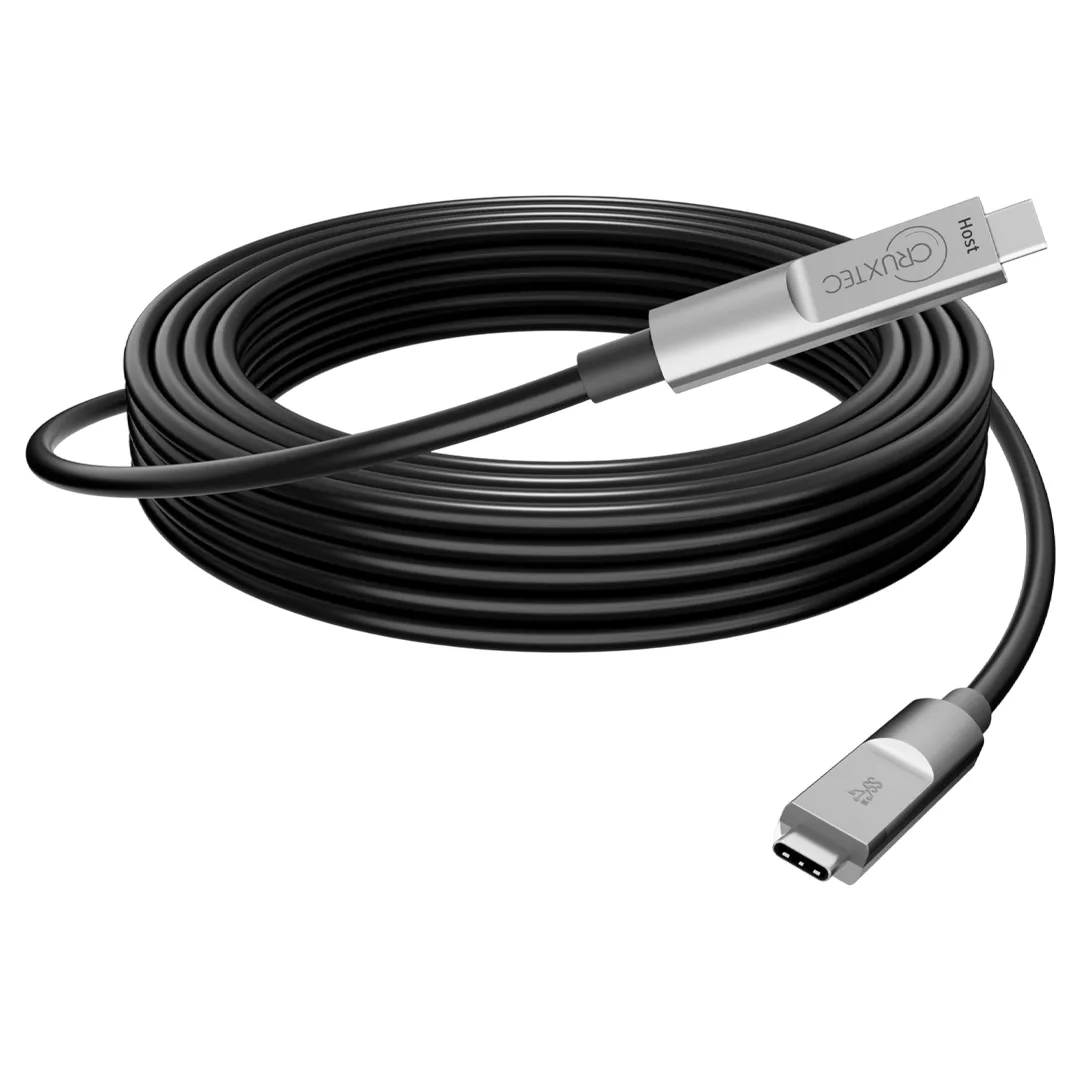

The Cruxtec USB-C USB 3.2 Gen 2 Full-Feature Active Optical Cable delivers up to 10Gbps data transfer speeds, PD 60W fast charging, and support for up to 8K 60Hz video output through a single premium 10 metre USB-C connection. Featuring a lightweight yet durable design with 6 core OM3 optical fibre, zinc-alloy connectors, and a flexible TPE jacket, it's ideal for high-performance connectivity across displays, laptops, workstations, and USB-C devices.
Features
Cruxtec USB-C USB 3.2 Gen 2 Full-Feature 8K60Hz Active Optical Cable with PD 60W
- All-in-one active optical cable combining data transfer, power delivery, and audio/video transmission in a single connection.
- 6-Core OM3 optical fibre ensures seamless 8K60Hz and 4K120Hz video synchronisation.
- Low power consumption and enhanced signal integrity with strong anti-interference performance.
- Durable and lightweight design with premium zinc-alloy connectors and flexible TPE jacket.
High-Speed Bandwidth
USB 3.2 Gen 2, data transfer speeds up to 10 Gbps.
Durable and Lightweight Design with Premium Zinc-Alloy Connectors and Flexible TPE Jacket
All-in-One Active Optical Cable with PD 60W Fast Charging
Combining data transfer, power delivery, and audio/video transmission in a single connection.
6-Core OM3 Optical fibre
Ensures seamless 8K60Hz and 4K120Hz video synchronisation.
Specifications
General Data
| Model Number |
CRUCTEX-CCF10-10-BK |
| Cable Construction |
6-Core OM3 Optical fibre + 9-Core Copper Wire |
| Detailed Structure |
(fibre4C+MID)1C + (fibre4C+MID)1C + (1/0.525B2C+D+AL+HM)1C + 19/0.08T1P + 19/0.08T2C + 90/0.08T*2C + F+D+ADB |
| Connector Type |
Integrated stretch-formed Type-C connector |
| Connector Housing |
Zinc Alloy |
| Cable Jacket |
Black TPE |
| Outer Diameter |
6.5 mm |
| Chipset |
C1BA V1.0 |
| Power Consumption |
250 mW |
| USB Standard |
USB 3.2 Gen 2 |
| Data Transfer Rate |
Up to 10 Gbps |
| Power Delivery |
PD 60W (20V / 3A) Fast Charging |
| Video Transmission |
Supports 4K@60Hz, up to 8K@60Hz and 4K@120Hz |
| Length |
10 m |
| Compatible Devices |
Compatible with computers, laptops, workstations, external drives, PTZ/CCTV/web cameras, keyboards, mice, touchscreens, tablets (iPad), Mac devices, and other high-speed Type-C-enabled laptops. |
| User Tips |
This optical cable is uni-directional for video and audio transmission.
Please ensure the HOST end is connected to the source device (e.g., laptop or computer), and the DEVICE end is connected to the display device (e.g., monitor or TV). |
Backed by a 1 year Cruxtec warranty.
