The TP-Link EAP775-Wall BE9300 Wall Plate WiFi 7 Access Point delivers tri-band WiFi 7 performance with speeds up to 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz for high-density, low-latency network environments. Designed for seamless in-wall deployment, TP-Link EAP775-Wall BE9300 Wall Plate WiFi 7 Access Point features flexible PoE-powered 2.5G connectivity, integrated management via Omada SDN, and support for 380+ concurrent connections across a 100 m2 coverage area.
Features
BE9300 Wall Plate Wi-Fi 7 Access Point
- 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary)
- Flexible and Aesthetic Integration: Versatile mounting design with a paintable cover included for flexible integration. (Painted covers cannot be returned or repaired)
- Multiple Ports with PoE Flexibility: 2x 2.5G Ports (1x PoE+/PoE++ In) + 3x Gigabit Ports (2x PoE Out or 1x PoE+ Out)
- Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network. (Use of Wi-Fi 7 (802.11be) and features including 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features)
- Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
- Advanced Features: Supports centralised cloud management, mesh, and seamless roaming. (Omada mesh, seamless roaming, captive portal, and cloud access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods)
- Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections (The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections) and covers up to 1050 ft² (100 m²) (Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors) for reliable and extensive wireless connectivity.

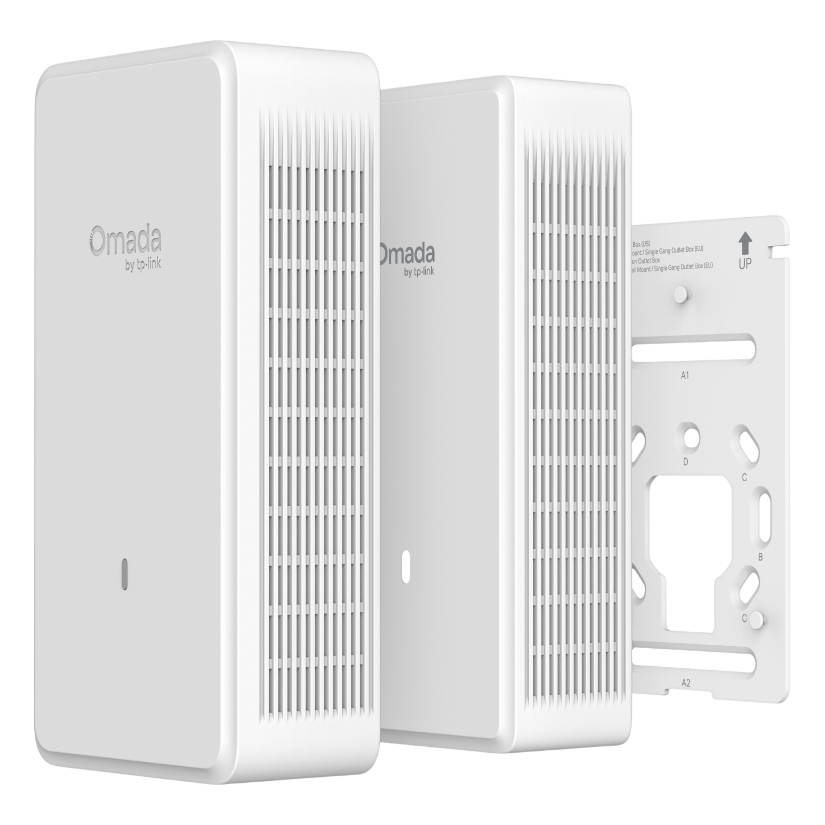

Versatile Mounting Design for Flexible Deployment
Surface Mounting (In-Wall Cabling)
Ease of installation and maintenance.
Surface Mounting (On-Wall Cabling)
Easy installation and maintenance.
Single Gang Outlet Box
No additional wall digging or wiring required.
Dual Gang Outlet Box
No obstruction to the vacant positions of the adjacent outlet box.
Additional Paintable Cover for Aesthetic Integration
Equipped with a paintable cover included at no extra cost, EAP775-Wall can be easily customised to match any backgrounds.
Robust Physical Security with Anti‑Theft Design
Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment and ensuring reliable, uninterrupted connectivity in public areas.
Dedicated Complete, Private Wi-Fi Network in Each Room
- Villa
- Meeting Room
- Office
- Apartment
- Hospitality
- Dormitory
Optimised Wired Performance with 2.5G PoE Ports
2.5G Uplink Port for Reliable Performance
Delivers outstanding speed and stable connectivity in demanding environments.
Versatile Downlink Ports with PoE Flexibility
Includes one 2.5G and three Gigabit ports. Two of the Gigabit ports support flexible PoE Out, offering either two PoE Out ports or one PoE+ Out port to power devices like IP phones and cameras.
Boosted Network Security
- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
Seamless Integration into Omada SDN
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralised cloud management for a highly scalable network.
Build Features

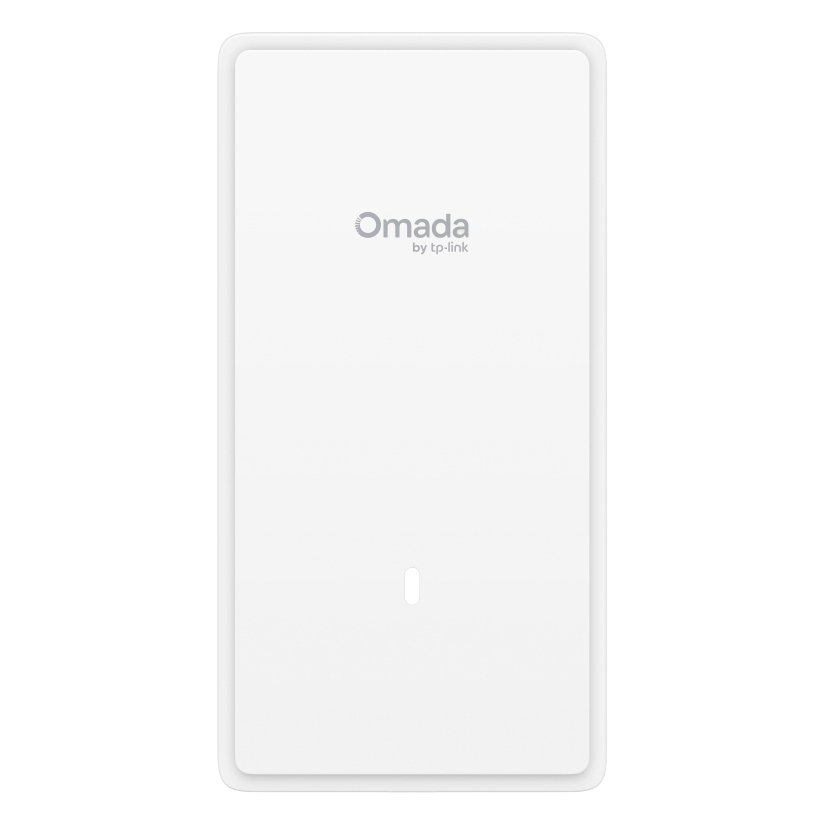

Front

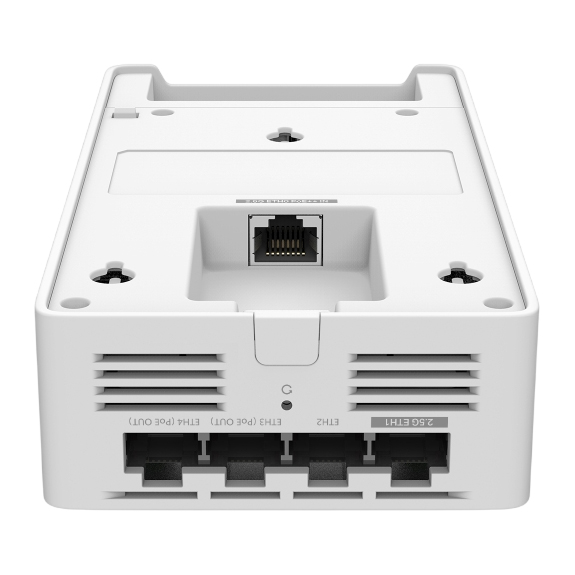

Back
Backed by a 5 year TP-Link warranty.
