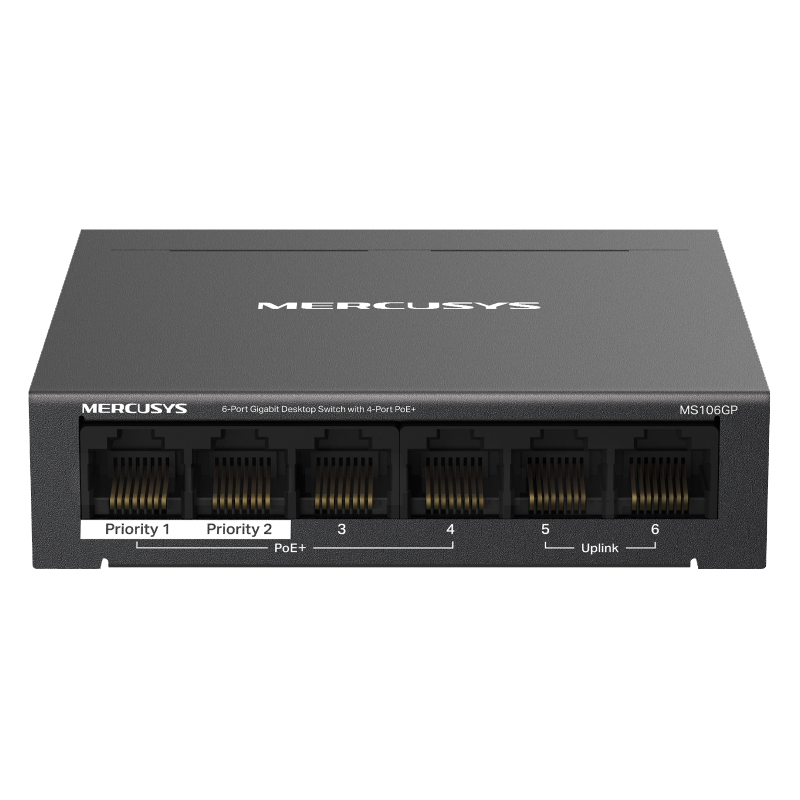

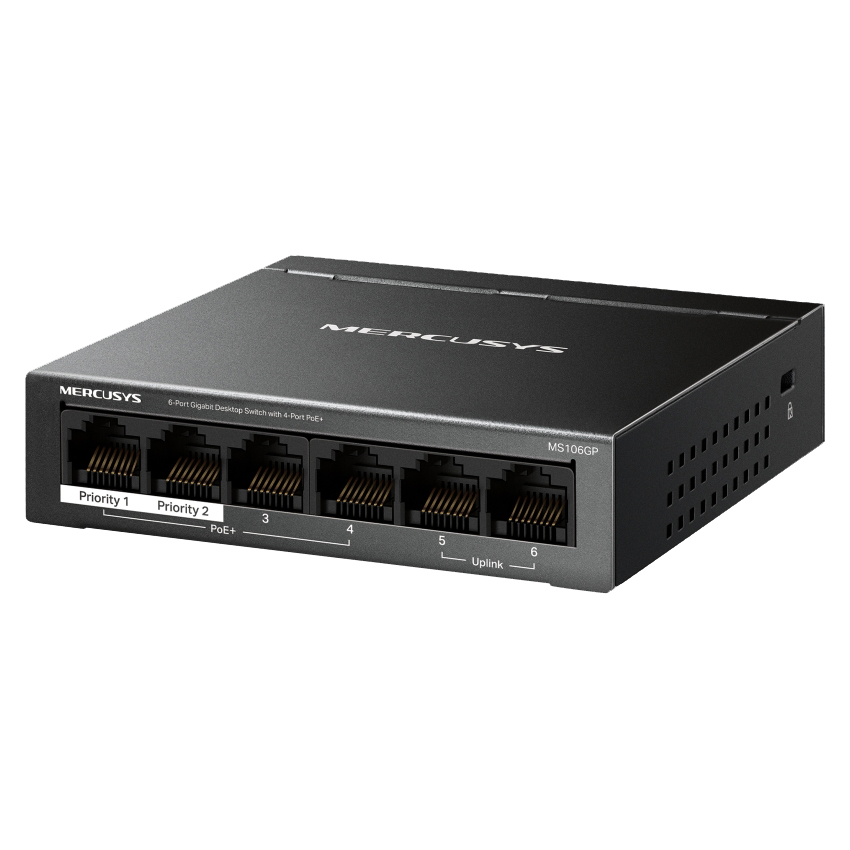

The The Mercusys MS106GP 6 Port Gigabit Desktop Switch delivers simple high-speed networking with all 6 ports supporting Gigabit speeds and 4 with PoE+, providing up to 65W total power for devices such as IP cameras, access points, and IP phones. Designed for easy deployment, MS106GP 6-Port Gigabit PoE+ Switch offers plug and play setup, and a durable fanless metal design for quiet, reliable operation.
Features
6-Port Gigabit Desktop Switch with 4-Port PoE+
Connect fast - Keep it simple
- Fast Gigabit Ports: 6x Gigabit RJ45 ports with 4 PoE+ ports
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports (PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors). Works with IEEE 802.3af/at compliant PDs
- 2x Uplink Ports: MS106GP provides 2x uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR
- Longer transmission: Increases PoE transmission distance to 250 m by Extend Mode (The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type)
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Plug and Play: Simple to use, saving time and effort
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
High Power PoE+ for Network Deployment
Compliant with the 802.3af/at Powered Devices, each of the 4 PoE+ ports supports a maximum power supply of 30 W. The total 65 W PoE power budget (PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors) can be applied in various scenarios such as surveillance, offices, dormitories, and small businesses, since MS106GP is compatible with devices such as IP cameras, APs, IP phones, PCs, etc.
Long-Range up to 250 m with Extend Mode
Extend Mode (The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type) increases PoE transmission distance to 250 m. MS106GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.
Port Prioritisation
Prioritising the data of specific ports would ensure the high quality of delicate applications, such as voice and video. (PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors)
PoE Auto Recovery
When a PoE-powered device stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS106GP offers auto-negotiation and automated MDI/MDIX. There is no additional configuration needed.
Durable, Silent, and Flexible
Durable & Silent
MS106GP’s durable metal case allows for a long network life. Its fanless design reduces power consumption and noise generated.
Wall Mount & Small
MS106GP is flexible and small, you can put it on desk or wall mount to meet your demand.
Better for Multiple Scenarios
Surveillance
For IP Cameras
Small Office
For computers and printers
Small Business
For APs in cafés, stores and restaurants
Conference Call
For IP Phones
Backed by a 2 year Mercusys warranty.
