TP-Link ES206XPP-M2 Omada 5 Port 2.5GBASE-T Switch With 4 Port PoE++

The TP-Link ES206XPP-M2 Omada Easy Managed Switch features five 2.5Gbps RJ45 ports including four PoE++ ports, plus a 10Gbps SFP+ slot, delivering high-speed multi-gig networking and power distribution for devices including, WiFi 6/7 access points, gaming systems, NAS devices, and PoE lighting. Featuring a compact fanless metal design with desktop or wall mounting support, the TP-Link ES206XPP-M2 also provides a 120W PoE budget with up to 90W per port, alongside Omada cloud management for streamlined network control.

Features

---

Omada 5-Port 2.5G BASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++

• 5x 2.5 Gbps RJ45 ports (4x 802.3af/at/bt-compliant PoE++)
• 1x 10 Gbps SFP+ slot
• 120W PoE budget, with up to 90W for each PoE port (PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors)
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via the web or the Omada app (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models)
• Automatic Loop Prevention, VLAN, Port Isolation, QoS(Port-based/802.1p/DSCP QoS are supported under Standalone Mode), and IGMP Snooping
• Fanless design for silent operation

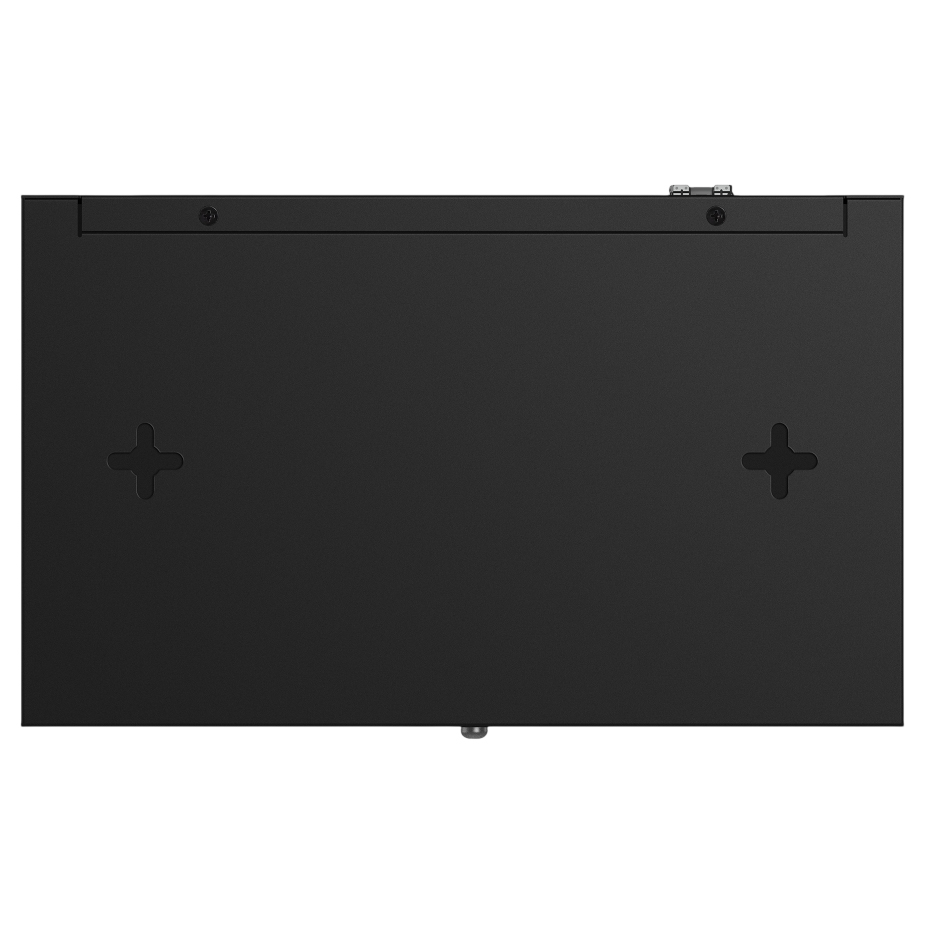

• Durable metal casing and desktop/wall mounting design
• Traffic Separation
• Traffic Prioritisation

Power over Ethernet, Flexible Network Deployment

Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

• 4x 2.5G POE++ RJ45 Ports
• Up to 90W per Port
• Total 120W PoE Budget
• Compatible with 802.3af/at/bt PoE and non-PoE devices
• Access Point
• Gaming Consoles
• 8K/4K Video
• Computer

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices

• 2.5G Wi-Fi 7/6 APs
• 2.5G Gaming Computer
• 2.5G NAS/Server
• PoE Lighting

Works with Omada Central Essentials for Free and Easy Cloud Management

Omada Central Essentials provides free and easy-to-use centralised cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for small businesses and home office.

• Easy On-Site Setup with Auto Device Identification and One-Click Adoption
• Easy Remote Setup with Zero-Touch Provisioning (ZTP)
• Visualised Management Cost-Performance Solution

Cost-Performance Solution

Looking for free, worry-free cloud management for life?

Omada Central Essentials - Lifetime Free Cloud without Additional Fees

On-site work eating up time and resources?

Reduce Maintenance Costs - Manage and Maintain from Anywhere

Multiple Application Scenarios

Wi-Fi Coverage

Works with Wi-Fi 6/7 Access Points

LAN Party

Works with Gaming Consoles and TVs

Wired Connections

Works with Non-PoE Devices such as PCs and Printers.

Build Features

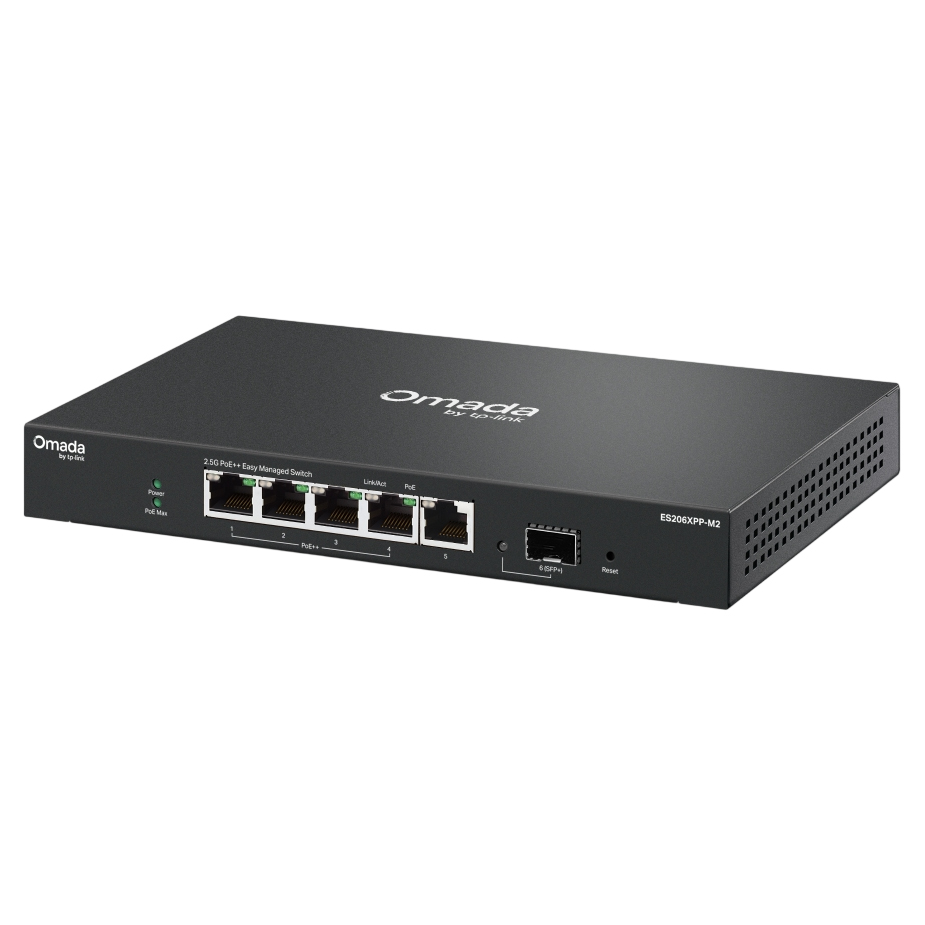

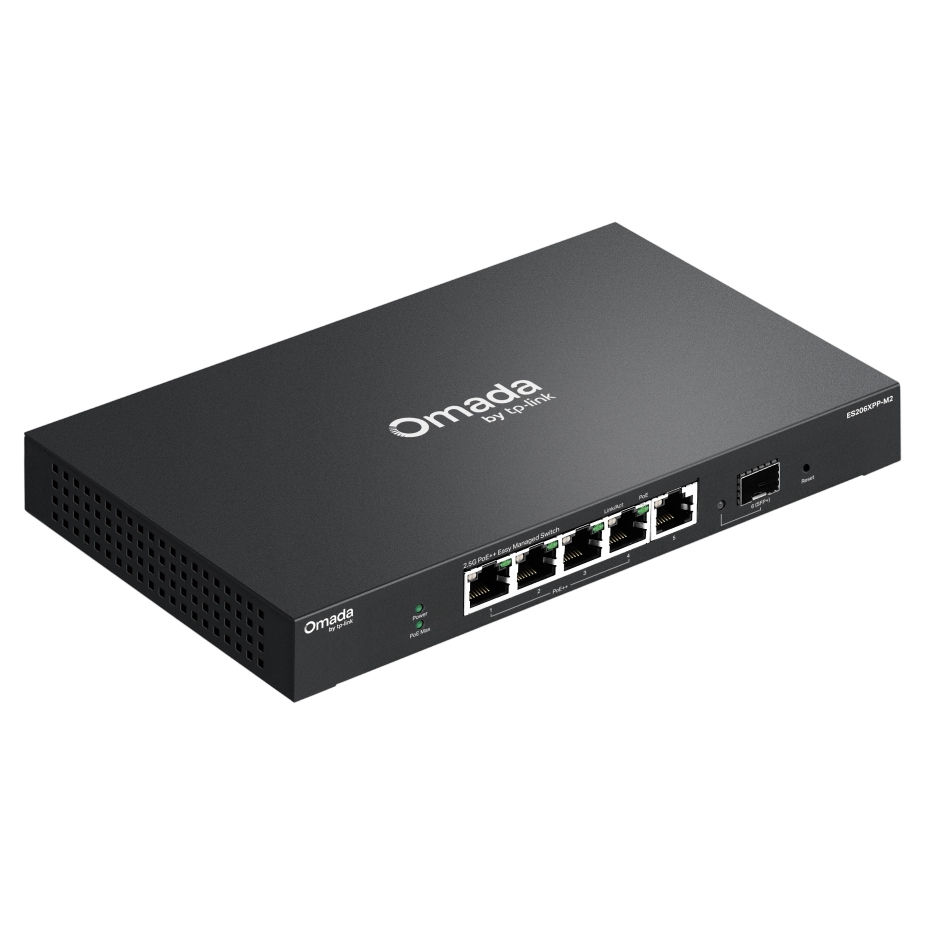

Front View

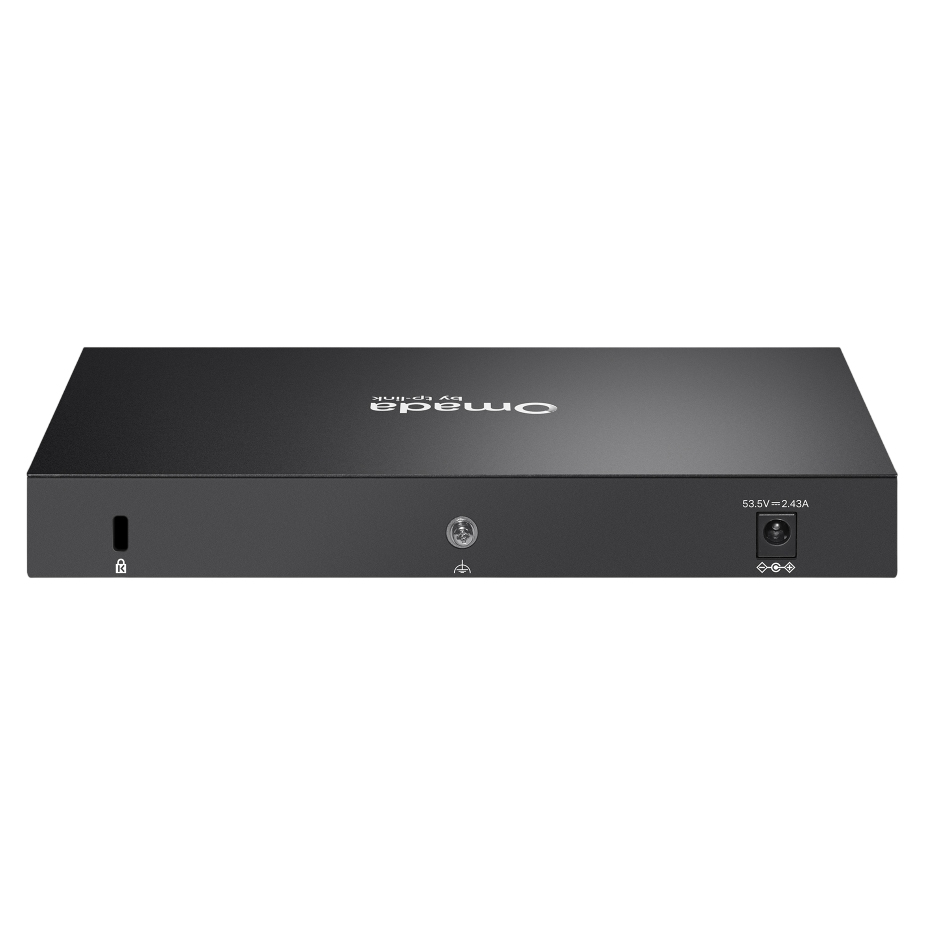

Back View

Dimensions
