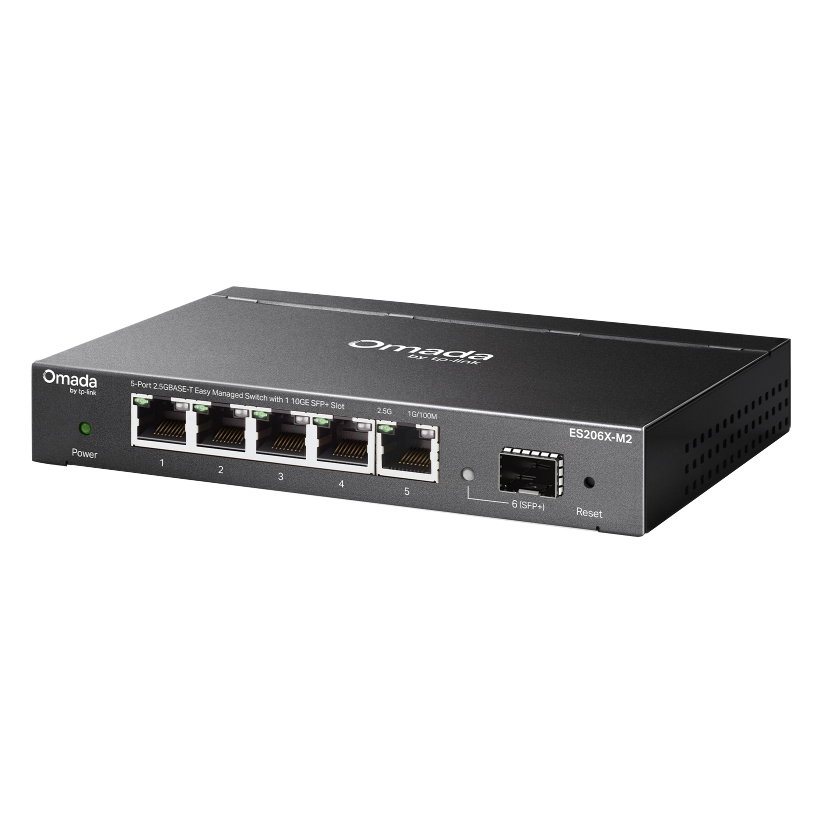

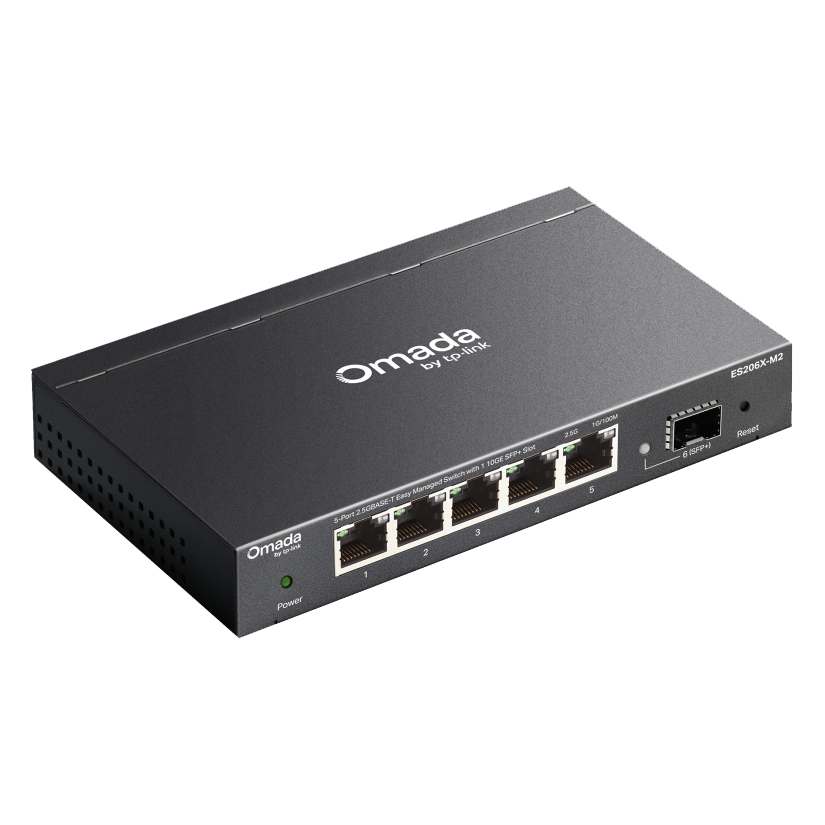

The TP-Link ES206X-M2 Omada Easy Managed Switch features five 2.5Gbps RJ45 ports and a 10Gbps SFP+ slot, delivering high-speed multi-gig networking for gaming PCs, NAS systems, WiFi 6/7 access points, and 4K media streaming. Featuring a compact fanless metal design with desktop or wall mounting support, the TP-Link ES206X-M2 also supports cloud management through the Omada platform for streamlined network control.
Features
Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot
- 5x 2.5 Gbps RJ45 Ports
- 1x 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app (These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models)
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
- Traffic Separation
- Traffic Prioritisation
- Automatic Loop Prevention
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth
- 2.5G Wi-Fi7/6 APs
- 2.5G Gaming Computer
- 2.5G NAS/Server
- 4K Video
Cost-Performance Solution
Looking for Free, Worry-Free Cloud Management for Life?
Omada Central Essentials - Lifetime Free Cloud without Additional Fees
On-Site Work Eating Up Time and Resources?
Reduce Maintenance Costs - Manage and Maintain from Anywhere
Works with Omada Central Essentials for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use cloud centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- Easy On-Site Setup with Auto Device Identification and One-Click Adoption
- Easy Remote Setup with Zero-Touch Provisioning (ZTP)
- Visualised Management
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Desktop Mounting

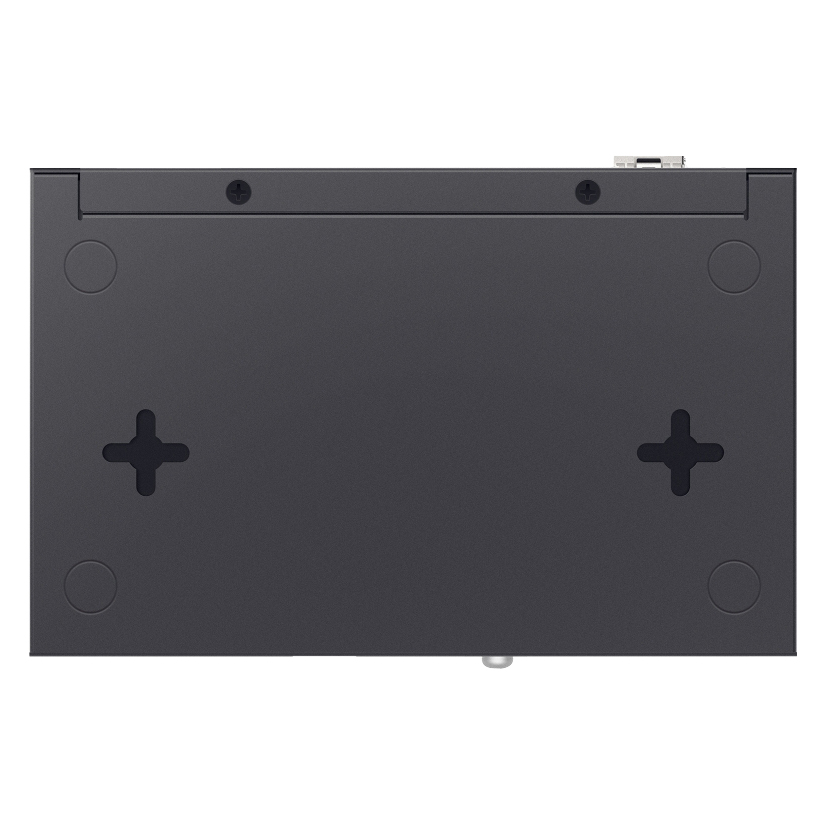

Wall Mounting
Build Features

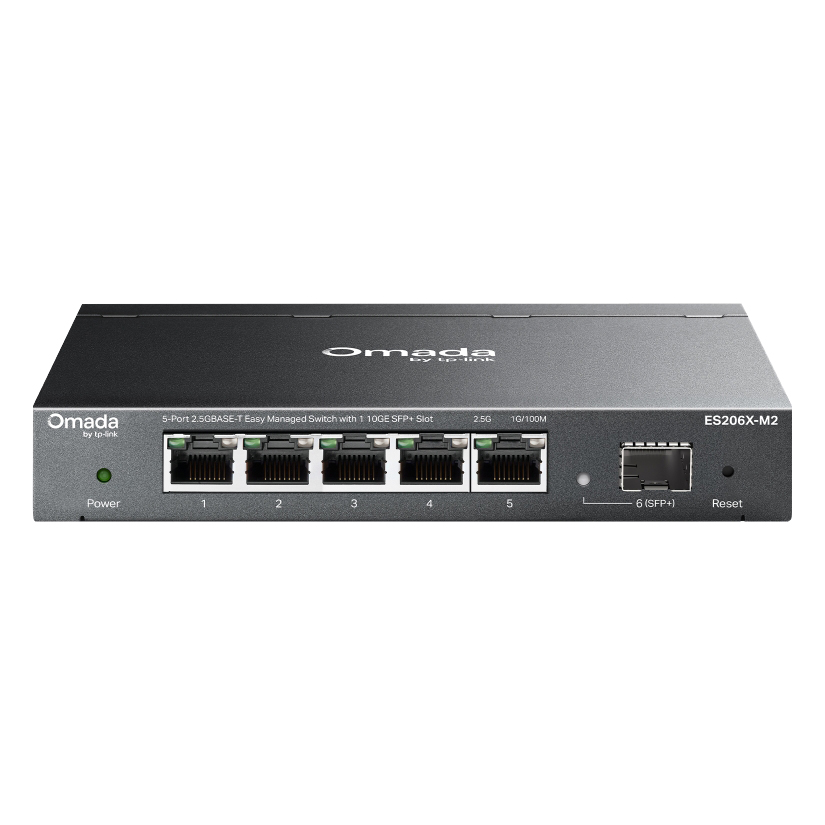

Front View

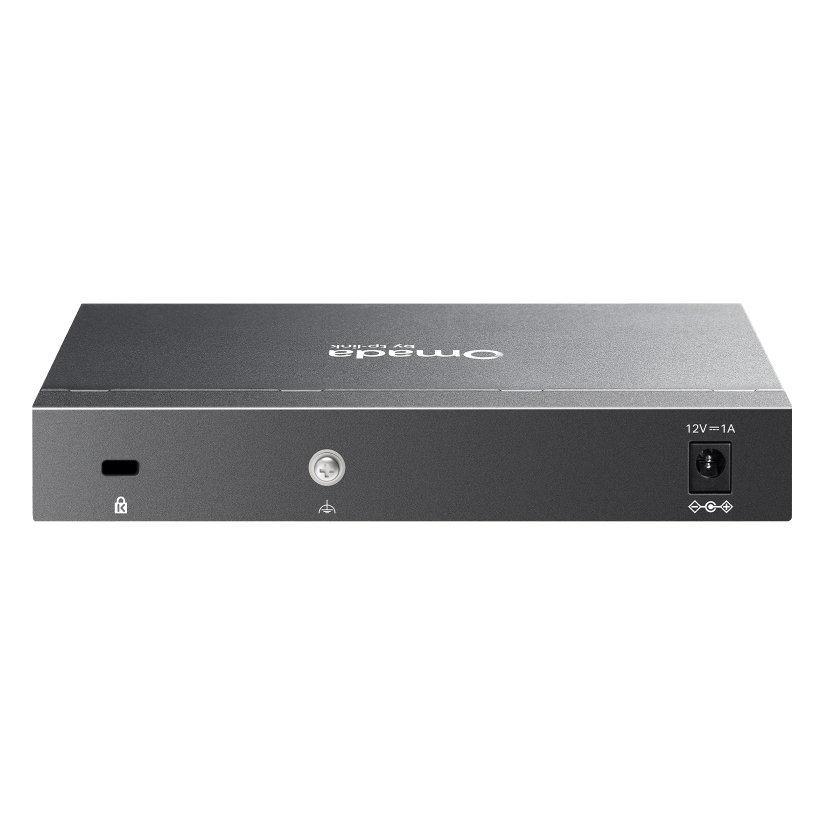

Back View
Dimensions
Specifications
General Data
| Model Number |
ES206X-M2 |
| What's Included |
ES206X-M2
Power Adaptor
Rubber Feet
Installation Guide |
| Environment |
Operating Temperature: -5~40 (23~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Certification |
FCC, CE, RoHS |
Hardware Features
| Interface |
5x 2.5 Gbps RJ45 Ports
1x 10 Gbps SFP+ Slot
Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity |
Fanless |
| Installation |
Desktop
Wall Mount |
| Physical Security Lock |
Yes |
| Power Supply |
DC Power Adaptor (Output: 12 VDC / 1 A) |
| Dimensions ( W x D x H ) |
6.2 x 4.0 x 1.0 in (158 x 100.7 x 25.4 mm) |
| Surge Protection |
±6kV for Ethernet Ports |
Performance
| Packet Buffer Memory |
640 KB |
| Jumbo Frame |
10 KB |
| Switching Capacity |
45 Gbps |
| Packet Forwarding Rate |
33.48 Mpps |
| MAC Address Table |
16K |
Software Features
| Quality of Service |
Port-based/802.1p/DSCP QoS(Port-based/802.1p/DSCP QoS are supported under Standalone Mode)
8 Priority Queues
Priority Schedule Mode:
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control:
Port-Based Rating Limit
Storm Control:
Multiple Control Modes (kbps/pps)
Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features |
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
One-to-One
Many-to-One
Ingress/Egress/Both
Port Statistics
Port Mirror Status
Traffic Statistics
802.1ab LLDP |
| L2 Multicast |
IGMP Snooping:
IGMP v1/v2/v3 Snooping
Fast Leave |
| VLAN |
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
Max 32 VLAN Groups
4K VID |
| Transmission Method |
Store-And-Forward |
Management Features
| Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralised Management |
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Cloud Access |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features |
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
(These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.)
|
Backed by a 5 year TP-Link warranty.
