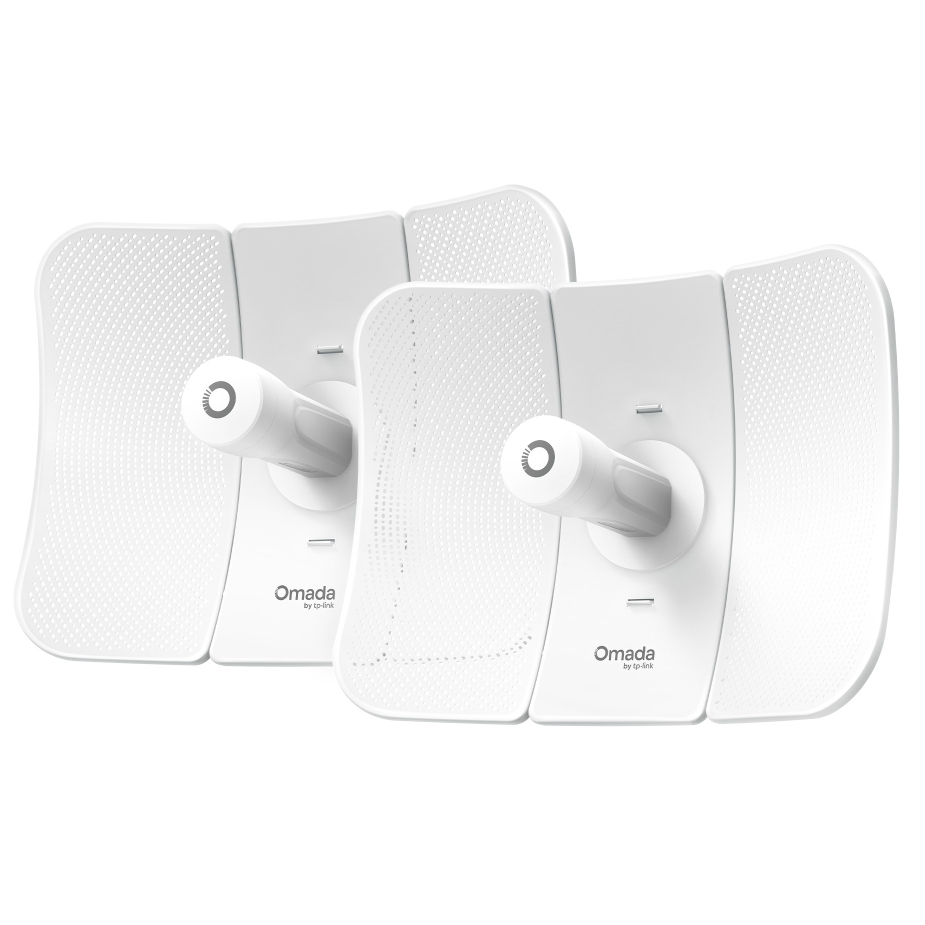

The TP-Link Omada Beam Bridge 5 UR KIT is a business-grade 5GHz wireless bridge delivering connectivity with an ultra-range transmission distance of up to 15km using 23dBi high-gain directional antennas. Built to withstand harsh outdoor deployments, the Bream Bridge 5 UR KIT features IP65 weatherproof protection, -40 degree to 70 degree Celsius operating range, and seamless plug-and-play setup into Omada SDN integration for remote management.
Features
Beam Bridge 5 UR KIT
Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge
- Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas.*
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box.
- App-Guided Alignment: Visualised app-guided alignment for long-distance setups and instant speed testing for installation verification.
- Simple PoE Deployment and Power Supply: 1x Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs.
- Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40 °C to +70 °C.**
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralised management via Web UI or App†
Business-Grade 15-km Ultra-Range Wireless Connectivity
Delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission.
Perfect for Remote Outdoors
- Forest (Fire Monitoring)
- Construction Sites or Mining Areas (Construction Safety Monitoring)
- Island (Meteorological Data Transmission)
- Power Towers & Substations (Equipment Monitoring and Data Transmission)
Plug-and-Play Effortless Installation
Auto-Pairing, No Manual Setup Needed
Agile LED Signal Indicators for Easy Alignment
App-Guided Alignment for Optimal Performance
- Effortless App-Guided Alignment
- Instant Speed Testing for Installation Verification at Your Fingertips
Outdoor-Ready Hardware for Easy Use
- IP65 Weatherproof
- 6 kV Lightning Protection
- -40 °C to 70 °C Working Range
- Wind Resistance
Seamless Integration into Omada SDN
Build Features

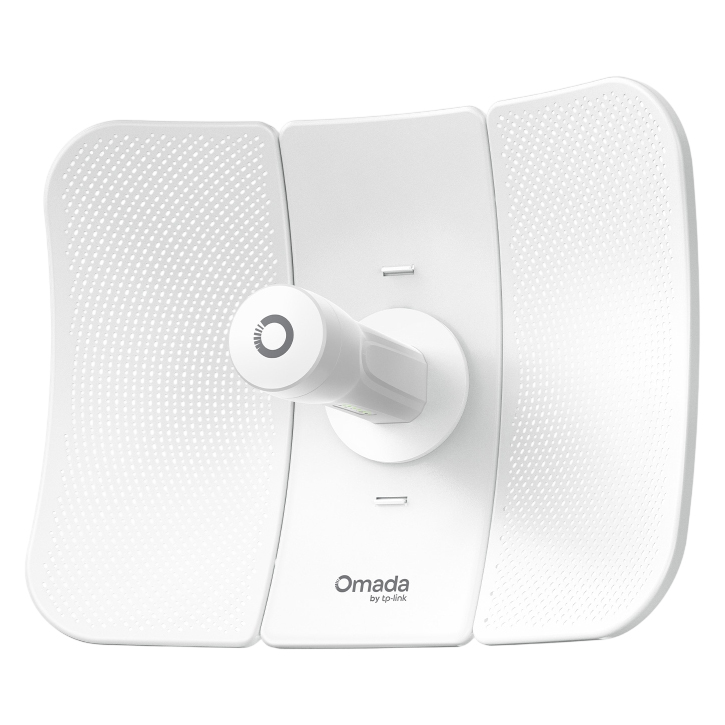

Front View

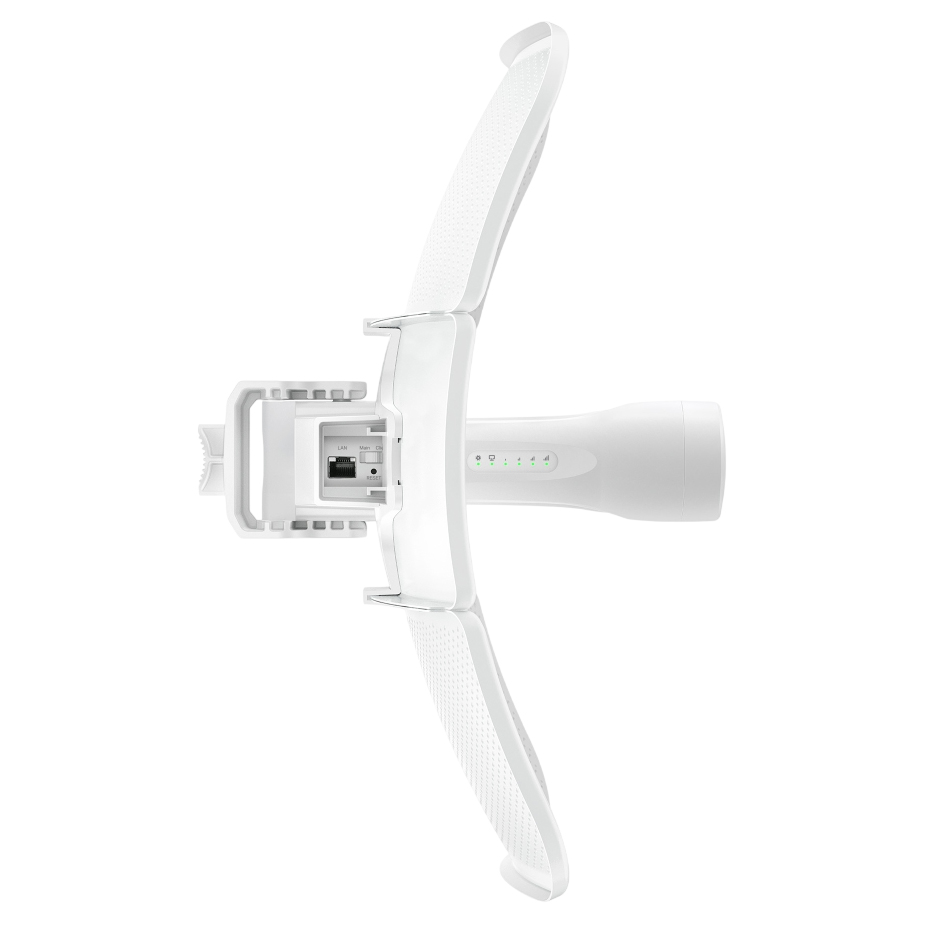

Top View
Specifications
General Data
| Model Number |
TL-BEAM-BRIDGE-5-UR-KIT |
| Certification |
CE, FCC, RoHS |

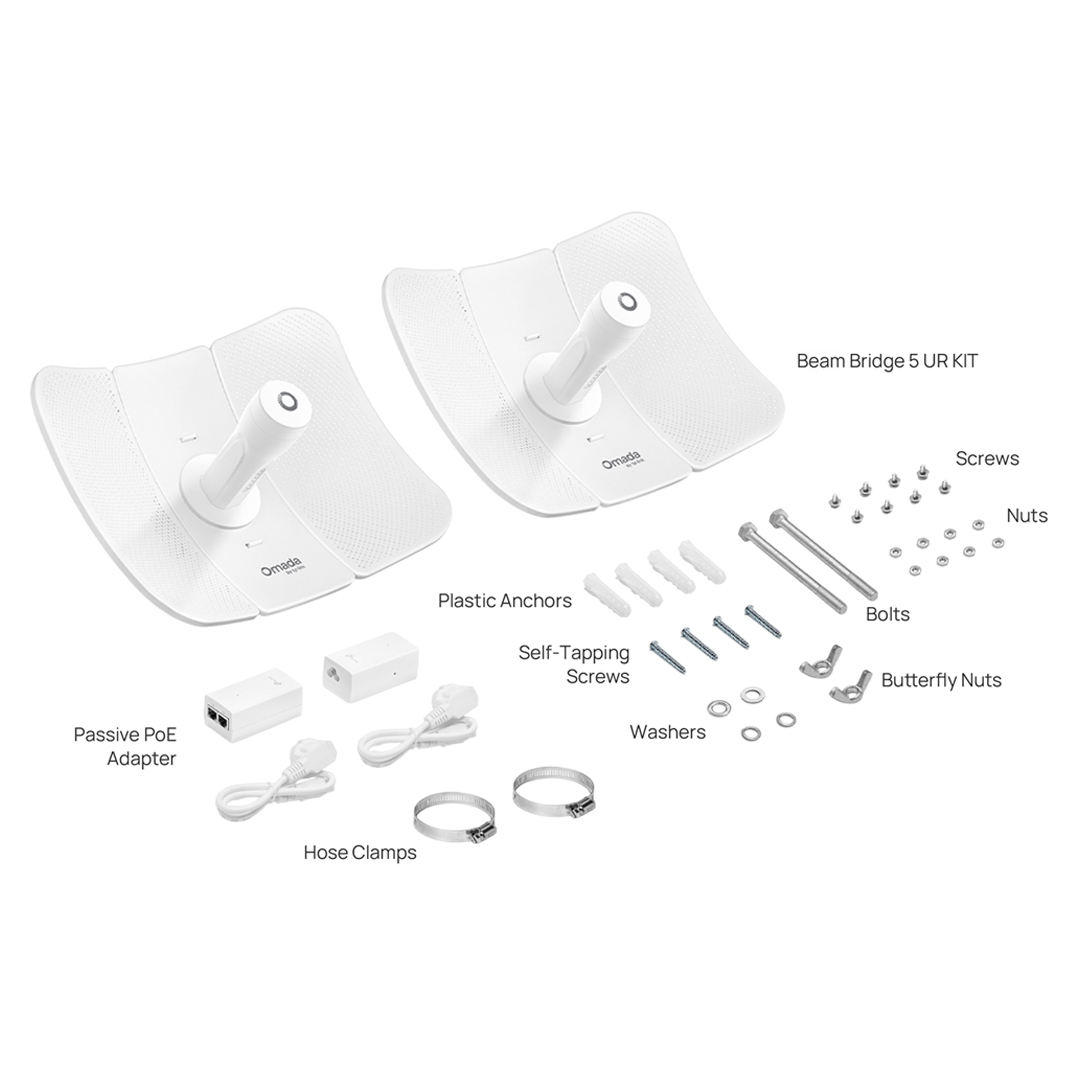

| What's Included |
Beam Bridge 5 UR KIT
Installation Guide
Mounting Kit
Passive PoE Adaptor
Power Cord |
| Lightning Protection |
Ethernet Ports: ±6 kV |
| Environment |
Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing |
| Weight |
1.1 kg (2.43 lb) |
Hardware Features
| Interface |
1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In |
| Button |
1 x Reset Button
1 x System Mode Selection Button |
| DIP Switch |
Role Switch |
| Power Supply |
802.3af PoE (1,2pins; 3,6pins)
24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adaptor Included) |
| Max. Power Consumption |
15.8W |
| Dimensions (W x D x H) |
14.4 x 11.0 x 8.1 in (366 x 280 x 207 mm) |
| Antenna |
External 2x2 Dual-Polarised Directional MIMO Antennas
5 GHz: 23 dBi |
| Antenna Beamwidth |
Horizontal: 9°, Vertical: 7° |
| Weatherproof Enclosure |
IP65 |
| Bandwidth |
5 GHz: 20 MHz / 40 MHz / 80 MHz |
| Mounting |
Pole Mounting (Kits Included) |
Wireless Features
| PtP |
Yes |
| Transmission Distance |
15 km (9.3 mi) |
| Wireless Standards |
IEEE 802.11 a/n/ac |
| Frequency |
5 GHz |
| Signal Rate |
5 GHz: Up to 867 Mbps |
| Wireless Functions |
MU-MIMO: 5G 2x2 MU-MIMO DL
Maximum number of associated STAs: 8
Speed Test
Channel Optimisation
Antenna Alignment
ACS (Automatic Channel Selection)
Rate Limit
Guest Network |
| Wireless Security |
VLAN
Rogue AP Detection
Maximum number of MAC Filter: 4,000
Wireless Encryption |
| Transmission Power |
CE:
<23 dBm (5 GHz, U-NII-1/2A, ERIP)
<30 dBm (5 GHz, U-NII-1/2C, ERIP)
FCC:
<27 dBm (5 GHz, U-NII-1)
<27 dBm (5 GHz, U-NII-3) |
Management Features
| Omada App |
Yes |
| Restore & Backup |
Yes |
| Firmware Update via Web |
Yes |
| NTP |
Yes |
| Centralised Management |
Omada Central (Cloud-Based)
Omada Hardware Controller
Omada Software Controller |
| Cloud Access |
Yes. Require the use of an Omada Controller. |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| SNMP |
Yes |
| SSH |
Yes |
| Web-Based Management |
Yes |
| Zero-Touch Provisioning |
Yes |
Backed by a 3 year TP-Link warranty.
