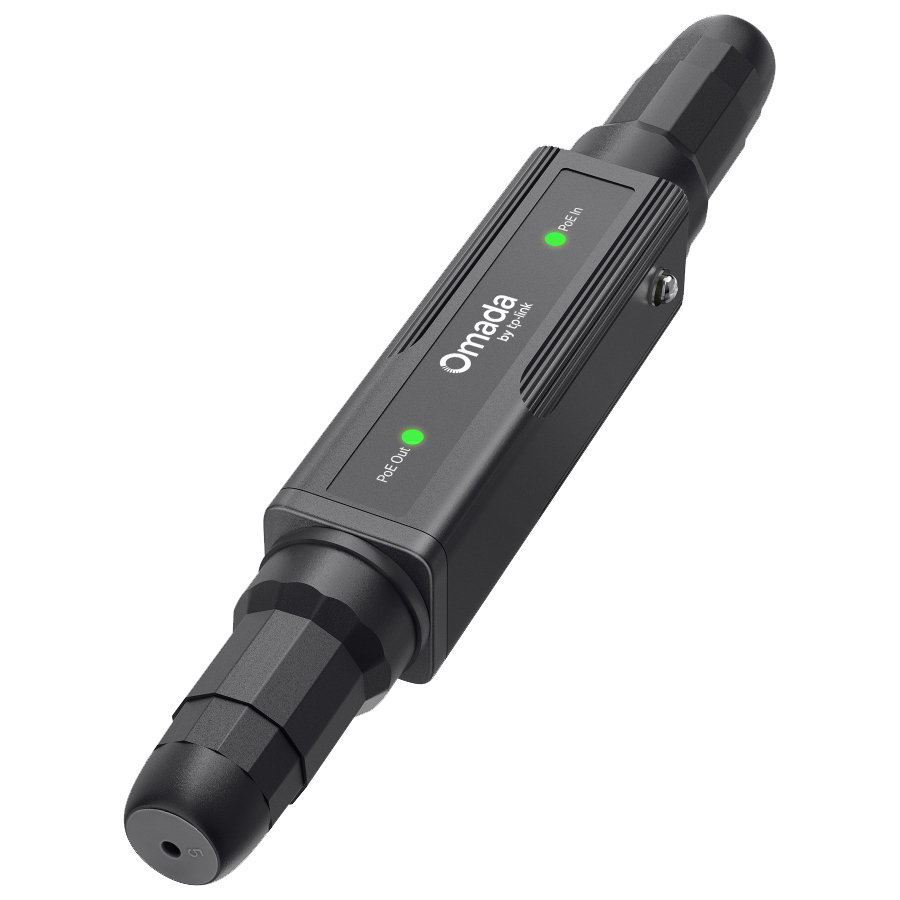

TP-Link POE20E-Outdoor Omada PoE+ Extender

The TP-Link POE20E-Outdoor Omada PoE+ Extender is designed to extend both power and gigabit data transmission up to an additional 100 metres while delivering up to 30W of power for devices such as IP cameras and access points. Built with an IP68 weatherproof enclosure and operating temperatures from -40 degrees to 6 degrees Celsius, the POE20E-Outdoor network extender ensures reliable network extension in harsh outdoor environments.

Features

---

Omada PoE+ Extender

The POE20E-Outdoor is a rugged Gigabit PoE+ Extender engineered to overcome network distance limitations in demanding outdoor environments. It seamlessly extends both data and power an additional 100 meters at full Gigabit speeds, delivering up to 30W of 802.3af/at compliant PoE+ to power devices like IP cameras and access points. Built for ultimate reliability, its IP68-rated weatherproof enclosure and an wide operating temperature range of -40°C to 65°C ensure flawless performance in any weather. Offering simple Plug-and-Play installation and an extended range of up to 250m (POE20E-Outdoor features an adaptive data rate design. Link stability may be affected by cable length, cable quality, and the characteristics of the connected devices. Under certain conditions—such as using 160–170m Cat5e cables (tested in lab environments)—intermittent connectivity may occur. To resolve this issue(1) Manually configure the connected device to operate at 10 Mbps full-duplex or enable Extend Mode on the PSE, or (2) Adjust the cable length to avoid the affected range.) for lower-speed applications, the POE20E-Outdoor is the ideal solution for deploying surveillance and network hardware in remote locations where power and distance are a challenge.

• 2x 10/100/1000 Mbps RJ45 ports
• Compliance with 802.3af/at devices
• Supplies up to 30 W, which meets the power consumption requirements of most IP cameras
• Extends a PoE/PoE+ network connection to 200 m (100 m+100 m)/500 m (250 m+250 m) (POE20E-Outdoor features an adaptive data rate design. Link stability may be affected by cable length, cable quality, and the characteristics of the connected devices. Under certain conditions—such as using 160–170m Cat5e cables (tested in lab environments)—intermittent connectivity may occur. To resolve this issue(1) Manually configure the connected device to operate at 10 Mbps full-duplex or enable Extend Mode on the PSE, or (2) Adjust the cable length to avoid the affected range.) from the PoE power sourcing equipment
• Outdoor Weatherproof: IP68 dust &water proof; Wide operation temperatures of -40 to 65 °C and 6KV lightning protection further ensure stable operation against harsh outdoor conditions.
• Plug-and-Play, requires no configure
