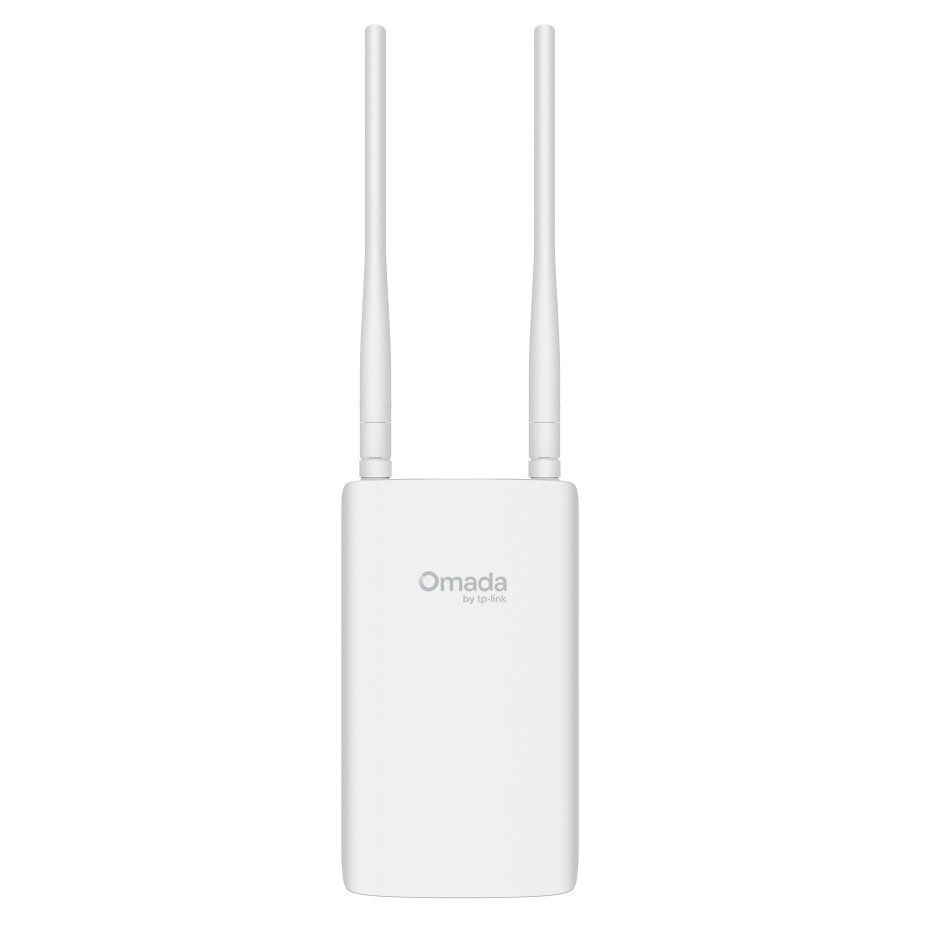

The TP-Link EAP603-Outdoor AX1800 Access Point delivers 1.8Gbps WiFi 6 speeds, advanced dual-band performance with long-range omnidirectional coverage, designed for high-density wireless connectivity across outdoor environments. IP65-rated weather protection, PoE+ support, and Omada SDN integration with mesh networking and seamless roaming provide scalable, centrally managed deployment for business-grade outdoor networking.
Features
Omada Omni-Directional AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
- Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz. (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.)
- Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage. (The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.)
- PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adaptor included).
- Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
- Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
- Advanced Features: Omada Mesh, Seamless Roaming, and Centralised Cloud Management. (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers.)
Power Up Your Business with Superior Wi-Fi6 Speeds
- 5 GHz: 1201 Mbps + 2.4 GHz: 574 Mbps - 1775 Mbps
- HE 80
- 1024 QAM
- MU-MIMO
- OFDMA
Perfect for Outdoor Wi-Fi Coverage
- Yard
- Shed/Barn
- Farm
- Swimming Pool
- Outdoor Café
- Park
Long-Range Omni-Directional Coverage
2x external antennas equipped with high-power amplifiers utilise Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments. (The advertised coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.)
- 2.4 GHz up to 2150 ft/200 m
- 5 GHz up to 3200 ft/300 m
Flexible Deployment with PoE Support
Powered with PoE+ Switch
Using the Provided Passive PoE Adaptor
Seamless Connectivity with Mesh and Roaming
Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Designed for Outdoors
The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments.
- IP65 Weatherproof
- 6kV Lightning Protection
- -30 °C-70 °C Working Range
- Wind Resistance
Easy and Quick Setup

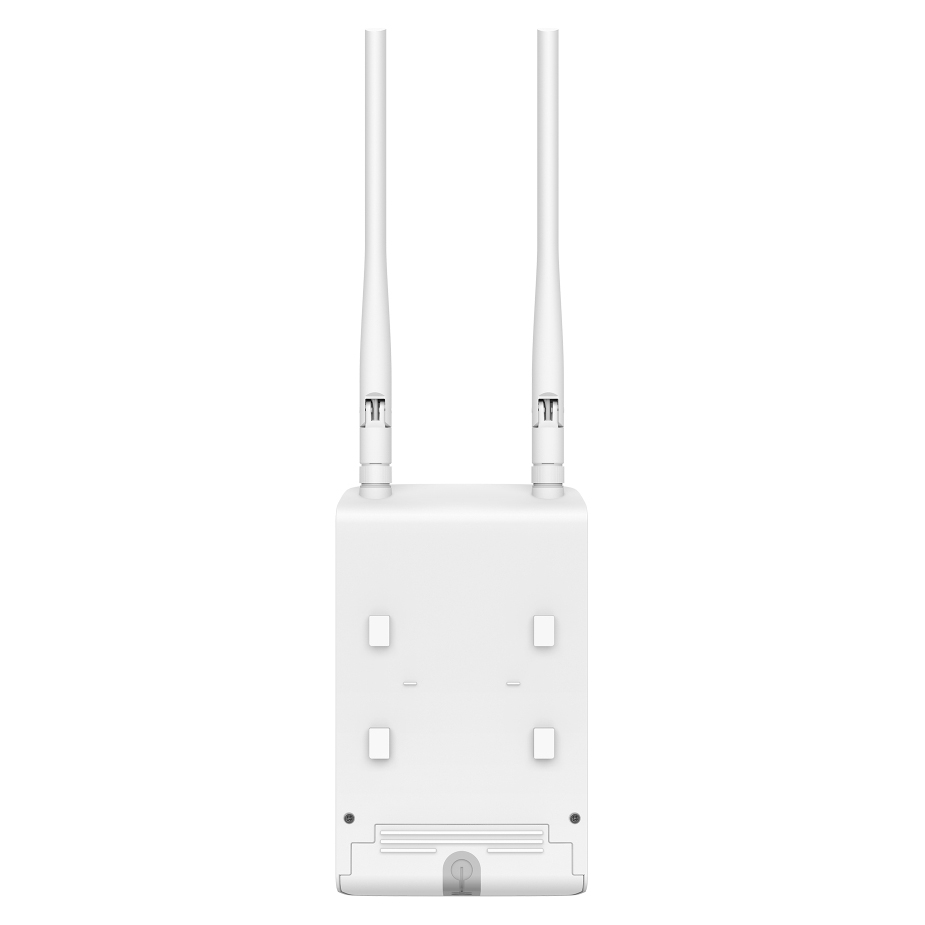

Easy Installation Through Pole and Wall Mount Options
Works with Omada SDN for One-Click Setup
Omada SDN allows users to quickly set up the EAP603-Outdoor through automatic device identification and one-click adoption.
Empowering Businesses with Reliable Omada SDN Solutions
Omada’s Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralised cloud management for a highly scalable network.
Build Features
*Actual coverage is not guaranteed and will vary as a result of the performance of the equipped antennas, client limitations, and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
Specifications
General Data
| Model Number |
EAP603-OUTDOOR |
| Certification |
CE, FCC, RoHS |
| What's Included |
EAP603-Outdoor
Passive PoE Adaptor
Power Cord
Installation Guide
Mounting Kit |
| Environment |
Operating Temperature: -30 °C – 70 °C (-22 °F – 158 °F)
Storage Temperature: -40 °C – 70 °C (-40 °F – 158 °F)
Operating Humidity: 10% – 90% non-condensing
Storage Humidity: 5% – 90% non-condensing |
Hardware Features

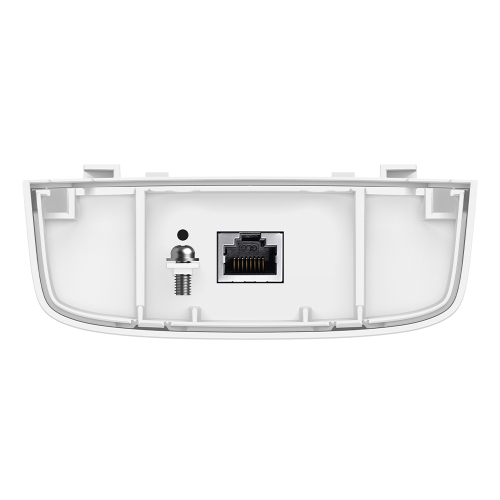

| Interface |
1x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in
1x Grounding Terminal |
| Button |
1x Reset button: Press the button for longer than 5 seconds to restore the device to factory settings. |
| Power Supply |
Input: 802.3at PoE+: 42.5 – 57 V, 0.36 A |
| Max. Power Consumption |
802.3at (PoE+): 15.8 W, 2.4GHz radio 2x2, 5GHz radio 2x2, wired link rate up to 1 Gbps
Idle mode: 4.8 W (PoE) |
| Dimensions (W x D x H) |
Main Unit: 230 x 207.5 x 69.7 mm (9.06 x 8.17 x 2.74 in.) |
| Antenna |
Wi-Fi
2.4 GHz: 2 x 4 dBi (peak gain), external omnidirectional antennas
5 GHz: 2 x 5 dBi (peak gain), external omnidirectional antennas
*Note: The gains above are the single-antenna peak gains.
IoT
Bluetooth: 1 x 4 dBi (peak gain), internal omnidirectional antenna |
| Bluetooth |
Yes |
| Weatherproof Enclosure |
IP66 for Wall Mount
IP65 for Pole Mount |
| Mounting |
Pole Mount (Kits included)
Wall Mount (Kits included) |
Wireless Features
| Coverage |
2.4 GHz: up to 2,150 ft (200 m)
5 GHz: up to 3,200 ft (300 m) |
| Wireless Standards |
5 GHz: IEEE 802.11a/n/ac/ax
2.4 GHz: IEEE 802.11b/g/n/ax |
| Frequency |
5 GHz
2.4 GHz |
| Signal Rate |
2.4 GHz: up to 573 Mbps
5 GHz: up to 1201 Mbps
*Note: Country-specific restrictions apply |
| Wireless Functions |
Maximum number of BSSIDs: 16 (8 on each band)
Maximum number of associated STAs: 250+
Guest Network
ACS (Automatic Channel Selection)
Airtime Fairness
Band Steering
802.11 Rate Control
Rogue AP Detection
URL Filtering
WLAN Optimisation
Lock to AP
SSID / Client Rate Limit
Load Balance
Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming) (Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada controllers.)
Multicast / Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversion, Multicast Filtering, Multicast/Broadcast Rate Limit)
QoS (Quality of Service) |
| Wireless Security |
ACL
MAC Filter
802.1X Authentication
MAC-Based Authentication
WPA-Personal / Enterprise, WPA2-Personal / Enterprise, WPA3-Personal / Enterprise, Enhanced Open, None
Radius Accounting
PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC / EKMS / Generic Radius with unbound MAC)
Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, Authentication-Free Client
EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1 |
| Transmission Power |
Maximum transmit power:
CE (EIRP)
2.4 GHz: 20 dBm
5 GHz: 23 dBm (U-NII-1), 23 dBm (U-NII-2A), 29 dBm (U-NII-2C)
FCC (Conducted Power)
2.4 GHz: 25 dBm
5 GHz: 27 dBm (U-NII-1), 24 dBm (U-NII-2A), 24 dBm (U-NII-2C), 27 dBm (U-NII-3)
Minimum transmit power:
CE (EIRP)
2.4 GHz: 7 dBm
5 GHz: 6 dBm (U-NII-1 / 2A / 2C / 3)
FCC (Conducted Power)
2.4 GHz: 4 dBm
5 GHz: 4 dBm (U-NII-1 / 2A / 2C / 3)
Adjustable power increment: 1 dBm
*Note: MIMO combined power, excluding antenna gains. Actual transmit power depends on local regulations. |
Management Features
| Omada App |
Yes |
| Restore & Backup |
Yes |
| Firmware Update via Web |
Yes |
| NTP |
Yes |
| Centralised Management |
Omada Hardware Controller
Omada Software Controller
Omada Central (Cloud-Based)
Omada App |
| Cloud Access |
Yes (Requires the use of an Omada controller) |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| SSH |
Yes |
| Web-Based Management |
Yes |
Backed by a 3 year TP-Link warranty.
