The TP-Link Omada AX3000 WiFi 6 Desktop/Wall Mount GPON Access Point (EAP650GP-Desktop) delivers up WiFi 6 performance with integrated GPON fibre connectivity, supporting voice, data, VoIP and HD video over a single link. Including 1x GPON and 4x Gigabit Ethernet ports with dual PoE-out support. Omada SDN integration enables mesh networking and seamless roaming, while flexible desktop or wall mounting suits deployments across hospitality and multi-dwelling environments.
Features
Omada AX3000 Wi-Fi 6 Desktop/Wall Mounting GPON Access Point
- Seamless 3.0 Gbps Wi-Fi 6 Speeds: 2402 Mbps on 5 GHz & 574 Mbps on 2.4 GHz (Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.)
- Multiple Ports for More Devices: 1x GPON port & 4x GbE ports (two support PoE-out)
- One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
- VoIP Calls: Support multiple VoIP accounts and various call features, exceeding traditional landlines
- Easy Use: One-Click Pairing and Automatic Adoption
- High Flexibility: Support both desktop and wall-mounting setups
- Advanced Features: Unified management for OLT (Certain TP-Link OLT models supporting Omada SDN are available, and Omada OLT devices are being developed.) and Omada devices, PPSK (This feature needs to be used with the switch that supports VPN Server. And at the same time, the Omada controller needs to be used with the switch that supports the Cli Template.), multiple portals, Omada mesh, and seamless roaming (Seamless Roaming, and Captive Portal require the use of Omada SDN controllers.)
Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.
- Complete Product Types
- Unified Management for Omada Devices and OLT (Certain TP-Link OLT models supporting Omada SDN are available, and Omada OLT devices are being developed.)
- Easy Adoption and Setup
- Zero-Touch Provisioning
One Fibre, Multiple Services
Connect a fibre optic cable to the EAP650GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.
△The two PoE ports support up to 22.4 W total PoE out. If the total PoE power exceeds the upper limit, the lower-priority ports will shut down automatically. A port also automatically powers off if its output exceeds 15.4 W. Powered-off ports will attempt to resume power supply after 10 seconds. By default, ETH0 has a higher port priority than ETH1.
Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 3.0 Gbps. (The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.) Omada Mesh and 802.11k/v/r roaming ensure a consistently smooth and reliable connection.
No Complex Installation, No Complicated Cabling
Desktop Mounting
No Additional Installation Needed.
Wall Mounting
Flexible and Space-Saving.
Build Features

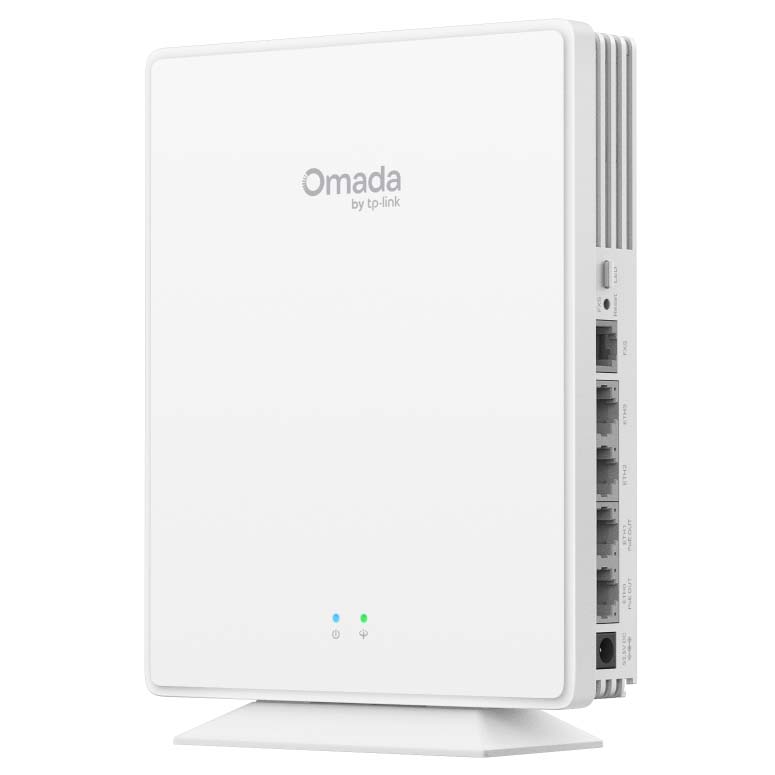

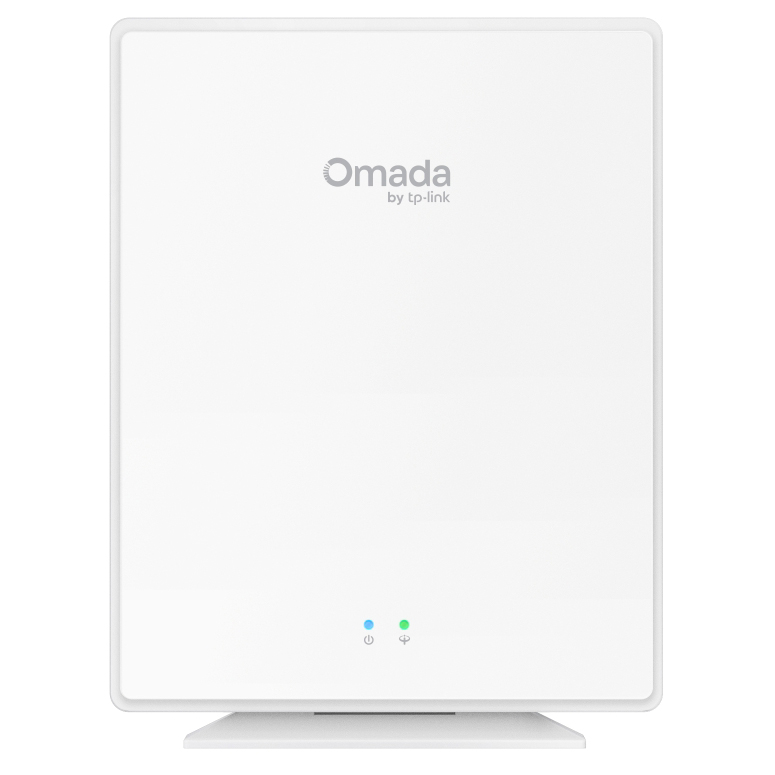

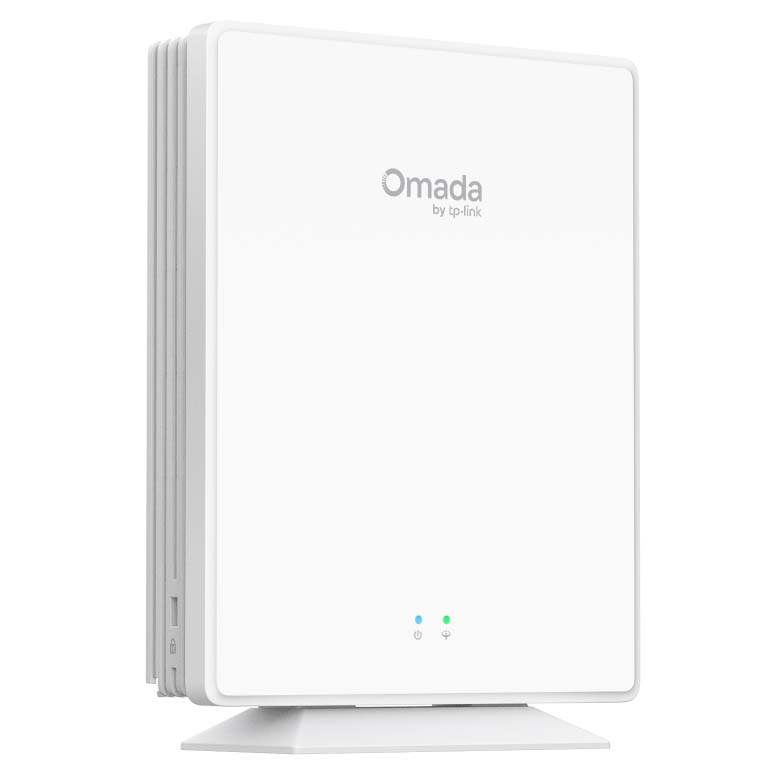

Front View
**Coverage is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

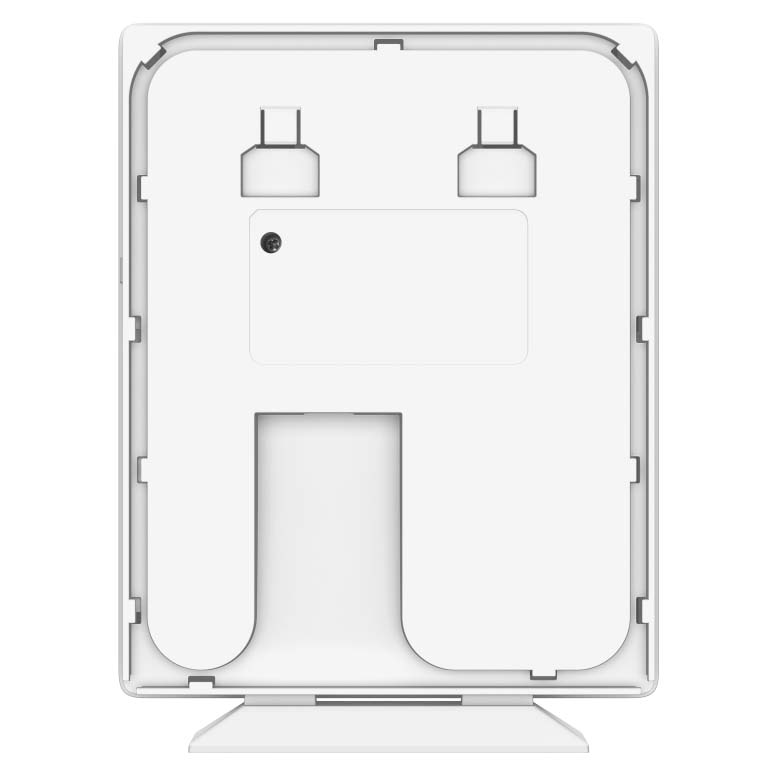

Back View

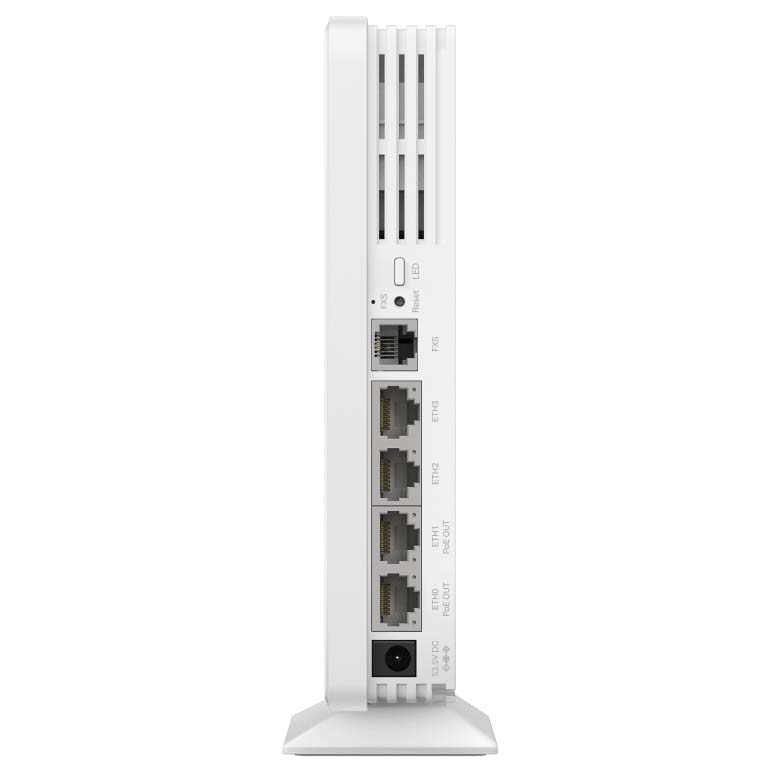

Side View
*The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△The two PoE ports support up to 22.4 W total PoE out.
Backed by a 5 year TP-Link warranty.
