The TP-Link Omada ES210X-M2 8 Port 2.5G Easy Managed Switch features 8x 2.5Gbps RJ45 ports and 2x 10Gbps SFP+ uplink slots, delivering high-speed, low-latency connectivity for multi-gig devices including WiFi 6/7 access points, NAS systems, and gaming PCs. Omada cloud management support, VLAN and IGMP Snooping functionality, and a fanless metal design provide silent, efficient performance for small business and advanced home deployments.
Features
Omada 8-Port 2.5G Easy Managed Switch with 2 10GE SFP+ Slots
- 8x 2.5 Gbps RJ45 Ports
- 2x 10 Gbps SFP+ Slots
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app (These functions require the use of the Omada Controller Zero Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials). Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.)
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
- 2.5G WiFi7/6 APS
- 2.5G Gaming Computer
- 2.5G NAS/Server
- 4K Video
Reliable Connection with 10G Uplink
2x 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, allowing for lightning-fast connections to servers and other switches.
Omada Central Essentials - A Free and Easy Cloud-Based Network Management
Omada Central Essentials provides free and easy-to-use cloud centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
- Lifetime Free Cloud Without Additional Fees
- Manage and Monitor Anytime via App or Web
- Unlimited Management Scale for Multiple Sites
- Comprehensive Managed Portfolio
- Super-Easy Setup with Automatic Device Identification and ZTP
- Topology, Site Map, and Troubleshooting Tools for Efficient Maintenance

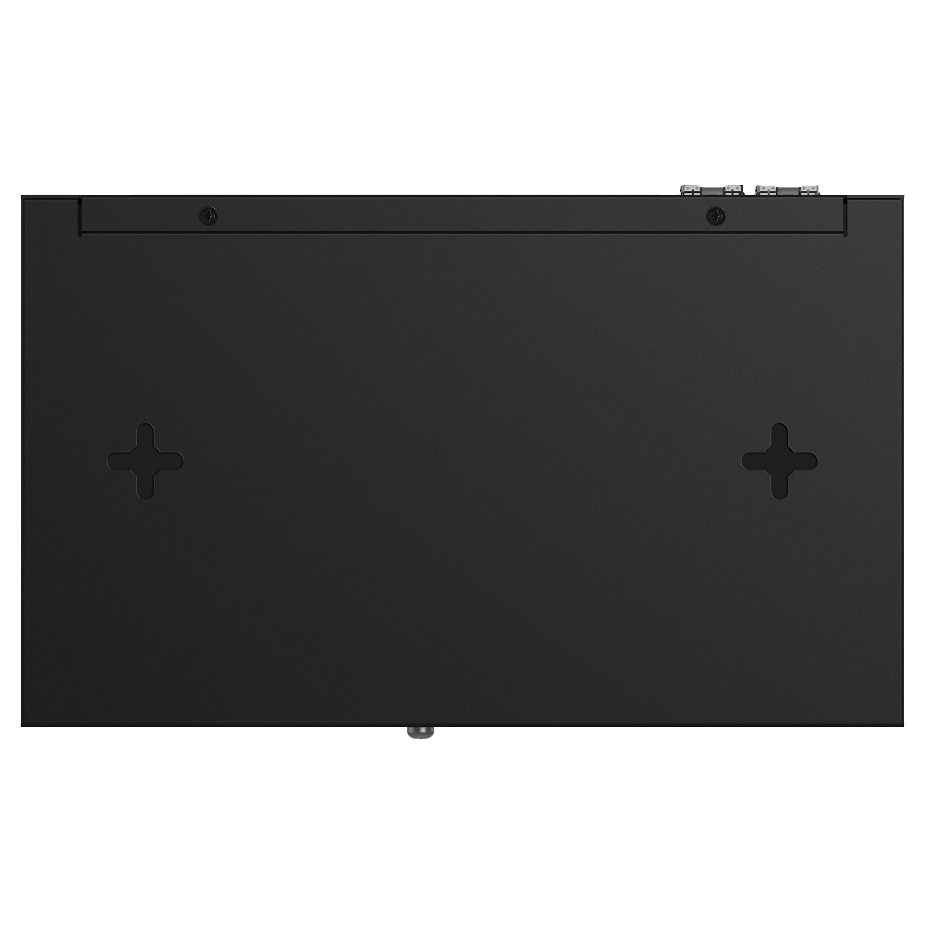

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Build Features

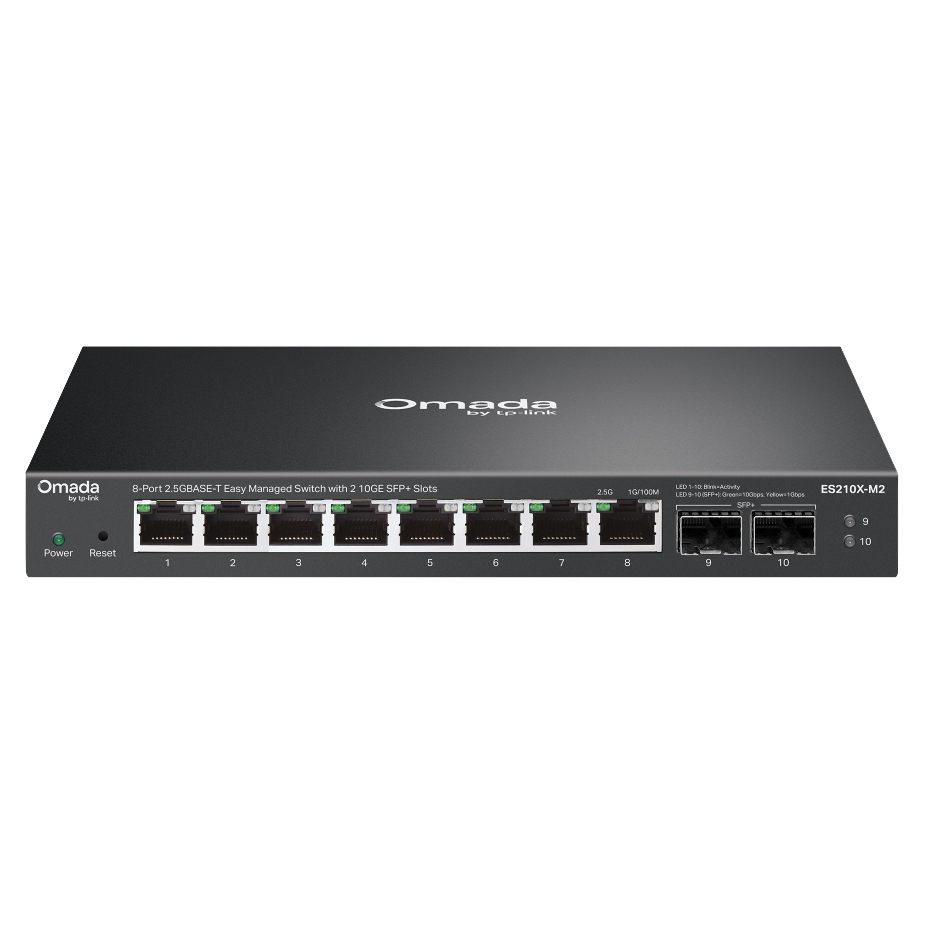

Front View

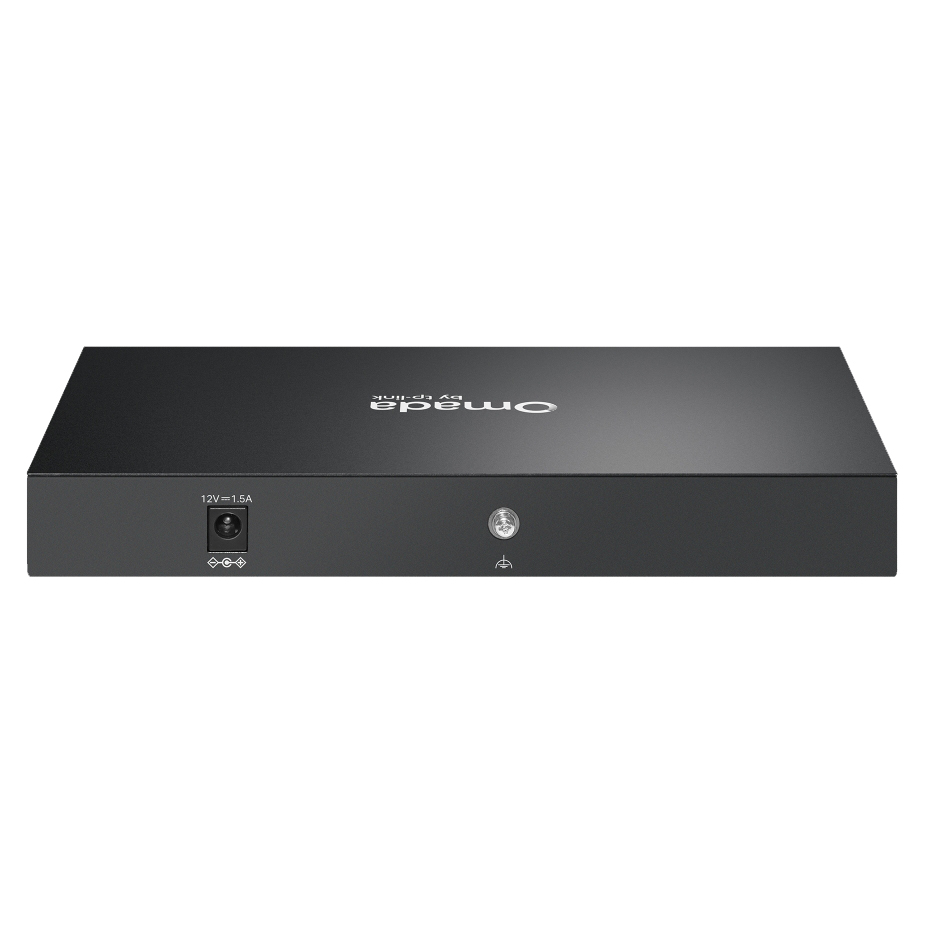

Back View
Dimensions
Specifications
General Data
| Model Number |
ES210X-M2 |
| Certification |
FCC, CE, RoHS |

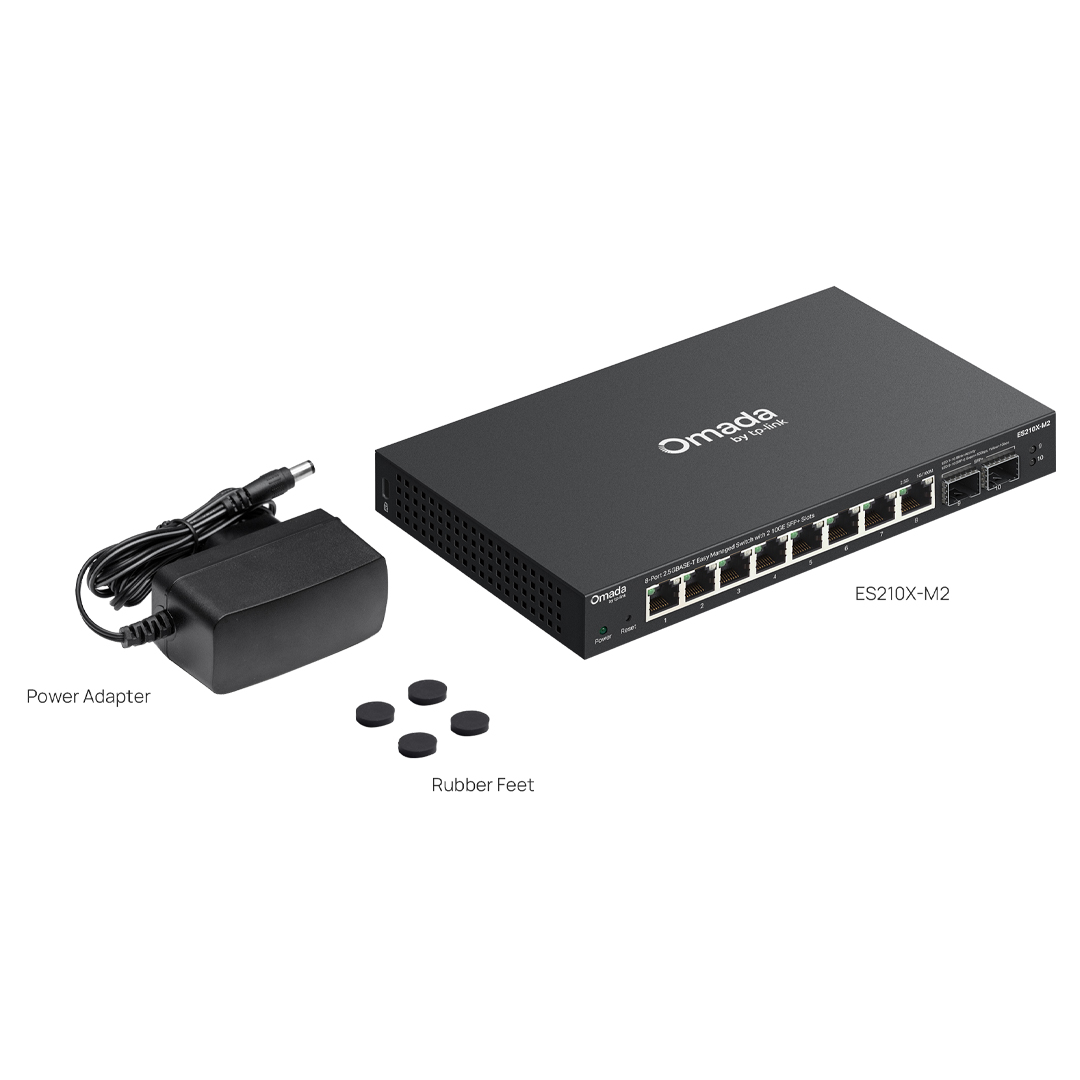

| What's Included |
ES210X-M2
Power Adaptor
Rubber Feet
Installation Guide |
| Environment |
Operating Temperature: -5~40 (23~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
Hardware Features
| Interface |
8x 2.5 Gbps RJ45 Ports
2x 10 Gbps SFP+ Slots
Auto-Negotiation / Auto MDI / MDIX |
| Fan Quantity |
Fanless |
| Installation |
Desktop
Wall Mount |
| Physical Security Lock |
Yes |
| Power Supply |
DC Power Adaptor (Output: 12 VDC / 1.5 A) |
| Dimensions (W x D x H) |
8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm) |
| Surge Protection |
±6 kV |
Performance
| Packet Buffer Memory |
640 KB |
| Jumbo Frame |
10 KB |
| Switching Capacity |
80 Gbps |
| Packet Forwarding Rate |
59.52 Mpps |
| MAC Address Table |
16K |
Software Features
| Quality of Service |
Port-based / 802.1p / DSCP QoS
8 Priority Queues
Priority Schedule Mode
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port-Based Rating Limit
Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast / Multicast / Unknown-Unicast Control |
| L2 Features |
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress / Egress / Both
Port Statistics
- Port Mirror Status
- Traffic Statistics
802.1ab LLDP |
| L2 Multicast |
IGMP Snooping
- IGMP v1 / v2 / v3 Snooping
- Fast Leave |
| VLAN |
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method |
Store-and-Forward |
Management Features
| Omada App |
Yes (Requires the use of Omada Controller) |
| Centralized Management |
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller |
| Cloud Access |
Yes (Requires the use of Omada Controller) |
| Zero-Touch Provisioning |
Yes (Requires the use of Omada Cloud-Based Controller) |
| Management Features |
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery (These functions require the use of the Omada Controller Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials) Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.)
Batch Configuration (These functions require the use of the Omada Controller Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials) Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.)
Batch Firmware Upgrading (These functions require the use of the Omada Controller Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials) Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.)
Unified Configuration (These functions require the use of the Omada Controller Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials) Go to the Omada Central Standard Product List or Omada Central Essentials Product List to find all the supported models.) |
Backed by a 5 year TP-Link warranty.
