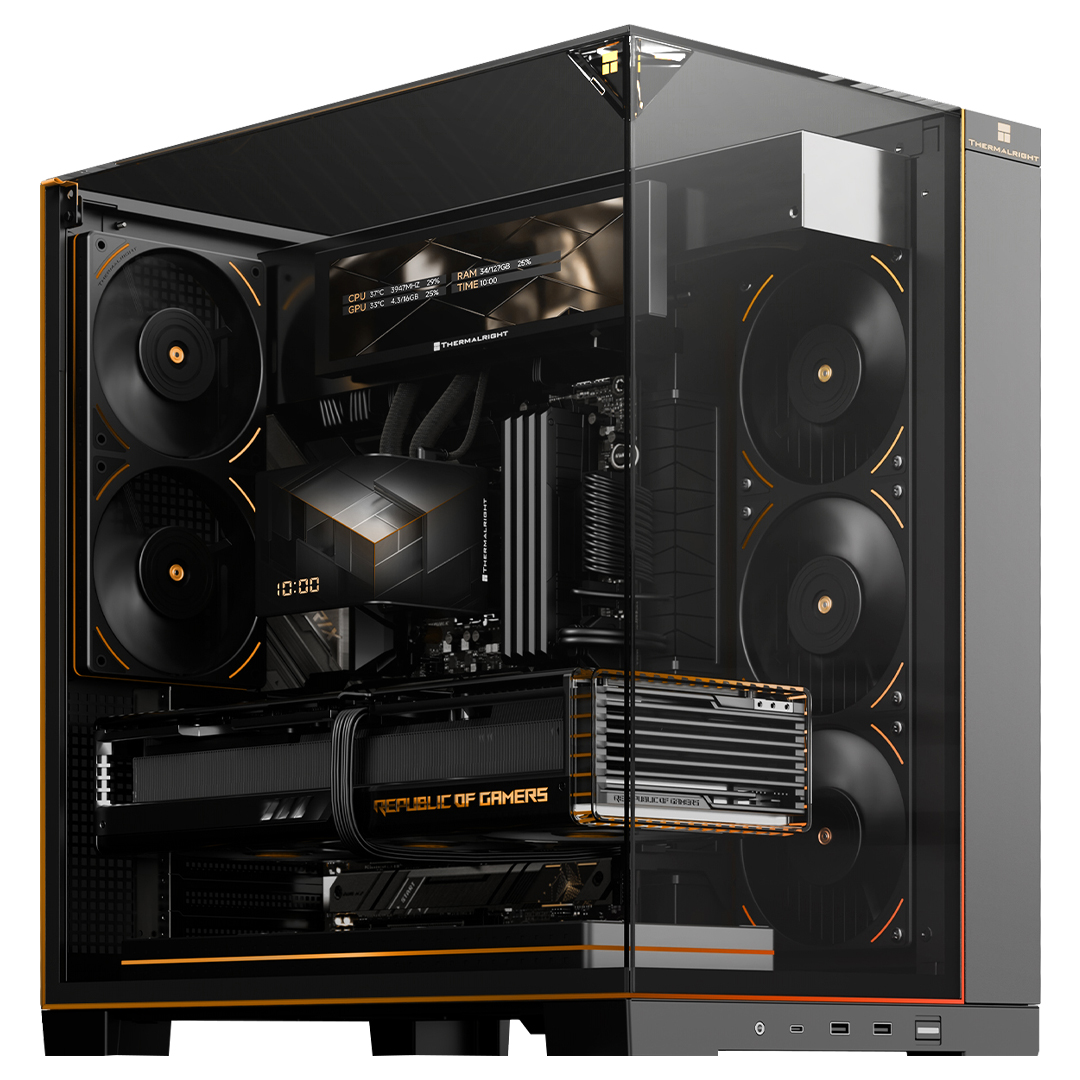

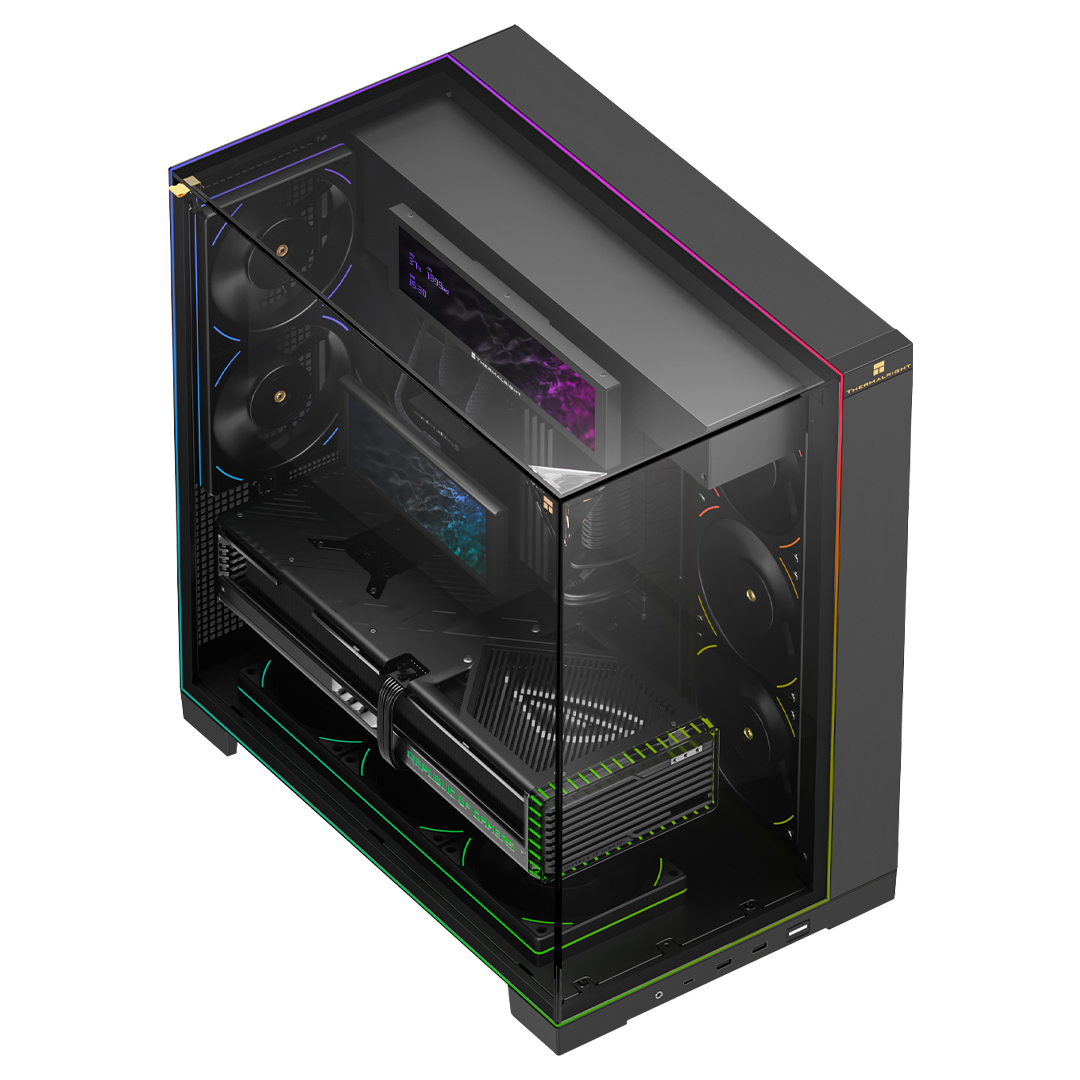

Thermalright A70V Fan 5 M ATX ARGB Case Black
TR-A70-V-FAN5-M | ThermalrightThis product has been discontinued
Note: Case only. Images are for illustrative purposes, internal components (motherboard, GPU, AIO cooler) not included, sold separately. Please refer to specifications for details.
Features
Thermalright A70V Fan 5 M ATX ARGB Case Black

Included components
- 9.16in LCD Display
- Five Pre-installed 120mm fans
Integrated Display Panel
Built-in 9.16-inch display with 1920 x 480 resolution enables system monitoring or visual customisation within the chassis.

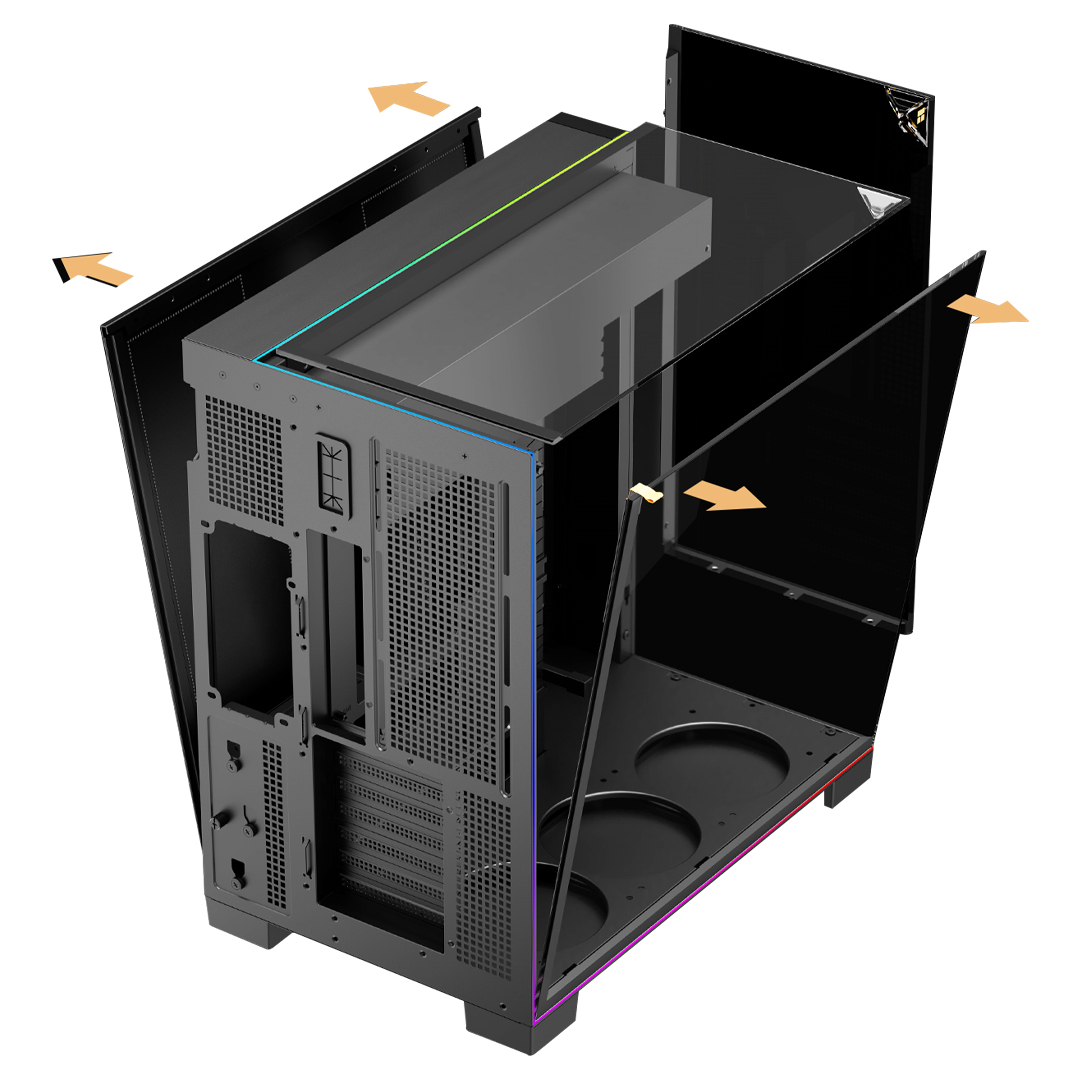

Tempered Glass Construction
Tempered glass panels combined with ABS and SPCC materials provide durability and clear internal visibility.

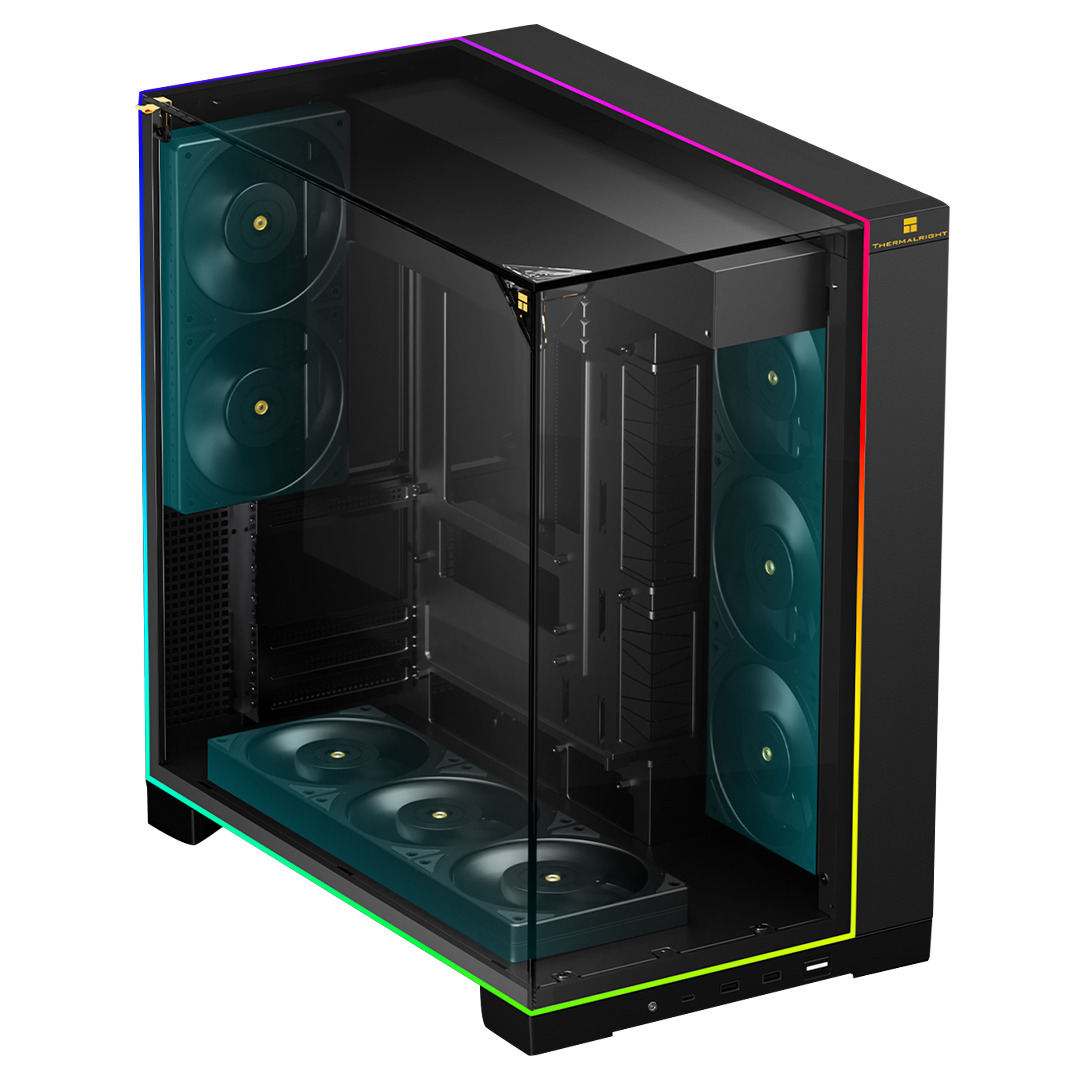

Advanced Cooling Support
Includes five pre-installed fans with support for up to eight 120mm fans and radiators up to 360mm for efficient thermal performance.
Flexible Motherboard Support
Compatible with ATX, Micro-ATX, and Mini-ITX motherboards, including back-connected designs from ASUS and MSI.
Modern Connectivity
Front I/O panel includes USB Type-C, dual USB Type-A ports, and a headset audio jack for convenient access.
ARGB Compatibility
Supports 3-pin 5V addressable RGB for synchronised lighting across compatible components.
Specifications
| Model Number | TR-A70-V-FAN5-M |
| Colour | Black |
| Fan Model | 3x TL-M12QR-S (Bottom) 2x TL-M12Q-S (Rear) |
| Dimension (L x W x H) | 450.8 x 289.5 x 477mm |
| Net Weight | 11.44 kgs |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | ATX/Micro-ATX / Mini-ITX (Back-Connected MB Supported) (ASUS/MSI ATX) |
| I/O Ports | Power Button / Headset Audio Jack x 1 / USB Type-A x 2 / USB Type-C |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |
| PCIe Slots | 7 |
| Fan Support | Bottom: 120 mm x 3 (Pre-installed) Side: 120 mm x 3 Rear: 120 mm x 2 (Pre-installed) |
| Radiator Support | Side: 120/240/360 mm Rear: 120/240 mm |
| CPU Cooler Height Limit | 168.4 mm |
| Graphics Card Clearance | 420 mm |
| Power Supply Type | 200 mm ATX |
| RGB Support | 3-pin/5V Addressable-RGB |
| LCD Connector | 9-pin USB 2.0 |
| Screen Size | 9.16-Inch |
| Screen Resolution | 1920 x 480 |
| Warranty | 1 Year |
