The TL-B14015 is a slim 140mm fan featuring a 15mm thickness profile, dual ball bearing construction, and a maximum speed of 1600 RPM for balanced airflow performance. Designed for efficient case ventilation, the fan delivers steady airflow with low noise output and broad system compatibility via standard 4-pin PWM control.
Features

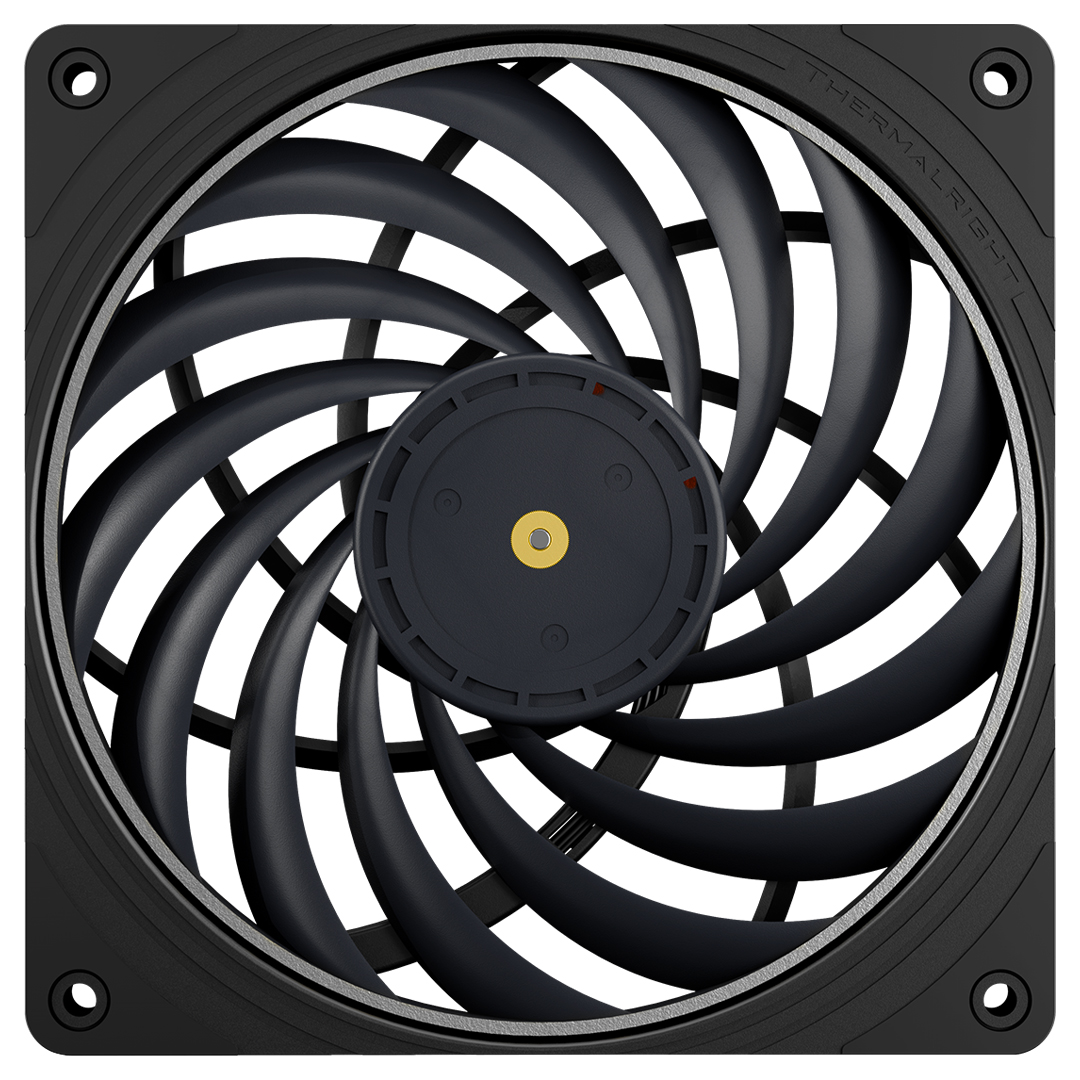

TL-B14015 140mm Fan
140 mm Slim Profile Design
- 15 mm thin frame design supports installation in space-limited chassis layouts
- Optimised blade geometry maintains airflow efficiency in reduced thickness form factor
PWM Speed Control
- 4-pin PWM connector enables dynamic speed adjustment based on system temperature
- Rated up to 1600 RPM±10% for controlled cooling performance
Balanced Airflow Output
- Delivers up to 62.8 CFM airflow for effective case ventilation
- Low turbulence blade design supports stable airflow delivery
Dual Ball Bearing Construction
- Dual ball bearing system improves durability and long-term reliability
- Stable operation under continuous usage scenarios
Low Noise Operation
- Rated noise level of 24.6 dBA (Max) for quiet system performance
- Optimised fan curve reduces acoustic output at lower loads
Specifications
| Model Number |
TL-B14015 |
| Dimension (L x W x H) |
140 mm x 140 mm x 15 mm |
| Rated Speed |
1600 RPM±10% (Max) |
| Noise Level |
24.6 dBA (Max) |
| Air Flow |
62.8 CFM (Max) |
| Air Pressure |
1.0 mm H2O (Max) |
| Ampere |
0.25 A |
| Connector |
4 Pin PWM |
| Bearing Type |
Dual Ball Bearing |
Backed by a 6 year Thermalright warranty.
