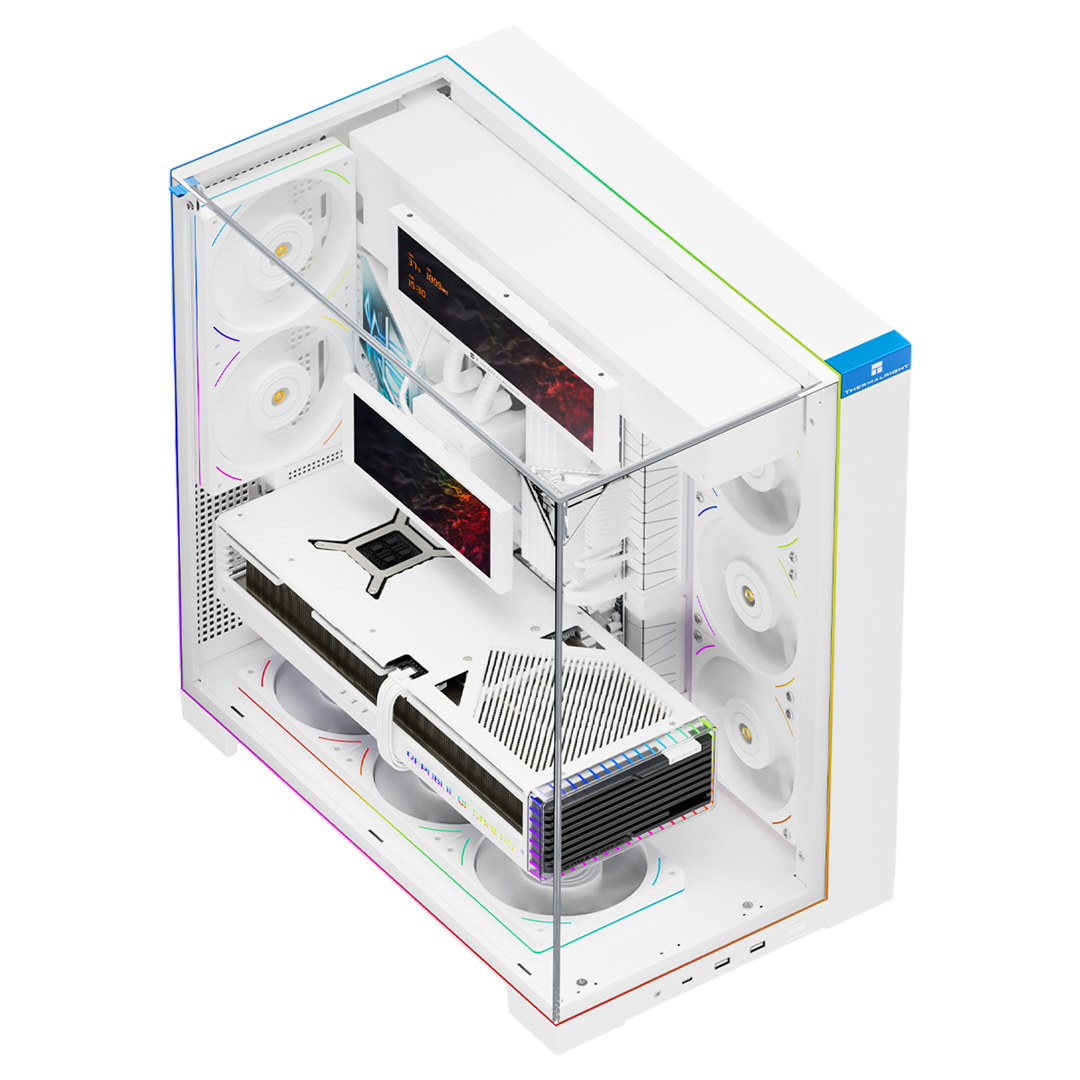

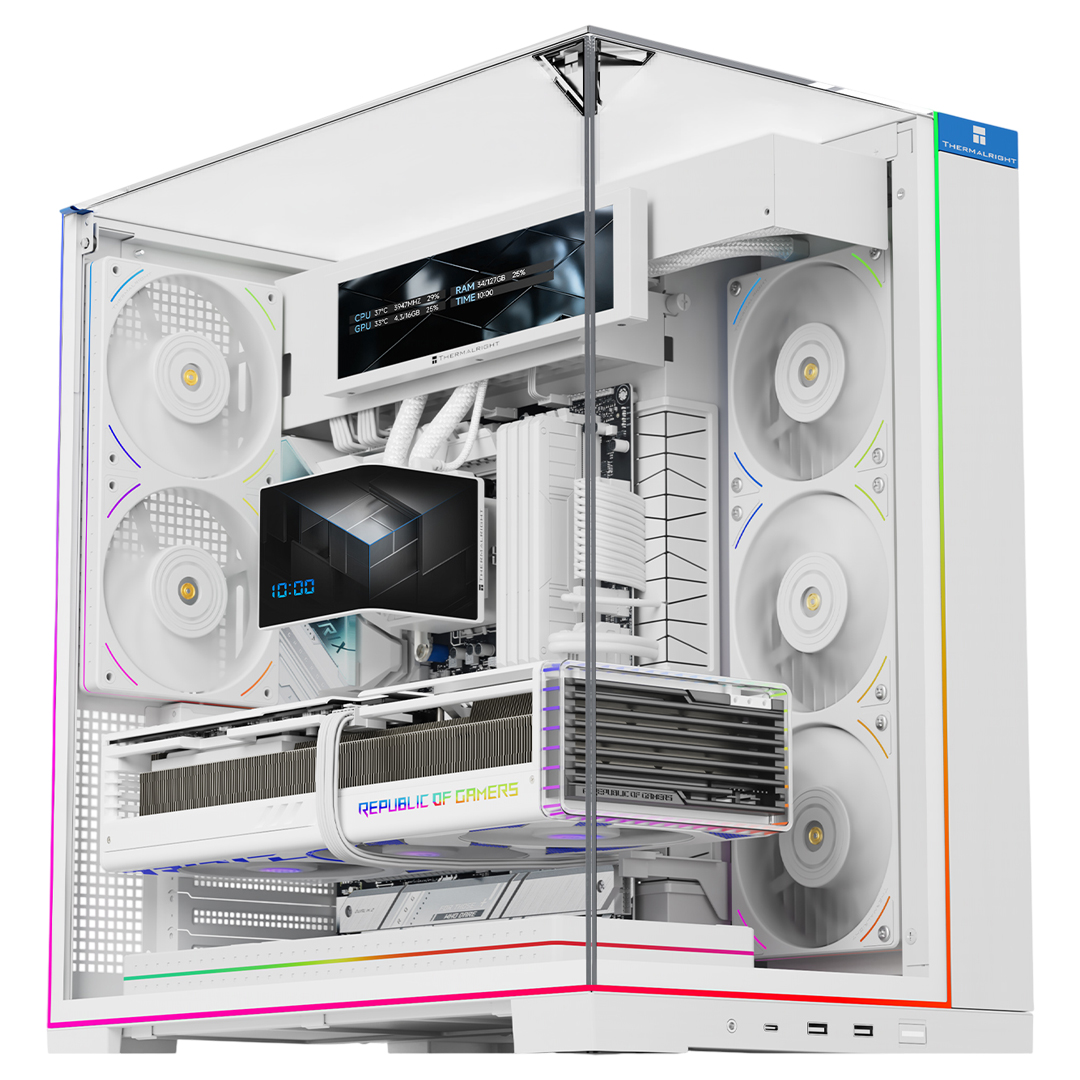

The Thermalright A70V Case features a tempered glass design with a 9.16 inch integrated display and support for ATX, micro-ATX, and mini-ITX motherboards including back-connected layouts, and comes with five pre-installed fans (including three 120mm TL-C12RW-S V2 to the bottom and two 120mm TL-C12CW-S fans to the rear), with support for a total of up to eight 120mm fans. Equipped with extensive component support for radiators up to 360mm to the side, and graphics cards up to 420mm in length, this case also features and shroud to the top that conceals the AIO tubes for a clean and streamlined aesthetic. With modern front I/O including USB-C, the Thermalright A70 Vision delivers high-performance cooling and versatile system compatibility.
Note: Case only. Images are for illustrative purposes, internal components (motherboard, GPU, AIO cooler) not included, sold separately. Please refer to specifications for details.
Features
Thermalright A70V Fan 5 C ATX ARGB Case White
Included components
- 9.16in LCD Display
- Five Pre-installed 120mm fans
Integrated Display Panel
Built-in 9.16-inch display with 1920 x 480 resolution adds system monitoring and visual customisation to the chassis.

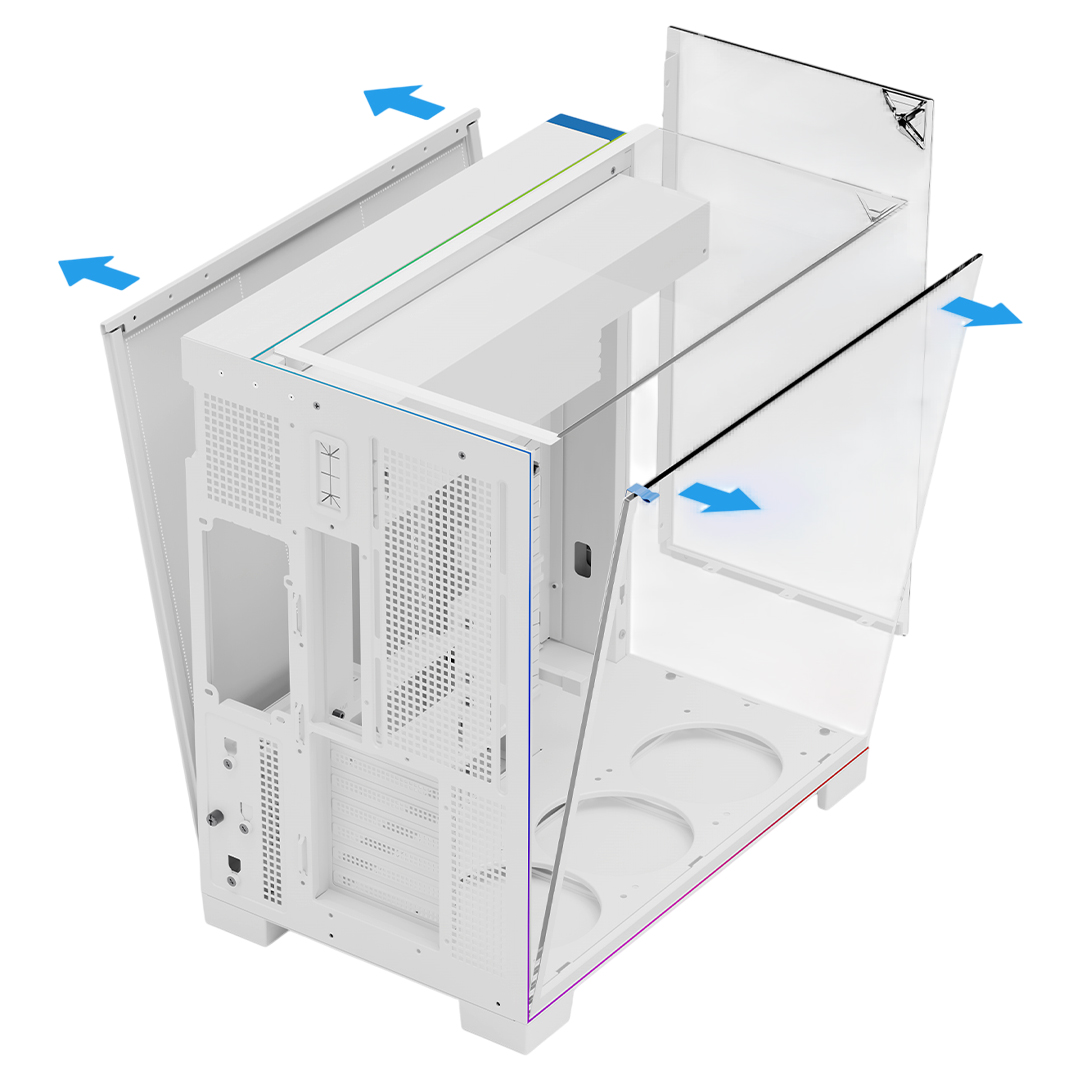

Tempered Glass Construction
Durable tempered glass panels combined with ABS and SPCC materials provide a premium finish with clear internal visibility.

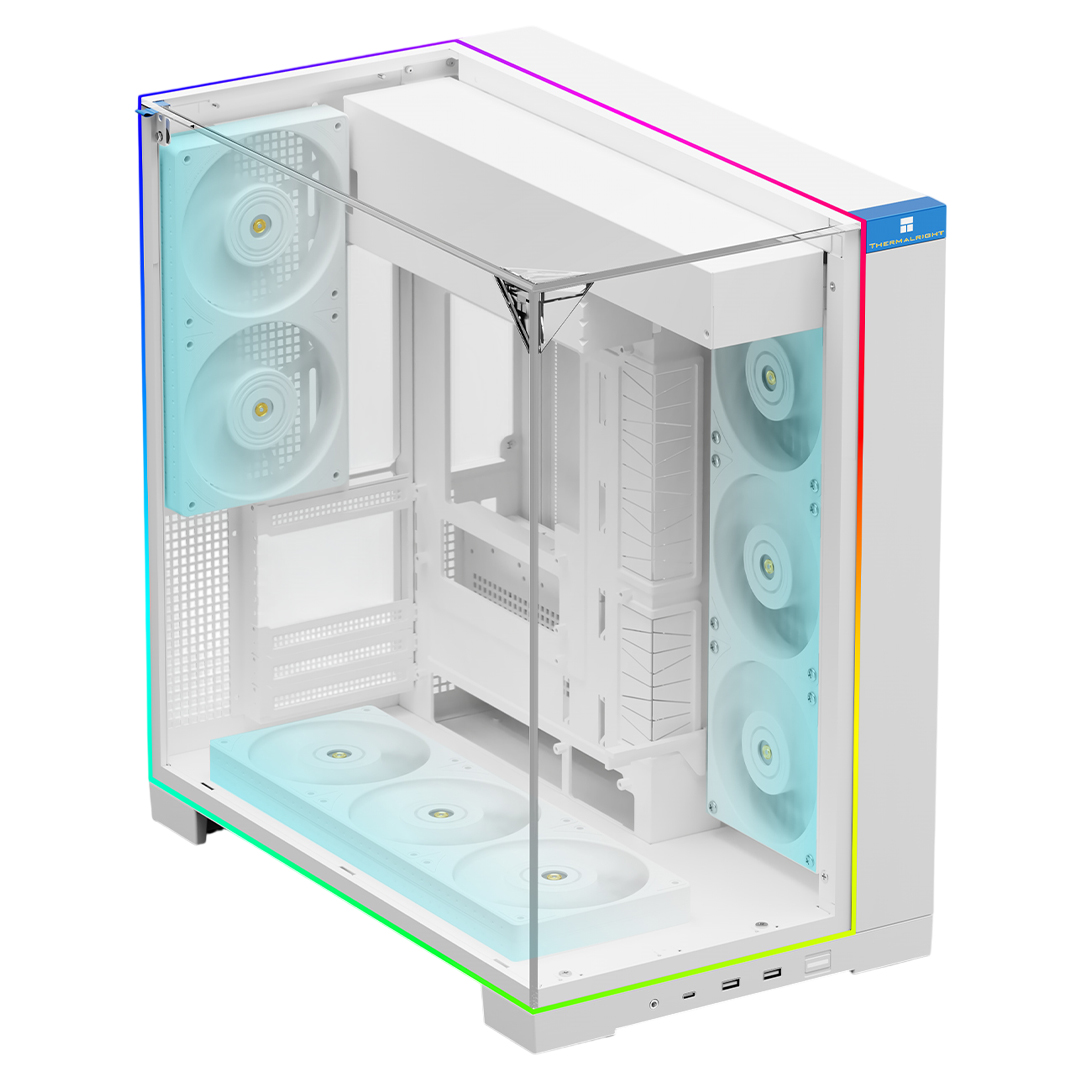

Comprehensive Cooling Support
Includes five pre-installed fans with support for up to eight 120mm fans and radiators up to 360mm for efficient airflow.
Broad Motherboard Compatibility
Supports ATX, Micro-ATX, and Mini-ITX motherboards, including back-connected designs from ASUS and MSI.
Modern Front I/O
Front panel features USB Type-C, dual USB Type-A ports, and a headset audio jack for convenient connectivity.
ARGB Lighting Support
Compatible with 3-pin 5V addressable RGB for synchronised lighting across supported components.
Specifications
| Model Number |
TR-A70-V-FAN5-C-WHITE |
| Colour |
White |
| Fan Model |
3x TL-C12RW-S V2 (Bottom)
2x TL-C12CW-S (Rear) |
| Dimension (L x W x H) |
450.8 x 289.5 x 477mm |
| Net Weight |
11.44 kgs |
| Materials |
ABS + SPCC + Tempered Glass |
| Motherboard Support |
ATX/Micro-ATX / Mini-ITX (Back-Connected MB Supported) (ASUS/MSI ATX) |
| I/O Ports |
Power Button / Headset Audio Jack x 1 / USB Type-A x 2 / USB Type-C |
| 3.5" Drive Bays |
2 |
| 2.5" Drive Bays |
2 |
| PCIe Slots |
7 |
| Fan Support |
Bottom: 120 mm x 3 (Pre-installed)
Side: 120 mm x 3
Rear: 120 mm x 2 (Pre-Installed) |
| Radiator Support |
Side: 120/240/360 mm
Rear: 120/240 mm |
| CPU Cooler Height Clearance |
168.4 mm |
| Graphics Card Clearance |
420mm |
| Power Supply Type |
200 mm ATX |
| RGB Support |
3-pin/5V Addressable-RGB |
| LCD Connector |
9-pin USB 2.0 |
| Screen Size |
9.16-Inch |
| Screen Resolution |
1920 x 480 |
Backed by a 1 year Thermalright warranty.
