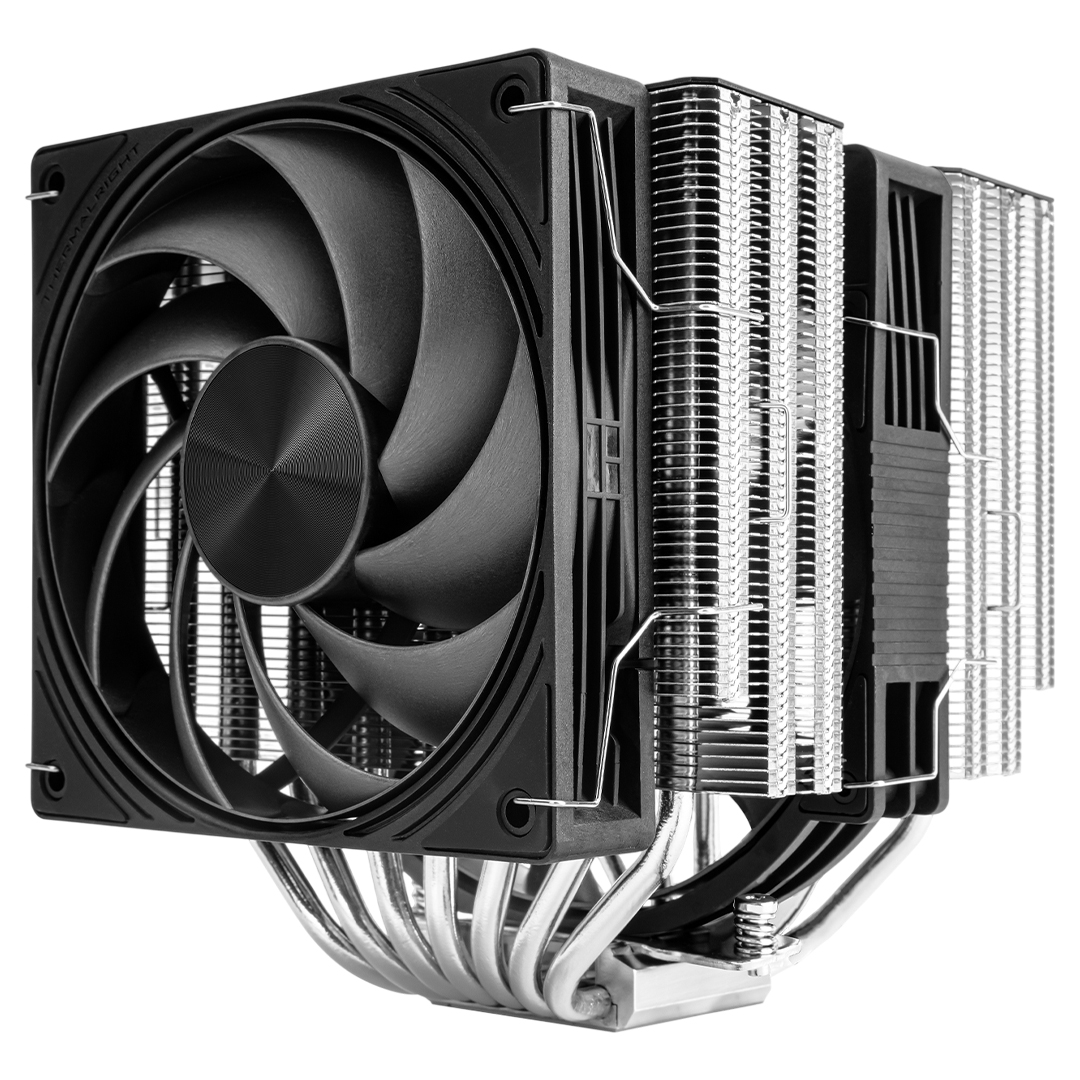

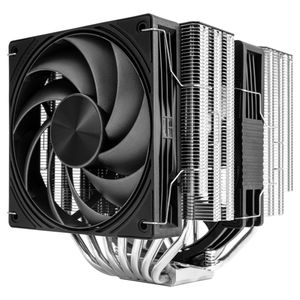

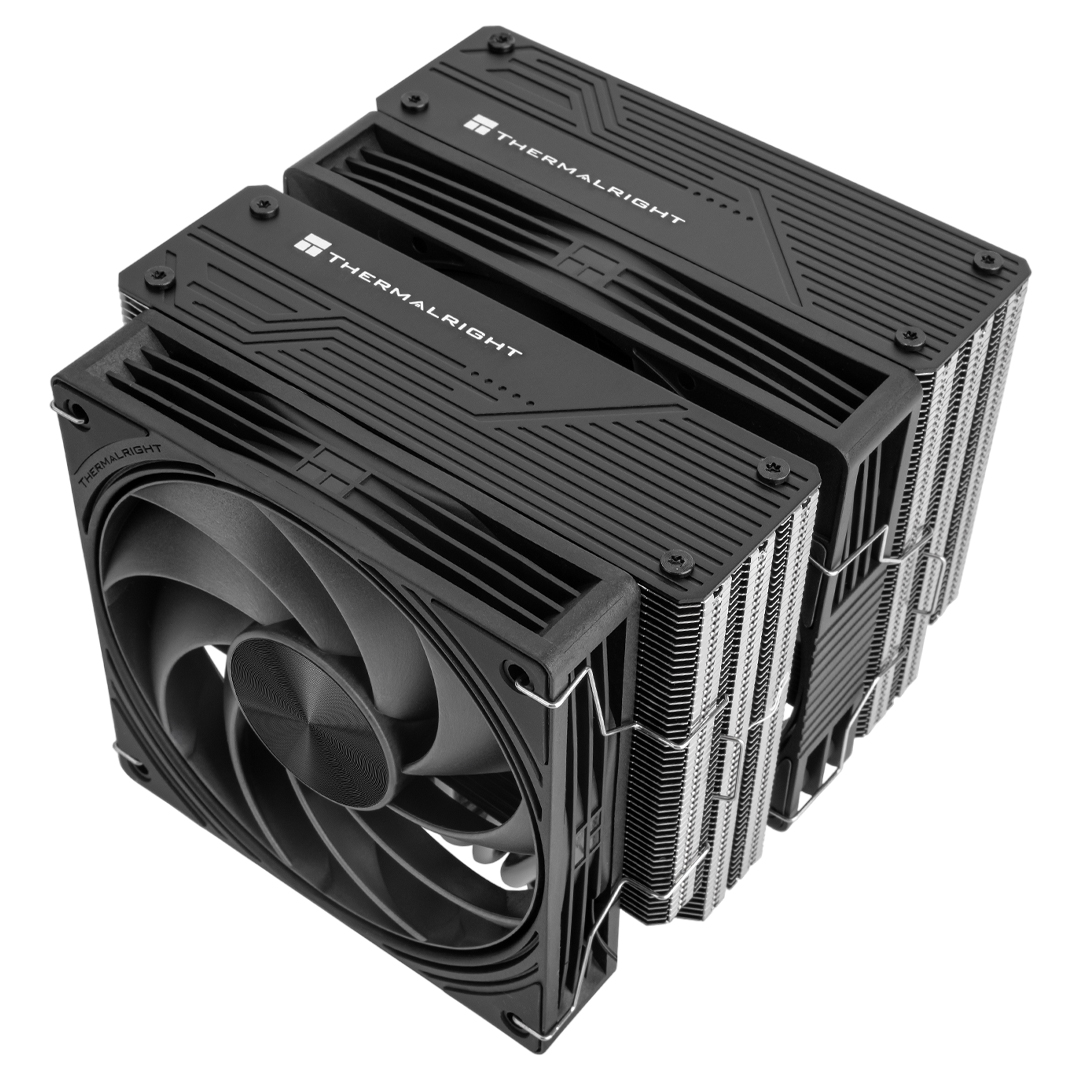

The Frost Tower 140 is a dual tower CPU air cooler featuring seven 6mm heatpipes, a C1100 nickel-plated copper base, and a high-performance dual fan configuration for strong thermal dissipation. Dual PWM fans deliver high airflow and static pressure for demanding workloads, while broad Intel and AMD socket support ensures wide system compatibility.
Features
Frost Tower 140

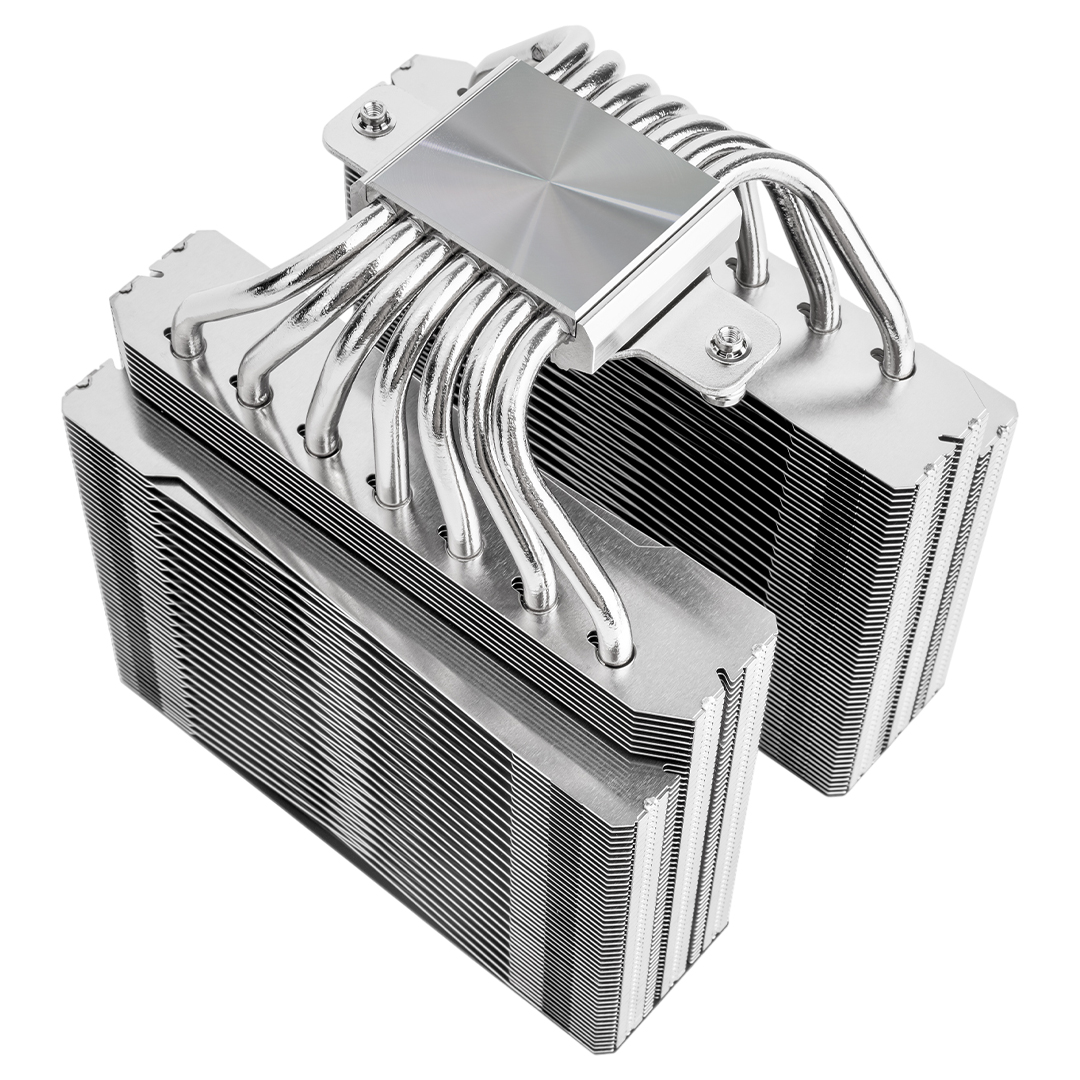

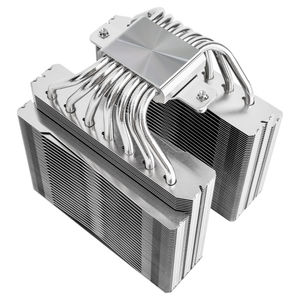

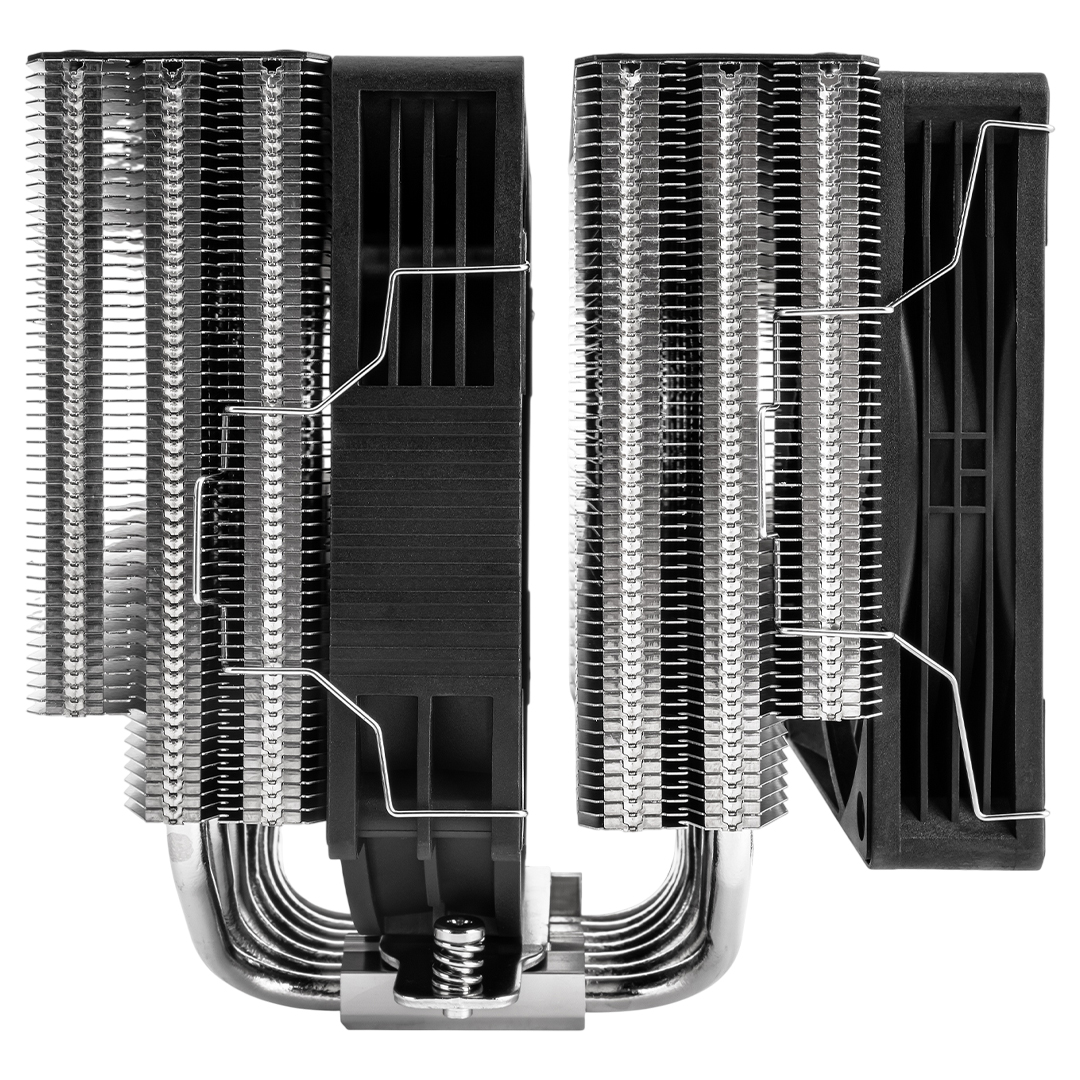

Dual Tower Cooling Architecture
- Dual tower heatsink design increases fin surface area for improved heat dissipation
- Optimised layout supports efficient airflow through dense fin stacks

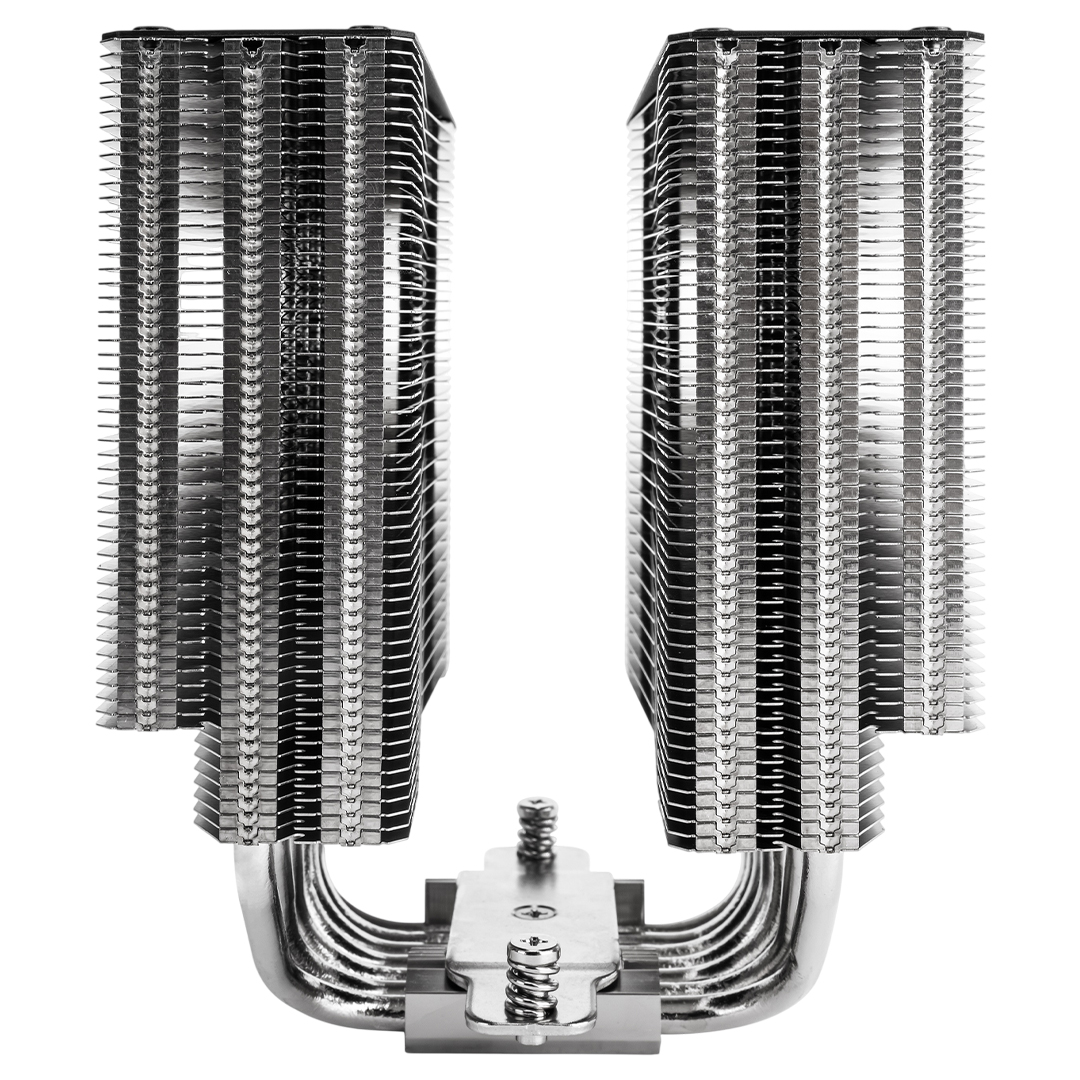

Seven 6 mm Heatpipes
Seven high-efficiency 6 mm heatpipes rapidly transfer heat away from the CPU, with direct contact thermal routing that enhances heat exchange performance under load
C1100 Nickel-Plated Copper Base
Pure copper base improves thermal conductivity between CPU and heatsink assembly, while the nickel plating provides enhanced durability and corrosion resistance

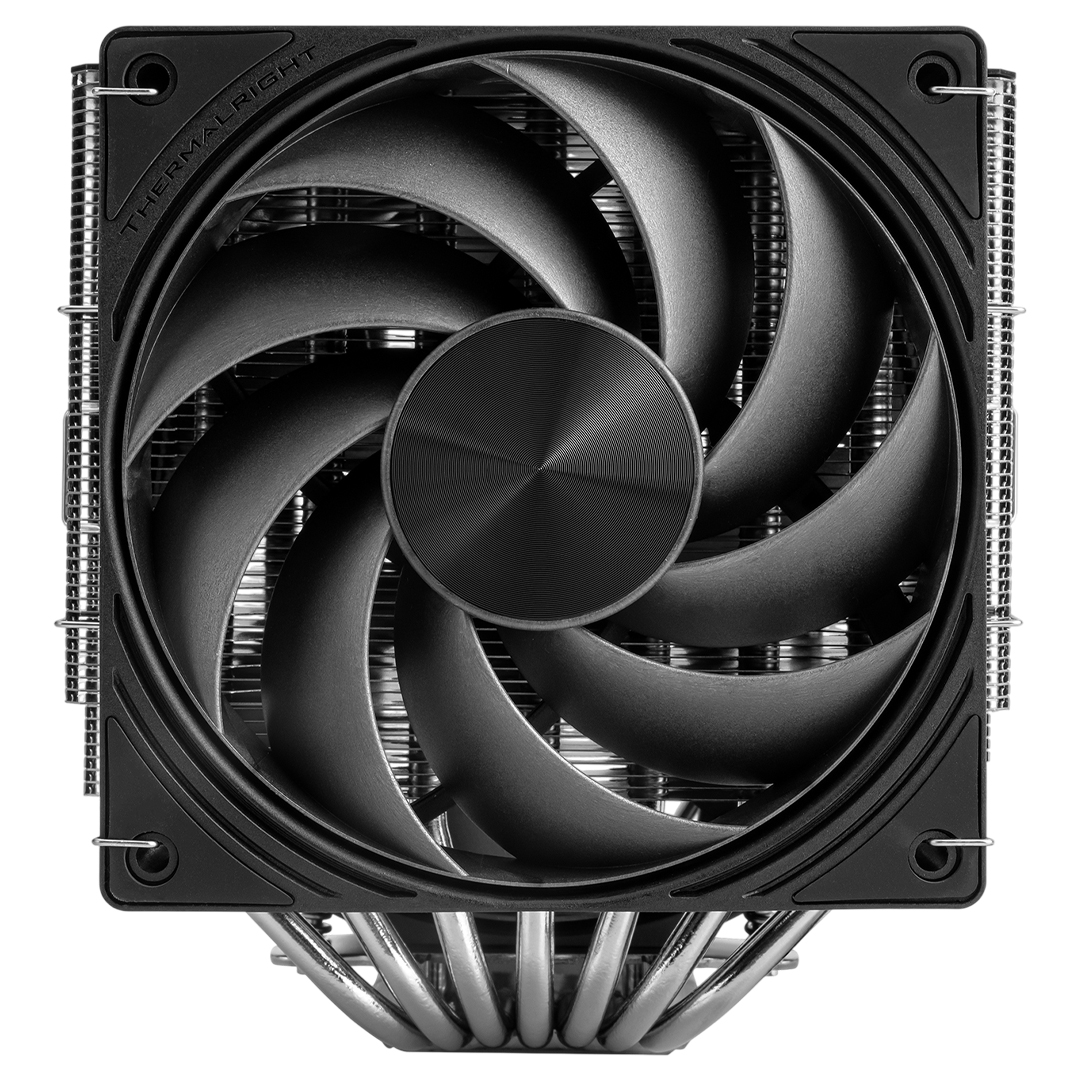

High-Performance Dual PWM Fans
Includes TL-N12-R9 and TL-N14D-R7 PWM fans for high airflow and pressure output, with dynamic fan speed control that adjusts cooling performance based on system demand
Extreme Airflow and Static Pressure
Fan configuration engineered for high airflow delivery through dense fin arrays. The high static pressure design supports effective cooling under heavy CPU loads.
Dual Ball Bearing Reliability
Both fans utilise dual ball bearing systems for improved durability and lifespan, providing stable operation under sustained high-speed workloads
Broad CPU Socket Compatibility
- Supports Intel LGA115X, LGA1200, LGA1700, LGA1851, LGA2011, and LGA2066 platforms
- Supports AMD AM4 and AM5 platforms for wide modern system compatibility
Specifications
General Data
| Model Number |
FROST-TOWER-140 |
| Compatibility |
Intel: LGA115X/1200/1700/1851/2011/2066
AMD: AM4/AM5 |
Heatsink
| Dimension (L x W x H) |
140 mm x 121 mm x 158 mm |
| Heat Pipes |
6mm heatpipe x 7 units |
| Copper Base |
C1100 Pure copper nickel plated |
TL-N12-R9 Fan
| Dimension (L x W x H) |
120 mm x 120 mm x 25 mm |
| Rated Speed |
2400 RPM±10% (Max) |
| Noise Level |
33.3 dBA |
| Air Flow |
85.35 CFM (Max) |
| Air Pressure |
2.95 mm H2O (Max) |
| Connector |
4 Pin (PWM Fan connector) |
| Bearing Type |
Dual Ball Bearing |
TL-N14D-R7 Fan
| Dimension (L x W x H) |
140 mm x 140 mm x 27 mm |
| Rated Speed |
1850 RPM±10% (Max) |
| Noise Level |
36.25 dBA |
| Air Flow |
120 CFM (Max) |
| Air Pressure |
2.4 mm H2O (Max) |
| Connector |
4 Pin (PWM Fan connector) |
| Bearing Type |
Dual Ball Bearing |
Backed by a 6 year Thermalright warranty.
