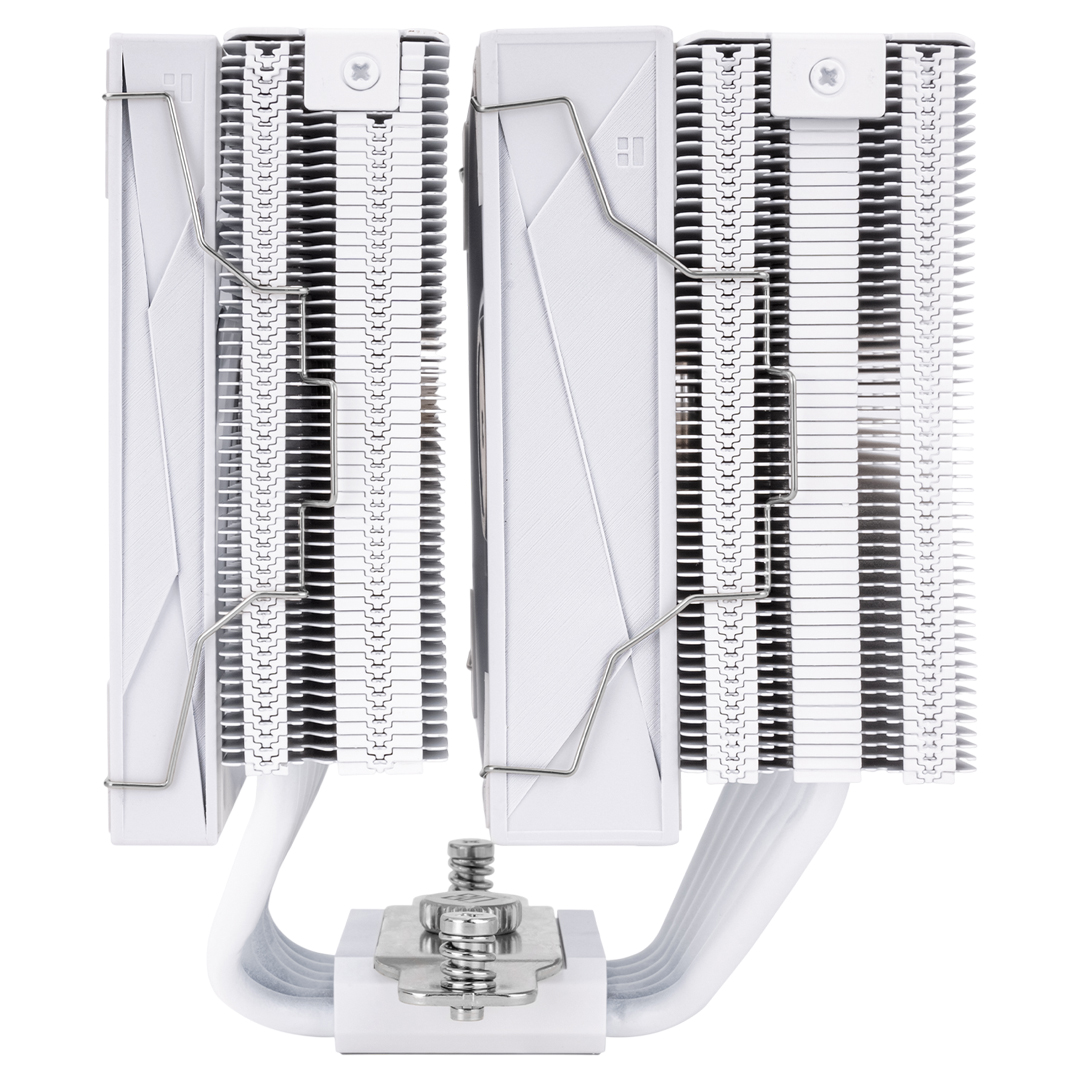

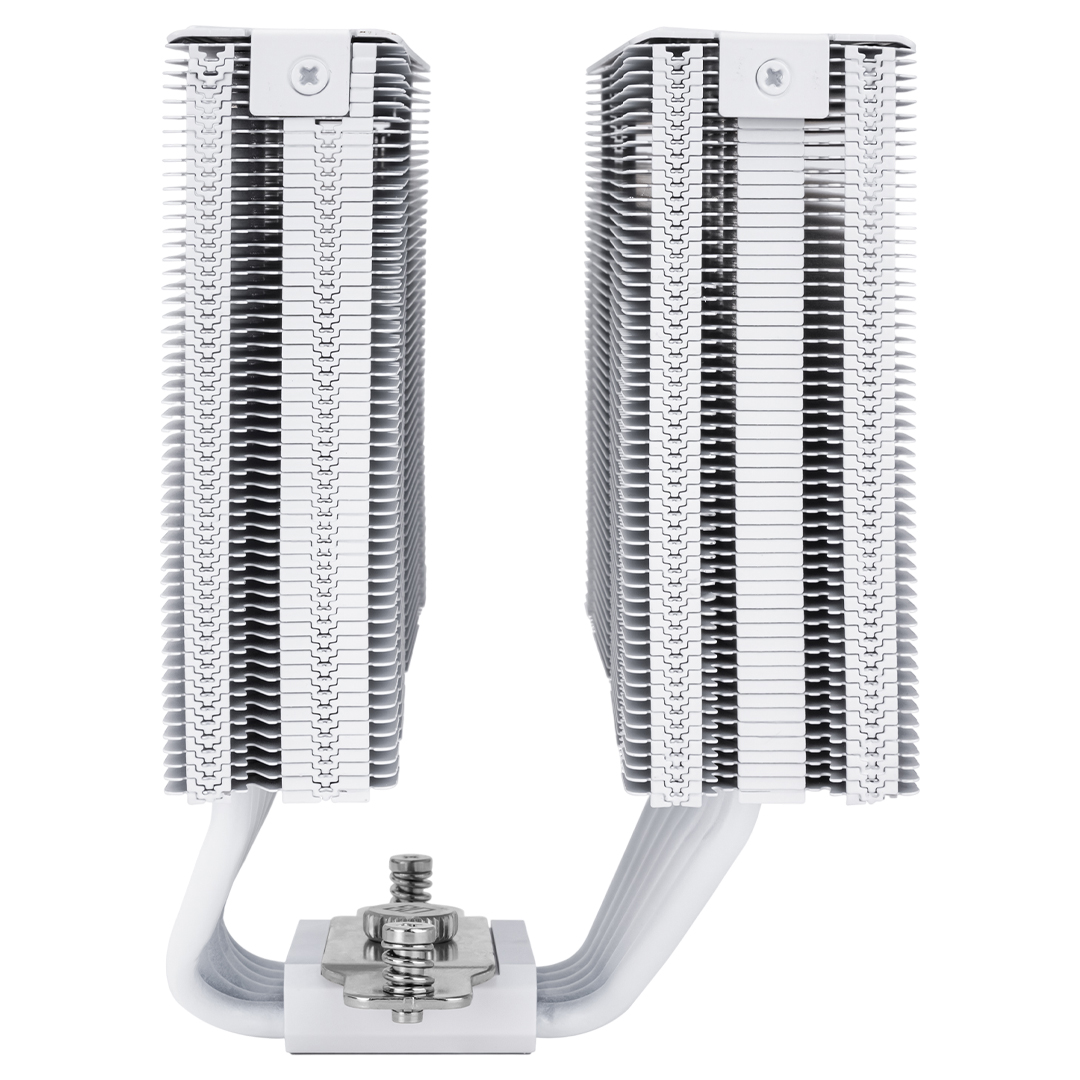

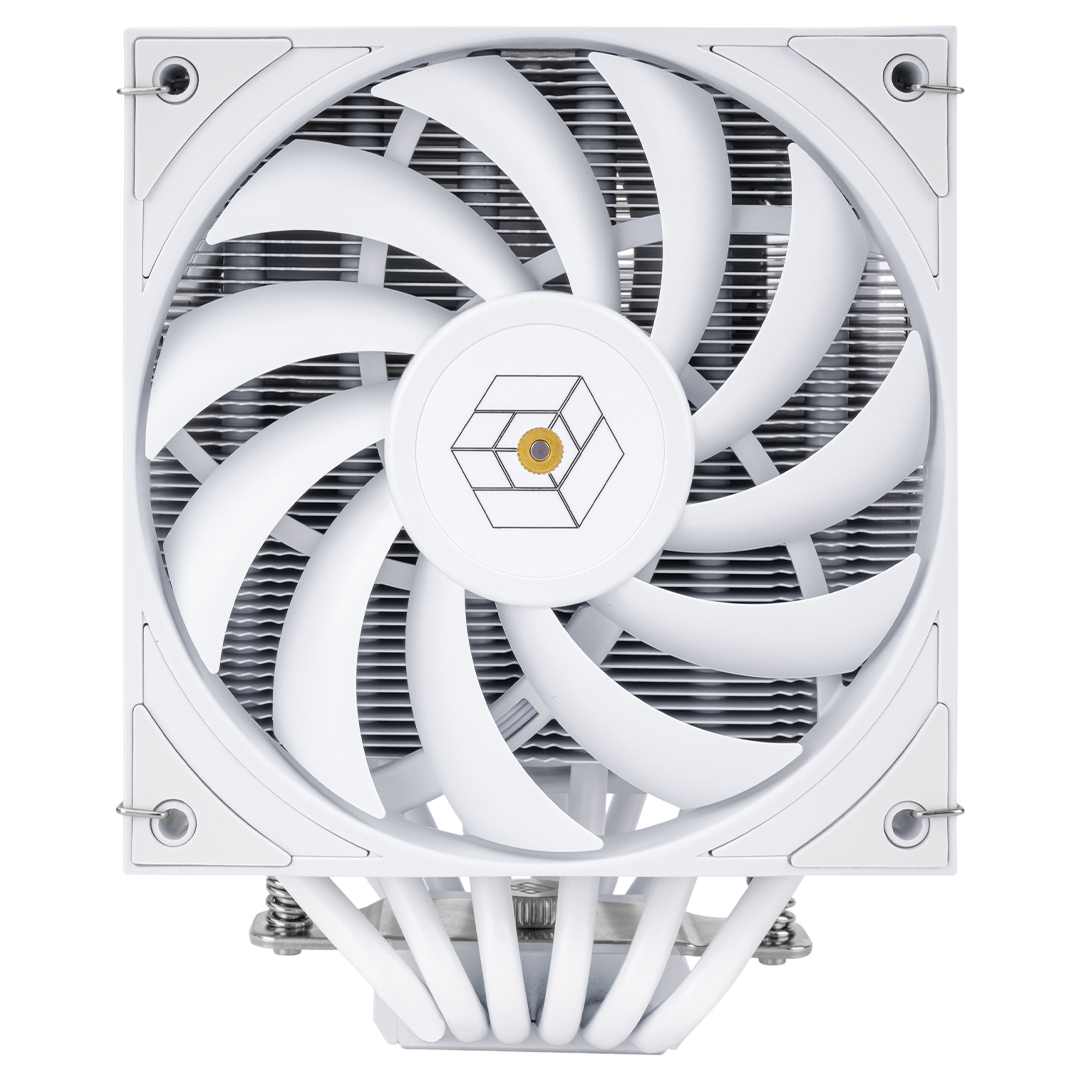

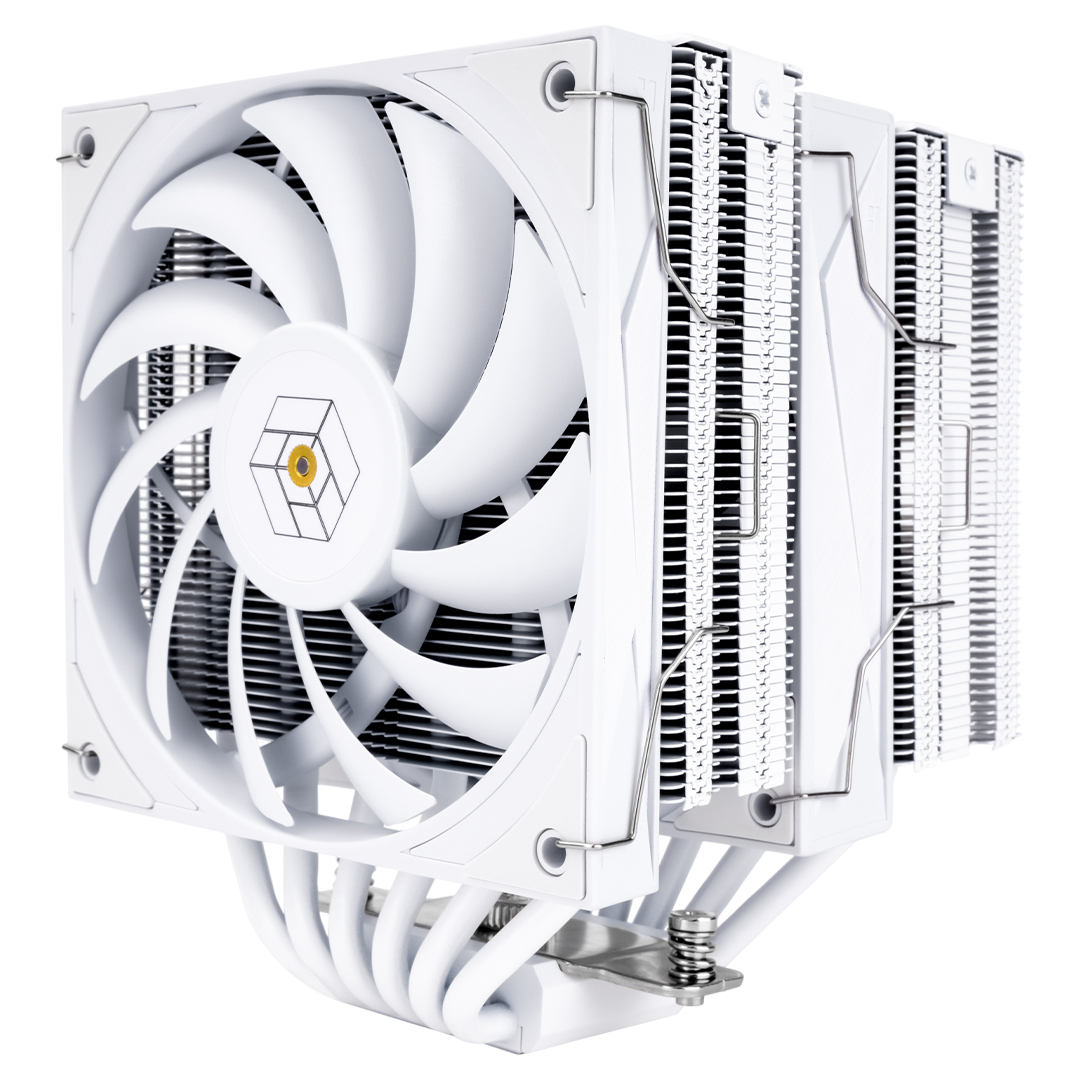

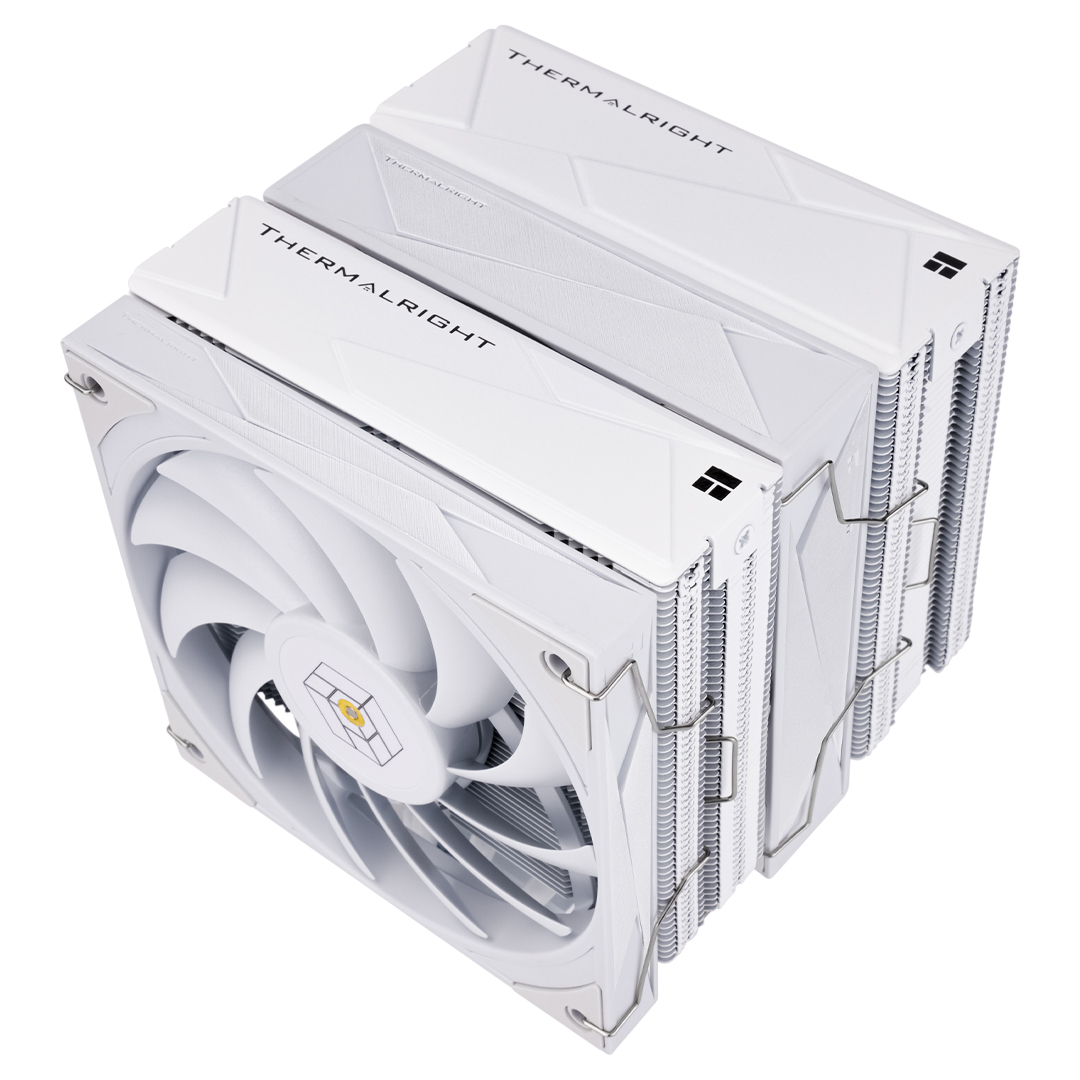

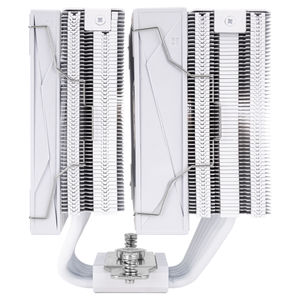

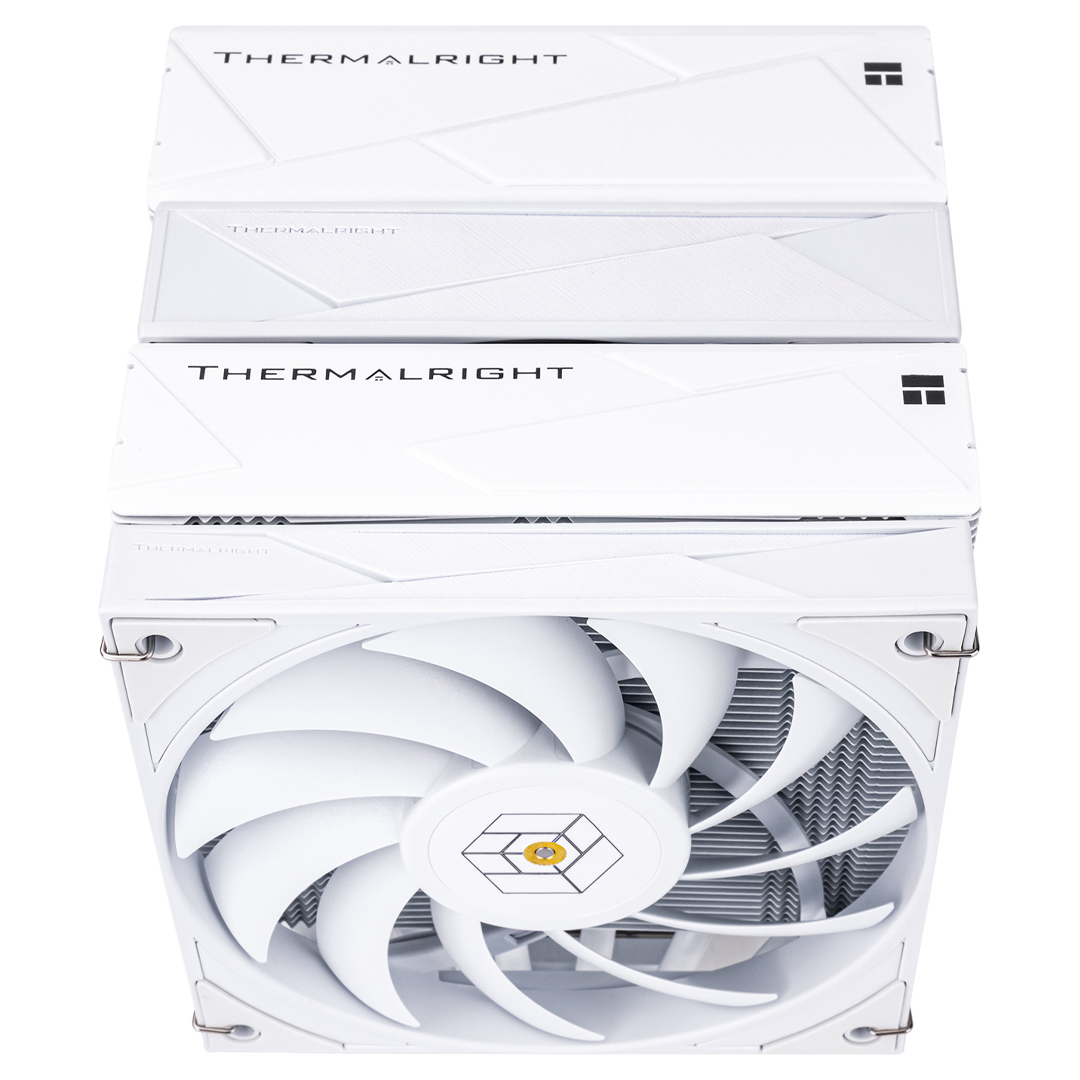

The Thermalright Royal Knight 120 White is a dual tower CPU air cooler featuring six 6mm heatpipes, a C1100 nickel-plated copper base, and a dual fan configuration for efficient thermal performance. Dual PWM fans rated up to 2150 RPM and 1900 RPM deliver strong airflow with controlled noise levels, while broad Intel and AMD socket compatibility ensures wide system integration.
Features
Royal Knight 120 White
Dual Tower Cooling Design
The Thermalright Royal Knight 120 White features a dual tower heatsink layout designed to maximise surface area for improved heat dissipation across high-performance CPUs.
Six Heatpipe Cooling System

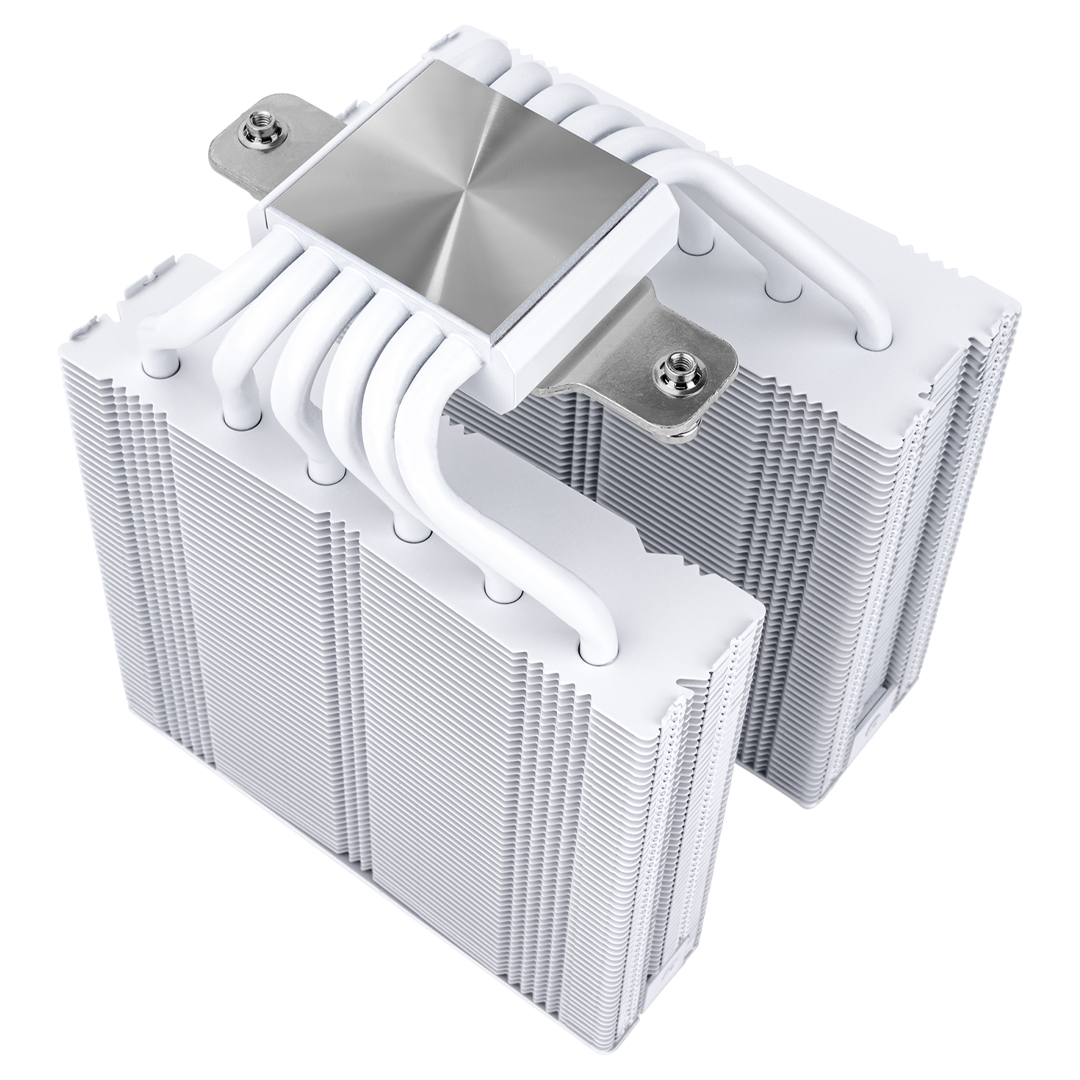

Six 6 mm heatpipes combined with a C1100 pure copper nickel-plated base enable efficient heat transfer for consistent thermal performance.
Dual Fan Performance Setup
A combination of TL-H12W-X28 and TL-H12015W PWM fans delivers optimised airflow and static pressure, supporting balanced cooling across the heatsink.
High Airflow 120mm Fan
The TL-H12W-X28 120 mm fan provides up to 80.45 CFM airflow and 2.65 mmH₂O static pressure at 2150 RPM±10%, supporting strong cooling output.
Slim 120mm Support Fan
The TL-H12015W 120 mm slim fan delivers up to 56.36 CFM airflow and 1.58 mmH₂O static pressure at 1900 RPM±10%, improving clearance while maintaining airflow.
Low Noise Operation
Operating at up to 29.4 dBA, the cooling solution maintains controlled acoustic performance under load.
Wide Platform Compatibility
Support for Intel LGA115X, 1200, 1700, 1851, 2011, 2066 and AMD AM4, AM5 platforms ensures compatibility across a broad range of systems.
S-FDB V2 Bearing Reliability
S-FDB V2 bearing construction enhances fan durability and stability while maintaining smooth long-term operation.
Specifications
General Data
| Model Number |
ROYAL-KNIGHT-120-WHITE |
| Colour |
White |
| Compatibility |
Intel: LGA115X/1200/1700/1851/2011/2066
AMD: AM4/AM5 |
Heatsink
| Dimension (L x W x H) |
122 mm x 114 mm x 156 mm |
| Heat Pipes |
6mm heatpipe x 6 units |
| Copper Base |
C1100 Pure copper nickel plated |
TL-H12W-X28 Fan
| Dimension (L x W x H) |
120 mm x 120 mm x 28 mm |
| Rated Speed |
2150 RPM±10% (Max) |
| Noise Level |
29.4 dBA |
| Air Flow |
80.45 CFM (Max) |
| Air Pressure |
2.65 mm H2O (Max) |
| Connector |
4 Pin (PWM Fan connector) |
| Bearing Type |
S-FDB V2 Bearing |
TL-H12015W Fan
| Dimension (L x W x H) |
120 mm x 120 mm x 15 mm |
| Rated Speed |
1900 RPM±10% (Max) |
| Noise Level |
28.4 dBA |
| Air Flow |
56.36 CFM (Max) |
| Air Pressure |
1.58 mm H2O (Max) |
| Connector |
4 Pin (PWM Fan connector) |
| Bearing Type |
S-FDB V2 Bearing |
Backed by a 6 year Thermalright warranty.
