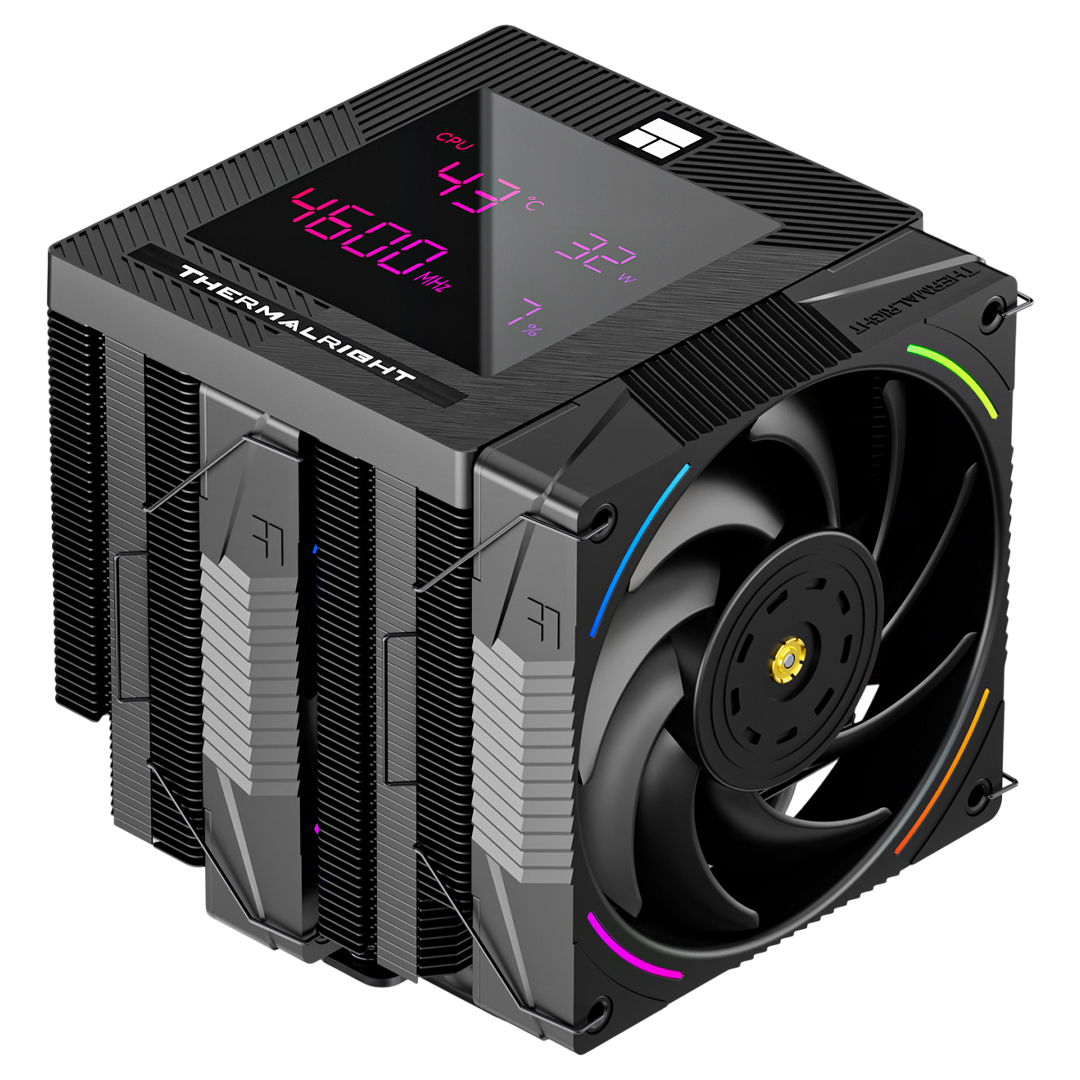

The Thermalright Phantom Spirit 120 Digital Evo is a dual tower CPU air cooler featuring seven 6mm heatpipes, a C1100 nickel plated copper base, and a digital display interface for real-time system monitoring. Dual TL-K12 PWM fans rated up to 2150 RPM deliver strong airflow with ARGB support, while broad Intel and AMD socket compatibility ensures wide system integration.
Features
Phantom Spirit 120 Digital Evo

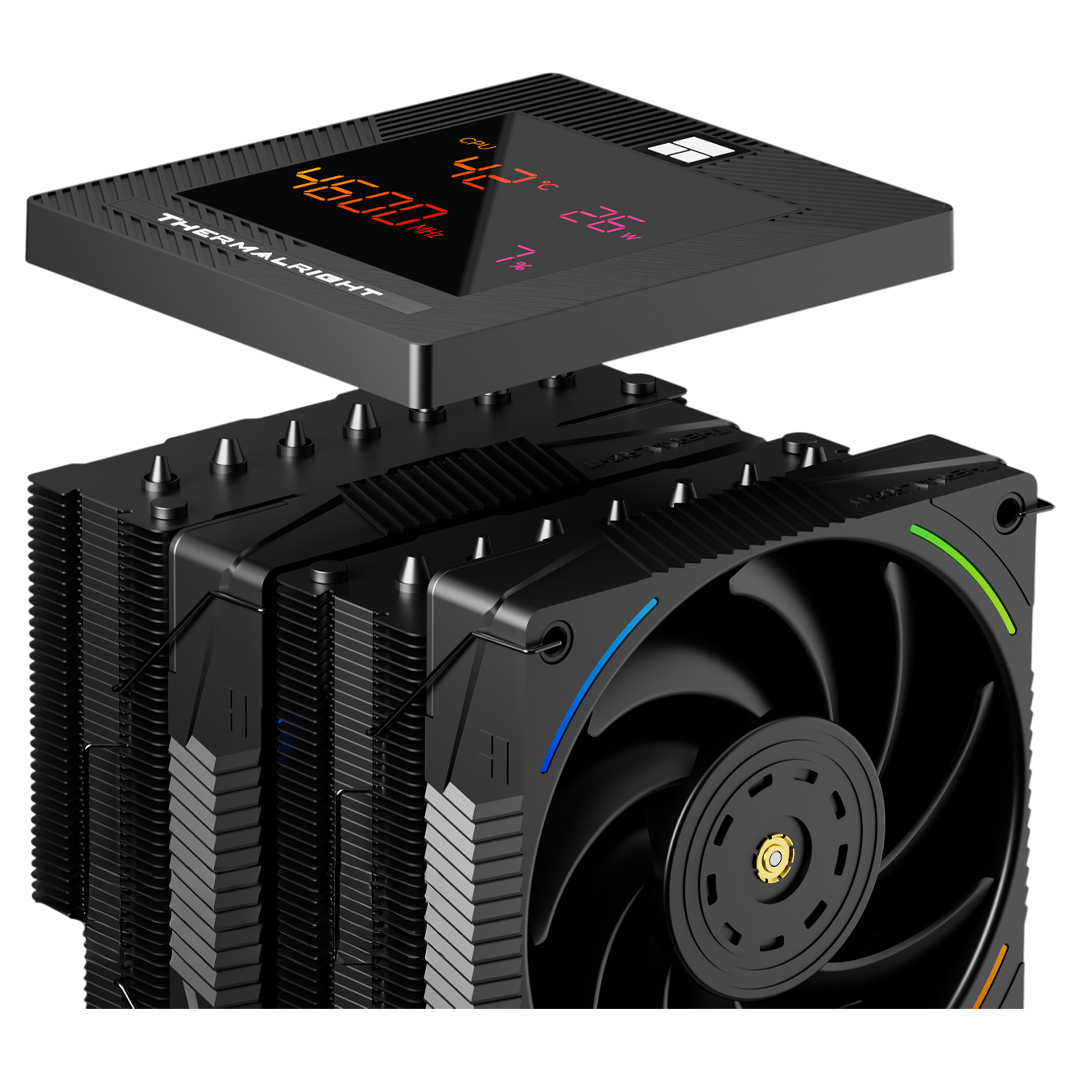

Integrated Digital Monitoring Interface
The Thermalright Phantom Spirit 120 Digital Evo includes a digital interface with motherboard USB connectivity, enabling real-time system monitoring and data display.
Dual Tower High-Performance Design
A dual tower heatsink layout maximises surface area for improved heat dissipation, supporting stable thermal performance for CPUs.

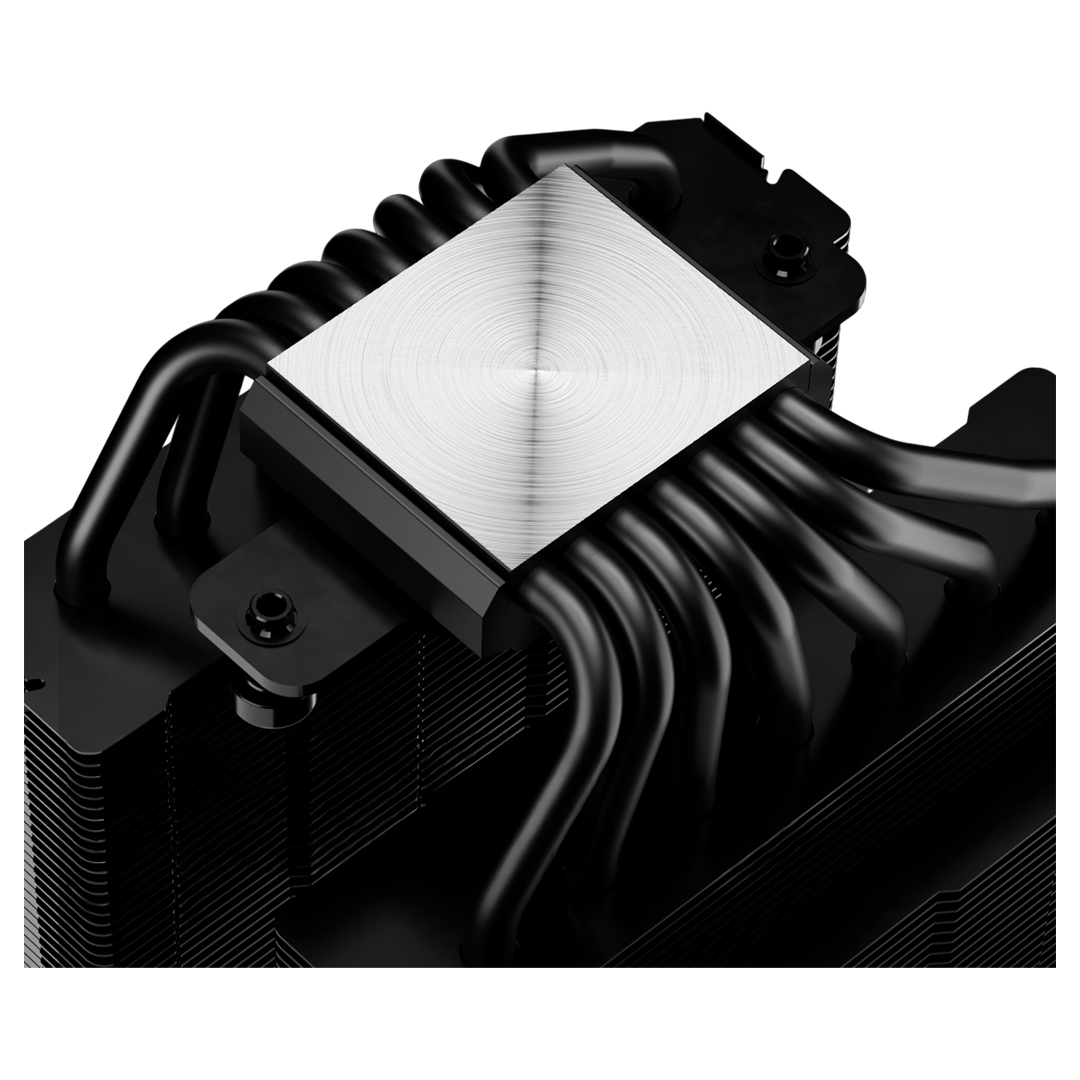

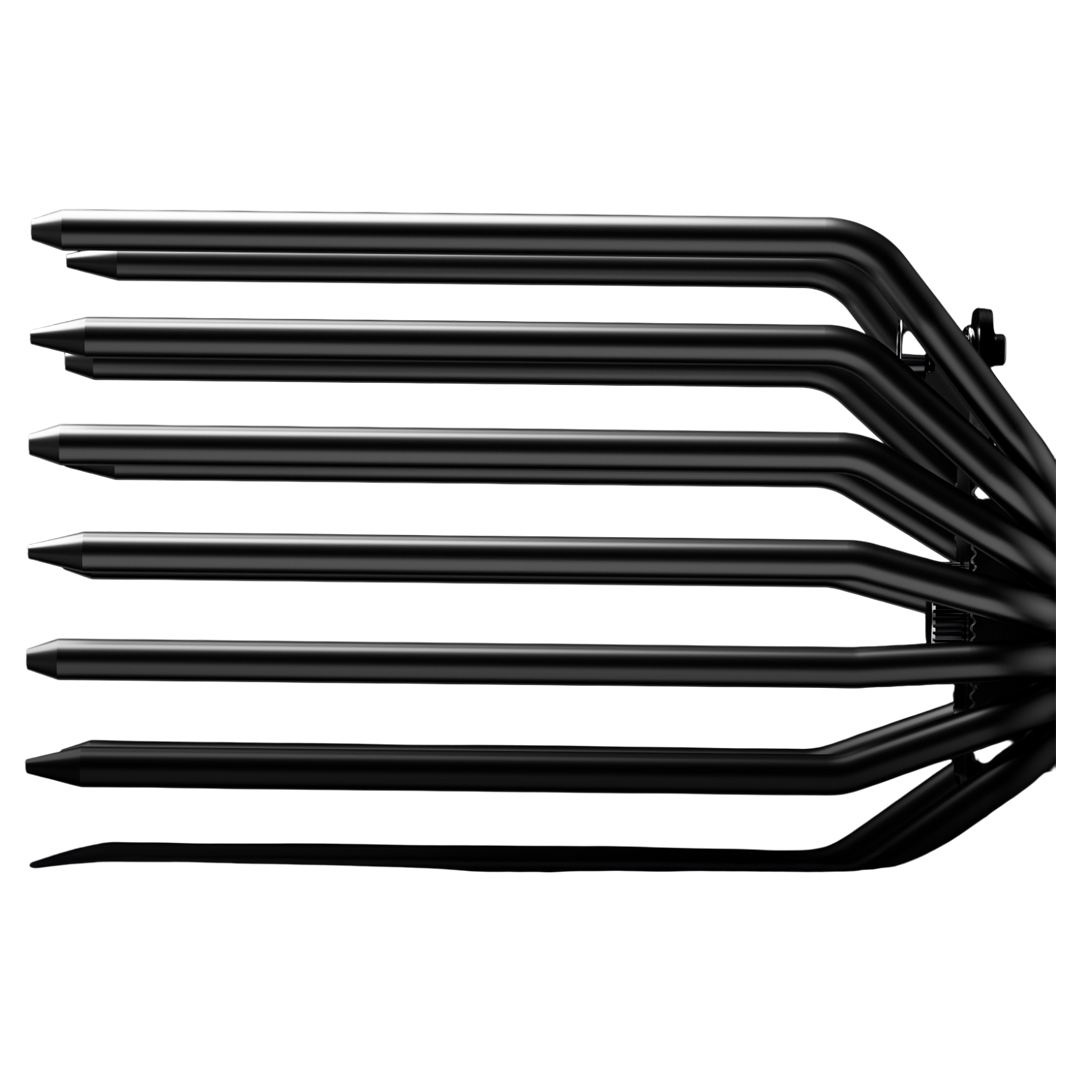

Seven Heatpipe Cooling System
Seven 6 mm heatpipes paired with a C1100 pure copper nickel-plated base ensure efficient heat transfer and rapid thermal distribution across the heatsink.

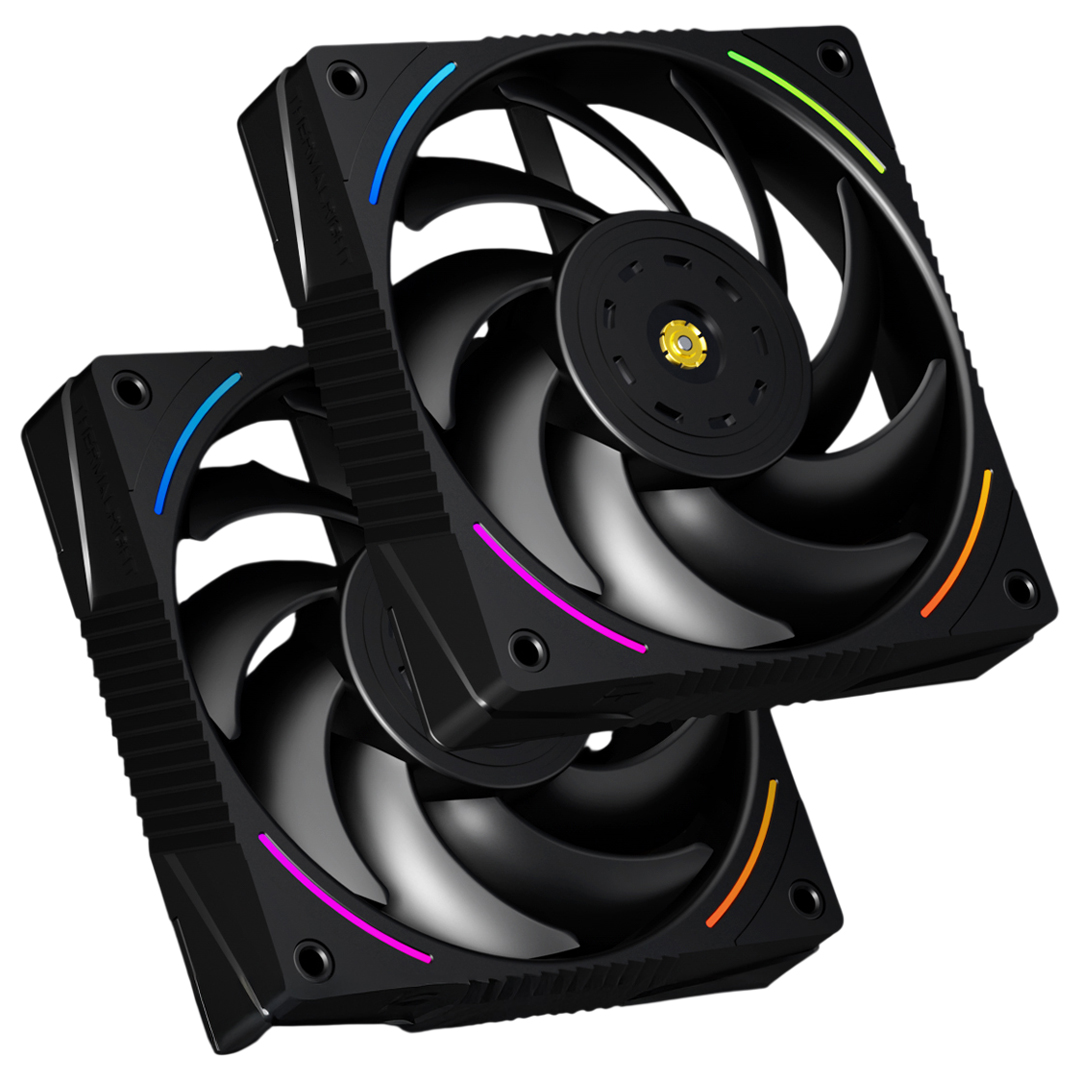

High-Speed Dual Fan Configuration
Dual TL-K12 120 mm PWM fans deliver up to 2150 RPM±10%, generating 69 CFM airflow and 2.87 mmH₂O air pressure for strong cooling performance.
ARGB Lighting Support
3-pin 5V ARGB connectivity enables synchronised lighting effects across compatible systems for cohesive system aesthetics.
Low Noise Operation
Operating at up to 27 dBA, the cooling solution maintains controlled acoustic performance during demanding workloads.
Wide Platform Compatibility
Support for Intel LGA115X, 1200, 1700, 1851 and AMD AM4, AM5 platforms ensures compatibility across a wide range of modern systems.
S-FDB V2 Bearing Durability
S-FDB V2 bearing design improves fan longevity and stability while maintaining smooth and consistent operation over extended use.
Specifications
General Data
| Model Number |
PHANTOM-SPIRIT-120-DIGITAL-EVO |
| Compatibility |
Intel: LGA115X/1200/1700/1851
AMD: AM4/AM5 |
Heatsink
| Dimension (L x W x H) |
125 mm x 135 mm x 160 mm |
| Heat Pipes |
6 mm heatpipe x 7 units |
| Copper Base |
C1100 Pure copper nickel plated |
| Digital Connector |
MB 9 Pin/USB Port |
Fan
| Model |
TL-K12 |
| Dimension (L x W x H) |
120 mm x 120 mm x 25 mm |
| Rated Speed |
2150 RPM±10% (Max) |
| Noise Level |
27 dBA |
| Air Flow |
69 CFM (Max) |
| Air Pressure |
2.87 mm H2O (Max) |
| Ampere |
0.16 A |
| Connector |
4 Pin (PWM Fan connector) |
| ARGB Connector |
3 Pin 5V |
| Bearing Type |
S-FDB V2 Bearing |
Backed by a 3 year Thermalright warranty.
