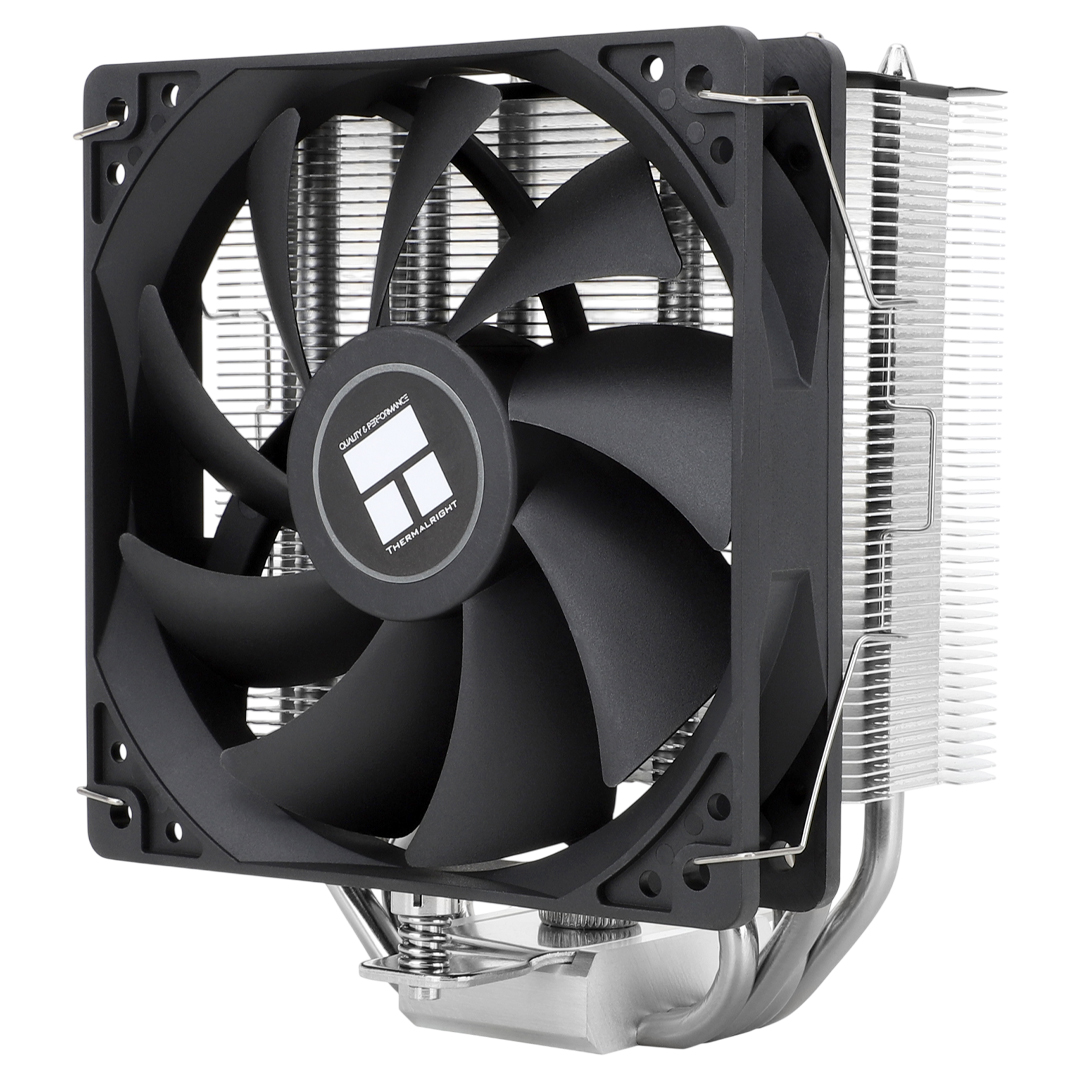

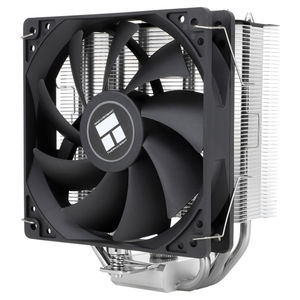

The Thermalright Assassin X 120 Refined SE CPU Air Cooler features a compact single tower heatsink with four 6mm heatpipes and a TL-C12C 120mm PWM fan delivering up to 66.17 CFM airflow. Supporting a variety of Intel and AMD platforms, the Thermalright Assassin X 120 Refined SE offers efficient air cooling with low noise operation.
Features
Assassin X 120 Refined SE
Compact Tower Design
A slim single tower heatsink measuring 148mm in height provides strong cooling performance while maintaining broad case compatibility.
Efficient Heat Dissipation
Four 6mm heatpipes enhance heat transfer away from the CPU for consistent thermal performance under load.
High Airflow Cooling
A TL-C12C 120mm fan delivers up to 66.17 CFM airflow and 1.53 mm H₂O pressure for effective cooling.
Low Noise Operation
Fan operation is rated at 25.6 dBA, maintaining efficient cooling with minimal acoustic output.
Durable Fan Bearing
An S-FDB bearing design improves longevity and ensures stable, reliable fan performance.
Wide Platform Support
Compatibility with Intel 115x, 1200, 1700, 1851 and AMD AM4 and AM5 sockets enables flexible system integration.
Specifications
General Data
| Model Number |
ASSASSIN-X-120-REFINED-SE |
| Colour |
Black |
| Compatibility |
Intel: 115x/1200/1700/1851
AMD: AM4/AM5 |
Heatsink
| Dimension (L x W x H) |
120 mm x 46 mm x 148 mm |
| Weight |
630g |
| Heat Pipes |
6mm heatpipe x 4 units |
Fan
| Model |
TL-C12C |
| Dimension (L x W x H) |
120 mm x 120 mm x 25 mm |
| Weight |
120g |
| Rated Speed |
1550 RPM±10% (Max) |
| Noise Level |
25.6 dBA |
| Air Flow |
66.17 CFM (Max) |
| Air Pressure |
1.53 mm H2O (Max) |
| Ampere |
0.20 A |
| Connector |
4 Pin (PWM Fan connector) |
| ARGB Connector |
3 Pin 5V |
| Bearing Type |
S-FDB Bearing |
Backed by a 3 year Thermalright warranty.
