The ASUS TUF Gaming B850-PRO WIFI7 W Neo is a high-performance AMD B850 chipset motherboard engineered to provide a rock-solid AM5 socket foundation for Ryzen 9000, 8000, and 7000 series processors. Showcasing a premium white and silver W NEO aesthetic, this board is equipped with revolutionary NitroPath DRAM technology to unlock extreme DDR5 memory frequencies while maintaining superior signal stability for intensive gaming and AI workloads. Its future-ready connectivity suite includes ultra-fast WiFi 7, high-speed 2.5Gb ethernet, and PCIe 5.0 support for both cutting-edge graphics cards and M.2 NVMe SSDs, ensuring maximum data throughput. Built with military-grade TUF components, a robust power delivery system, and DIY-friendly innovations like the PCIe Slot Q-Release and M.2 Q-Latch, this ATX motherboard is the definitive choice for enthusiasts seeking a durable, high-bandwidth, and visually striking platform for next-generation PC builds.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
TUF GAMING B850-PRO WIFI7 W NEO
ASUS TUF GAMING B850-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Performance
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Expansion Slots
1 x PCIe 5.0 x16 SafeSlot
1 x PCIe 4.0 x16 Slot (max @x4)
2 x PCIe 4.0 x1 Slots
- 14(80A)+2(80A)+1(80A) Power Stages
- 4 x DIMM
DDR5
Dual Channel
AEMP
- 3 x M.2 Slots
1 x M.2 2280 PCIe 5.0 x4
1 x M.2 2242/2260/2280/22110 PCIe 4.0 x4
1 x M.2 2280 PCIe 4.0 x4
Cooling
- VRM Heatsinks
- Two M.2 Heatsinks for Three M.2 Slots
- CPU / CPU OPT Fan Headers & AIO Pump Header
- Chipset Heatsink
- 4 x Chassis Fan Headers
Gaming Immersion
- Realtek ALC1220P Audio Codec
- Exclusive DTS Audio Processing
TUF Gaming Audio Cover
Audio Shielding
Dedicated Audio PCB Layers
Premium Audio Capacitors
Unique De-pop Circuit
- 3 x Addressable RGB Gen 2 Headers
- Aura Edge Lighting

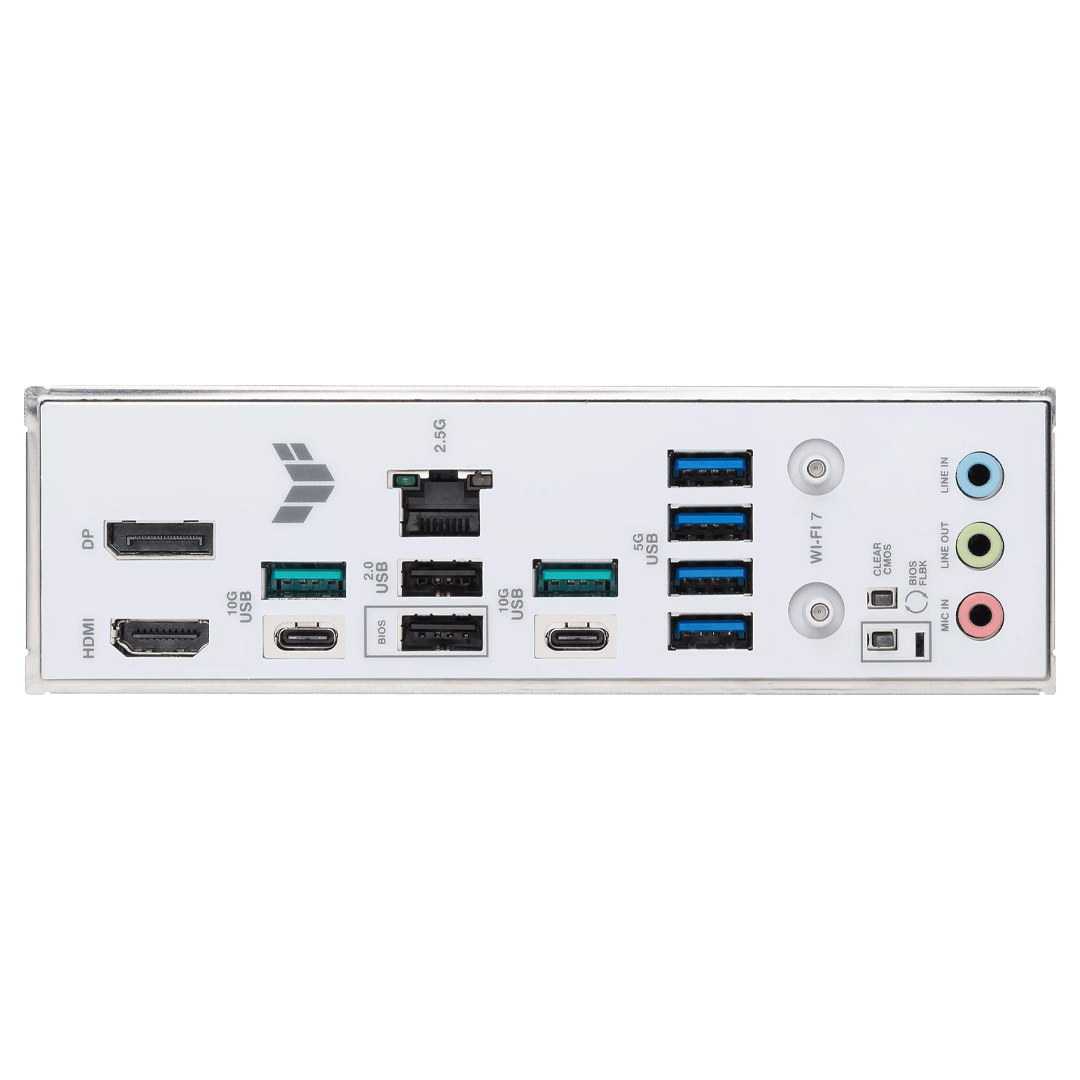

Connectivity
- DisplayPort
- HDMI™
- 2 x USB 10Gbps (Type-A + Type-C®)
- Realtek® 2.5Gb Ethernet
- 2 x USB 2.0
- 2 x USB 10Gbps (Type-A + Type-C®)
- 4 x USB 5Gbps
- WiFi 7
- Clear CMOS Button
- BIOS FlashBack™ Button
- 3 x Audio Jacks
- 1 x USB 20Gbps Type-C® Connector
- 1 x USB 5Gbps Header
- 3 x USB 2.0 Headers
- 1 x Thunderbolt™ (USB4®) Header
Intelligent
AI Solution
ASUS AI Solutions – including AI Cache Boost to supercharge large language model (LLM) workflows, AI Advisor as your technical expert with expertise in PC performance, and AI Cooling II for thermal control.
AI Cache Boost
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimises CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
- Increase AI LLM performance up to 29% with AI Cache Boost
Tokens Per Second
With an ASUS AMD 600 or 800 series motherboard and a Ryzen™ 9000 series CPU, you can enable the AI Cache Boost setting in the BIOS. This feature applies comprehensive optimisations to CPU cache and memory pathways, greatly reducing the typical performance drop that can happen when VRAM is used up.
Internal testing determined that enabling AI Cache Boost delivered up to a 15% performance uplift when running large language models that exceeded graphics card memory. With high-speed DDR5 memory and additional Infinity Fabric clock (FLCK) speed tuning, this performance uplift nearly doubled.
For enthusiasts, creators or anyone who wants a powerful AI model capable of deep reasoning and natural conversation running on their own hardware, they can enjoy these uplifts today with AI Cache Boost.
AMD Ryzen 7 9800X3D - RX9070XT-16GB - ROG Crosshair X870E Hero
- Default: 6.35
- AI Cache Boost: 7.31 (+15.12%)
- AI Cache Boost: 8.2 (EXPO8000 + FCLK 2200MHz) (+29.13%)
AMD Ryzen 7 9800X3D - RTX5080-16GB - ROG Crosshair X870E Hero
- Default: 6.01
- AI Cache Boost: 6.96 (+15.81%)
- AI Cache Boost: 7.64 (EXPO8000 + FCLK 2200MHz) (+27.12%)
Benchmark
- Run AI applications on your PC more smoothly with AI Cache Boost
AMD Ryzen 9 9950X3D - RTX 4090 - ROG Crosshair X870E Hero
Geekbench AI (Higher is Better)
- Default: 51786
- AI Cache Boost: 54392 (+5.03%)
- AI Cache Boost & Turbo Game Mode: 56757 (+9.60%)
UL Procyon - AI Computer Vision Benchmark (Higher is Better)
- Default: 1426
- AI Cache Boost: 1485 (+4.14%)
- AI Cache Boost & Turbo Game Mode: 1702 (+19.0%)
Topaz Video AI (Lower is Better)
- Default: 153 sec
- AI Cache Boost: 148 sec (+3.27%)
- AI Cache Boost & Turbo Game Mode: 145 sec (+5.23%)
AMD Ryzen 7 9800X3D - RTX 4090 - ROG Crosshair X870E Hero
UL Procyon - AI Computer Vision Benchmark (Higher is Better)
- Default: 1490
- AI Cache Boost: 1680 (+12.75%)
AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
* Availability of ASUS AI Advisor may vary by region.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Overclocking
Asynchronous Clock
For next-level frequency flexibility, the TUF GAMING B850-PRO WIFI7 W NEO features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains.
AMD Precision Boost Overdrive (PBO)
This pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, this AMD algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
Intelligent Control
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.
64MB BIOS
A larger BIOS chip enables a more powerful interface and extended CPU compatibility with the latest and future AM5 processors, ensuring a smooth, seamless user experience.
BIOS Q-Dashboard
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
Advanced Mode
Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
ASUS MyHotkey
This feature provides a fast, convenient way to update the BIOS and boot your OS, enhancing PC upgrades with streamlined efficiency for DIY users.
FlexKey
Remap the reset button on the chassis to toggle Aura lighting, activate the DirectKey to go straight to the UEFI BIOS, or reset the system.
EZ Mode
Quick and Simple Setup
EZ Mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality and one-click application of important settings — all to help you get your rig up and running in no time.
Essential Mode
Essential OC Control, Simplified
Essential Mode provides quick access to commonly used overclocking settings and key system information, making performance tuning easy without diving into menus that require deeper expertise.
Boost Pro
Enhance system performance by optimising GPU Boost, AI Cache Boost, and Turbo Game Mode for different usage scenarios.
EZ System Tuning
Quickly apply pre-configured profiles for improved system performance or energy savings.
ASUS MB Manager
ASUS MB Manager delivers fast, fluid, and intuitive control over essential features, offering a smooth experience for monitoring system stats, customising onboard RGB lighting (ASUS MB Manager controls motherboard RGB lighting only. For cross-product Aura Sync, please use Armoury Crate.), accessing fan cooling controls, and fine-tuning advanced WiFi settings. It also works seamlessly with Armoury Crate to provide an even more comprehensive system management experience.
ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
ASUS GlideX
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It is compatible with Windows, macOS, Android and iOS.
Performance
Premium Power Design
Stable power is crucial for maximising the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
- 14 Vcore Power (80A, DrMOS)
- 2 SOC Power (80A, DrMOS)
- 1 Misc Power (80A, DrMOS)
Eight-Layer Server-Grade Design
Built on an eight-layer server-grade stack for precise signals and stable performance.
Built on a server-grade eight-layer blueprint, this motherboard’s core is engineered for precision. Bus signals for PCIe 5.0 and DDR5 are clean and stable, thanks to controlled impedance and dedicated power/ground layers, while the stiffer structure enhances durability. The result is quieter signal behaviour and steadier performance under pressure.
ProCool Power Connectors
Proprietary 8+8 pin connectors improve PSU connection.
Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.
Digi+VRM Control
Real-time voltage control.
The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimised for ultra-smooth and ultra-clean power delivery to the CPU at all times.
Memory
Server-Grade DRAM Enhancement
This motherboard features an enhanced memory slot layout that delivers high clock speeds and compatibility with high-capacity DDR5 kits. The refined design supports overclocking of up to 9,600+ MT/s, helping you unlock the full potential of your DDR5 modules—whether you’re pushing extreme-speed kits or maximising entry-level sets (Achievable with advanced BIOS configuration and potentially specialised hardware. Results may vary according to system components.)
DDR5 Dominance
For users looking to push well beyond stock DDR5 speeds, this motherboard is engineered for enthusiast-grade performance with broad AMD Extended Profiles for Overclocking (EXPO™) support and an upgraded memory design tuned for stability at ultra-high frequencies. Veterans can further tweak performance via an extensive array of settings in the UEFI.
ASUS AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can quickly apply.
M.2 PCIe 5.0 Support
This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps (Actual transmission speed will be lower than theoretical maximum speed.), and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
Cooling
Cooler by Design
Enlarged VRM Heatsinks
The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.
Enlarged M.2 Heatsinks
Three of the four M.2 slots have dedicated heatsinks to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.
AIO Pump Header
An integrated AIO management system enables full control of PWM or DC water pumps, making it perfect for custom or all-in-one cooling setups.
Multiple Temperature Sources
Except for the CPU & CPU OPT fan headers, each fan header can be set to monitor and react to up to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed through Fan Xpert 4 or via the UEFI.
Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimise cooling for GPU- and CPU-intensive tasks.
Superb Chipset Heatsink
An expanded surface area for the chipset cooler maximises system performance and heat dissipation.
Smart Fan Protection
A dedicated integrated circuit protects each fan header from excess heat and electrical currents.
4-Pin PWM/DC Fan
Onboard fan headers support auto-detection of PWM or DC fans.
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customisable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.
Connectivity
Empowering Connection
This motherboard offers a versatile range of connectivity with PCIe 5.0, USB4® 40Gbps and front USB 20Gbps Type-C® connectors with Fast Charge support.
PCIe 5.0 for Graphics Card
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.
Rear Two USB 10Gbps Type-C®
Extensive USB support ensures connections to a wide array of external devices. This motherboard includes two USB 10Gbps Type-C® ports on the rear I/O panel that delivers transfer speeds of up to 10Gbps.
Front USB 20Gbps Type-C®
This motherboard features a USB 20Gbps Type-C® front panel connector for speedy data transfers of up to 20Gbps.
Three USB 2.0 Headers
Three USB 2.0 headers ensure broad compatibility with AIO coolers, chassis fan hubs, front USB modules, and popular third-party components.
Easy PC DIY
PCIe® Slot Q-Release
A durable metal button unlocks the first PCIe slot's security latch with a single press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
M.2 Q-Release
The M.2 heatsink features a convenient switch (Switch may be a lever or button, depending on motherboard model.) to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
Q-Antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.
Q-LED
The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.
Clear CMOS & BIOS FlashBack™
The Clear CMOS button quickly resets BIOS settings to factory default. lt can also be used to reboot the PC if incorrect BIOS settings have been selected.
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.
Protection
SafeSlot
PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.
ESD Guards
ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge – well above the industry standard.
TUF LANGuard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.
Stainless Steel Back I/O Panel
TUF Gaming motherboards feature a corrosion-resistant stainless steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.
Build with Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
Gaming
Ultrafast Networking
Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.
WiFi 7
WiFi 7 ensures stable connections and low latency.
The next-gen WiFi 7 (WiFi 7 features require an onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. The 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Please visit the ASUS support website for more information.) supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
MLO Wizard
MLO Wizard assesses your environment for Multi-Link Operation support across your device, router and operating system, while also visualising the current traffic capacity on each of your router’s frequency bands.
2.5Gb Ethernet
On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.
Pre-Installed WiFi Driver
A pre-installed WiFi driver enables users to connect to the internet when installing Windows on their PC; no USB flash drive is needed for driver installation, making the setup process faster and more convenient (Currently available on ROG Glacial, Dark Hero and select Neo motherboards. Future BIOS updates may prioritise support for new CPUs, potentially affecting WiFi driver integration.).
Audio
7.1 Surround Sound
Realtek 7.1 Channel Audio
ALC1220P
This motherboard utilises an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.
Better Audio Effects
DTS Audio Processing
DTS®Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customise audio settings.
- Music Mode
- Movie Mode
- Game Mode
- Custom Audio
LE Audio
Bluetooth® LE Audio
The new Bluetooth LE Audio technology standard is a major leap in wireless sound, courtesy of the new LC3 audio codec that delivers higher quality and lower power consumption. It supports low-latency transmission and 3D spatial audio for clearer voice and more immersive gaming sound.
Low Latency
With the LC3 codec and LE Audio, latency is reduced by up to 70% versus legacy Bluetooth. Gamers can enjoy near real-time sound effects, footsteps, and voice cues, plus clearer, more stable in-game communication.
Immersive Spatial Sound
SMONO (Spatial Mono) is a 3D spatial audio technology that works over Bluetooth LE Audio. By dynamically tracking the position of sounds in-game, it provides realistic directional cues — helping gamers locate enemies, footsteps, or environmental sounds more accurately. This creates a deeper sense of immersion and improves situational awareness in fast-paced games.
Lighting
Outshine the Competition
ASUS Aura Sync offers synchronised lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.
A well-tuned system deserves a matching aesthetic. The TUF GAMING motherboard features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.
- Static
- Breathing
- Colour Circle
- Reactive
- Rainbow
- Comet
- Partition
- Battery Mode
Addressable RGB Gen 2 Header
Automatically optimise lighting effects for the number of LEDs present in compatible ARGB gear.
Three addressable RGB Gen 2 headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The headers also offer full backward compatibility with existing Aura Sync gear.
Backed by a 3 year ASUS warranty.
