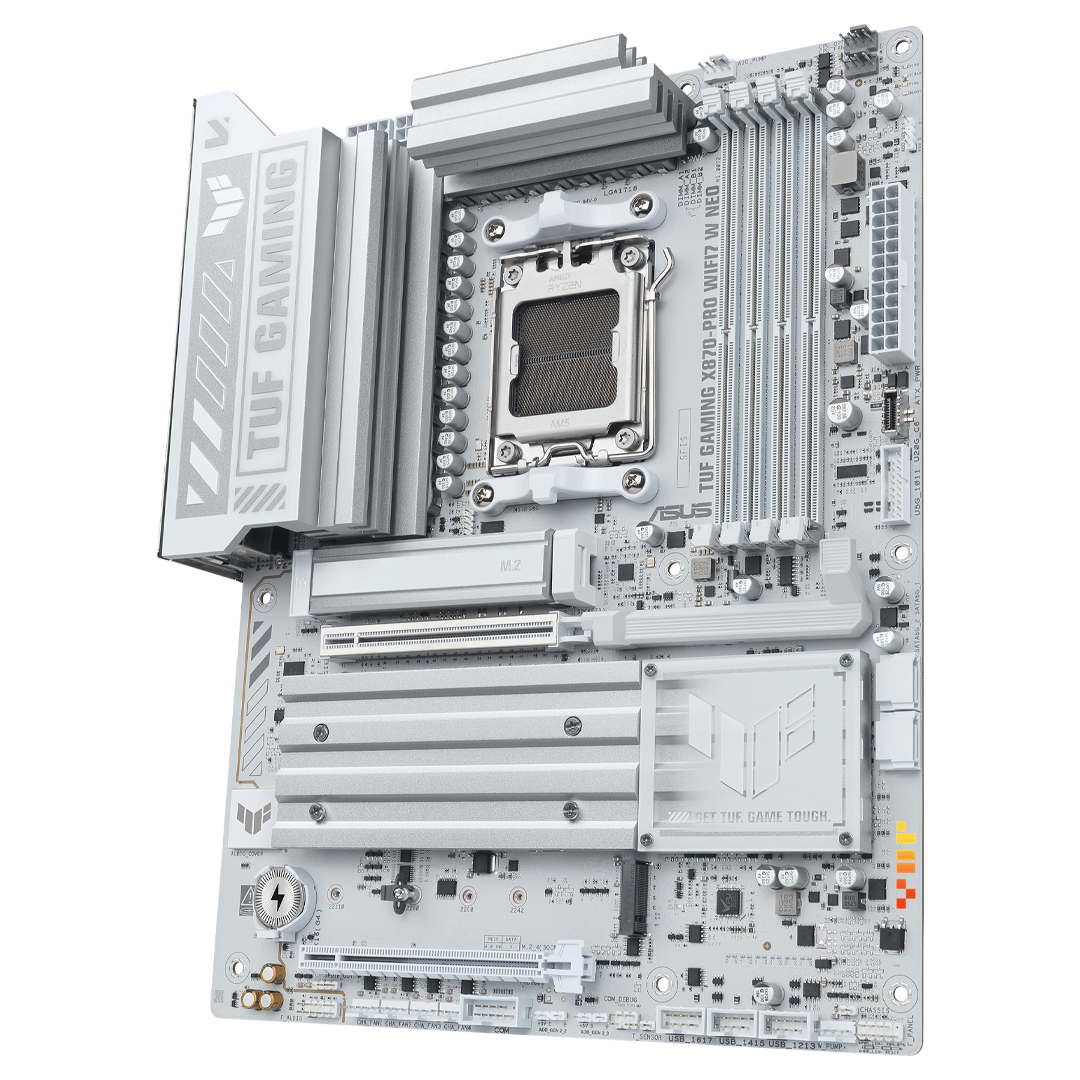

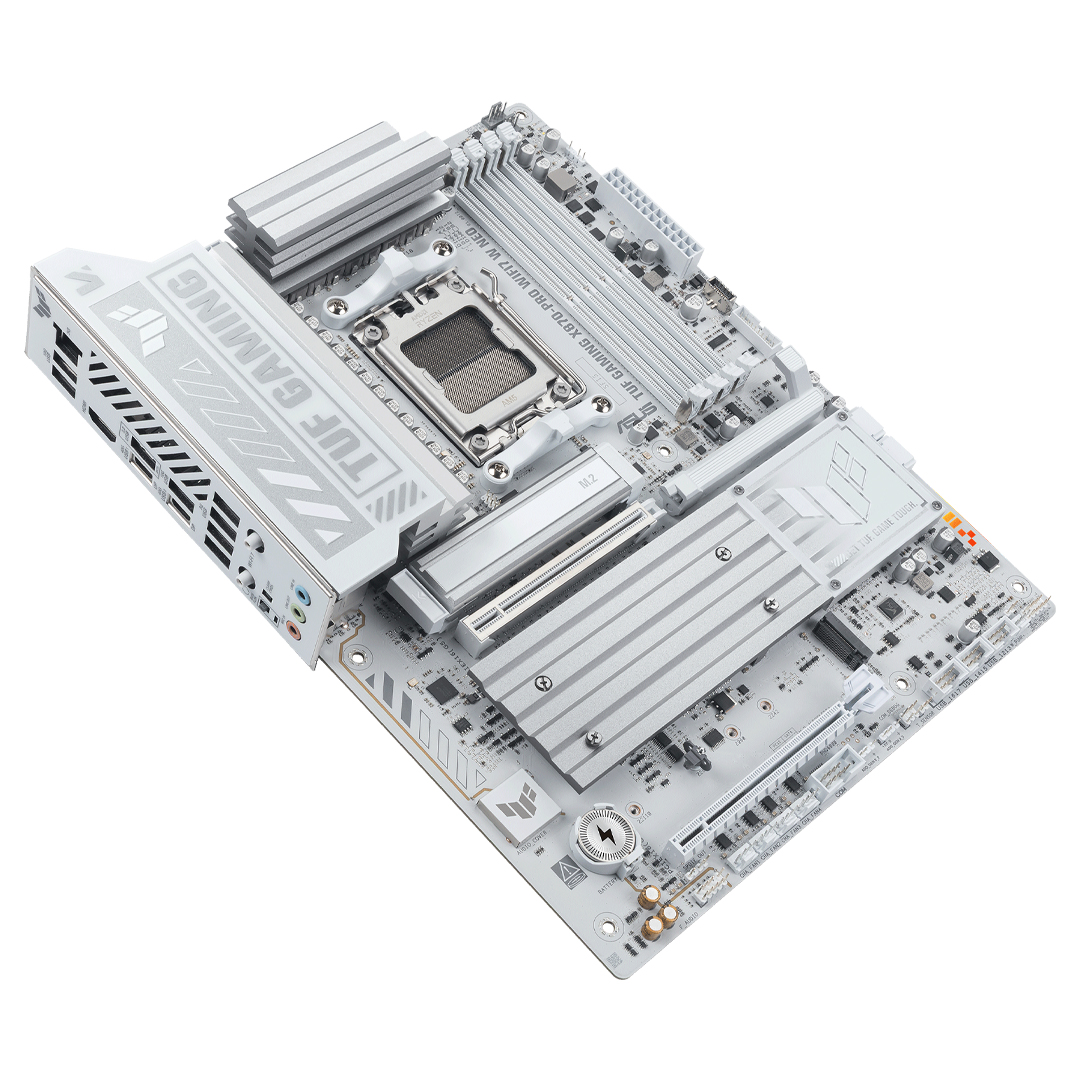

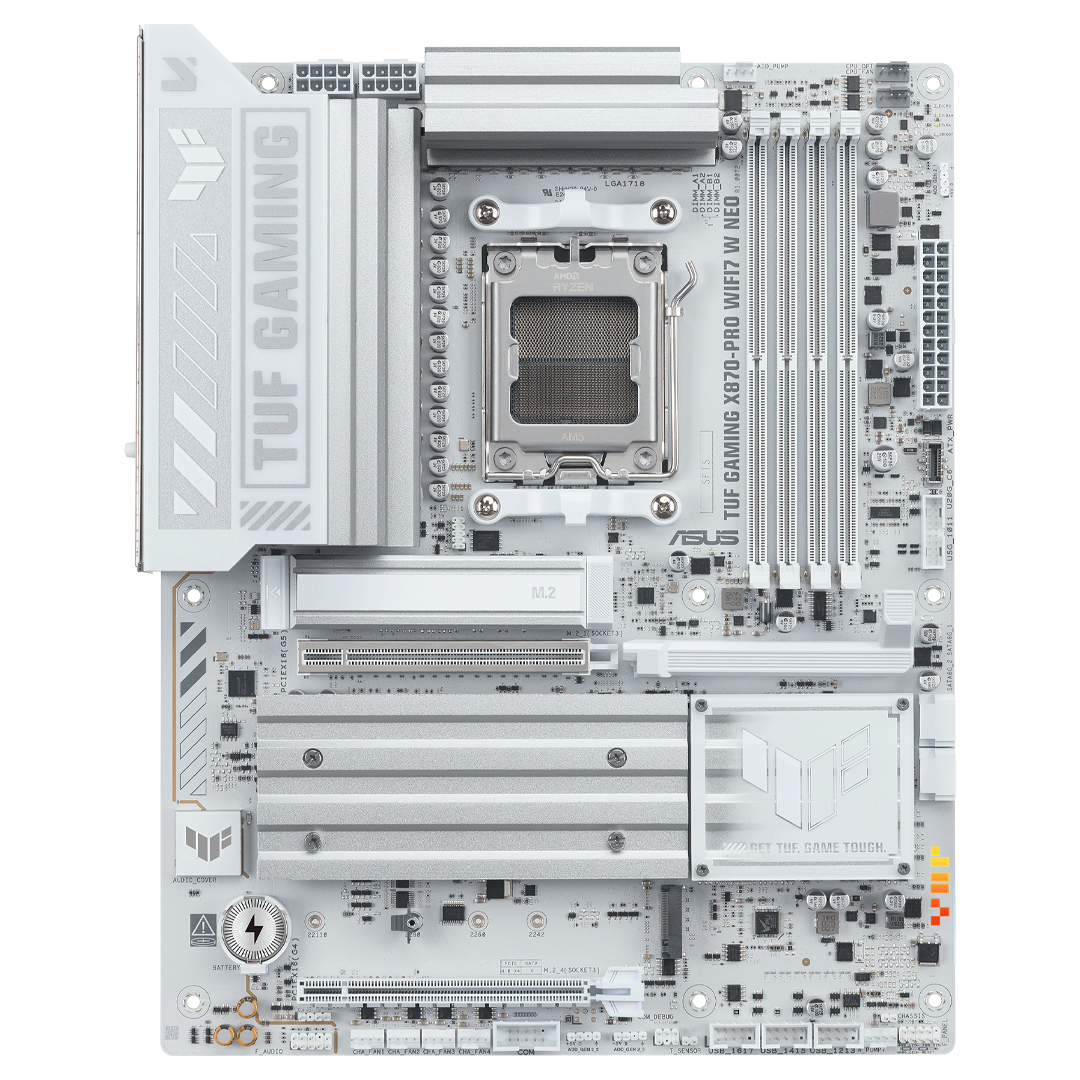

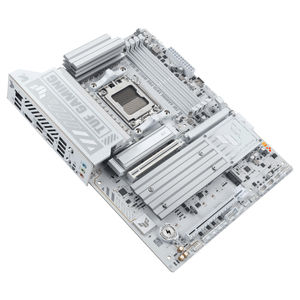

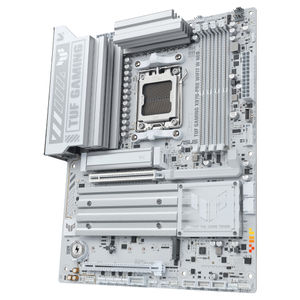

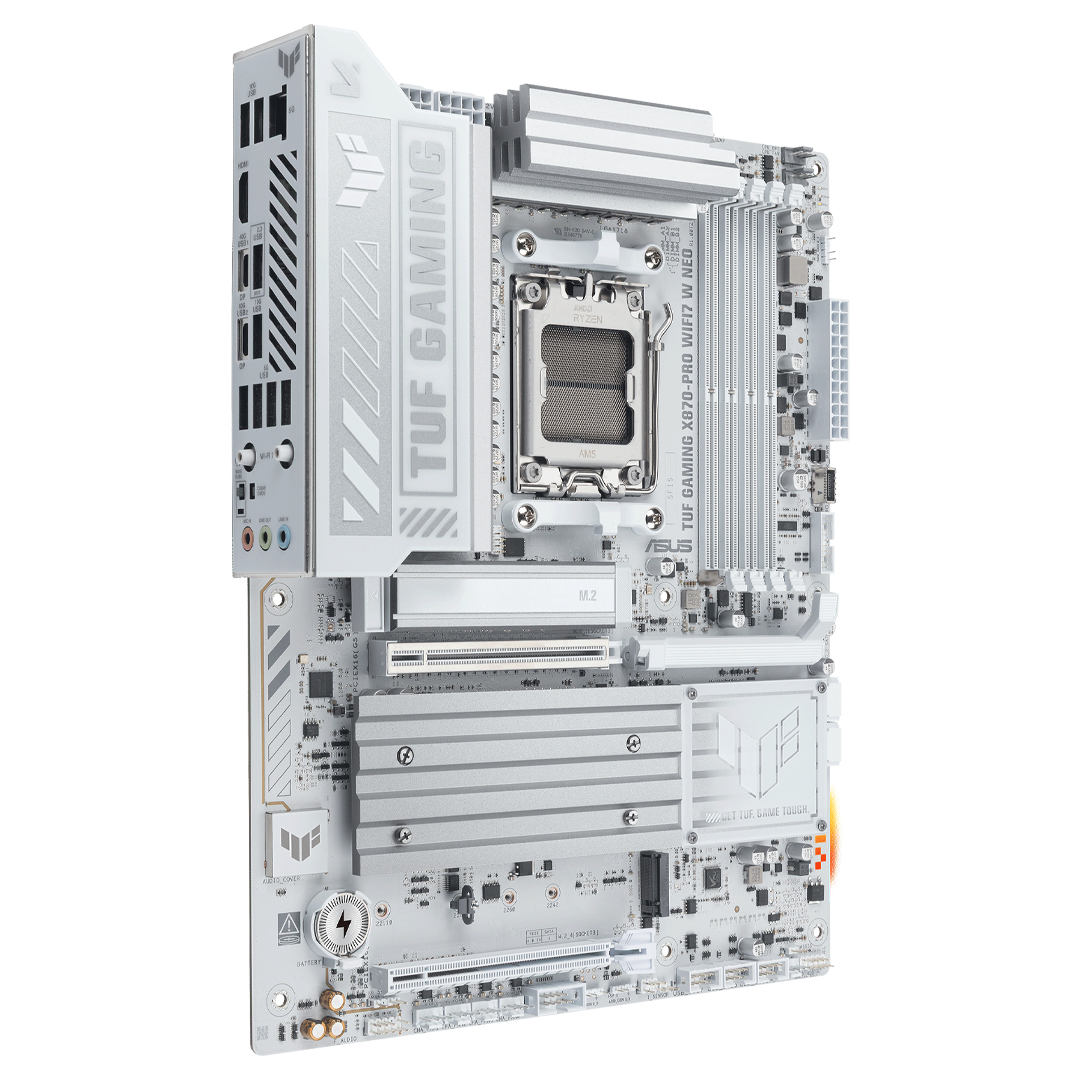

ASUS TUF Gaming X870-Pro WIFI7 W Neo DDR5 Motherboard

The ASUS TUF Gaming X870-Pro WIFI7 W NEO is a high-performance AMD X870 chipset motherboard engineered to unleash the full potential of Ryzen 9000 series processors within a striking white and silver W NEO aesthetic. This AM5 socket powerhouse features a robust 16+2+1 power stage delivery system and revolutionary NitroPath DRAM technology, pushing DDR5 memory speeds to an extreme 9600+ MT/s while ensuring superior signal integrity. Designed for next-gen builds, it integrates ultra-fast WiFi 7, 5Gb Ethernet, and dual USB4 (40Gbps) ports for lightning-speed data transfers, alongside PCIe 5.0 support for both cutting-edge graphics cards and M.2 NVMe SSDs. With advanced AI Overclocking, AI Cooling II, and a DIY-friendly PCIe Slot Q-Release design, this motherboard provides a stable, future-proof, and military-grade foundation for enthusiast gamers and creators seeking a premium, high-bandwidth computing environment.

Warning: This product contains a button battery - If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours. - Keep batteries out of reach of children. - If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.

Features

---

TUF GAMING X870-PRO WIFI7 W NEO

ASUS TUF GAMING X870-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Performance

• AM5 Socket for AMD Ryzen™ Desktop Processors
• Expansion Slots
  1 x PCIe 5.0 x16 SafeSlot
  1 x PCIe 4.0 x16 Slot (max @x4)
• 16(80A)+2(80A)+1(80A) Power Stages
• 4 x DIMM
  DDR5
  Dual Channel
  AEMP
  NitroPath DRAM Technology
• 4 x M.2 Slots
  2 x M.2 2280 PCIe 5.0 x4
  1 x M.2 2280 PCIe 4.0 x4
  1 x M.2 2242/2260/2280/22110 PCIe 4.0 x4

Cooling

• VRM Heatsinks
• Two M.2 Heatsinks for Three M.2 Slots
• CPU / CPU OPT Fan Headers & AIO Pump Header
• Chipset Heatsink
• Water Pump+ Header
• 4 x Chassis Fan Headers

Gaming Immersion

• Realtek ALC1220P Audio Codec
• Exclusive DTS Audio Processing
  TUF Gaming Audio Cover
  Audio Shielding
  Dedicated Audio PCB Layers
  Premium Audio Capacitors
  Unique De-pop Circuit
• 3 x Addressable RGB Gen 2 Headers
• Aura Edge Lighting

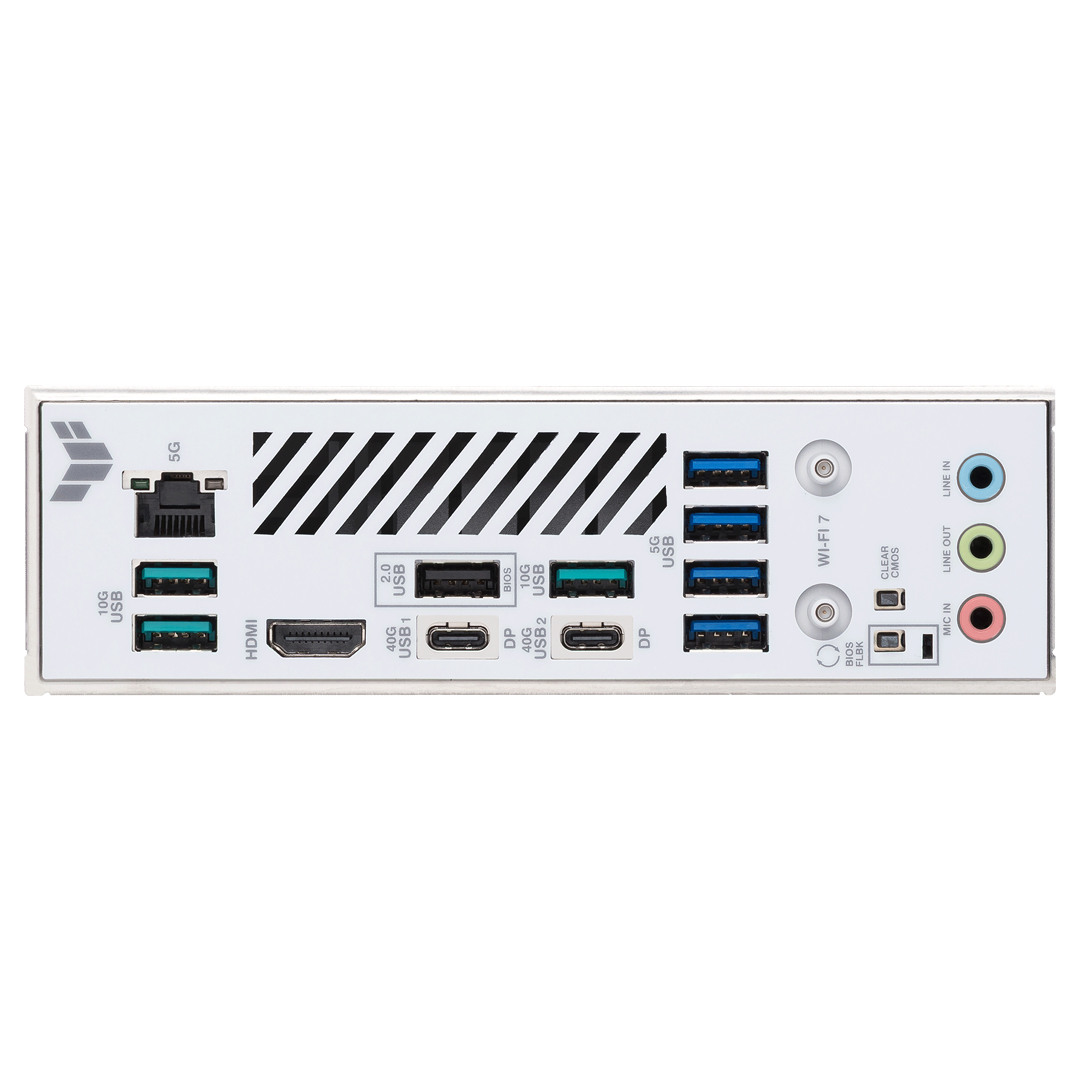

Connectivity

• 2 x USB 10Gbps
• Realtek® 5Gb Ethernet
• HDMI™
• 1 x USB4® 40Gbps Type-C®
• 1 x USB 2.0
• 1 x USB4® 40Gbps Type-C®
• 1 x USB 10Gbps
• 4 x USB 5Gbps
• WiFi 7
• Clear CMOS Button
• BIOS FlashBack™ Button
• 3 x Audio Jacks
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge
• 1 x USB 5Gbps Header
• 3 x USB 2.0 Headers

Intelligent

Complete AI Solution

ASUS AI Solutions – including AI Cache Boost, AI Advisor, AI Overclocking, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimisation – offer smart assistance, one click overclocking, efficient cooling and new levels of ultrafast connectivity.

AI Cache Boost

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimises CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

• Increase AI LLM performance up to 29% with AI Cache Boost

Tokens Per Second

With an ASUS AMD 600 or 800 series motherboard and a Ryzen™ 9000 series CPU, you can enable the AI Cache Boost setting in the BIOS. This feature applies comprehensive optimisations to CPU cache and memory pathways, greatly reducing the typical performance drop that can happen when VRAM is used up.

Internal testing determined that enabling AI Cache Boost delivered up to a 15% performance uplift when running large language models that exceeded graphics card memory. With high-speed DDR5 memory and additional Infinity Fabric clock (FLCK) speed tuning, this performance uplift nearly doubled.

For enthusiasts, creators or anyone who wants a powerful AI model capable of deep reasoning and natural conversation running on their own hardware, they can enjoy these uplifts today with AI Cache Boost.

AMD Ryzen 7 9800X3D - RX9070XT-16GB - ROG Crosshair X870E Hero

• Default: 6.35
• AI Cache Boost: 7.31 (+15.12%)
• AI Cache Boost: 8.2 (EXPO8000 + FCLK 2200MHz) (+29.13%)

AMD Ryzen 7 9800X3D - RTX5080-16GB - ROG Crosshair X870E Hero

• Default: 6.01
• AI Cache Boost: 6.96 (+15.81%)
• AI Cache Boost: 7.64 (EXPO8000 + FCLK 2200MHz) (+27.12%)

Benchmark

• Run AI applications on your PC more smoothly with AI Cache Boost

AMD Ryzen 9 9950X3D - RTX 4090 - ROG Crosshair X870E Hero

Geekbench AI (Higher is Better)

• Default: 51786
• AI Cache Boost: 54392 (+5.03%)
• AI Cache Boost & Turbo Game Mode: 56757 (+9.60%)

UL Procyon - AI Computer Vision Benchmark (Higher is Better)

• Default: 1426
• AI Cache Boost: 1485 (+4.14%)
• AI Cache Boost & Turbo Game Mode: 1702 (+19.0%)

Topaz Video AI (Lower is Better)

• Default: 153 sec
• AI Cache Boost: 148 sec (+3.27%)
• AI Cache Boost & Turbo Game Mode: 145 sec (+5.23%)

AMD Ryzen 7 9800X3D - RTX 4090 - ROG Crosshair X870E Hero

UL Procyon - AI Computer Vision Benchmark (Higher is Better)

• Default: 1490
• AI Cache Boost: 1680 (+12.75%)

ASUS AI Advisor

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimisation features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

* Availability of ASUS AI Advisor may vary by region.

AI Overclocking

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

AI Cooling II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

AI Networking II

AI Networking II combines intelligent technologies to continuously optimise network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7 (Features may vary by model.).

MLO Wizard

MLO Wizard assesses your environment for Multi-Link Operation support across your device, router and operating system, while also visualising the current traffic capacity on each of your router’s frequency bands.

Traffic Monitor

Armoury Crate's Traffic Monitor tracks your current WiFi channel usage. Move to a less congested channel by clicking the “Channel Switch” button (The "Channel Switch" function requires pairing with an ASUS router. If not paired with an ASUS router, the channel change process can be performed in the "Router IP" section of the Traffic Monitor.) for improved network performance.

Direction Finder

Armoury Crate’s Direction Finder (The Direction Finder is only compatible with connections in the 5GHz and 6GHz bands) helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.

Fast Check

Armoury Crate’s Fast Check empowers users to rapidly detect WiFi signal strength.

Overclocking

Dynamic OC Switcher

Dynamic OC Switcher maximises CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overclock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Example:

If a user sets thresholds for current and temperature as shown, once CPU current exceeds 35A, the manual overclock engages until the temperature reaches 80°. At all other times, Precision Boost Overdrive will be used.

AMD Precision Boost Overdrive (PBO)

This pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, this AMD algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximise base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

Examples:

EDC

• By managing the Electrical Design Current (EDC) in tandem with the total current, this CPU can gain extra performance for short, demanding bursts.
• During lightly threaded workloads, below 35A, the Level 1 EDC is set to a low value, in this case 60.
• As more cores are needed, the EDC is set to 120, which was found by this user to be a sweet spot for performance.
• Once the CPU passes 70A, it is in multi-threaded territory, where it was found that a high EDC of 250 gave optimal performance.

PPT

• In order to let the CPU cool off if its temperatures go too high, this user constrains the Package Power Target (PPT) when thermals increase. Specifically the short-term value (“Fast”) is used.
• Until the CPU reaches 70°, it can run at full performance, so 350W is set to give plenty of overhead.
• At that point, the power limit reduces to 220W, to let the CPU start reducing heat.
• If it is still under sustained load and keeps getting hotter, then a more stringent 165W PPT is set at 85°.

Asynchronous Clock

For next-level frequency flexibility, the TUF GAMING X870-PRO WIFI7 W NEO features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains. Separate CPU BCLK from other domains for unfettered overclocking.

Intelligent Control

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

64MB BIOS

A larger BIOS chip enables a more powerful interface and extended CPU compatibility with the latest and future AM5 processors, ensuring a smooth, seamless user experience.

BIOS Q-Dashboard

Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

Advanced Mode

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

ASUS MyHotkey

This feature provides a fast, convenient way to update the BIOS and boot your OS, enhancing PC upgrades with streamlined efficiency for DIY users.

FlexKey

Remap the reset button on the chassis to toggle Aura lighting, activate the DirectKey to go straight to the UEFI BIOS, or reset the system.

EZ Mode

Quick and Simple Setup

EZ Mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality and one-click application of important settings — all to help you get your rig up and running in no time.

Essential Mode

Essential OC Control, Simplified

Essential Mode provides quick access to commonly used overclocking settings and key system information, making performance tuning easy without diving into menus that require deeper expertise.

Boost Pro

Enhance system performance by optimising GPU Boost, AI Cache Boost, and Turbo Game Mode for different usage scenarios.

EZ System Tuning

Quickly apply pre-configured profiles for improved system performance or energy savings.

ASUS MB Manager

ASUS MB Manager delivers fast, fluid, and intuitive control over essential features, offering a smooth experience for monitoring system stats, customising onboard RGB lighting (ASUS MB Manager controls motherboard RGB lighting only. For cross-product Aura Sync, please use Armoury Crate.), accessing fan cooling controls, and fine-tuning advanced WiFi settings. It also works seamlessly with Armoury Crate to provide an even more comprehensive system management experience.

ASUS DriverHub

ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.

ASUS GlideX

ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It is compatible with Windows, macOS, Android and iOS.

Performance

Premium Power Design

Stable power is crucial for maximising the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

• 16 Vcore Power (80A, SPS)
• 2 SOC Power (80A, SPS)
• 1 Misc Power (80A, DrMOS)

Eight-Layer Server-Grade Design

Built on an eight-layer server-grade stack for precise signals and stable performance.

Built on a server-grade eight-layer blueprint, this motherboard’s core is engineered for precision. Bus signals for PCIe 5.0 and DDR5 are clean and stable, thanks to controlled impedance and dedicated power/ground layers, while the stiffer structure enhances durability. The result is quieter signal behaviour and steadier performance under pressure.

ProCool Power Connectors

Proprietary 8+8 pin connectors improve PSU connection.

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

Digi+VRM Control

Real-time voltage control.

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimised for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Memory

Server-Grade DRAM Enhancement

This motherboard features an enhanced memory slot layout that delivers high clock speeds and compatibility with high-capacity DDR5 kits. The refined design supports overclocking of up to 9,600+ MT/s, helping you unlock the full potential of your DDR5 modules—whether you’re pushing extreme-speed kits or maximising entry-level sets (Achievable with advanced BIOS configuration and potentially specialised hardware. Results may vary according to system components.)

DDR5 Dominance

For users looking to push well beyond stock DDR5 speeds, this motherboard is engineered for enthusiast-grade performance with broad AMD Extended Profiles for Overclocking (EXPO™) support and an upgraded memory design tuned for stability at ultra-high frequencies. Veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can quickly apply.

NitroPath DRAM Technology

NitroPath DRAM Technology provides enhanced DDR5 memory performance. Shorter gold finger pins and optimised signal pathways ensure faster data transfers between your DRAM and CPU, allowing for greater memory overclocking headroom and stability. These reinforced DRAM slots are also better prepared to withstand the wear and tear of the RAM installation process than traditional slot designs, perfect for enthusiasts who keep their system upgraded with the fastest kits available.

• Frequency up to 400 MT/s higher
• Slot retention force enhanced by 57%
• Gold finger stub >70% shorter

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyses individual memory modules to optimise performance and pinpoint potential issues.

DIMM Fit Pro gives advanced PC builders more extensive customisability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritise stability or performance, offering a more flexible and granular approach to memory optimisation.

Cooling

Cooler by Design

Enlarged VRM Heatsinks

The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.

Enlarged M.2 Heatsinks

Three of the four M.2 slots have dedicated heatsinks to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.

AIO Pump Header

An integrated AIO management system enables full control of PWM or DC water pumps, making it perfect for custom or all-in-one cooling setups.

Multiple Temperature Sources

Except for the CPU & CPU OPT fan headers, each fan header can be set to monitor and react to up to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed through Fan Xpert 4 or via the UEFI.

Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimise cooling for GPU- and CPU-intensive tasks.

Superb PCH Heatsink

A surface area for the chipset cooler maximises system performance and heat dissipation.

Smart Fan Protection

A dedicated integrated circuit protects each fan header from excess heat and electrical currents.

4-Pin PWM/DC Fan

Onboard fan headers support auto-detection of PWM or DC fans.

Water Pump+ Header

A dedicated header supplies 3A for high-performance PWM or DC water pumps.

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customisable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Connectivity

Empowering Connection

This motherboard offers a versatile range of connectivity with PCIe 5.0, USB4® 40Gbps and front USB 20Gbps Type-C® connectors with Fast Charge support.

PCIe Lane Optimisation

Fully utilises native PCIe 5.0 lanes supported by AMD Ryzen™ 9000 & 7000 CPUs, delivering optimal bifurcation and efficient bandwidth across all scenarios*. Enjoy maximised bandwidth of the first PCIe 5.0 x16 slot and two PCIe 5.0 M.2 slots, when the USB4® 40Gbps ports are not in use.

PCIe 5.0 for Graphics Card

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

USB4® 40Gbps Type-C® Port

Each port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.

Front USB 20Gbps Type-C®

This motherboard features a USB 20Gbps Type-C® front panel connector for speedy data transfers of up to 20Gbps. And it offers Power Delivery (PD) 3.0 technology to provide up to 30W of quick charging.

Three USB 2.0 Headers

Three USB 2.0 headers ensure broad compatibility with AIO coolers, chassis fan hubs, front USB modules, and popular third-party components.

Easy PC DIY

PCIe® Slot Q-Release

A durable metal button unlocks the first PCIe slot's security latch with a single press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

M.2 Q-Release

The M.2 heatsink features a convenient switch (Switch may be a lever or button, depending on motherboard model.) to quickly remove it, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.

Q-Antenna

With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.

M.2 Q-Latch

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.

Clear CMOS & BIOS FlashBack™

The Clear CMOS button quickly resets BIOS settings to factory default. lt can also be used to reboot the PC if incorrect BIOS settings have been selected.

BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

Protection

SafeSlot & SafeDIMM

SafeSlot is a reinforced metal sheath integrated with a PCIe slot to keep a card firmly installed and to ensure the highest possible data speeds. The SafeDIMM sheath is integrated to protect memory modules, empowering you to insert them with speed, accuracy and confidence.

ESD Guards

ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge – well above the industry standard.

TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.

Stainless Steel Back I/O Panel

TUF Gaming motherboards feature a corrosion-resistant stainless steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.

Build with Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

Gaming

Ultrafast Networking

Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.

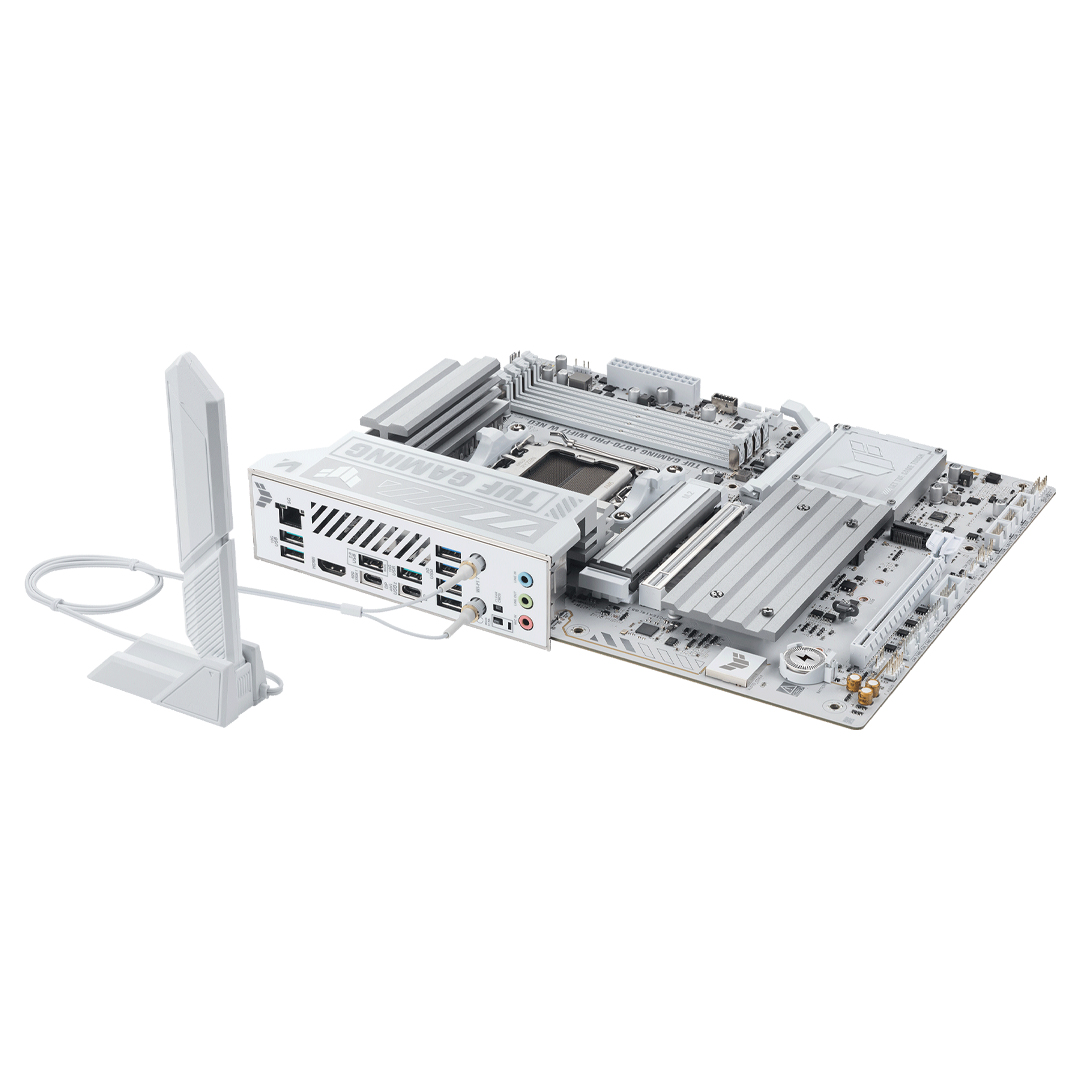

WiFi 7

WiFi 7 ensures stable connections and low latency.

The next-gen WiFi 7 (WiFi 7 features require an onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features. The 6 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Please visit the ASUS support website for more information.) supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.

5Gb Ethernet

On-board 5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.

Pre-Installed WiFi Driver

A pre-installed WiFi driver enables users to connect to the internet when installing Windows on their PC; no USB flash drive is needed for driver installation, making the setup process faster and more convenient (Currently available on ROG Glacial, Dark Hero and select Neo motherboards. Future BIOS updates may prioritise support for new CPUs, potentially affecting WiFi driver integration.).

Audio

7.1 Surround Sound

Realtek 7.1 Channel Audio

ALC1220P

This motherboard utilises an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

Better Audio Effects

DTS Audio Processing

DTS®Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customise audio settings.

• Music Mode
• Movie Mode
• Game Mode
• Custom Audio

LE Audio

Bluetooth® LE Audio

The new Bluetooth LE Audio technology standard is a major leap in wireless sound, courtesy of the new LC3 audio codec that delivers higher quality and lower power consumption. It supports low-latency transmission and 3D spatial audio for clearer voice and more immersive gaming sound.

Low Latency

With the LC3 codec and LE Audio, latency is reduced by up to 70% versus legacy Bluetooth. Gamers can enjoy near real-time sound effects, footsteps, and voice cues, plus clearer, more stable in-game communication.

Immersive Spatial Sound

SMONO (Spatial Mono) is a 3D spatial audio technology that works over Bluetooth LE Audio. By dynamically tracking the position of sounds in-game, it provides realistic directional cues — helping gamers locate enemies, footsteps, or environmental sounds more accurately. This creates a deeper sense of immersion and improves situational awareness in fast-paced games.

Lighting

Outshine the Competition

ASUS Aura Sync offers synchronised lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.

A well-tuned system deserves a matching aesthetic. The TUF GAMING motherboard features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.

• Static
• Breathing
• Colour Circle
• Reactive
• Rainbow
• Comet
• Partition
• Battery Mode

Addressable RGB Gen 2 Header

Automatically optimise lighting effects for the number of LEDs present in compatible ARGB gear.

Three addressable RGB Gen 2 headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The headers also offer full backward compatibility with existing Aura Sync gear.
