Edifier T5s Powered Subwoofer Black

The Edifier T5s Subwoofer features an 8-inch long-throw front-firing woofer with 70W RMS output, delivering deeper low-end response for music, movies and desktop audio setups. The powered subwoofer reaches down to 35Hz and includes low pass filter, phase and volume controls for easier tuning to matching speakers and room conditions. The slim MDF cabinet also includes signal in and signal out connections plus auto standby support for practical everyday use.

Features

---

T5s Powered Subwoofer

Powerful Bass in a Slim, Space-Saving Design

• 8" front-firing long-throw woofer
• Reproducing low frequencies down to 35Hz
• 70W RMS total output power
• High-performance front end and closed-loop class-D amplifier
• Volume, low pass filter and phase control
• Signal In input and Signal Out pass-through output for maximum compatibility
• Auto standby feature for energy saving
• Slim vertical MDF cabinet with compact size

Deep and Powerful Bass

Equipped with an 8-inch long-throw woofer, this subwoofer delivers deep, room-filling bass with frequency response down to 35Hz. A high-efficiency switching power supply and a closed-loop Class-D amplifier provide 70W RMS output for powerful and consistent performance.

Low-Distortion Design

An 18mm MDF (medium-density fibreboard) enclosure minimises resonance and distortion, resulting in a tight, clean, and well-defined bass response.

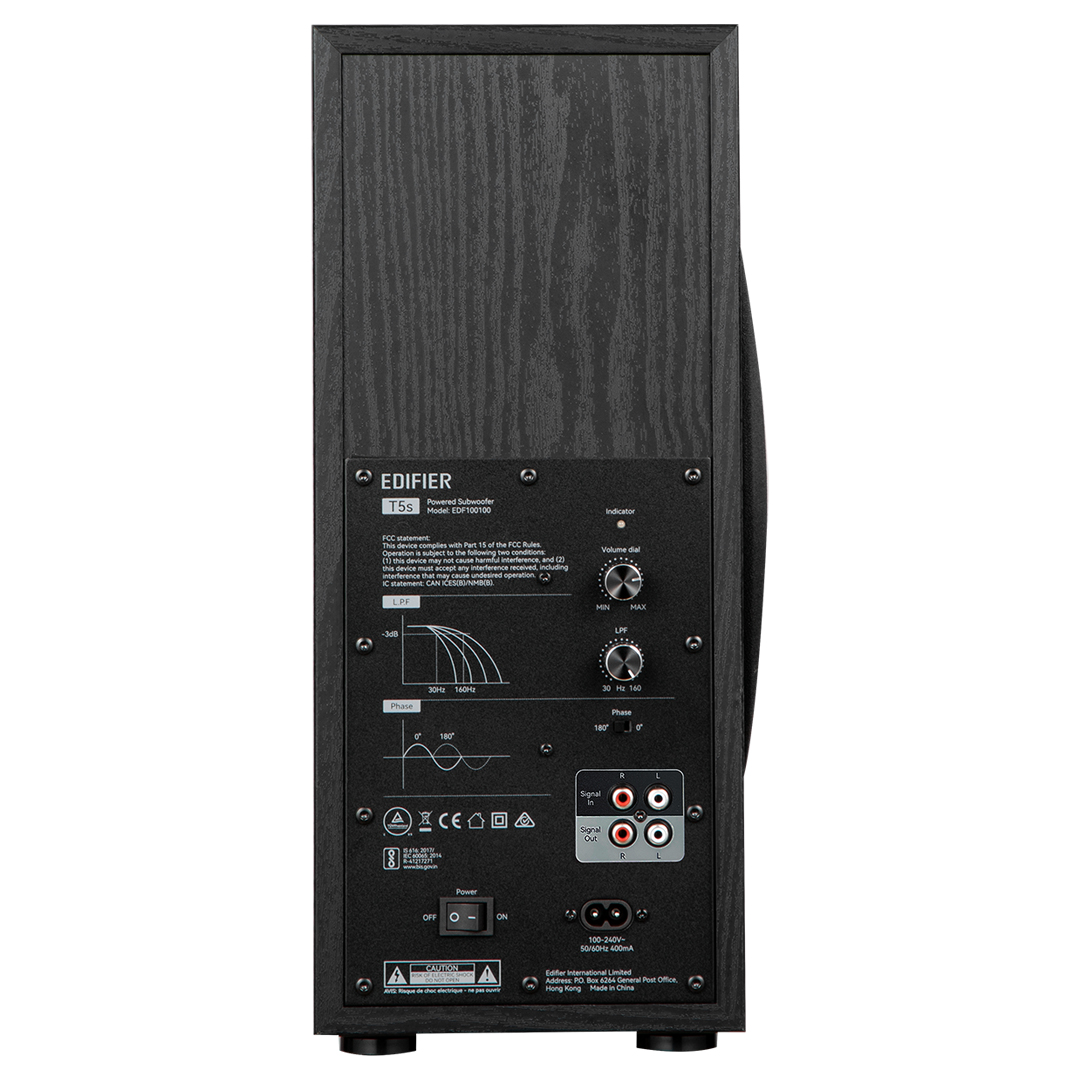

Versatile Connectivity

The Signal In and Signal Out ports ensure broad compatibility with desktop speakers, bookshelf systems, and home theatre receivers.

Precision Digital Signal Processing

Featuring a high-performance analogue front end and digital amplifier, the subwoofer ensures accurate audio conversion and amplification. The built-in digital signal processor (DSP) enables precise low-pass filtering and phase alignment for seamless integration with your speaker system.

Compatible EDIFIER Speaker Models

Edifier R1280Ts, Edifier R1280DBs, Edifier R1700BTs, Edifier R1850DB, Edifier R1855DB, Edifier R2750DB, Edifier R2850DB, Edifier S880DB MKII, Edifier D12, Edifier QR65.

Method 1

If your main speaker system includes a dedicated subwoofer output, connect it to the subwoofer's Signal In ports. Then connect the main speaker system directly to the audio source.

Method 2

If your speaker system does not have a subwoofer port, connect its input to the subwoofer's Signal Out ports. Then connect the Signal in ports of the subwoofer to the audio source.

Auto Standby Function

To conserve energy, the subwoofer automatically enters standby mode after 15 minutes of inactivity and wakes up when audio playback resumes.

Stylish and Space-Saving Design

Wrapped in a wood-grain vinyl finish with a low-profile grille, this subwoofer blends seamlessly into any room décor. The slim, vertical cabinet design allows for flexible placement in tight or unconventional spaces.
