PNY GeForce RTX 5070 OC GDDR7 12GB
VCG507012TFXPB1-O | PNYThis product has been discontinued
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
FREE SHIPPING
Features
PNY GeForce RTX 5070 Models

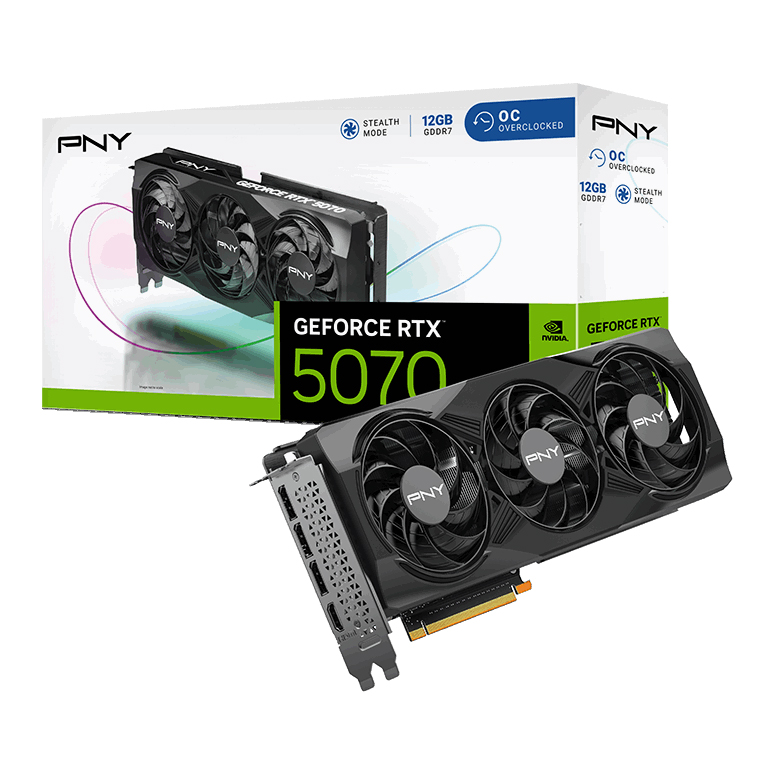

PNY GeForce RTX™ 5070 Overclocked Triple Fan GPU
Get game-changing performance with the GeForce RTX™ 5070, powered by NVIDIA® Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI.
- NVIDIA Blackwell Architecture
- 12GB GDDR7 Memory
- 3x Display Port, 1x HDMI®
- 6,144 CUDA® Cores
- 250 W Thermal Design Power
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors - Optimised for neural shaders
- Fourth-Gen Ray Tracing Cores - Built for Mega Geometry
- AI-Enhanced Graphics and Performance - NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness - NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics - Full ray tracing with neural rendering
- Digital Humans and AI Assistants - NVIDIA ACE
- Accelerate Your Creativity - NVIDIA Studio creator tools and Technology
- Enhance Any Video with AI - NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability - NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies - NVIDIA G-SYNC
Game Changer
Powered by NVIDIA® Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

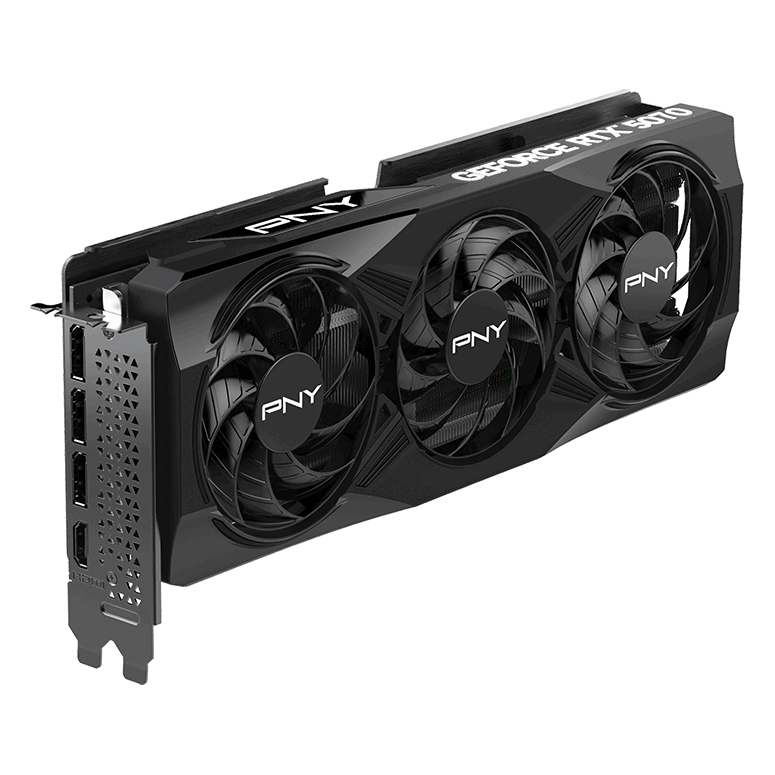

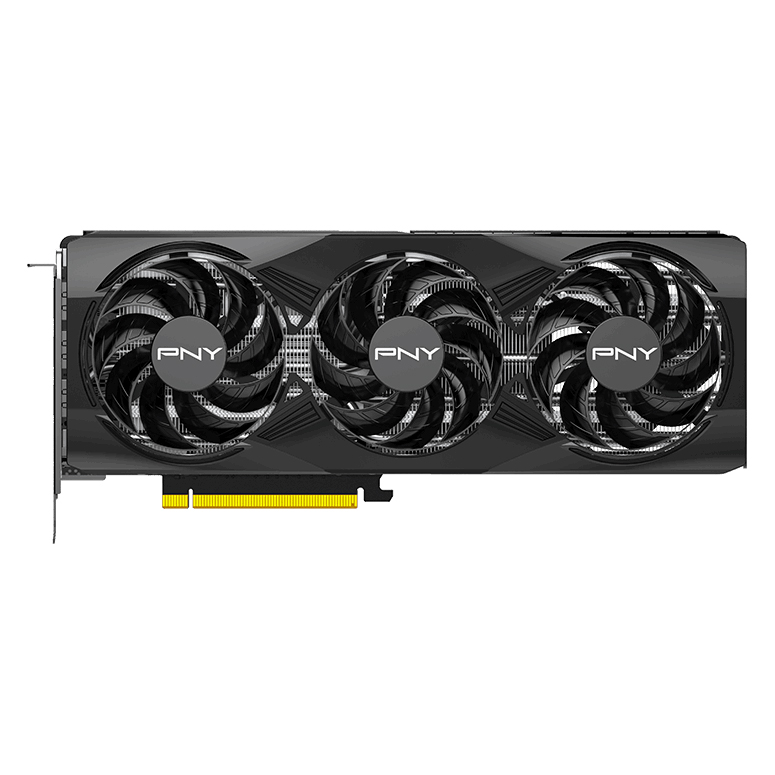

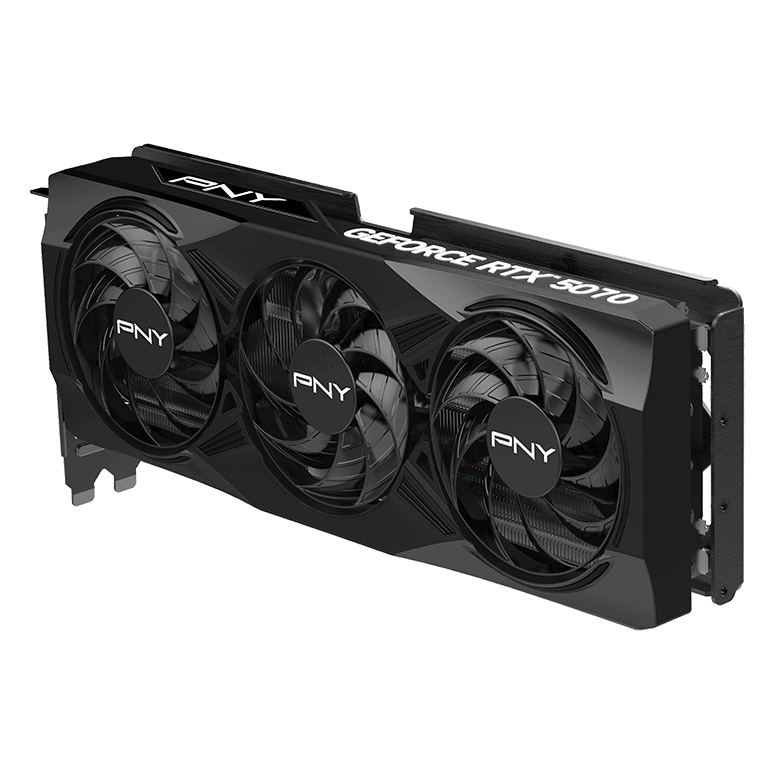

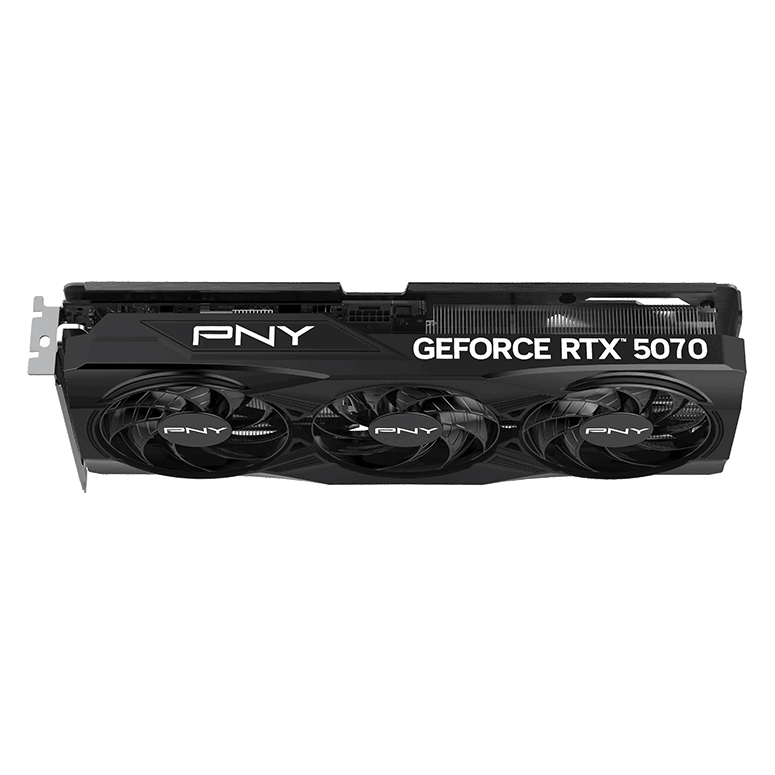

Triple Fan Cooling
With three fans working together, heat is distributed and dissipated more efficiently across the GPU surface.

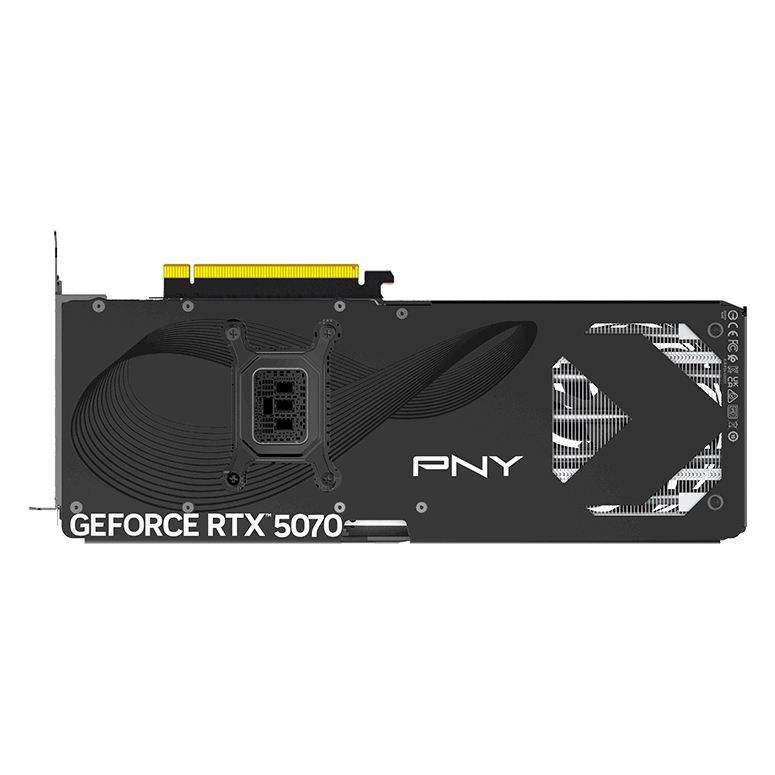

Metal Backplate
Adds additional support to prevent the card from sagging and vents that enhance passive cooling.
Specifications
| Model Number | VCG507012TFXPB1-O |
| Architecture | Blackwell |
| CUDA® Cores | 6144 |
| Base Clock Speed | 2325 MHz |
| Boost Clock Speed | 2587 MHz |
| Memory Speed (Gbps) | 28 |
| Memory Size | 12GB GDDR7 |
| Memory Interface | 192-bit |
| Memory Bandwidth (GB/sec) | Up to 672 |
| TDP | 250 W |
| NVLink | Not Supported |

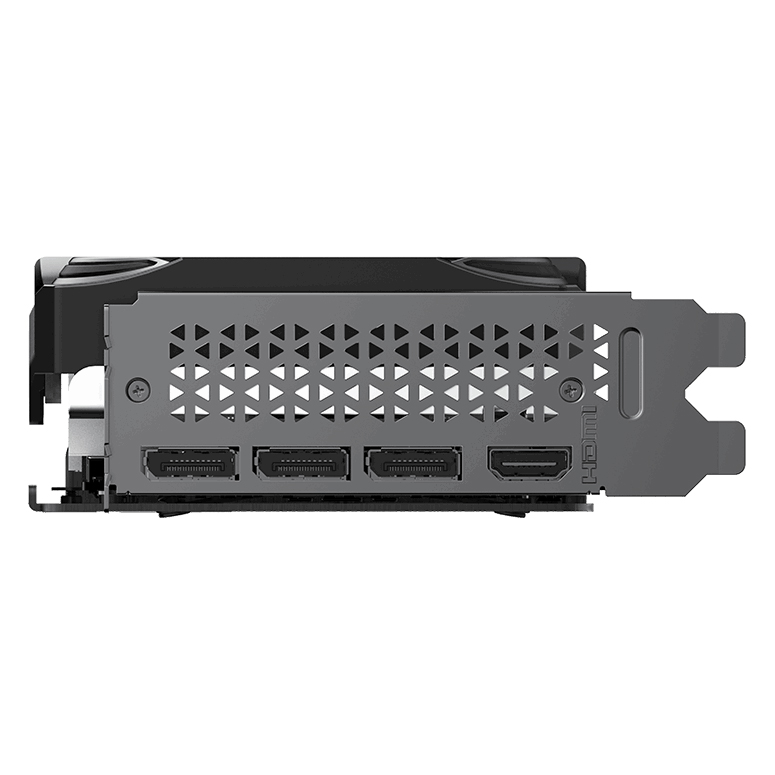

| Outputs | DisplayPort 2.1b (x3), HDMI® 2.1b |
| Multi-Screen | 4 |
| Resolution | 4K at 480Hz or 8K at 165Hz with DSC (Up to 4K 12-bit HDR at 480Hz with DP 2.1b + DSC or HDMI® 2.1b +DSC. Up to 8K 12-bit HDR at 165Hz with DP 2.1b + DSC. Up to 8K 12-bit HDR at 120Hz with HDMI® 2.1b + DSC. With dual DP 2.1b + DSC, up to 8K HDR at 100Hz) |
| Power Input | One 16-pin (One 16-pin to Two 8-pin adaptor included) |
| Bus Type | PCI-Express 5.0 x16 |
| Card Dimensions | 11.80" x 4.73" x1.9"; 2.4 Slot 299.5 x 120.0 x 48.0mm; 2.4 Slot |
| System Requirements | PCI Express-compliant motherboard with one 2.4-width x16 graphics slot Two 8-pin supplementary power connectors Total graphics power 250 W Required system power 650 W (Power requirements can be different depending on system configuration.) Microsoft Windows® 11 64-bit, Linux 64-bit Internet connection (Graphics Card driver is not included in the box; NVIDIA App will download the latest GeForce driver from the Internet after install.) |
| What's Included | PNY GeForce RTX™ 5070 OC 1x Auxiliary Power Cable |
| Warranty | 3-Year Limited Warranty |
