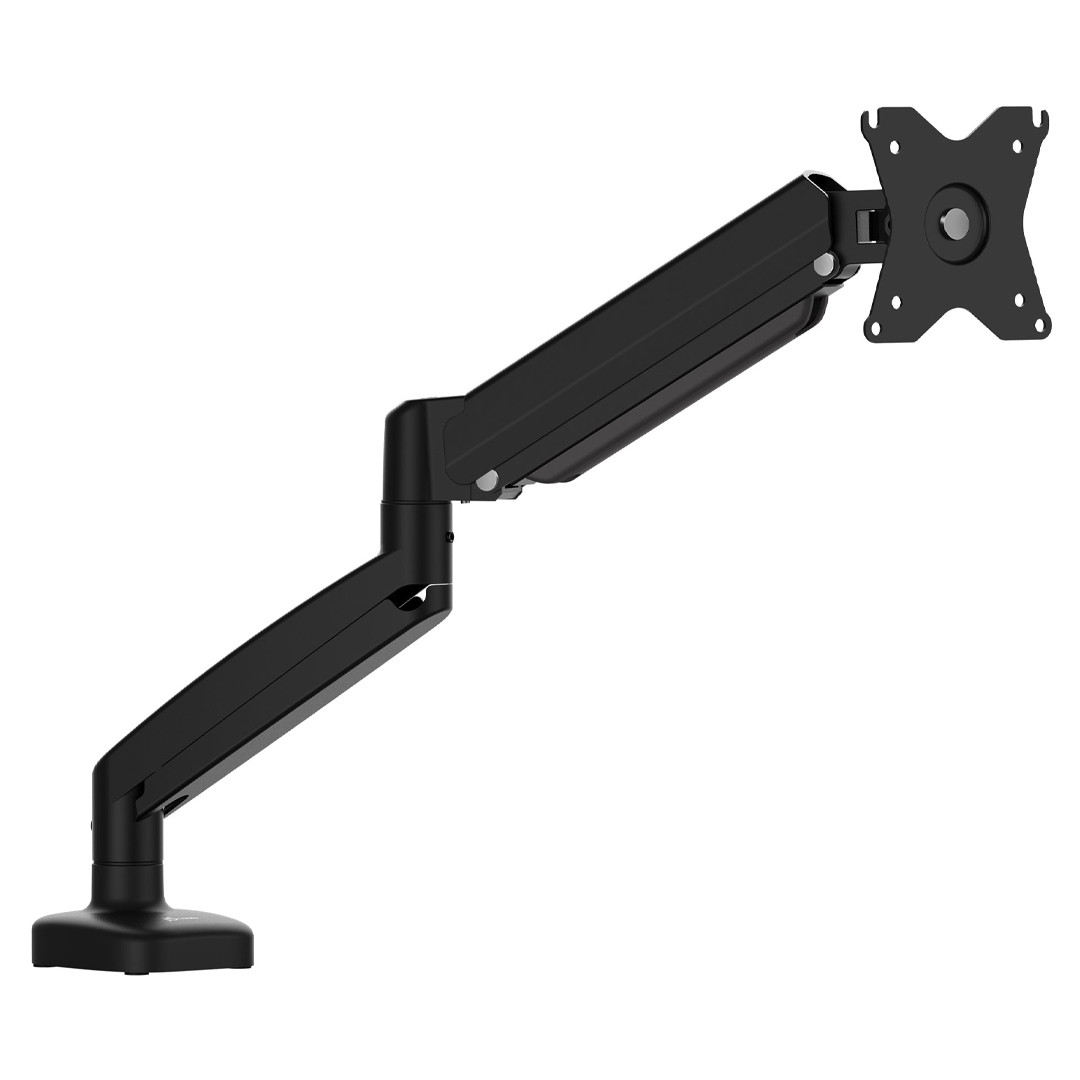

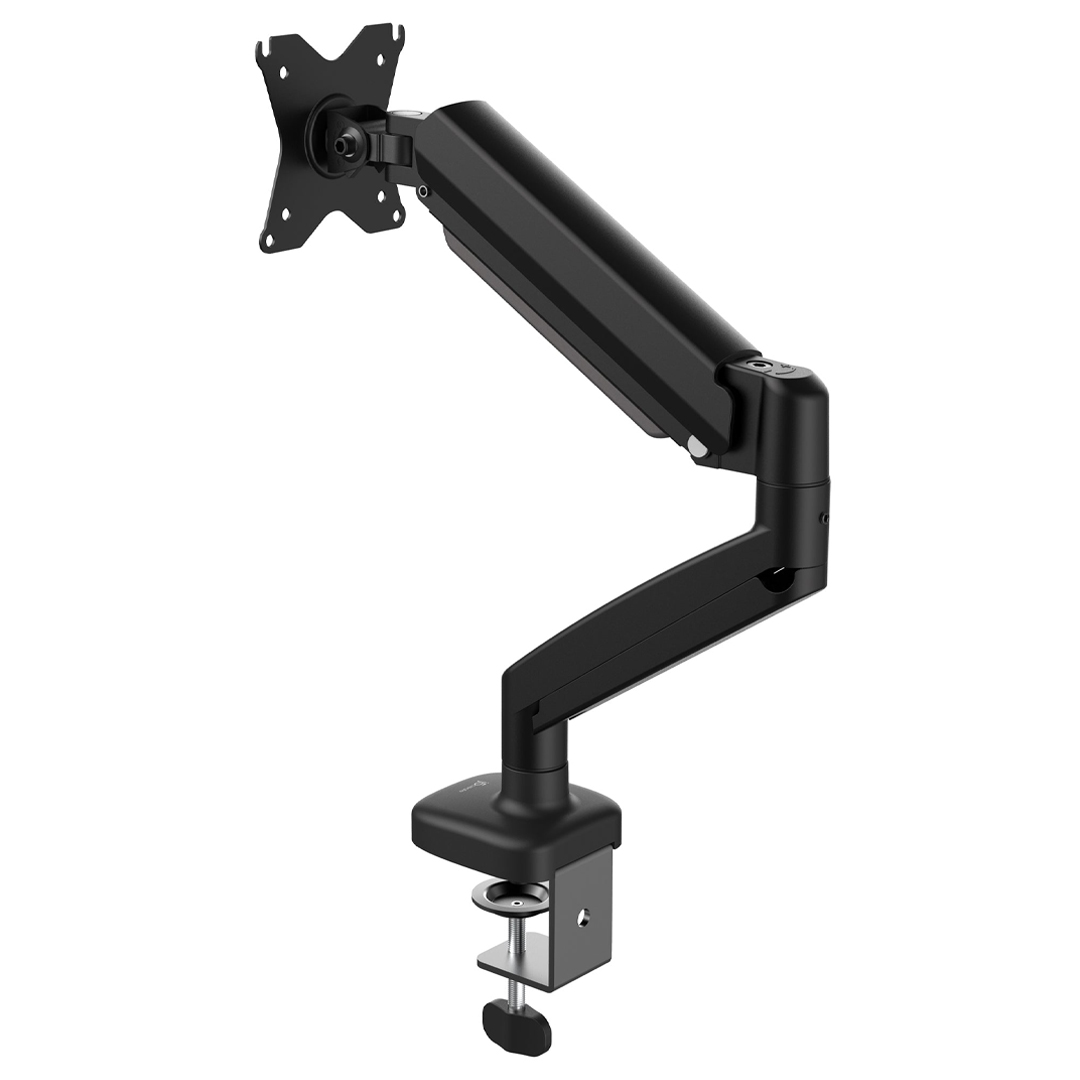

The j5create JTSA101 features a gas spring monitor arm built to support displays from 17 inches to 32 inches and up to 8kg in weight, giving desks a cleaner and more flexible setup. The mount allows 180 degrees swivel, minus 45 to plus 90 degrees tilt and full 360 degrees rotation for easier ergonomic positioning throughout the day. The design also includes cable management and clamp or grommet mounting options for a tidier workspace.
VIDEO
Features
JTSA101 Ergonomic Monitor Mount
Build Your Comfort Space - Support 17" to 32" Monitors Weighing Up to 8kg/17.6 lbs kg Each
The JTSA101 is a gas spring monitor mount. The arm can hold max a 32" screen weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.
An ergonomic solution for your comfort, the perfect companion for your monitor
Fully adjustable gas spring monitor arm. Easily adjust your monitor to any height
Allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle
Supports 17” to 32” monitor weighing up to 8kg/17.6 lbs, works with most VESA® -compatible monitors
Simple to Install, includes clear instructions and all necessary tools

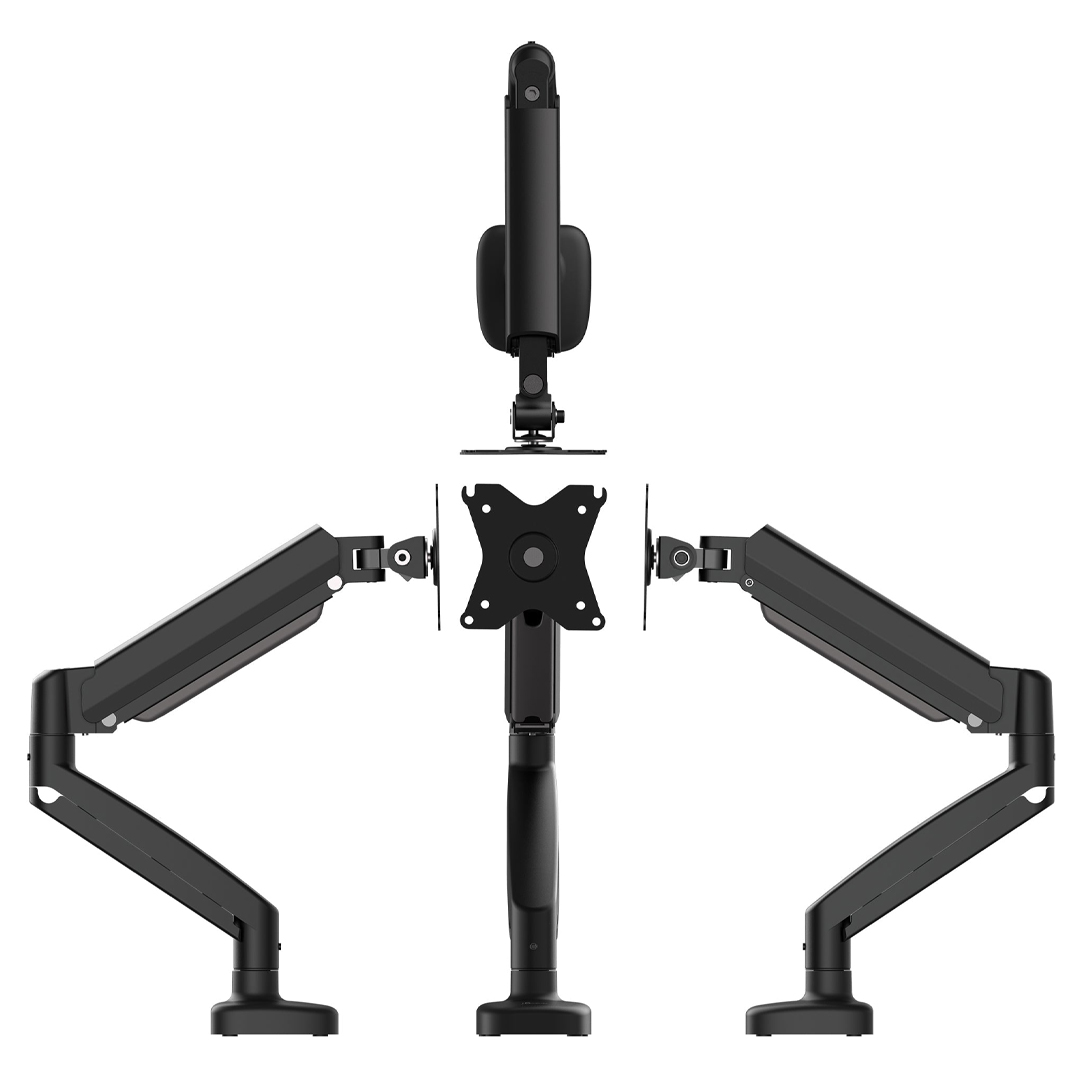

Full Range Motion
Durable & Stable
Fully Adjustable, Conveniently Set Your Monitor at an Optimal Angle
Easily Adjust Your Monitor with the Flexible Gas Spring Arm
Safer and Stronger, Made with High Grade Aluminium and Passed a 20,000 Repetition Motion Test
Integrated Cable Management, Keep Your Desk Organised

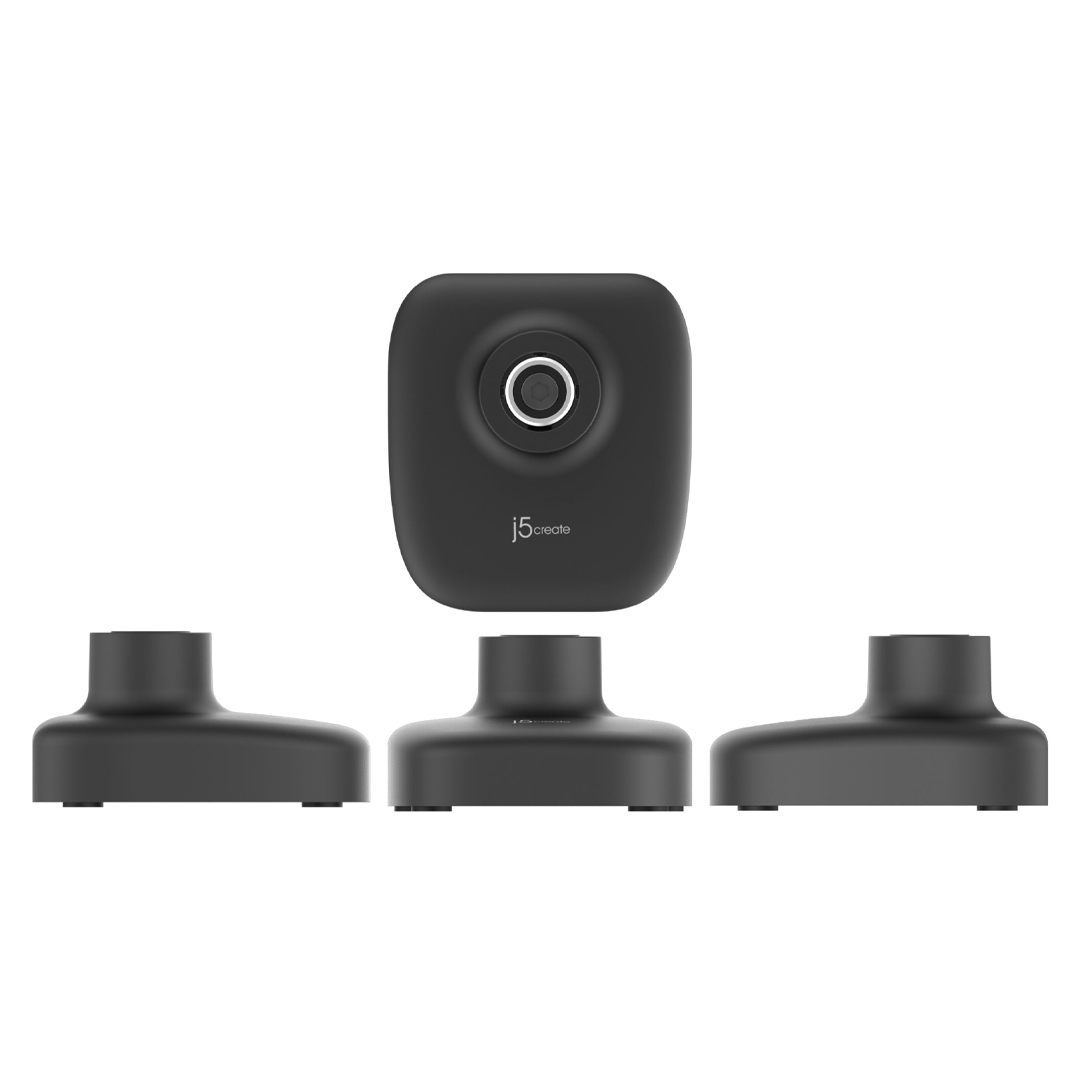

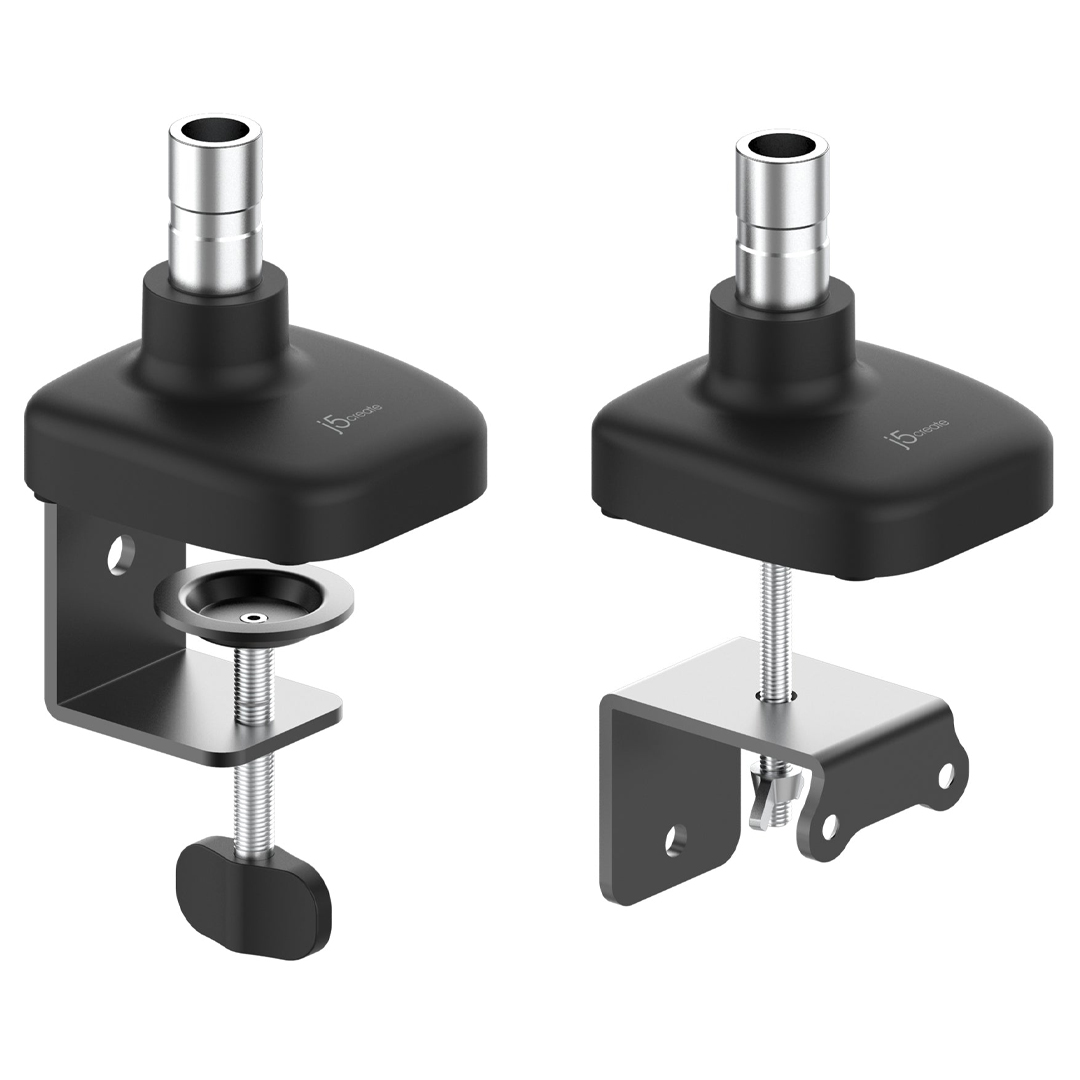

Comes with Clamp and Grommet Mount Options, Simple to Install
Wide Compatibility
Perfect for Home and Office
Specifications
General Data
Model Number
JTSA101
What's Included
1 - JTSA101 Ergonomic Monitor Mount
Hardware
Additional Storage
No
Adjustable Angle
Screen Tilt: -45° to +90°
Assembly Required
Yes
C-Clamp Base
Yes (10~50mm)
Docking Station Included
No
Grommet Mounting Base
Yes (10~50mm)
Maximum Weight Capacity
17.6 lbs. (8 kg) per arms
VESA® Pattern
75x75mm/100x100mm
Warranty
2 Year Limited
Physical Specifications
Colour
Black
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (0 to 30°C)
Product Depth
465 mm / 18.3 in
Product Height
320 mm / 12.6 in
Product Weight
≈ 4.0 lbs. (1.8 kg)
Product Width
90 mm / 3.54 in
Stand Material
Aluminium/Steel/Plastic
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155°F (-10 to 65°C)
Compatibility
System Requirements
Supports 17" to 32" monitors weighing up to 8 kg/17.6 lbs.
Backed by a 2 year J5 Create warranty.
