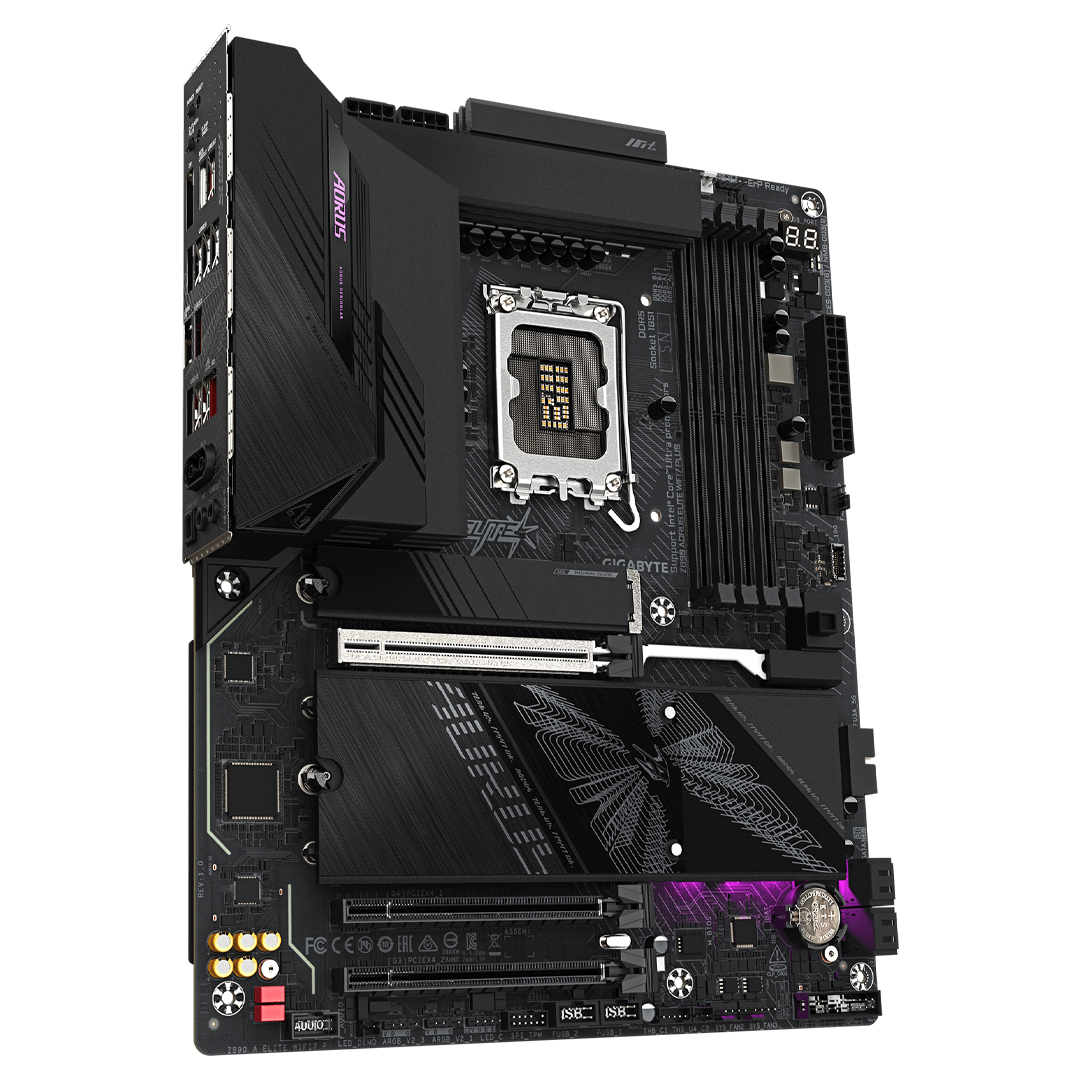

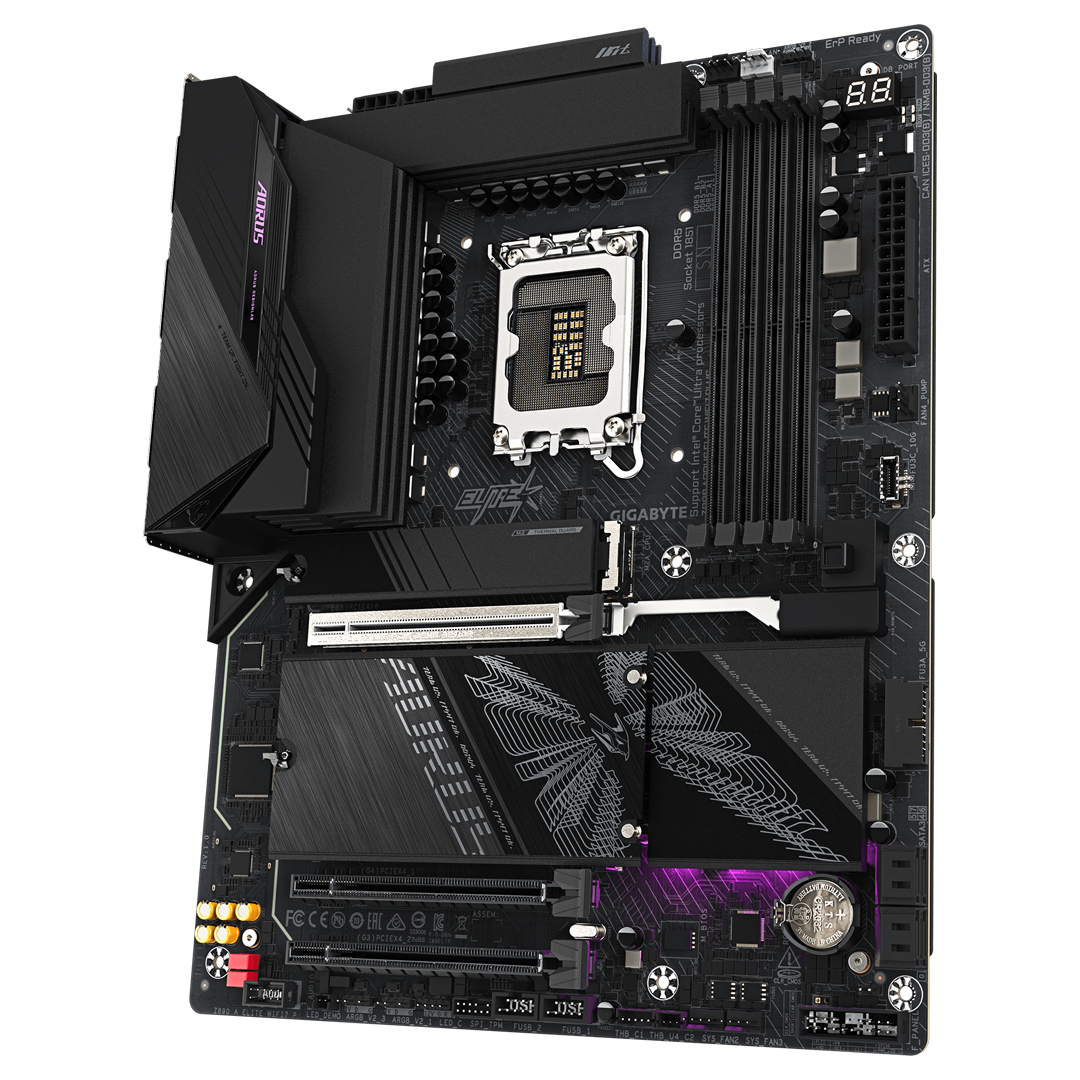

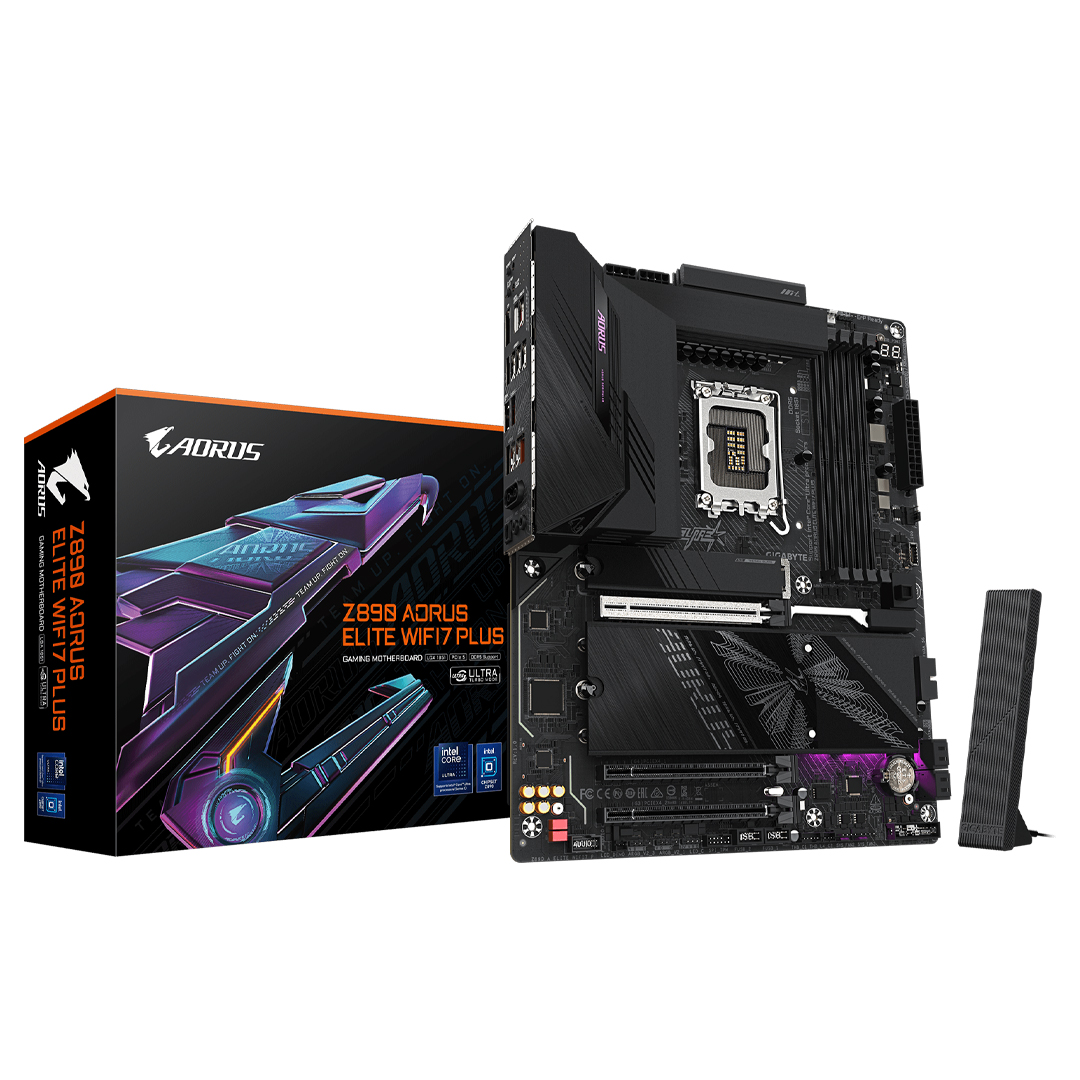

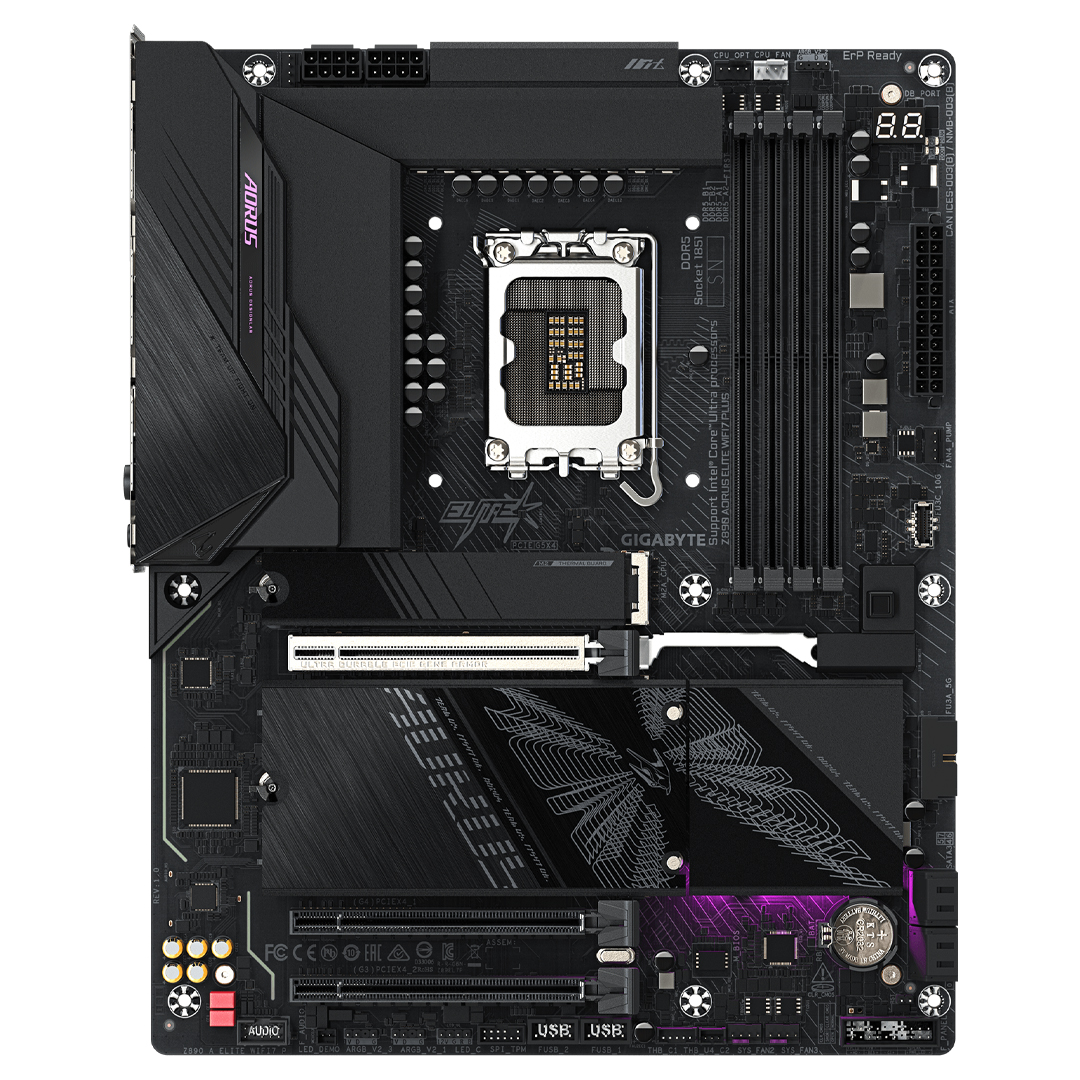

The Gigabyte Z890 Aorus Elite WIFI7 Plus DDR5 Motherboard features Intel Z890 chipset support for Intel Core Ultra processors with an ATX layout aimed at high performance gaming, creator workloads and next generation connectivity. The motherboard supports high speed DDR5 memory, Wi-Fi 7, 5GbE LAN, USB4 Type-C and a 16 plus 1 plus 2 phase digital VRM for strong power delivery and stable operation. The board also offers enhanced cooling, tool less M.2 and PCIe installation features, premium audio hardware and broad expansion support for powerful desktop builds.
Features
Z890 AORUS ELITE WIFI7 PLUS
- Ultra Turbo Mode: Unlock the Hidden performance
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 16+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive: Provides optimal and customised BIOS preset profile for users
- Premium Compatibility: 4xDDR5 with XMP Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Efficient Thermal: VRM Thermal Armour Advanced & M.2 Thermal Guard
- Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

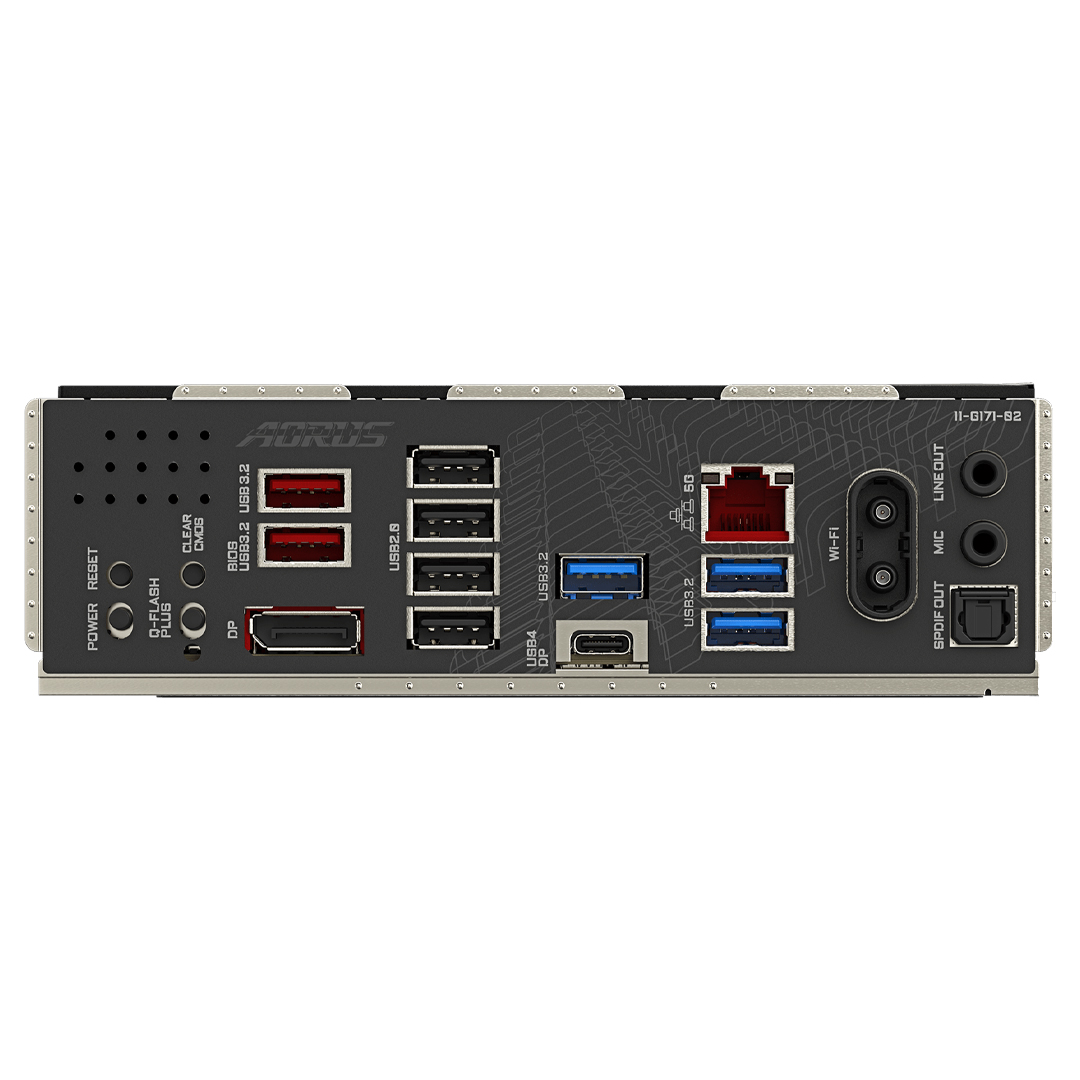

- Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
- High-Res Audio: ALC1220 & WIMA Audiophile Grade Capacitors
New Z890, PLUS ULTRA
Ultra Turbo Mode
Unlock the Hidden performance
Utilising proprietary deep-system optimisations to extract maximum potential from your Intel® Core™ Ultra 200S Series (K-SKUs) with one-click.
- Performance Boost up to 40%
* Performance may varies by CPU and DRAM condition.
- LV1 Intel 200S Boost: Default-enabled for instant gaming performance through precision-tuned overclocking.
- LV2 Turbo Mode: Optimised core curves and memory acceleration unlock breakthrough FPS gains.
- LV3 Extreme Mode: Maximum aggression to fully unleash hidden performance for elite gaming.
* Note: Utilising advanced performance features or modifying clock frequencies/voltages by LV2 Turbo Mode/ LV3 Extreme Mode may affect product warranties and system stability, security, performance, and component lifespan.
Memory
Infinite Memory Performance
Elite motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
* Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
BIOS Features
Effortlessly Boost Your DDR5 Memory Speed
DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximise DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits.
* DDR5 MEMORY UPGRADE involves DDR5 memory overclocking, overclocking capability depends on users' hardware configuration.
Boost Instantly
Instant memory performance uplift
Hands-Off Memory Tuning
Eliminate manual entry of complex memory settings such as clock, voltage, and timings.
Hassle-Free Overclocking
Seamlessly overclock for both standard and XMP 3.0 DDR5 memory frequencies.
Incorporated Database
Built-in library of pre-optimised configurations for diverse memory chip suppliers
Boost DDR5 Memory Performance with Optimised Tuning
Leverage XMP 3.0 User Profile to fine-tune memory settings for peak system performance.
Customisable SPD Profiles or Retrieve from Database
Create and transfer two custom SPD profiles between systems.
Quick Performance Simulator
Rapidly assess potential memory performance by entering clock speeds and timing parameters.
Profile Management
Store and retrieve memory configurations for online sharing.
Unlock Non-Overclockable DDR5 Potential
Enhance clock speeds of non-overclockable DDR5 modules.
Instant Reset
Revert memory settings with a single click.
D5 Bionic Corsa
Advanced AI-enhanced overclocking tech. for DDR5.
AI Overclocking for Peak Performance
AORUS AI Snatch
Auto-Overclocking Software by AI model.
Unleash Ultimate Performance with One-Click Activation.
- Enhanced Computing Power
- Fast AI Performance
- EZ to Peak
- Safe OC
- Less Power Usage
Auto CPU & DDR5 Memory Boost
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration
Enhance CPU & DDR5 speeds with a single click.
- Real time Analysis
- OC accuracy UP
- EZ to Pro
Fast AI Performance
Accelerate AI processing for greater performance.
- Up to 11% AI Performance (Tested by GeekBench AI PRO.)
- Accelerated AI decision-making
- Boosted reinforcement learning
- Streamlined language processing
Boost CPU & Memory Performance
Raise system speed and performance.
- Up to 7% Memory Performance Boost (Tested by AIDA64 Memory)
- Up to 5% CPU Performance Boost (Tested by R23 Multi Core)
- Tailored-overclocking for your CPU and memory
- Faster data transfer and application loading
- Improved multitasking performance
- Optimised overall system performance
Maximise Performance in a Snap
Enable users to easily become overclocking experts through a simple interface.
Smart & Safe Overclocking
Protect your motherboard through multiple over-temperature and over-current safeguards.
- OTP - Over Temperature Protection
- OCP - Over Current Protection
- OVP - Over Voltage Protection
- OPP - Over Power Protection
- UVP - Under Voltage Protection
- SCP - Short Circuit Protection
Less Power Usage Optimal Power-Efficiency
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.
- Enhance Up to 3% CP/Per Watt
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.
AI SNATCH Engine
Advanced AI Overclocking Model
The AI model, trained by AI TOP on diverse overclocking datasets, improves precision and stability while optimising performance. This model serves as the core of AORUS AI Snatch software.
- OC to 20% higher speed
- OC Efficiency UP
- No more try and error
- Optimal performance-stability balance.
AI Flow Chart
Data Augmentation
- Expands dataset size
- Reduces overfitting risk
- Simulate more realistic conditions
Precise Dataset
AI-Driven Overclocking Analysis
- List overclocking parameters
- Generate OC attribute weights and relevance matrix
- Create correlation heatmap
- Identified critical attributes
AI Design for MB Signal Enhancement
AI-Driven PCB Technology - Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to optimise vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
AI-ViaFusion Technology
Optimised vias & pads for signal integrity.
AI-Trace Technology
Smart routing for peak performance.
AI-Layer Technology
Tailored stackups for enhanced functionality.
Key Features
- AI-Generated Design Recipes
- AI-Driven Simulation
- AI-Powered Signal Verification
- Single and cross-layer signal optimisation
AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity
AI-ViaFusion, an AI-assisted via optimisation technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.
- Reduction in Signal Reflection Up to 28.2%
Best-in-Class Signal Quality
- Superior signal transmission efficiency
- Dramatically reduced signal reflection
- Elevated signal quality and reliability
- Enhanced cross-layer PCB signal performance
AI-ViaFusion Technology - AI-Engineered Via Design Formula
AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.
Optimised Via Design
Varied via sizes for optimised signal and power paths
Driven Pad Optimisation
Custom pad sizes for performance and production balance
Precision Impedance Matching
Via & pad sizes selected for optimal signal impedance
Unlock AI-Powered Performance with AI-ViaFusion Technology
Minimised Insertion Loss
Optimised vias reduce signal loss
Enhanced Return Loss
Precision impedance matching reduces reflections
Optimised Eye Diagram
Wider eye opening improves signal integrity
*Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.
AI-ViaFusion Technology - AI-Driven Revolution in PCB Design
Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.
AI-ViaFusion Technology Optimises PCB Performance Through
Strategic Via Sizing
Optimised for varied signals across PCB.
Enhanced Impedance Matching
Precise control via machine learning.
Space Optimisation
Maximised layout efficiency with signal integrity.
AI-Trace Technology - Revolutionising PCB Routing with AI
AI-Trace Technology transforms PCB design by leveraging AI to optimise trace routing, resulting in enhanced performance and signal integrity.
Fibre Weave Effect Mitigation
Optimised signal synchronisation.
Shielded Memory Routing
Optimised signal shielding and precision.
Impedance-Optimised Topology
Refined traces with minimal resistance.
Isolated Memory Routing
Optimised trace layout and layer separation.
Daisy-Chained Routing
Innovative design eliminates signal bottlenecks.
Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology.
Mitigating Fibre Weave Effect with AI-Trace Technology
Fibre Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibres, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.
Benefits of Mitigation
- Reduces signal distortion
- Improves transmission reliability
- Supports higher data rates
- Enhances overall system stability
AI-Layer Technology - Next-Generation Multi-Layer PCB Design
AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.
Core Innovation
AI-Optimised Layer Customised Design
- AI-optimised layer design
- Unique material for each layer
- AI-verified signal integrity
- Tailored PCB for peak performance
Key Features
- AI-optimised PCB layer and design material
- Server-Grade Low Loss PCB (Low Loss for 8-layer PCB model only)
- Enhanced 2X Copper Technology
HyperTune BIOS - AI-Driven Advanced BIOS Optimisation Technology
HyperTune BIOS uses AI to optimise MRC and adapt to signals. Z890 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.
- BIOS Efficiency Boost Up to 95%+
AI-Enhanced Performance Optimisation
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits
Experience GIGABYTE's AI-Enhanced HyperTune – Unleashing next-gen BIOS performance.
HyperTune BIOS - Advanced MRC Optimisation
Memory Reference Code (MRC) is a critical component in BIOS that initialises and configures system memory. HyperTune BIOS leverages AI to optimise MRC, pushing memory performance to new heights while maintaining system stability.
Benefits of HyperTune BIOS MRC Optimisation
- Boosted memory clock speeds
- Faster system response
- Improved stability under load
- Auto-adapts to memory modules
Sturdy VRM Design
Steady Power
Better Play Elite Series, steady power keeps your gaming smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
16 VCORE Phases - DrMOS 60A
Unlock the full power of your multi-core CPU for unmatched performance.
*8+8 phases parallel power design
1 VCCGT Phase - DrMOS 40A
Optimised for integrated GPU performance and memory management within the CPU.
2 VCCSA Phases - DrMOS 60A
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Cooling
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
M.2 EZ-Flex (Exclusive Patented Design)
- Cools SSDs by up to 12°C lower temperature
* Test results are for reference only and may vary depending on actual conditions.
Engineered for maximum cooling performance — high-efficiency heat dissipation & a flexible baseplate for M.2 SSD.
To prevent overheating, high thermal conductivity pads are typically added. The M.2 EZ Flex was introduced to solve this issue by improving the contact between the SSD and the heatsink.
M.2 EZ-Flex offers a flexible base that improves contact between the heatsink & SSD, enhancing thermal performance.
Level Up Epic VRM Heatsinks for Non-Stop Gaming
- 4X Massive cooling surface - Exceptional heat dissipation
- 5 W/mK thermal pad for efficient thermal conductivity
Premium VRM Thermal Armour for Superior Cooling
"Stay Cool, Game On"
High-coverage MOSFETs with integrated moulded heatsinks.
4X Larger Surface Area for Enhanced Heat Dissipation
With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
5 W/mK Thermal Pad for Efficient Thermal Conductivity
- High-performance thermal pad
- Keeps your system cool and running at peak efficiency
True One-Piece Heatsink Design
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance
Multi-Cut Design with Channels for Improved Airflow
- More grooves, more airflow.
- Better airflow, cooler system.
M.2 Thermal Guard Ext.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
RL-ILM Design
The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.
Small Vents, Big Cooling Power
- Up to 7°C lower temperature
* Test results are for reference only and may vary in different circumstances.
Smart Fan 6
Cool. Quiet. Customised.
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customisable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Smart Fan 6 BIOS UI
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimisation of fan curve
Fan Curve Profile
- Save personalised settings to BIOS ROM
- Maintain custom settings through BIOS updates
Easy & Friendly
Hassle-Free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
DriverBIOS
No need to download Wi-Fi Driver, Power-On & EZ to Launch the Network.
There is no need to download or install additional drivers to enable wireless networking after Windows installation is complete. Moreover, the capacity is 2 times larger than 32MB BIOS.
WiFi EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adaptor, EZ to install.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
M.2 EZ-Latch Click
Screwless installation for M.2 heatsinks.
M.2 EZ-Latch Plus
Screwless installation for M.2 SSDs.
PCIe EZ-Latch Plus
Easy ejection with single click for graphics cards.
Fast-Access Controls
Handy, Revert, Refresh
More Quick Control Elements
Rear EZ-Button
Enjoy premium ease of use through the thoughtful relocation of Power/Reset/Clear CMOS/Q-Flash+ buttons to the rear panel.
* Photo for reference only.
Multi-Key
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
RGB Switch
Disable all light displays on the motherboard.
Direct-to-BIOS
Access the BIOS settings directly without keyboard inputs.
Safe Mode
Access BIOS safe mode to modify select settings while preserving other configurations.
Optimal DRAM Installation Indicator
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.
Q-Flash Auto Scan
The new Auto Scan function features when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Q-Flash Plus
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
Step 1
Connect the 24-pin and 8-pin power cables directly to the motherboard.
Step 2
Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
Step 3
Press the Q-FLASH PLUS button to trigger automatic BIOS updating.
Future Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
All-Round Connectivity
40Gbps USB4 with DP-Alt
The latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
5G LAN
The 5G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Wi-Fi 7 Brings You the Ultimate VR Experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
320 MHz Channels
Wi-Fi 7 introduces support for expansive 320 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.
4K-QAM
Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling lightning-fast file transfers and buffer-free streaming.
Multi-Link Operation
Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4GHz for streaming and 5/6GHz for gaming, resulting in a superior and interruption-free network experience.
Deterministic Low Latency
With its deterministic low latency, Wi-Fi 7 minimises delays, making it the best choice for time-sensitive applications such as video conferencing and competitive online gaming.
Directional Ultra-High Gain Antenna
Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimised Wi-Fi signal transmission.
- Direction signal up to 5dBi
- Omnidirectional signal up to 4dBi
- Magnetic Base
Hi-Fi Audio
Conquer gaming realms with unparalleled audio.
True High-Fidelity Music
Dive into enveloping surround sound and enjoy DSD audio playback with the Realtek ALC1220 Codec.
Audiophile Grade Capacitors
WIMA & Premium Grade Audio capacitors ensure consistent power delivery, recreating a professional studio-quality sound experience.
Ultra Durable™
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.
UD Base Plate
Combining aesthetics with practical safety.
An expansive metal baseplate for exceptional stability and structural support.
The full-coverage design safeguards against PCB pin exposure, ensuring worry-free installation
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
Tailored Computing
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratise next-level computing power.
UC BIOS 2.0
Restructured with user-centred and intuitive performance adjustment mechanisms.
Refined BIOS Interface
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimised experience through an easy-to-navigate layout and attractive design for optimal usability.
Multi-Theme
Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Greyscale.
One Click to Screenshot
Just one click to take a screenshot directly.
Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.
Click to Go BIOS Path
Return to the main page with one click, no need to press arrow keys or ESC anymore.
BIOS Quick Search Feature
No more getting lost in BIOS! Intelligent search capabilities with intuitive interface design, eliminating complex BIOS navigation and delivering a revolutionised user experience.
Smart 80 Port
POST Diagnostics meets Real-Time Thermal Monitoring. Monitor critical CPU/SYS/VRM temperatures instantly during boot sequence, advanced thermal insights before Windows even loads.
AIO Fan Control
Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.
* Supports for AORUS WATERFORCE X II series AIO only.
Gigabyte Control Center
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion
Personalise the RGB illumination on your motherboard and connected peripherals.
Spotlight Your Flair
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Varnish Your Shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
- 1x RGB LED header
- 3x ARGB LED headers
*The information provided is for reference; please prioritise your specific setup and specifications.
HWiNFO Exclusive Partnership
Power Monitor
The new feature provides real-time monitoring on CPU Vcore power phases.
- Output current/power in total
- Output of each power phase
- Efficiency
AORUS & HWiNFO Co-Branded OSD
AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.
Default AORUS Skin
When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.
*AORUS skin auto-applies when detecting a GIGABYTE motherboard.
Memory Timings Monitor
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.
Detailed BIOS Information
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.
Backed by a 3 year Gigabyte warranty.
