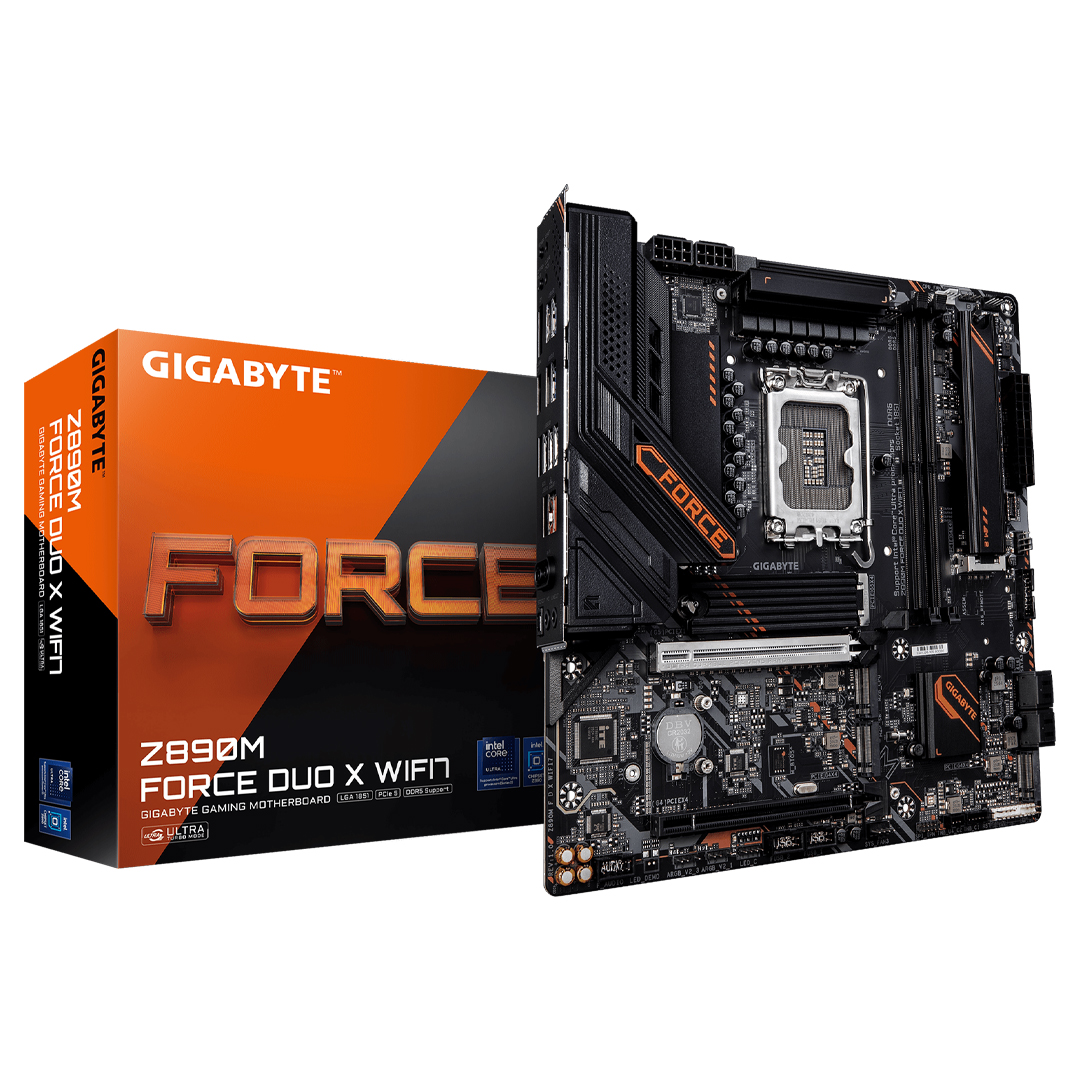

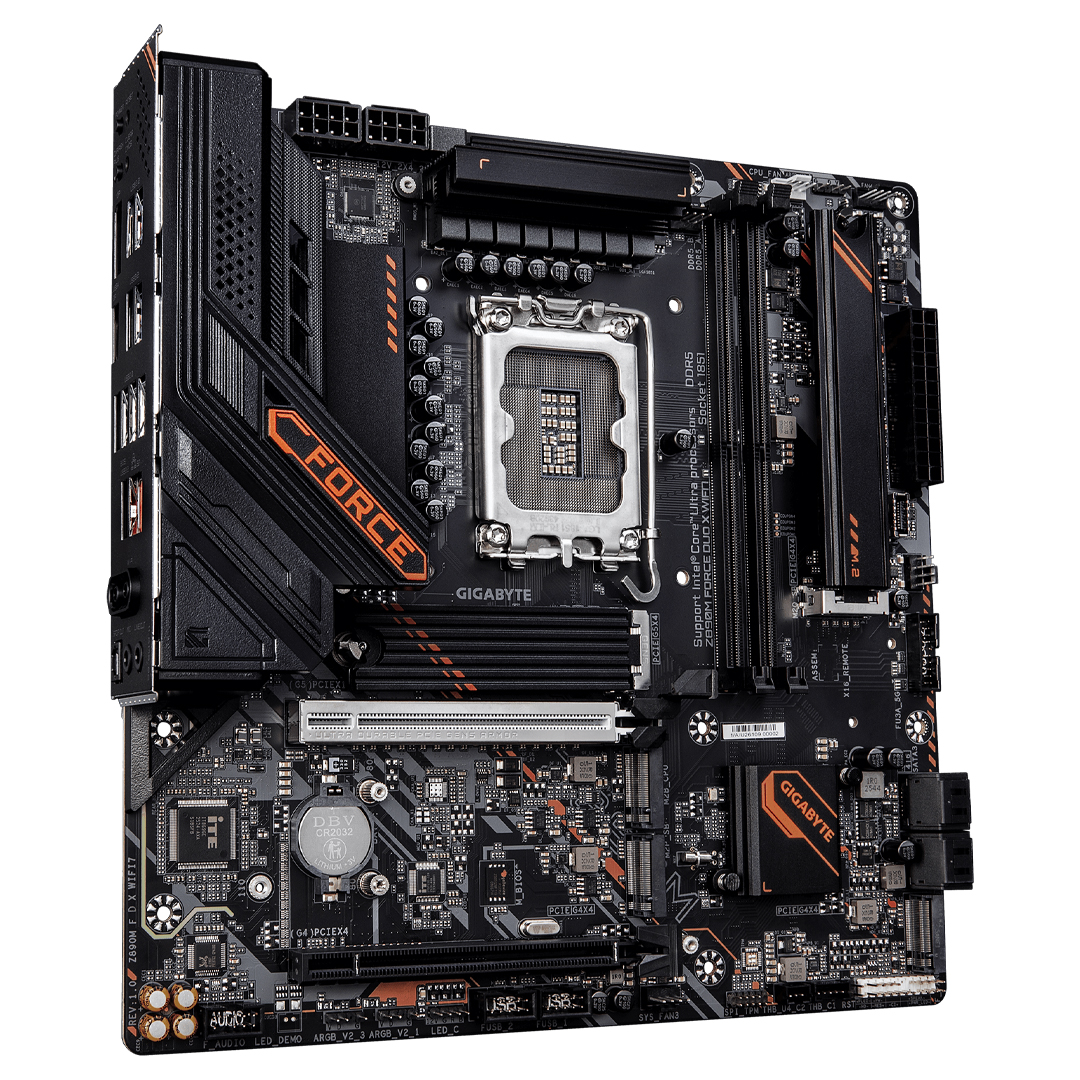

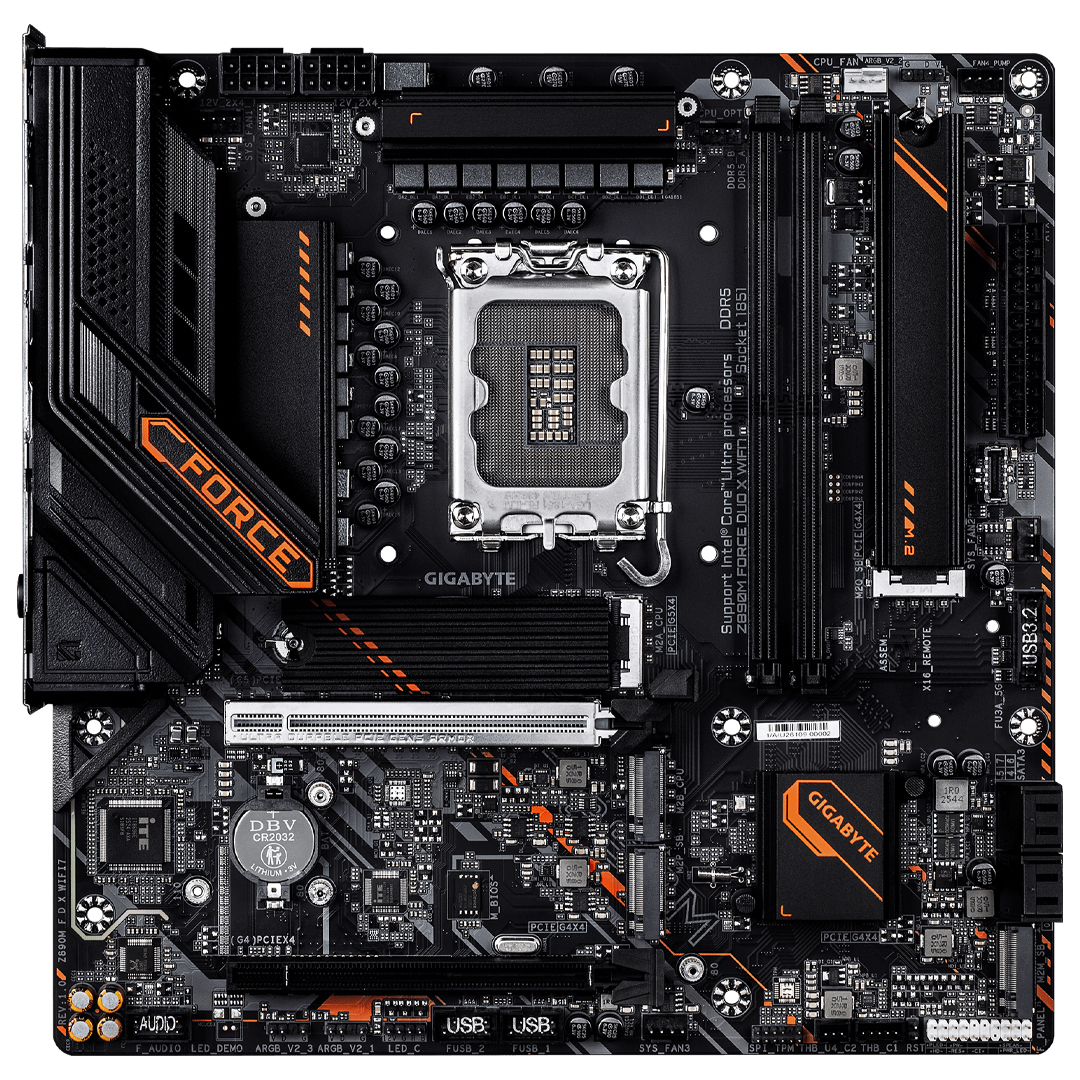

The Gigabyte Z890M Force Duo X WIFI7 DDR5 Motherboard features Intel Z890 chipset support for Intel Core Ultra processors on the LGA1851 socket in a compact micro ATX design built for high end gaming and content creation. The motherboard supports DDR5 memory with DUO X tuning, Wi-Fi 7, 5GbE LAN, PCIe 5.0 graphics support, USB4 Type-C and five M.2 slots for fast storage expansion. The board also includes advanced thermal armour, easy install latching features and strong power delivery for stable performance under heavy loads.
Features
Z890M FORCE DUO X WIFI7
- Ultra Turbo Mode: Unlock the Hidden performance
- D5 DUO X Technology for Infinite Memory Performance
- CQ-DIMM Support
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- AI Perfdrive: Provides optimal and customised BIOS preset profile for users
- Premium Compatibility: 2xDDR5 with the all new CQ-DIMM & XMP Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch: PCIe slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage: 5xM.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armour Advanced & M.2 Thermal Guard
- Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

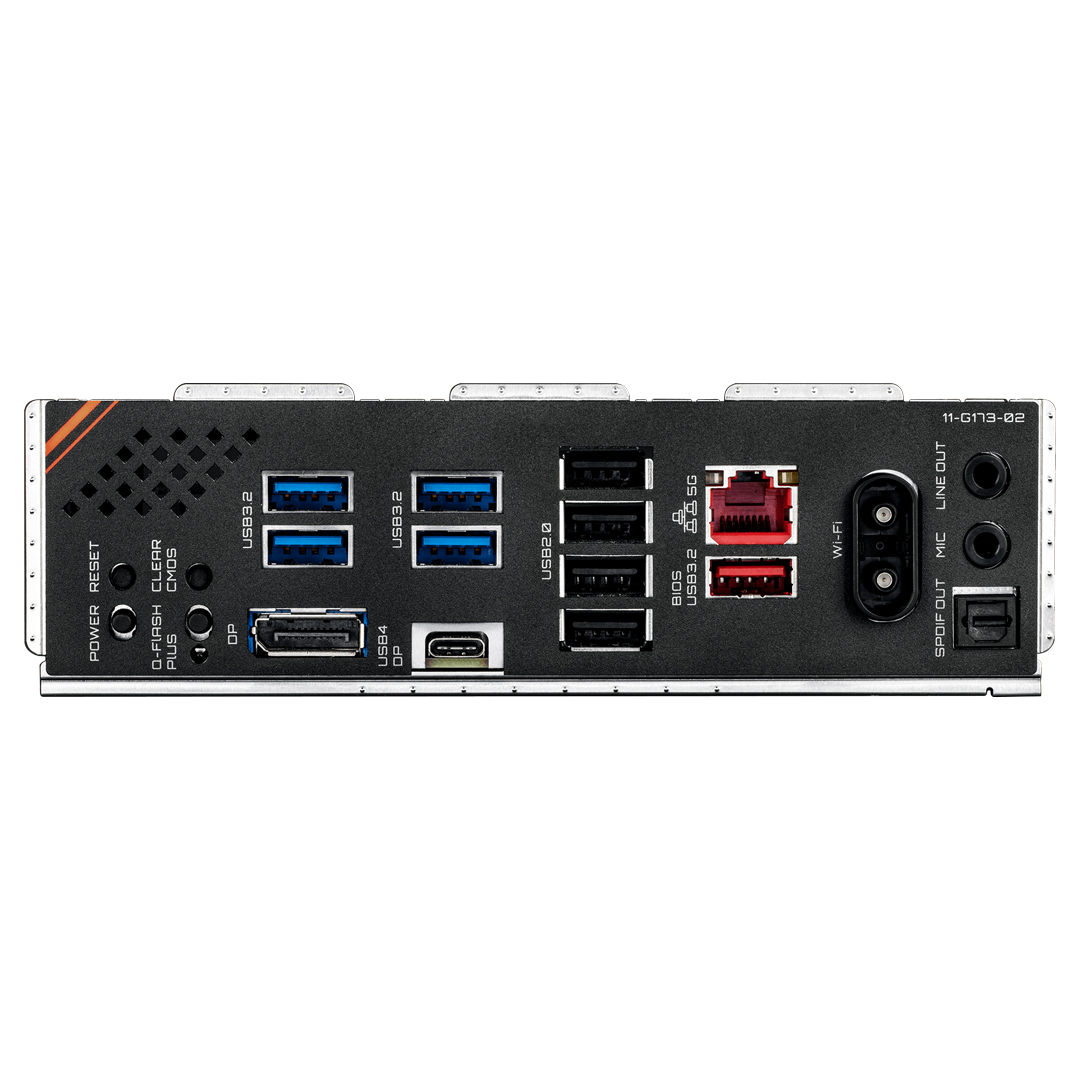

- Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
D5 DUO X Technology
Break Through Limits, Double Capacity in Dual Slots
D5 Duo X revolutionises memory performance through four breakthrough technologies, delivering traditional 4-slot maximum capacity using only 2 DIMM slots while unleashing extreme overclocking potential.
CQ-DIMM Architecture Upgrade
- 2x Capacity: Double the memory capacity per module
- Future-Ready: Early adoption of next-gen JEDEC standards
- Universal Compatibility: Fully backward compatible with CUDIMM
2-DIMM Topology Enhancement
- Zero Signal Reflection: Direct path eliminates middle-slot interference
- Halved IMC Load: 50% fewer modules = optimised controller efficiency
- Maximised Bandwidth: Higher clocks with ultra-low latency
PCB Circuit Optimisation
- Advanced EMI Shielding: Multi-layer protection against electromagnetic interference
- Perfect Signal Integrity: Precision impedance control + strict length matching
- 2x Signal Enhancement: Rigorously tested and verified performance gains
BIOS Tuning Technology
- 4-Rank Timing Enhancement: Optimised timing parameters unlock maximum 4-Rank CQDIMM performance
- Per-Rank Independent Tuning: Optimises termination, drive strength, and voltage per Rank
- MRC Training Optimisation: Upgraded algorithm for new CQ DIMM enhances stability
Ultra Turbo Mode
Unlock the Hidden Performance
Utilising proprietary deep-system optimisations to extract maximum potential from your Intel® Core™ Ultra 200S Series (K-SKUs) with one-click.
- Performance Boost up to 40%
* Performance may varies by CPU and DRAM condition.
- LV1 Intel 200S Boost: Default-enabled for instant gaming performance through precision-tuned overclocking.
- LV2 Turbo Mode: Optimised core curves and memory acceleration unlock breakthrough FPS gains.
- LV3 Extreme Mode: Maximum aggression to fully unleash hidden performance for elite gaming.
* Note: Utilising advanced performance features or modifying clock frequencies/voltages by LV2 Turbo Mode/ LV3 Extreme Mode may affect product warranties and system stability, security, performance, and component lifespan.
Infinite Memory Performance
FORCE gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
- DDR5 Overclocking Up to 9733+ MT/s
* Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
* Support CQ-DIMM memory module up to 7200+ MT/s.
BIOS Features
Effortlessly Boost Your DDR5 Memory Speed
DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximise DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits.
* DDR5 MEMORY UPGRADE involves DDR5 memory overclocking, overclocking capability depends on users' hardware configuration.
Boost Instantly
Instant memory performance uplift
Hands-Off Memory Tuning
Eliminate manual entry of complex memory settings such as clock, voltage, and timings.
Hassle-Free Overclocking
Seamlessly overclock for both standard and XMP 3.0 DDR5 memory frequencies.
Incorporated Database
Built-in library of pre-optimised configurations for diverse memory chip suppliers.
Boost DDR5 Memory Performance with Optimised Tuning
Leverage XMP 3.0 User Profile to fine-tune memory settings for peak system performance.
Customisable SPD Profiles or Retrieve from Database
Create and transfer two custom SPD profiles between systems.
Quick Performance Simulator
Rapidly assess potential memory performance by entering clock speeds and timing parameters.
Profile Management
Store and retrieve memory configurations for online sharing.
Unlock Non-Overclockable DDR5 Potential
Enhance clock speeds of non-overclockable DDR5 modules.
Instant Reset
Revert memory settings with a single click.
D5 Bionic Corsa
AI Overclocking for Peak Performance
AORUS AI Snatch
Auto-Overclocking Software by AI Model
Unleash Ultimate Performance with One-Click Activation.
- Enhanced Computing Power
- Fast AI Performance
- EZ to Peak
- Safe OC
- Less Power Usage
Auto CPU & DDR5 Memory Boost
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration
Enhance CPU & DDR5 speeds with a single click.
- Real time Analysis
- OC accuracy UP
- EZ to Pro
Fast AI Performance
Accelerate AI processing for greater performance.
- Up to 11% AI Performance (Tested by GeekBench AI PRO)
- Accelerated AI decision-making
- Boosted reinforcement learning
- Streamlined language processing
Boost CPU & Memory Performance
Raise system speed and performance.
- Up to 7% Memory Performance Boost (Tested by AIDA64 Memory)
- Up to 5% CPU Performance Boost (Tested by R23 Multi Core)
- Tailored-overclocking for your CPU and memory
- Faster data transfer and application loading
- Improved multitasking performance
- Optimised overall system performance
Maximise Performance in a Snap
Enable users to easily become overclocking experts through a simple interface.
Smart & Safe Overclocking
Protect your motherboard through multiple over-temperature and over-current safeguards.
- OTP - Over Temperature Protection
- OCP - Over Current Protection
- OVP - Over Voltage Protection
- OPP - Over Power Protection
- UVP - Under Voltage Protection
- SCP - Short Circuit Protection
Less Power Usage Optimal Power-Efficiency
- Enhance Up to 3% CP/Per Watt
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.
AI SNATCH Engine
Advanced AI Overclocking Model
The AI model, trained by AI TOP on diverse overclocking datasets, improves precision and stability while optimising performance. This model serves as the core of AORUS AI Snatch software.
- OC to 20% higher speed
- OC Efficiency UP
- No more try and error
- Optimal performance-stability balance.
AI Flow Chart
Data Augmentation
- Expands dataset size
- Reduces overfitting risk
- Simulate more realistic conditions
Precise Dataset
AI-Driven Overclocking Analysis
- List overclocking parameters
- Generate OC attribute weights and relevance matrix
- Create correlation heatmap
- Identified critical attributes
AI Design for MB Signal Enhancement
AI-Driven PCB Technology - Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to optimise vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
AI-ViaFusion Technology
Optimised vias & pads for signal integrity.
AI-Trace Technology
Smart routing for peak performance.
AI-Layer Technology
- Tailored stackups for enhanced functionality.
Key Features
- AI-Generated Design Recipes
- AI-Driven Simulation
- AI-Powered Signal Verification
- Single and cross-layer signal optimisation
AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity
- Reduction in Signal Reflection Up to 28.2%
AI-ViaFusion, an AI-assisted via optimisation technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.
Best-in-Class Signal Quality
- Superior signal transmission efficiency
- Dramatically reduced signal reflection
- Elevated signal quality and reliability
- Enhanced cross-layer PCB signal performance
AI-ViaFusion Technology - AI-Engineered Via Design Formula
AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.
Optimised Via Design
Varied via sizes for optimised signal and power paths
Driven Pad Optimisation
Custom pad sizes for performance and production balance
Precision Impedance Matching
Via & pad sizes selected for optimal signal impedance
Unlock AI-Powered Performance with AI-ViaFusion Technology
Minimised Insertion Loss
Optimised vias reduce signal loss
Enhanced Return Loss
Precision impedance matching reduces reflections
Optimised Eye Diagram
Wider eye opening improves signal integrity
* Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.
AI-ViaFusion Technology - AI-Driven Revolution in PCB Design
Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.
AI-ViaFusion Technology Optimises PCB Performance Through
Strategic Via Sizing
Optimised for varied signals across PCB.
Enhanced Impedance Matching
Precise control via machine learning.
Space Optimisation
Maximised layout efficiency with signal integrity.
AI-Trace Technology - Revolutionising PCB Routing with AI
AI-Trace Technology transforms PCB design by leveraging AI to optimise trace routing, resulting in enhanced performance and signal integrity.
Fibre Weave Effect Mitigation
Optimised signal synchronisation.
Shielded Memory Routing
Optimised signal shielding and precision.
Impedance-Optimised Topology
Refined traces with minimal resistance.
Isolated Memory Routing
Optimised trace layout and layer separation.
Daisy-Chained Routing
Innovative design eliminates signal bottlenecks.
Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology.
Mitigating Fibre Weave Effect with AI-Trace Technology
Fibre Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibres, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.
Benefits of Mitigation
- Reduces signal distortion
- Improves transmission reliability
- Supports higher data rates
- Enhances overall system stability
AI-Layer Technology - Next-Generation Multi-Layer PCB Design
AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.
Core Innovation
AI-Optimised Layer Customised Design
- AI-optimised layer design
- Unique material for each layer
- AI-verified signal integrity
- Tailored PCB for peak performance
Key Features
- AI-optimised PCB layer and design material
- Server-Grade Low Loss PCB (Low Loss for 8-layer PCB model only)
- Enhanced 2X Copper Technology
HyperTune BIOS - AI-Driven Advanced BIOS Optimisation Technology
- BIOS Efficiency Boost Up to 95%+
HyperTune BIOS uses AI to optimise signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.
AI-Enhanced Performance Optimisation
- AI-driven MRC parameter optimisation
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits
Experience GIGABYTE's AI-Enhanced HyperTune – Unleashing next-gen BIOS performance.
HyperTune BIOS - Advanced MRC Optimisation
Memory Reference Code (MRC) is a critical component in BIOS that initialises and configures system memory. HyperTune BIOS leverages AI to optimise MRC, pushing memory performance to new heights while maintaining system stability.
Benefits of HyperTune BIOS MRC Optimisation
- Boosted memory clock speeds
- Faster system response
- Improved stability under load
- Auto-adapts to memory modules
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
12 VCORE Phases / DrMOS 60A
Unlock the full power of your multi-core CPU for unmatched performance.
1 VCCGT Phase / DrMOS 40A
Optimised for integrated GPU performance and memory management within the CPU.
2 VCCSA Phases / DrMOS 60A
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
* 6+6 phases parallel power design.
M.2 EZ-Flex (Exclusive Patented Design)
- Cools SSD by Up to 12°C lower temperature
* Test results are for reference only and may vary depending on actual conditions.
Engineered for maximum cooling performance — high-efficiency heat dissipation & a flexible baseplate for M.2 SSD.
To prevent overheating, high thermal conductivity pads are typically added. The M.2 EZ Flex was introduced to solve this issue by improving the contact between the SSD and the heatsink.
M.2 EZ-Flex offers a flexible base that improves contact between the heatsink & SSD, enhancing thermal performance.
Level Up Epic VRM Heatsinks for Non-Stop Gaming
- 4x Massive cooling surface - Exceptional heat dissipation
Premium VRM Thermal Armour for Superior Cooling
"Stay Cool, Game On"
High-coverage MOSFETs with integrated moulded heatsinks.
4x Larger Surface Area for Enhanced Heat Dissipation
With up to 10 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
True One-Piece Heatsink Design
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance
Multi-Cut Design with Channels for Improved Airflow
- More grooves, more airflow
- Better airflow, cooler system
2x M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
* Test results are for reference only and may vary in different circumstances.
Small Vents,Big Cooling Power
- Up to 7°C lower temperature
* Test results are for reference only and may vary in different circumstances.
RL-ILM Design
The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.
Smart Fan 6
Cool. Quiet. Customised.
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customisable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Smart Fan 6 BIOS UI
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimisation of fan curve
Fan Curve Profile
- Save personalised settings to BIOS ROM
- Maintain custom settings through BIOS updates
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
40Gbps USB4 with DP-Alt
The latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
- USB 4 - 48Gbps
- USB 3.2 Gen2 - 18Gbps
- USB 3.2 Gen1 - 5Gbps
5G LAN
The 5G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
Wi-Fi 7 Brings You the Ultimate VR Experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
160 MHz Channels
Wi-Fi 7 introduces support for expansive 160 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.
4K-QAM
Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling lightning-fast file transfers and buffer-free streaming.
Multi-Link Operation
Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4GHz for streaming and 5/6GHz for gaming, resulting in a superior and interruption-free network experience.
Deterministic Low Latency
With its deterministic low latency, Wi-Fi 7 minimises delays, making it the best choice for time-sensitive applications such as video conferencing and competitive online gaming.
Directional Ultra-High Gain Antenna
Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimised Wi-Fi signal transmission.
- Directional signal up to 5dBi
- Omnidirectional signal up to 4dBi
- Magnetic Base
Hi-Fi Audio
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
DriverBIOS
No need to download Wi-Fi Driver, Power-On & EZ to Launch the Network.
There is no need to download or install additional drivers to enable wireless networking after Windows installation is complete (OOBE completed). Moreover, the capacity is 2 times larger than 32MB BIOS.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
PCIe EZ-Latch
Easy ejection with single click for graphics cards
M.2 EZ-Latch Click
Screwless installation for M.2 heatsink
WIFI Compass
Features auto detection to help users find the best antenna position for stronger Wi-Fi signal.
Easy-to-use interface guides users to measure without expertise:
4D Mode (4 Detection Mode)
Built for everyday use.
CD Mode (Continuous Detection Mode)
Designed for technical enthusiasts.
Rear EZ-Button
Enjoy premium ease of use through the thoughtful relocation of Power/Reset/Clear CMOS/Q-Flash+ buttons to the rear panel.
* Photo for reference only.
Multi-Key
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
RGB Switch
Disable all light displays on the motherboard.
Direct-to-BIOS
Access the BIOS settings directly without keyboard inputs.
Safe Mode
Access BIOS safe mode to modify select settings while preserving other configurations.
Optimal DRAM Installation Indicator
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.
UC BIOS 2.0
Restructured with user-centred and intuitive performance adjustment mechanisms.
Refined BIOS Interface
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimised experience through an easy-to-navigate layout and attractive design for optimal usability.
Multi-Theme
The newly exclusive greyscale mode provides a refreshing interface, ensuring a significantly more friendly and pleasant user experience.
One Click to Screenshot
Just one click to take a screenshot directly.
Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.
Click to Go BIOS Path
Return to the main page with one click, no need to press arrow keys or ESC anymore.
BIOS Quick Search Feature
No more getting lost in BIOS! Intelligent search capabilities with intuitive interface design, eliminating complex BIOS navigation and delivering a revolutionised user experience.
Smart 80 Port
POST Diagnostics meets Real-Time Thermal Monitoring. Monitor critical CPU/SYS/VRM temperatures instantly during boot sequence, advanced thermal insights before Windows even loads.
AIO Fan Control
Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.
* Supports for AORUS WATERFORCE X II series AIO only.
Q-FLASH Auto Scan
The new Auto Scan function features when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
Step 1
Connect the 24-pin and 8-pin power cables directly to the motherboard.
Step 2
Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
Step 3
Press the Q-FLASH PLUS button to trigger automatic BIOS updating.
HWiNFO
Exclusive Partnership
Power Monitor
The new feature provides real-time monitoring on CPU Vcore power phases.
- Output current/power in total
- Output of each power phase
- Efficiency
* This feature will be activated only on GIGABYTE AMD and Intel 800 series motherboards with Intersil, Onsemi, and Infineon power controller.
Default AORUS Skin
When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.
*AORUS skin auto-applies when detecting a GIGABYTE motherboard.
AORUS & HWiNFO Co-Branded OSD
AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.
Memory Timings Monitor
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.
Detailed BIOS Information
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.
GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.
RGB Fusion
Personalise the RGB illumination on your motherboard and connected peripherals.
Varnish Your Shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
- 1x RGB LED header
- 3x ARGB LED headers
* The information provided is for reference; please prioritise your specific setup and specifications.
Backed by a 3 year Gigabyte warranty.
