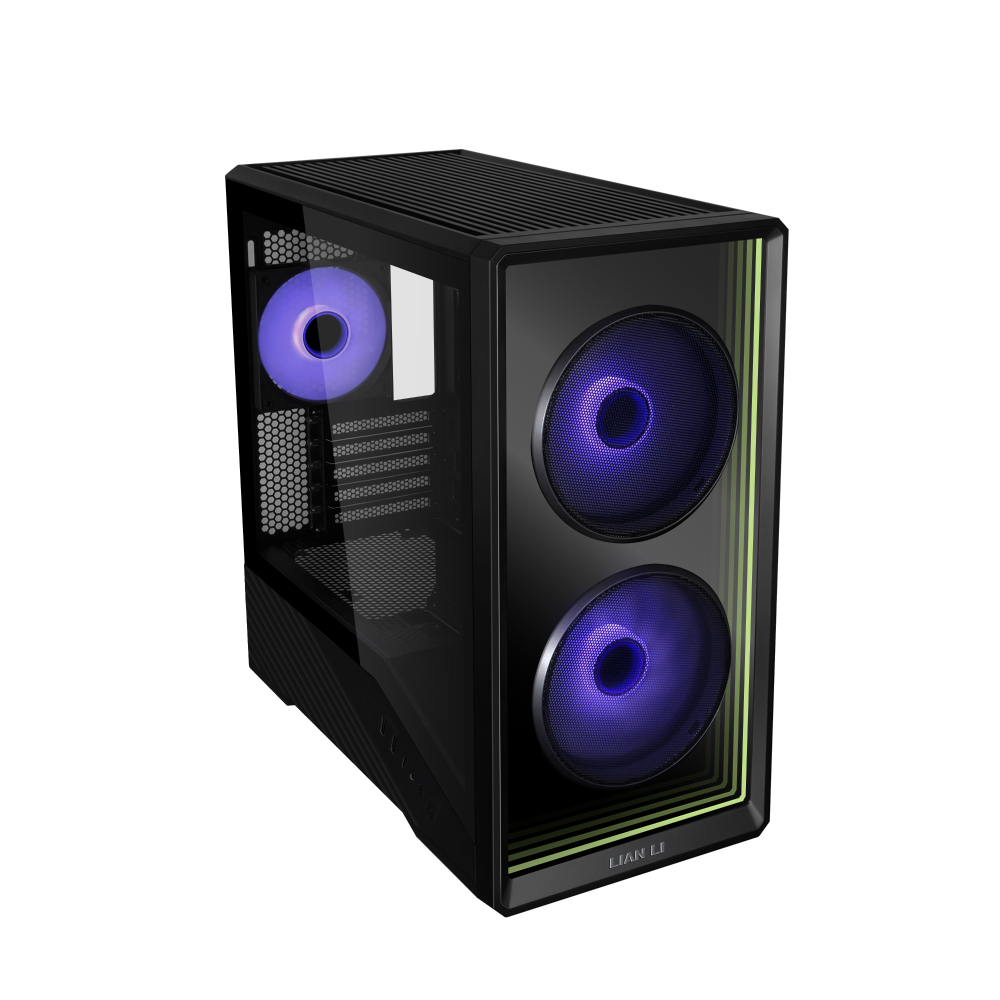

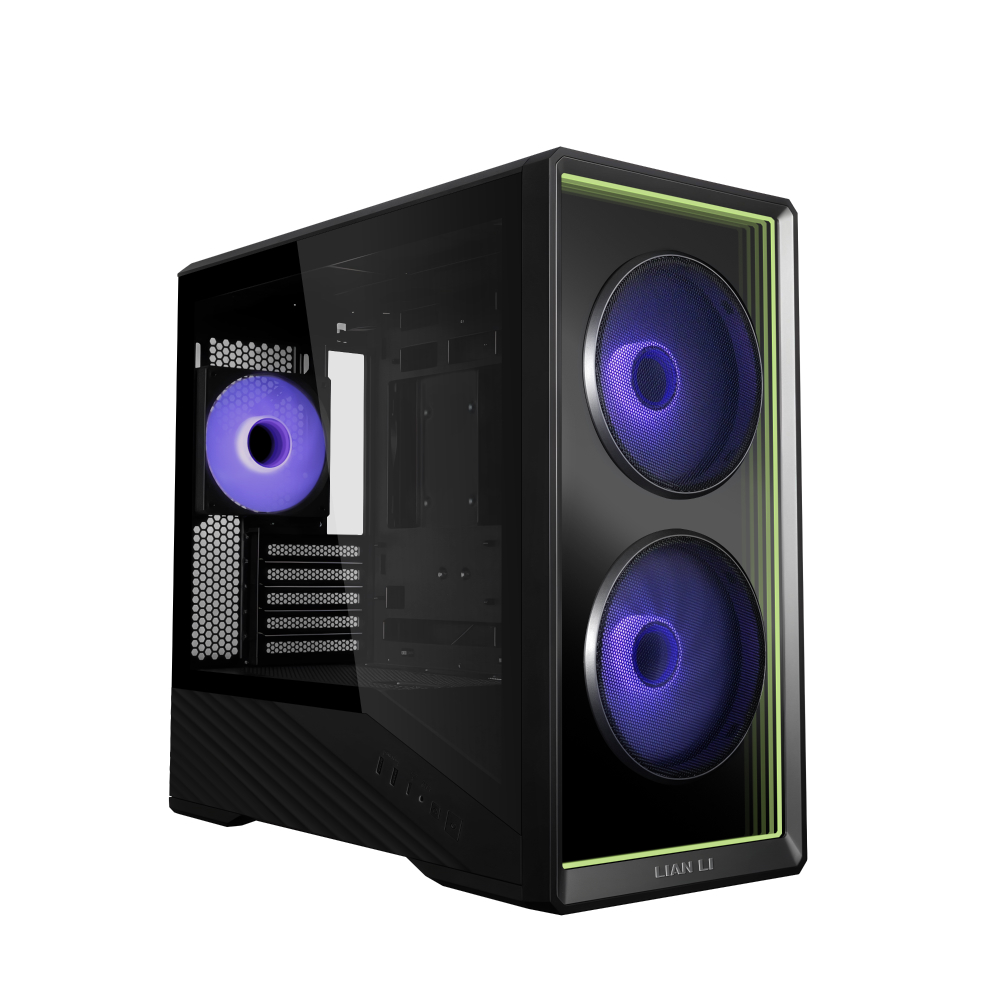

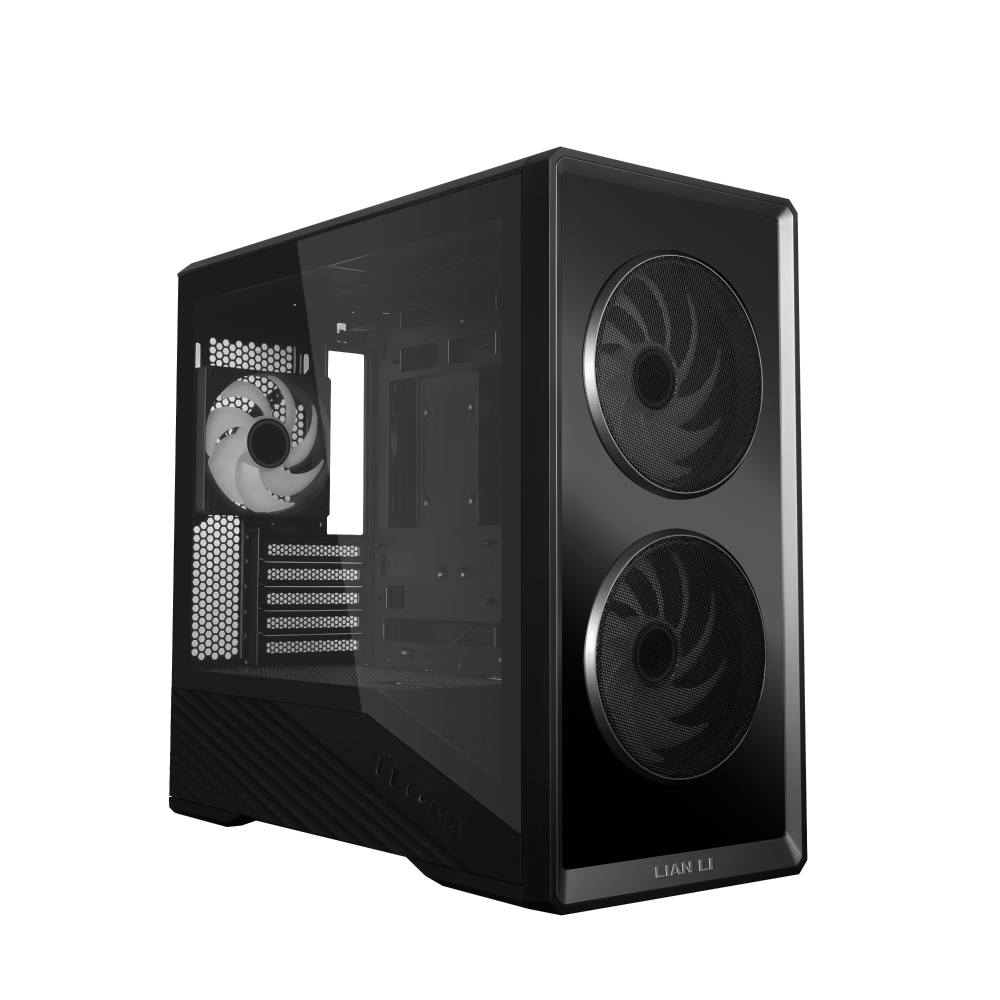

The Lian Li Vector V150 Infinity is a masterfully optimised mATX chassis that redefines the compact showcase aesthetic for modern workstations and gaming rigs. Featuring a breathtaking infinity mirror front panel, which uses an immersive optical illusion to create a sense of infinite depth, perfectly complemented by three pre-installed Infinity ARGB PWM fans. This dual 4mm tempered glass enclosure provides pristine visual fidelity, allowing you to highlight your system's centre with an unobstructed view while maintaining a space-efficient footprint on your desktop. Engineered for next-gen performance, the V150 Infinity is at the forefront of hardware innovation, featuring full compatibility with back-connect motherboards for a truly wireless interior look. Despite its compact nature, it offers elite thermal management capabilities, supporting a 360mm radiator at the top and accommodating massive graphics cards up to 400mm in length. With its high-bandwidth I/O panel, including dual USB-C 3.2 Gen 2 ports, and a reinforced structure designed to stabilise heavy components, this chassis serves as a durable and sophisticated command centre for any specialist seeking a balance of avant-garde design and military-grade cooling efficiency.
Features
Vector V150 INF
Vivid Visuals, Powerful Performance
- Supports M-ATX, Mini-ITX, and back-connect M-ATX motherboards
- Features 4mm tempered glass front and side panels for a clear and premium hardware display
- Pre-installed with 3 ARGB infinity mirror fans for out-of-box cooling and striking lighting effects
- Designed with an infinity mirror front panel
- Supports up to a 360mm top-mounted radiator
- Provides flexible cooling support with fan mounting positions across the top, side, bottom, front, and rear
- Includes a built-in GPU support bracket to enhance stability and reduce graphics card sag
- Designed with a cable-management-friendly interior
- Features an integrated rear control board with built-in wireless receiver support for fan and lighting control via L-Connect 3
- Supports graphics cards up to 400mm in length for compatibility with high-end GPU configurations
Infinity Mirror, Full Control
The built-in control board lets users switch the lighting effects of the front panel, front fans, and rear fan, or toggle to wireless mode. With L-Connect 3, users can adjust fan speed and synchronise lighting for seamless wireless control.
The integrated control board features a built-in wireless receiver. With L-Connect 3 and L-Wireless Controller, users can easily control lighting effects and fan speed.
Note: The L-Wireless Controller is sold separately. The rear integrated control board does not support external fans.

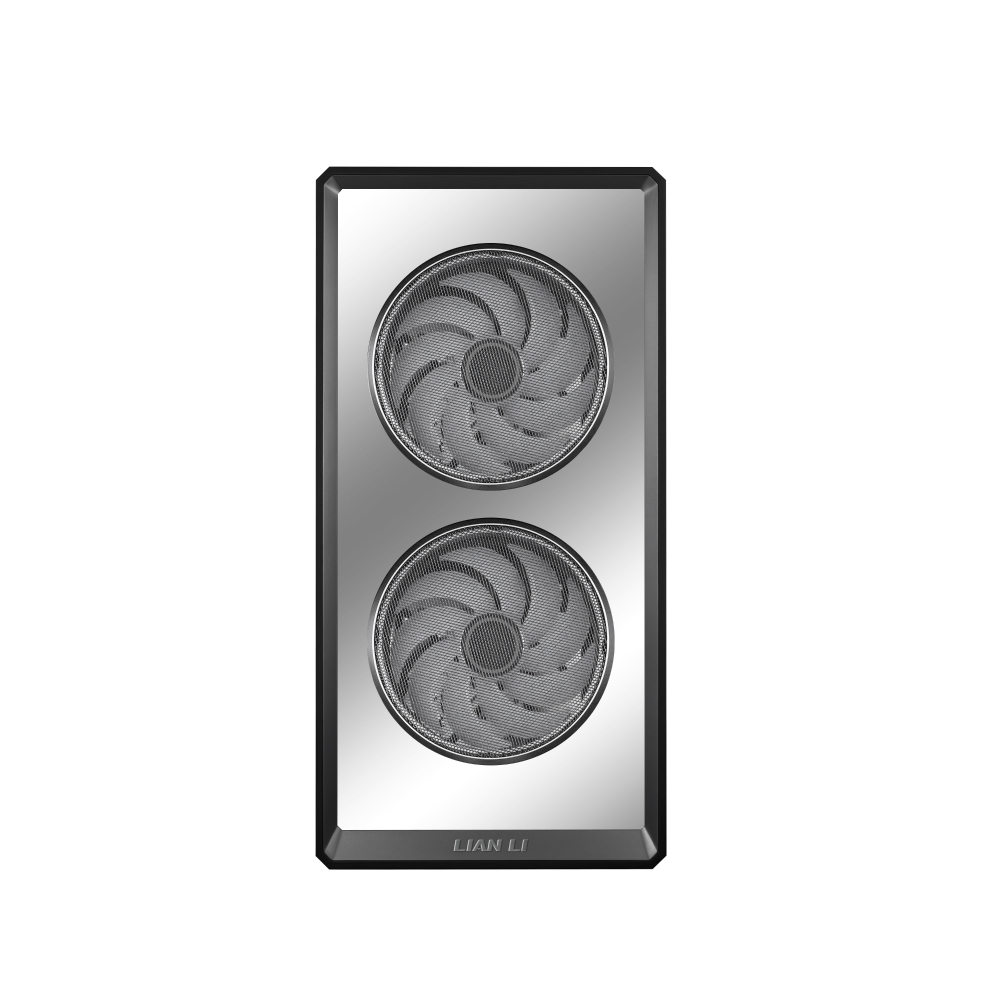

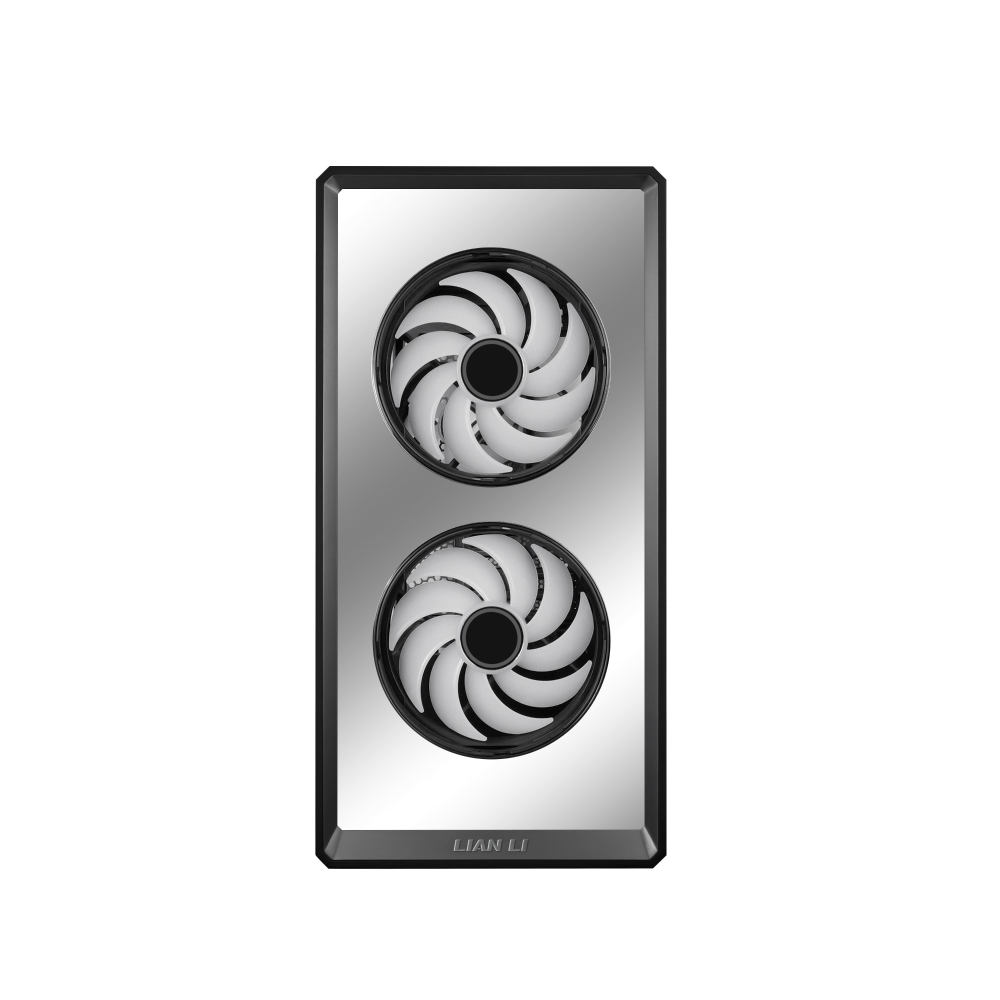

Sleek Infinity Mirror Design
The 4mm tempered glass front and side panels, combined with a distinctive glass cutout detail and ARGB infinity mirror front panel, create a sleek, premium look. Infinity mirror lighting and front fans complete the showcase.
Pre-Installed ARGB Infinity Fans
The Vector V150 INF comes with three pre-installed fans, each featuring a captivating infinity mirror at the centre and vibrant ARGB lighting on the blades, delivering ready-to-go cooling performance with a bold, interlock-inspired design.
Two 140mm front intake fans with hydraulic bearings deliver balanced airflow, high static pressure, quiet operation, and reliable performance.
- Dimensions: 140 x 140 x 30mm
- Speed: 0,450~1900 ± 10% RPM
- Airflow: 116.53 CFM
- Static Pressure: 3.32mmH₂O
- Noise: 33.8dBA
Rear 120mm exhaust fan delivers efficient airflow and superior cooling.
- Dimensions: 120 x 120 x 28mm
- Speed: 0,200~1800 ± 10% RPM
- Airflow: 60.81 CFM
- Static Pressure: 2.53mmH₂O
- Noise: 26dBA
The front fans are covered by a detachable metal mesh panel that helps prevent dust entry and can be removed easily for cleaning.
Independent testing by PPLP Lab shows that the VECTOR V150 INF delivers class-leading cooling performance. Its efficient airflow design also earned a PPLP A+ chassis performance rating.
PC Temperature Test: (Tested with Air Cooler)
- Test Platform: CPU Intel Core i9-13900K @230W | GPU ASUS ROG Strix RTX 3080 12G
- Test Items: AIDA64 FPU Stress Test | 3DMARK SPEEDWAY Stress Test
| |
CPU Temp |
GPU Temp |
Chassis Noise (Tested at a distance of 30cm) |
| Best Performance Mode |
87.2°C |
83.5°C |
49.4 dBA |
| Same-Noise Mode |
89.2°C |
83.3°C |
36.0 dBA |
| Default Mode |
88.2°C |
83.5°C |
48.5 dBA |
Flexible Design, Versatile Configurations

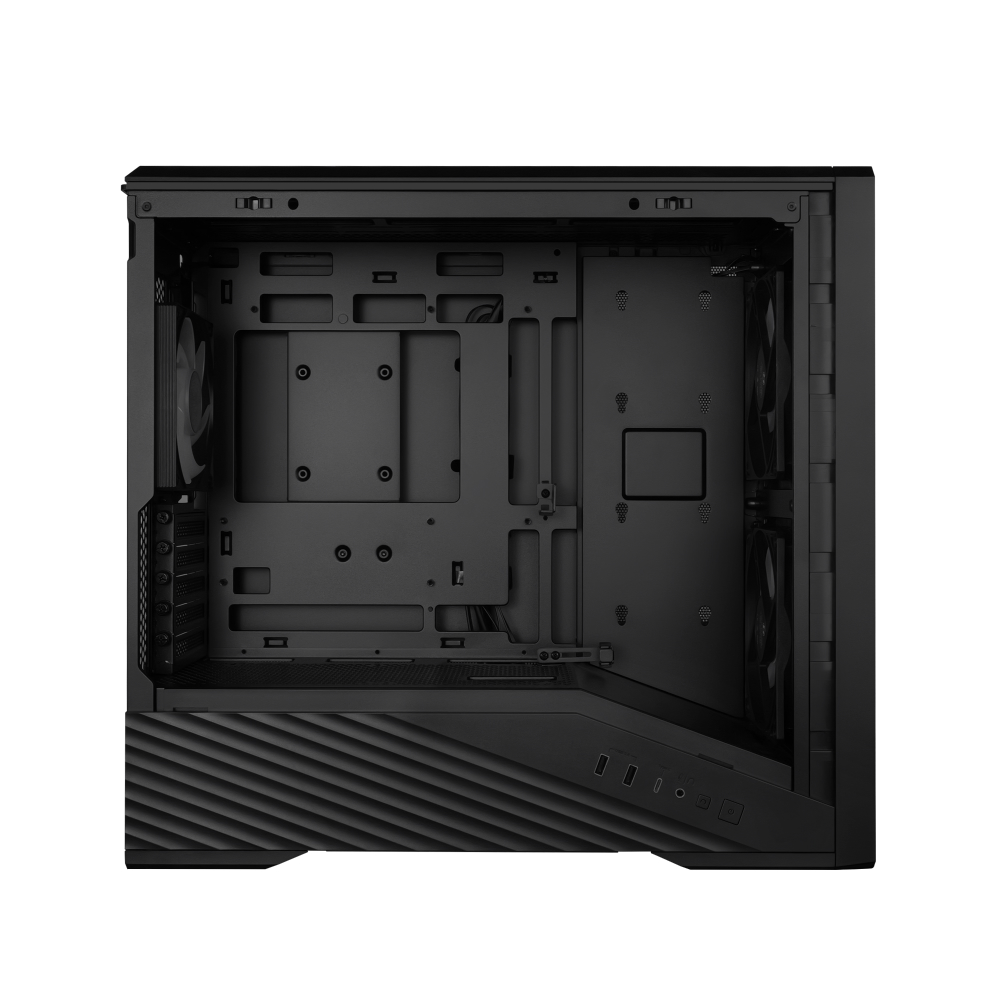

Optimised for M-ATX builds, the compact chassis makes efficient use of space while supporting back-connect M-ATX, standard M-ATX, and Mini-ITX motherboards. It supports up to 3 x 120mm or 2 x 140mm fans on the top, 2 x 140mm at the front, 2 x 120mm on the side, 2 x 120mm at the bottom, and 1 x 120mm at the rear. The top also supports up to a 360mm or 240mm radiator for strong airflow and reliable cooling.
Optimised Airflow Design

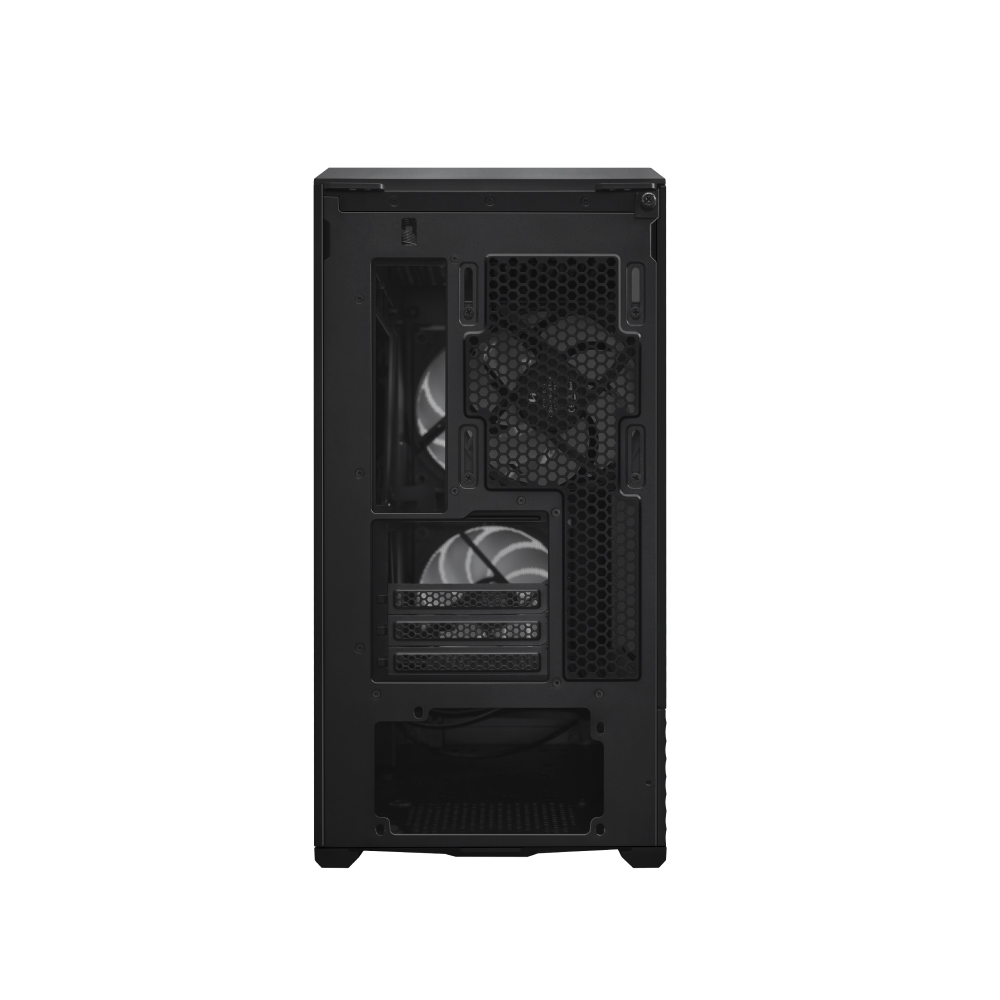

The L-shaped perforation design on the rear metal panel further enhances chassis ventilation.
Versatile GPU Support Bracket
The included GPU support bracket offers multidirectional adjustment for broad compatibility with different graphics cards, while its top-and-bottom clamping design provides enhanced stability.

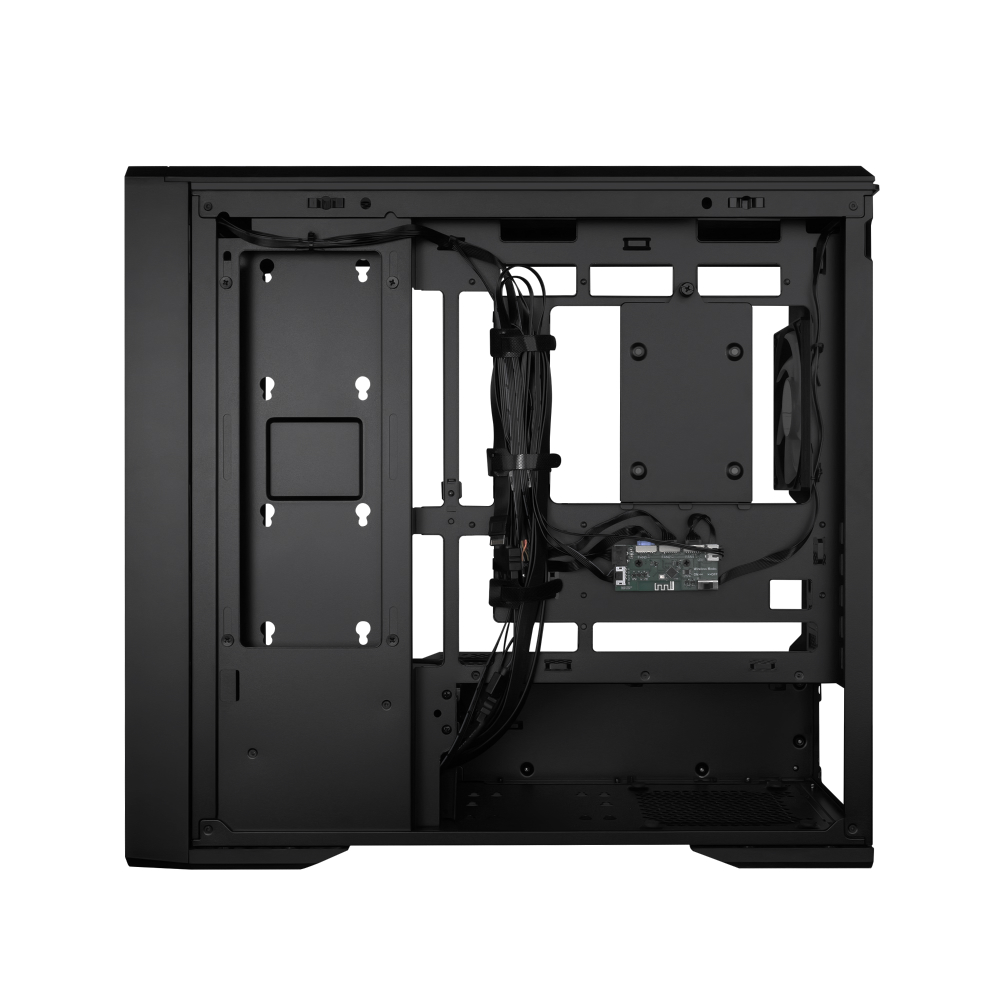

Efficient Cable Management
A streamlined cable management layout simplifies installation and keeps the interior clean, with dedicated routing channels, multiple tie points, and ample space behind the motherboard tray.
1. Motherboard 24P, GPU cable, and excess cables
2. CPU 8P cables
3. AIO cabling
Broad GPU Compatibility
Supports graphics cards up to 400mm in length for wide high-end GPU compatibility.
Flexible Storage Configuration
For power supplies 150mm or shorter, HDDs or SSDs can be installed in position #1 or #2. For power supplies over 150mm, HDDs or SSDs can only be installed in position #2.
- HDD: 1 x 3.5"SSD
- SSD: 4 x 2.5"SSD
Note: Only one storage device can be installed across these positions, meaning #1 and #2 cannot be used at the same time. Install the drive in the innermost position first, then the power supply, and finally the drive in the middle position.
Integrated I/O Panel, Simple and Convenient
Backed by a 1 year Lian Li warranty.
