The Thermal Grizzly TG Kapton Insulation Sheet Black Edition features a black polyimide film designed as an installation aid for electrically conductive thermal interface materials such as liquid metal, Carbonaut and KryoSheet. The sheet supports high-temperature use up to 260 degrees Celsius and provides electrically insulating protection when working around sensitive components. Its slim flexible format makes it a practical addition for advanced cooling and modding work.
Features
TG Kapton Insulation Sheet Black Edition

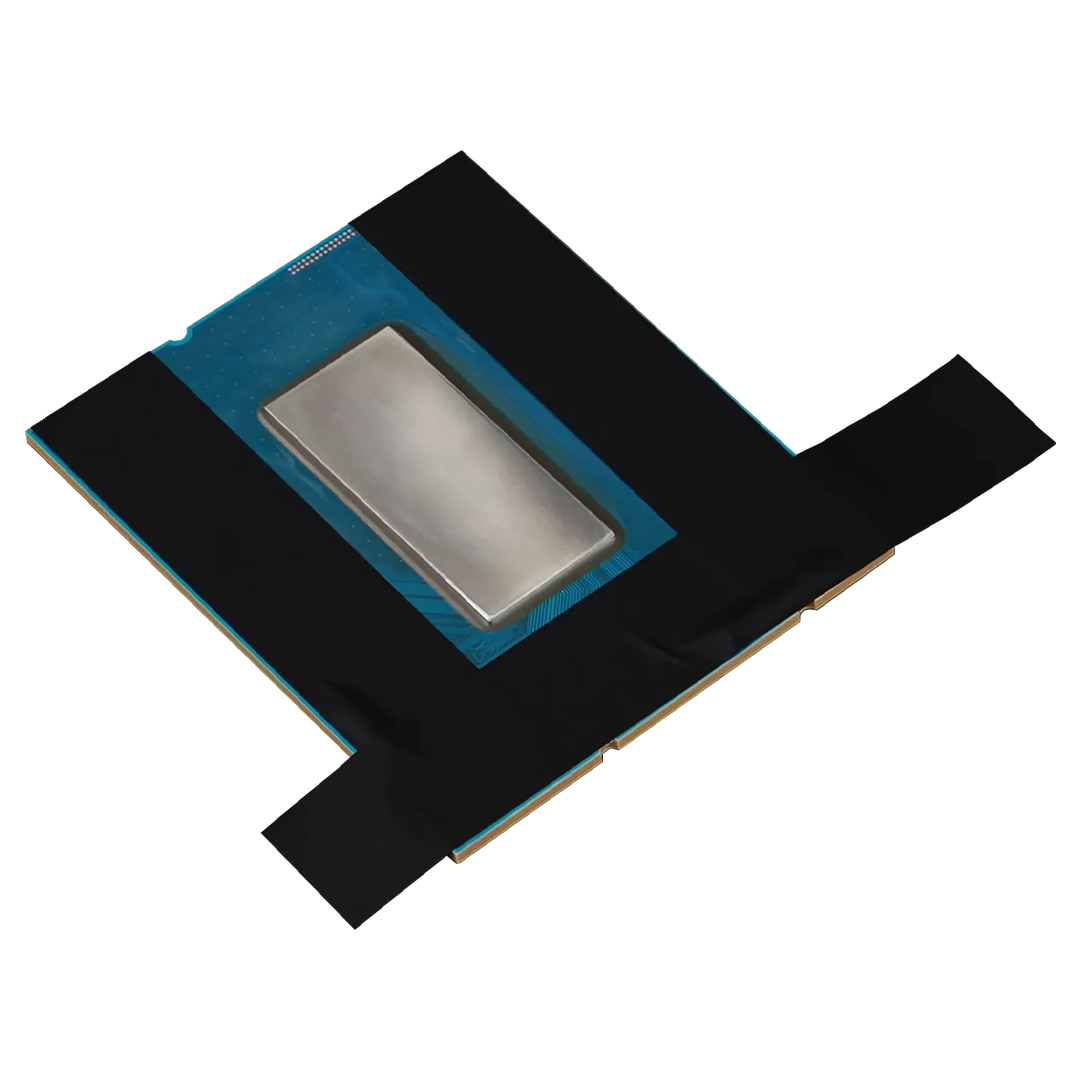

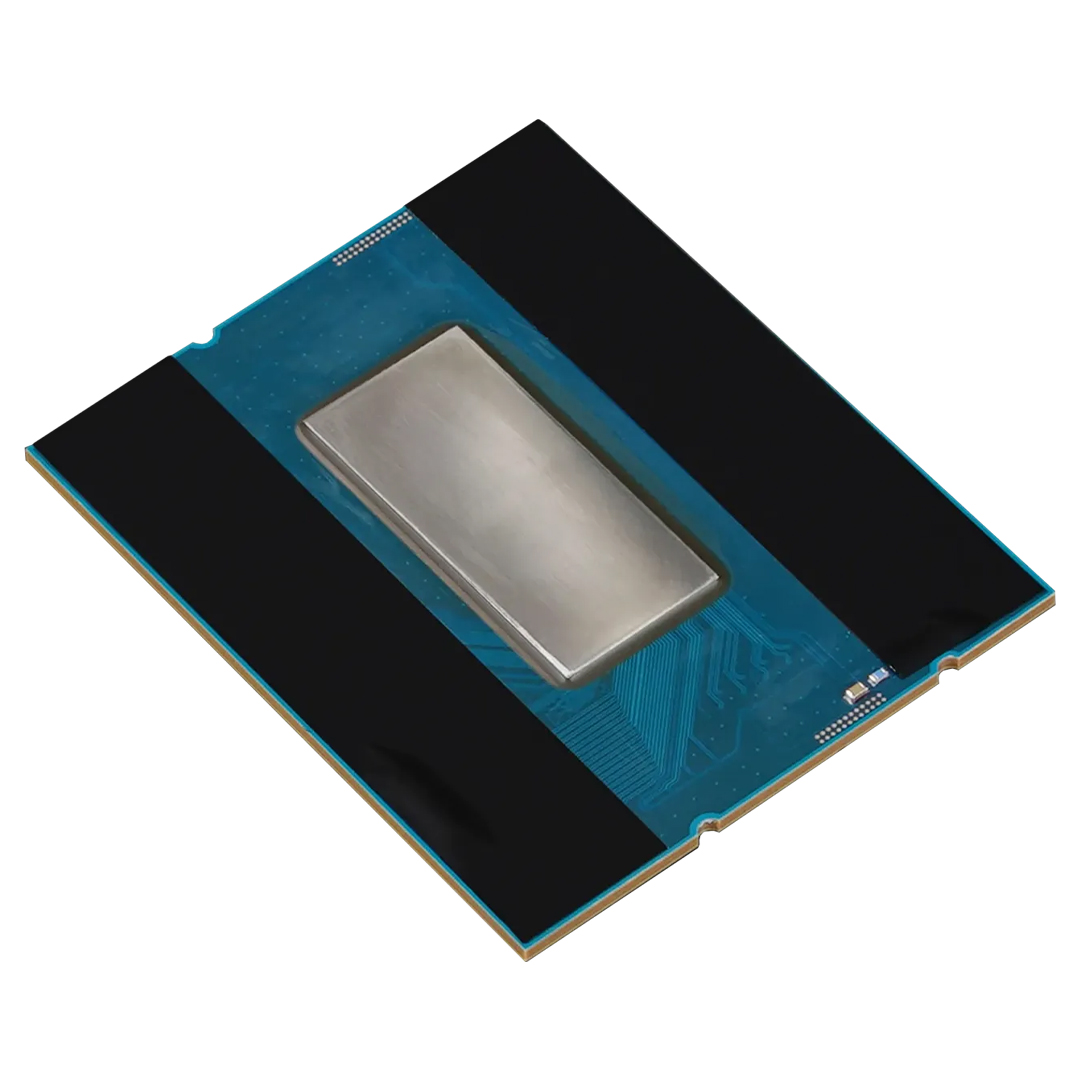

Kapton Insulation Sheet is an assembly aid for electrically conductive thermal interface material (TIM). It is ideal for masking components such as SMDs on a CPU or GPU if they are to be used with Conductonaut liquid metal, Carbonaut or KryoSheet.
The Kapton Insulation Sheet Black Edition is a polyimide film that can be used at high temperatures up to 260 °C and serves as an installation aid for electrically conductive thermal interface materials (TIM), such as Conductonaut liquid metal, Carbonaut, or KryoSheet.
Black Edition: Thinner, Stronger, and Ideal for Precise Masking

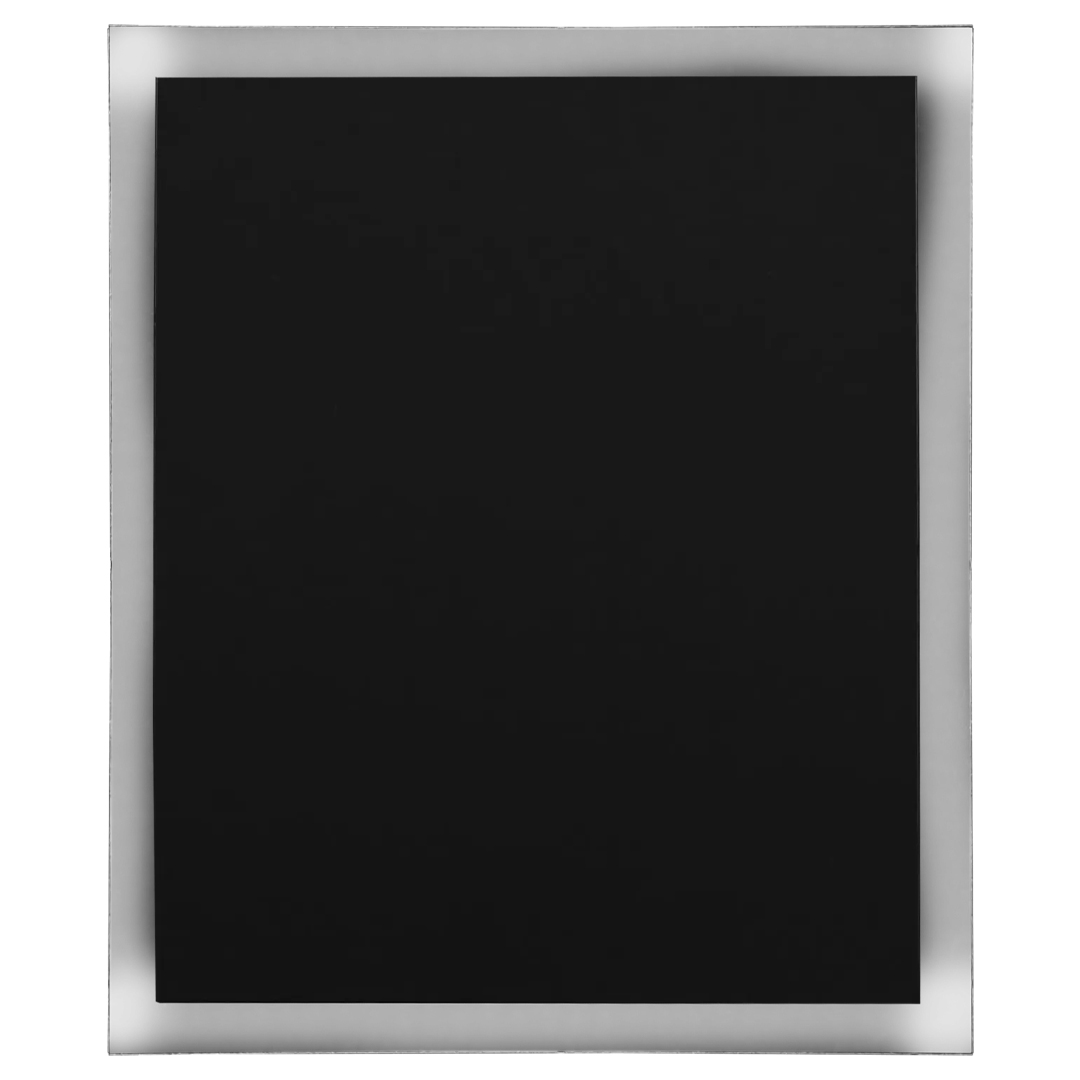

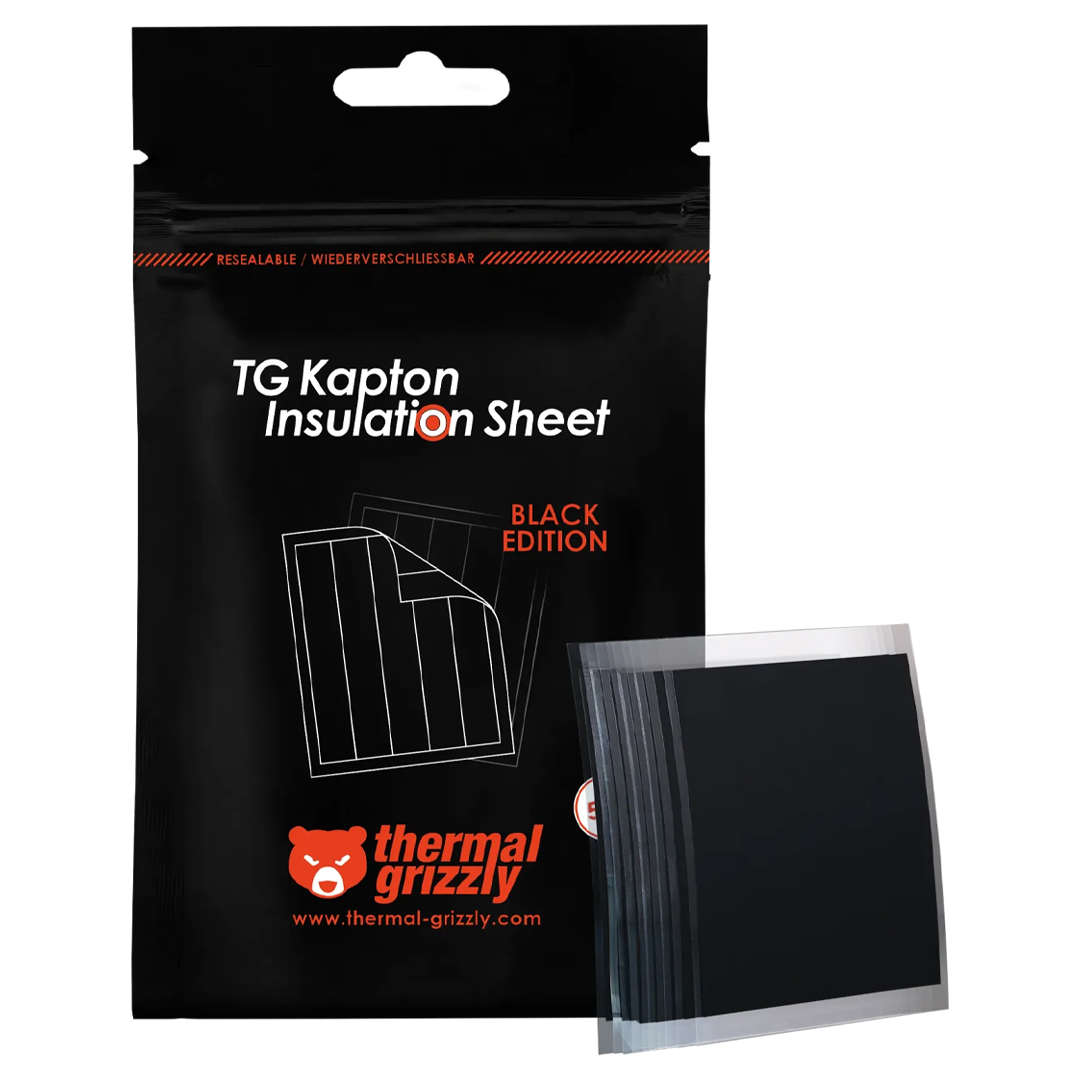

It is ideal for masking components such as SMDs on a CPU or GPU when using these materials. Compared to the standard Kapton Insulation Sheet, the Black Edition is slightly thinner (30 µm instead of 40 µm) and offers a significantly higher breakdown voltage of 5 kV. The Kapton Insulation Sheet Black Edition is supplied as 10 carrier sheets, each containing 5 Kapton adhesive strips. Each strip measures 10 mm in width and 60 mm in length, with a thickness of 30 µm. It is recommended to thoroughly clean the contact surfaces before applying the insulation sheet (e.g., using isopropyl alcohol).
Properties
- 50 adhesive strips 10x60 mm
- Thickness of 30 µm
- Electrically insulating
- Max temperature: 260 °C
- Breakdown voltage: over 5 kV
- Clean the adhesive surface beforehand!
Kapton Insulation Sheets Comparison
| Properties |
Kapton Insulation Sheet |
Kapton Insulation Sheet Black Edition |
| Material |
Polyimide (PI) |
Polyimide (PI) |
| Colour |
Yellow |
Black, matte |
| Total thickness |
40 µm |
30 µm |
| Long-Term Temperature Resistance |
180 °C |
180 °C |
| Short-Term Temperature Resistance |
280 °C |
260 °C |
| Breakdown Voltage |
Above 1 kV |
5 kV |
| Electrically insulating |
Yes |
Yes |
Specifications
| Model Number |
TG-KIS-B-10-60-50 |
| Colour |
Matt Black |
| Crowd |
50 pcs. |
| Breakdown Voltage |
5 kV |
| Electrically Insulating |
Yes (8KV/mm ASTM D149) |
| Material |
Polyimide |
| Thickness |
0.03 mm |
| Scope of Delivery |
10x carrier foil with 5 Kapton Insulation Sheets each |
| Content |
1444 mm² |
| Total Thickness |
30 µm |
| Long-Term Temperature Resistance |
180 °C |
| Short-Term Temperature Resistance |
260 °C |
Backed by a 1 year Thermal Grizzly warranty.
