Thermal Grizzly DeltaMate Fitting HT14 Matt Nickel 6 Pack

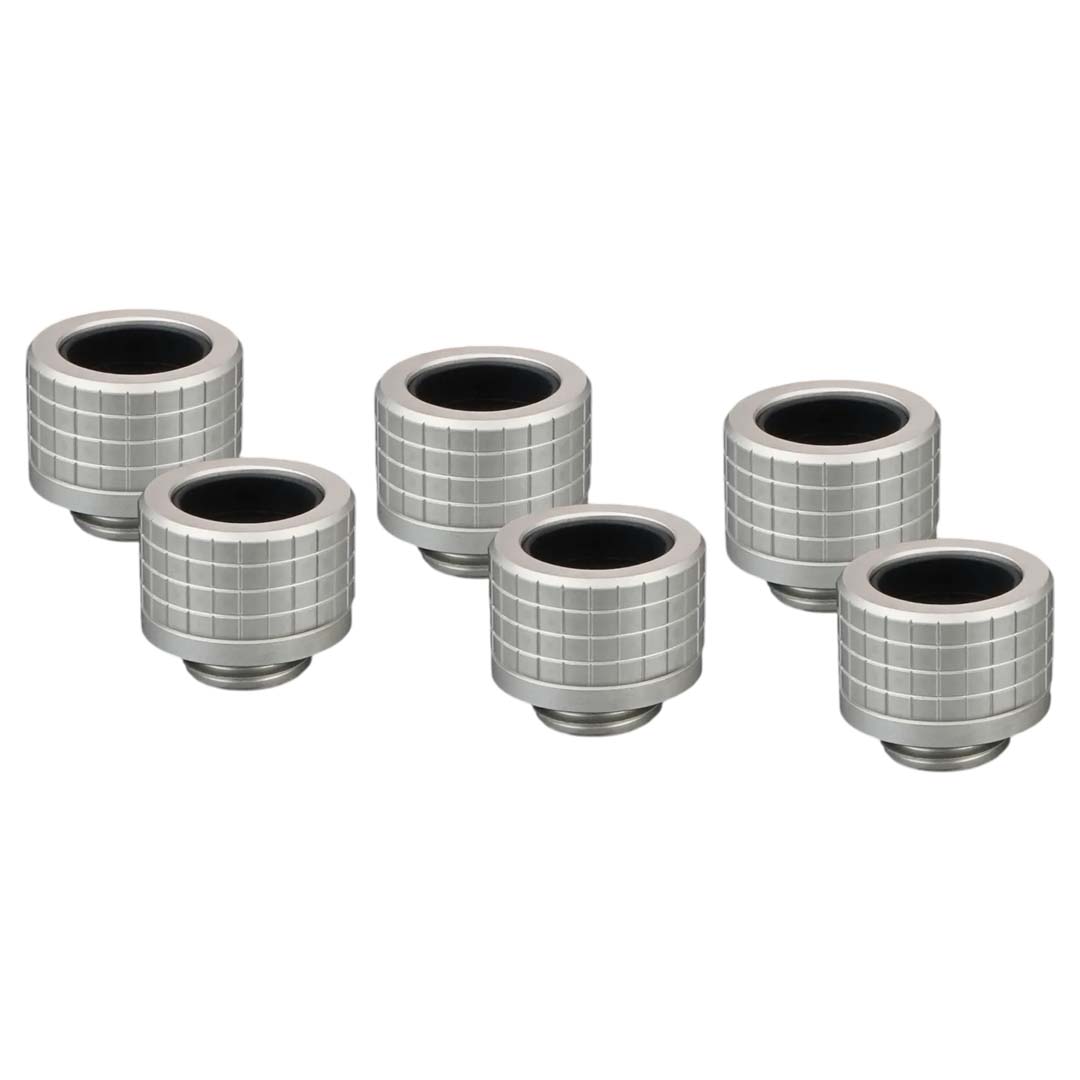

The Thermal Grizzly DeltaMate Fitting HT14 Matt Nickel 6 Pack features six machined brass hard tube fittings designed for 10/14mm tubing with G1/4 threads and EPDM sealing. Each fitting uses a flat base and large surface O-ring to support easier tube installation and strong retention, making the pack ideal for complete custom loop builds. The matt nickel finish keeps the entire system looking consistent and premium.

Features

---

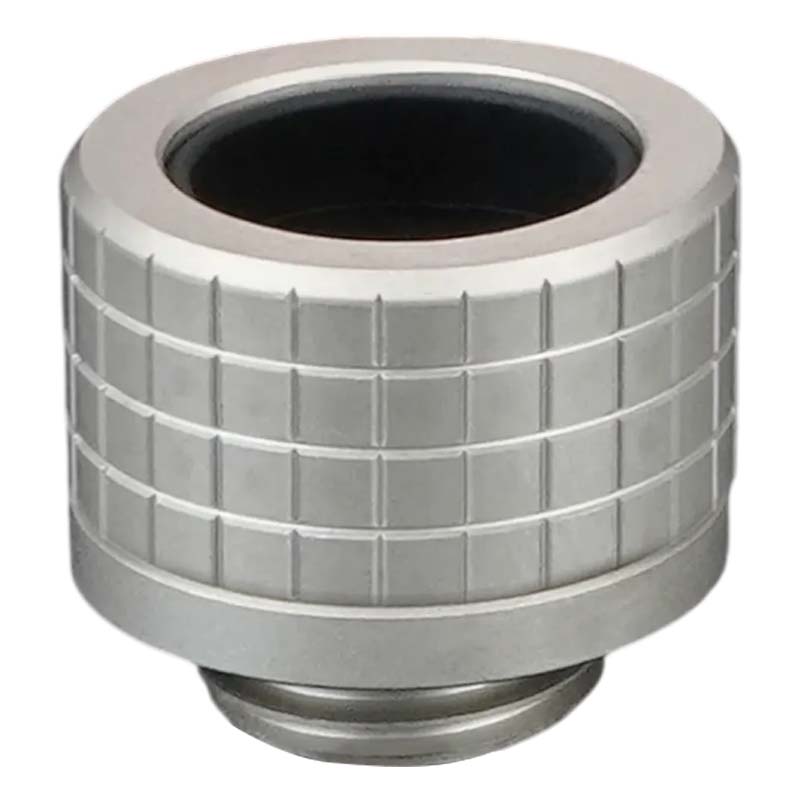

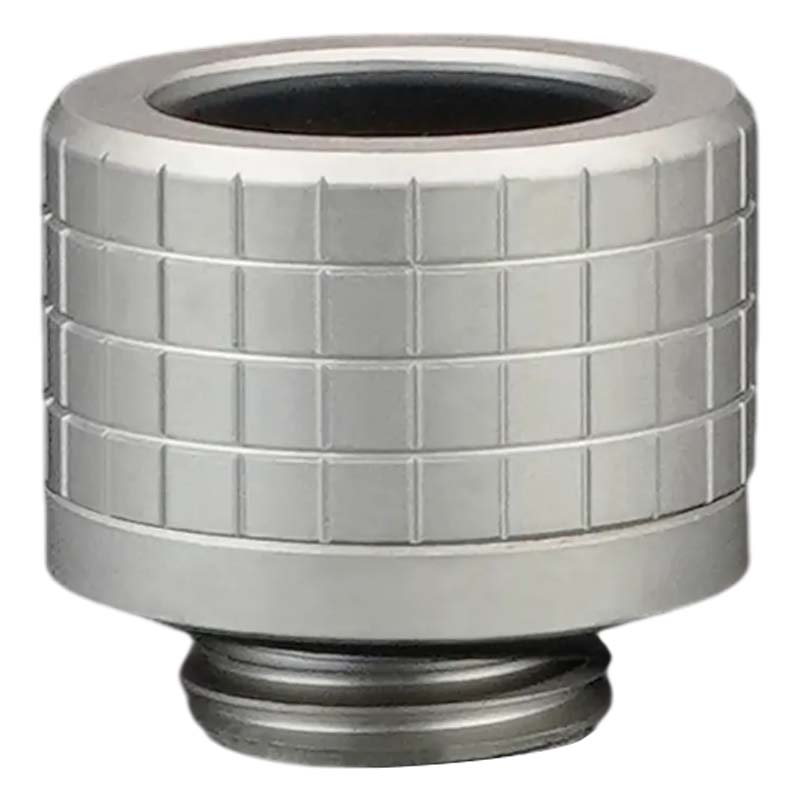

DeltaMate Fitting - HT14 - Matt Nickel

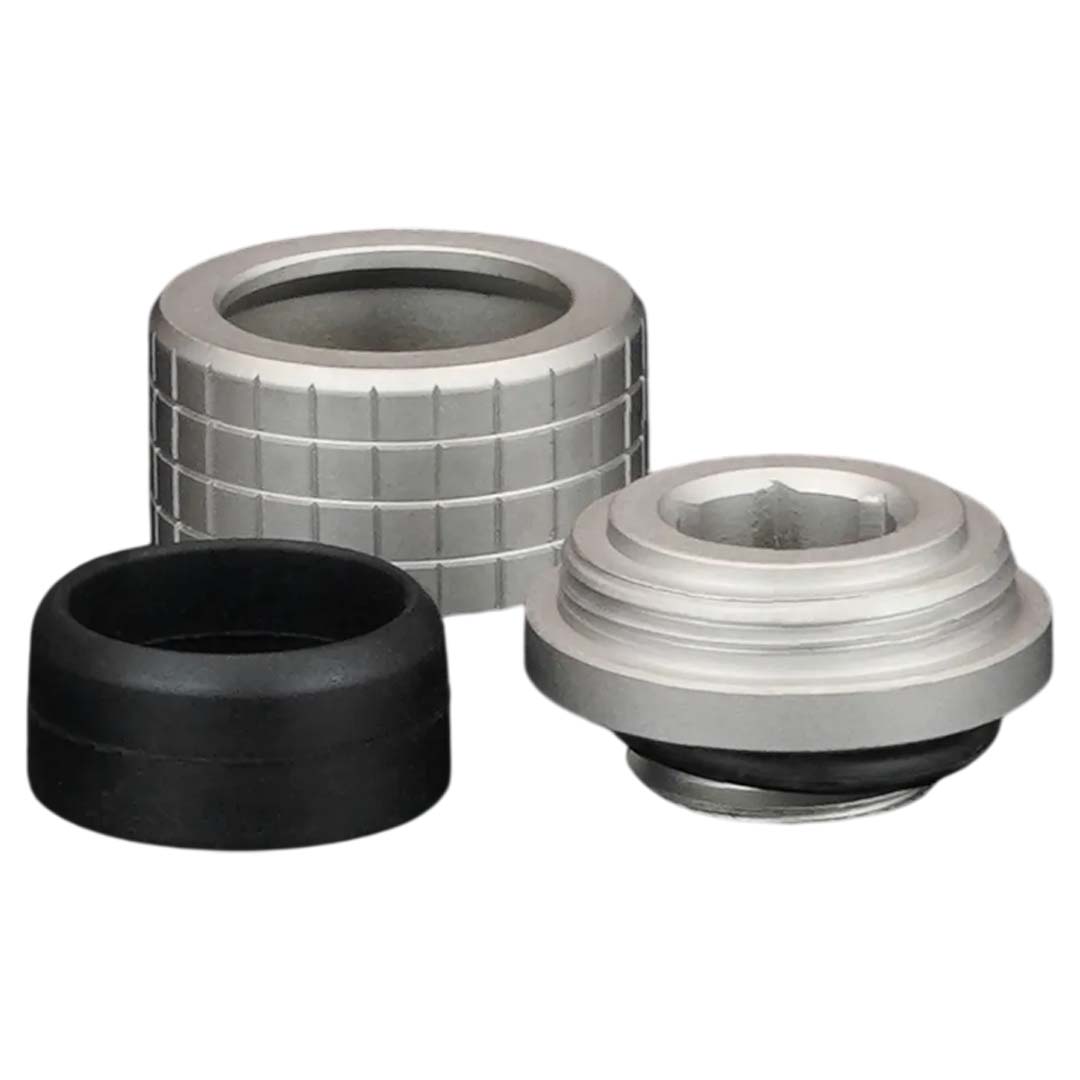

Machined brass fitting with EPDM O-ring and knurled compression ring. Available for both soft (ST) and hard tubes (HT).

DeltaMate Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper.

General Information

The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.

The DeltaMate HT14 fitting in matte nickel is designed for tubes (hard tubes) made of rigid plastics or metals with a 14 mm outer diameter. The HT14 fitting is designed for ease of tube measuring and installation. For this, the tube does not penetrate into the fitting but is mounted on top of it. For a premium finish that is also easy to clean, the fittings are coated with matt nickel finish.

Properties

• Flat base enables tubing to be installed from any direction with complete visibility.
• High surface area custom O-ring securely grips the tubing with high retention force.
• Compact overall dimensions facilitate installation in almost any watercooling loop.
• Consistent outer diameter with all DeltaMate fittings for completely seamless integration.

Note: Only for hard tubes with 14mm outer diameter.
