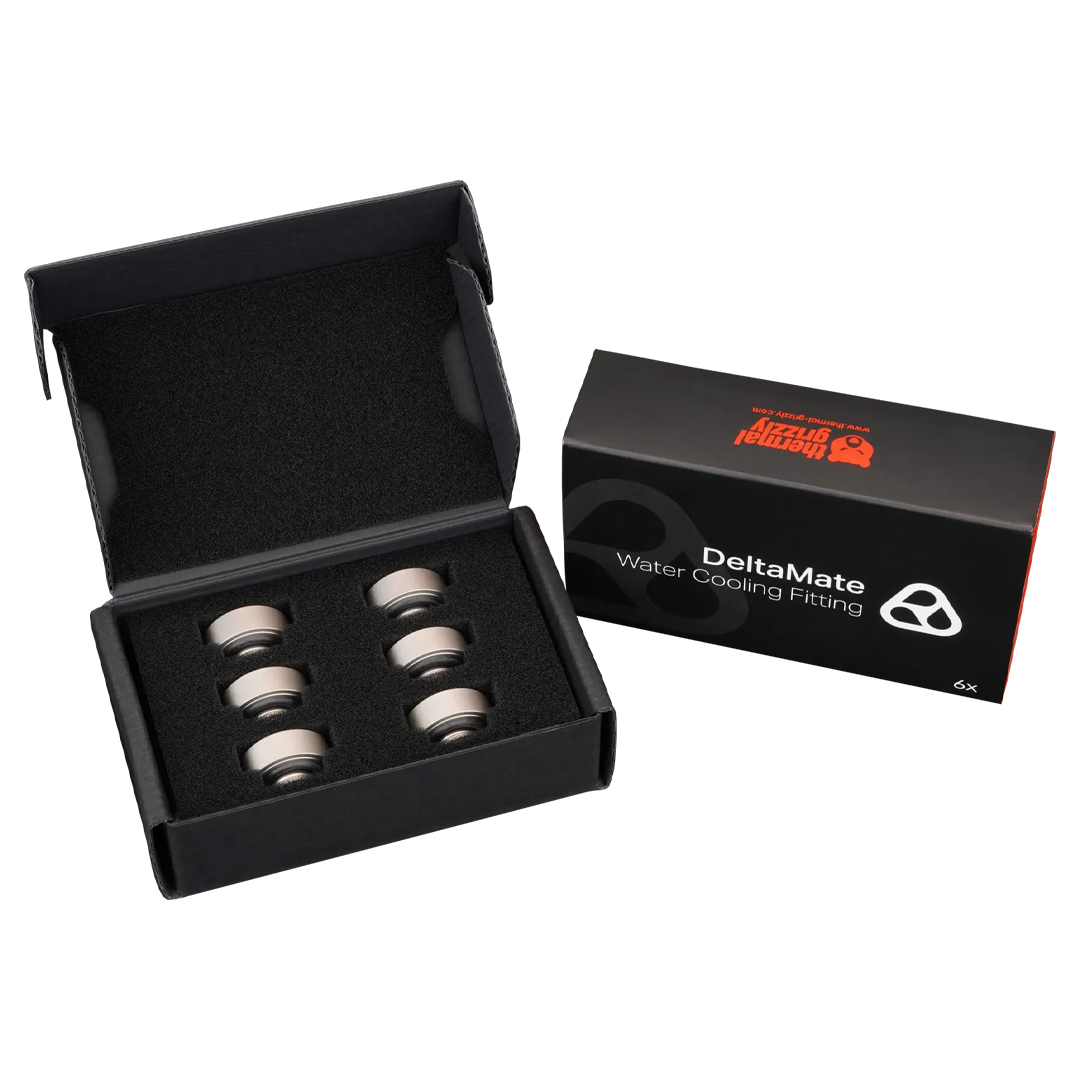

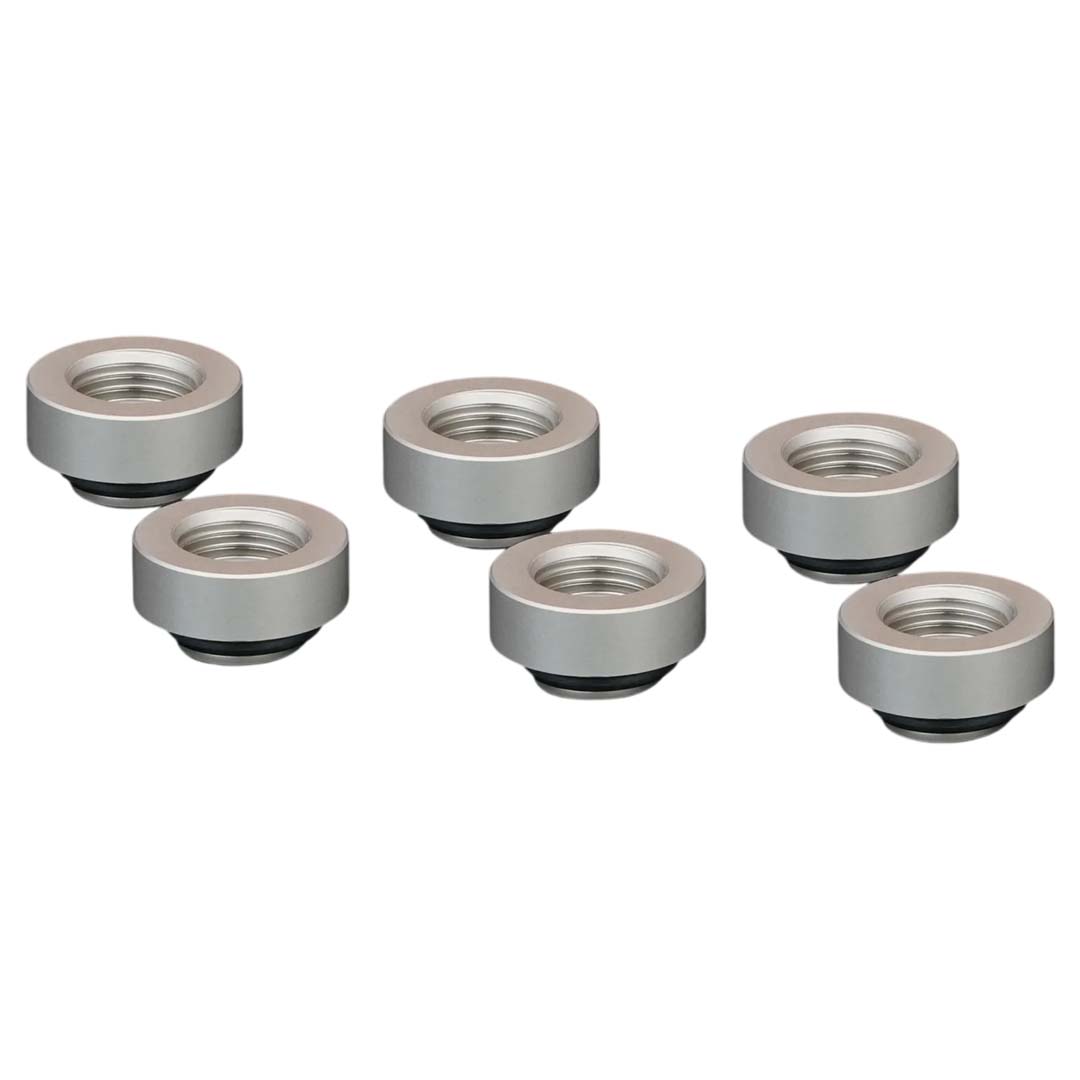

Thermal Grizzly DeltaMate Extender MF7 Matt Nickel 6 Pack

The Thermal Grizzly DeltaMate Extender MF7 Matt Nickel 6 Pack features six brass extender fittings with one G1/4 male thread and one G1/4 female thread per fitting for compact loop spacing changes. Each extender increases clearance by 7mm and can be used with two DeltaMate Rotary 90 Degree fittings to build a double rotary arrangement with a 28mm offset. The matt nickel finish and EPDM O-rings keep the pack durable, practical and visually consistent.

Features

---

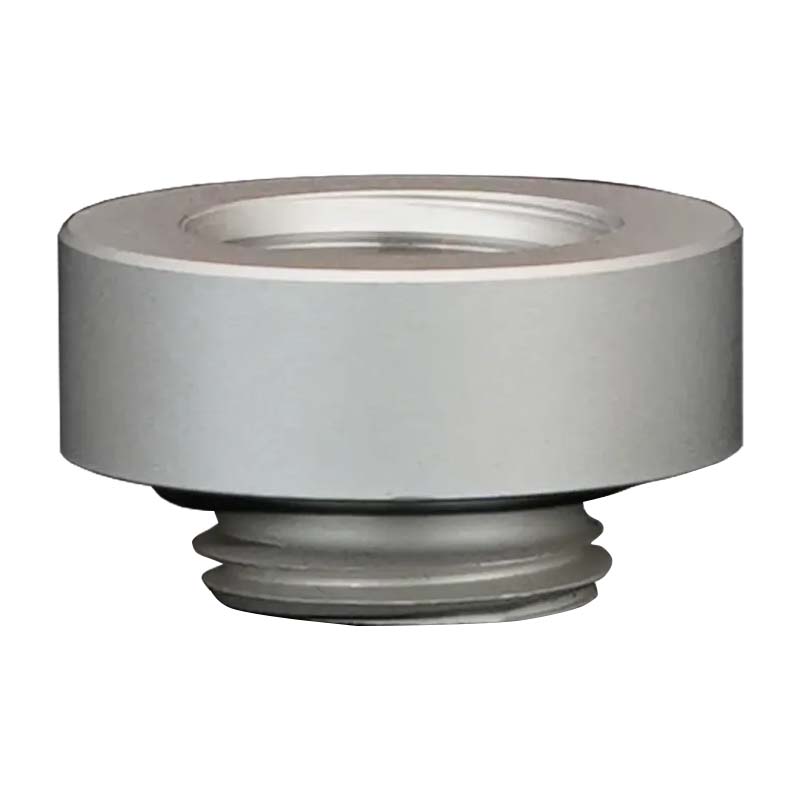

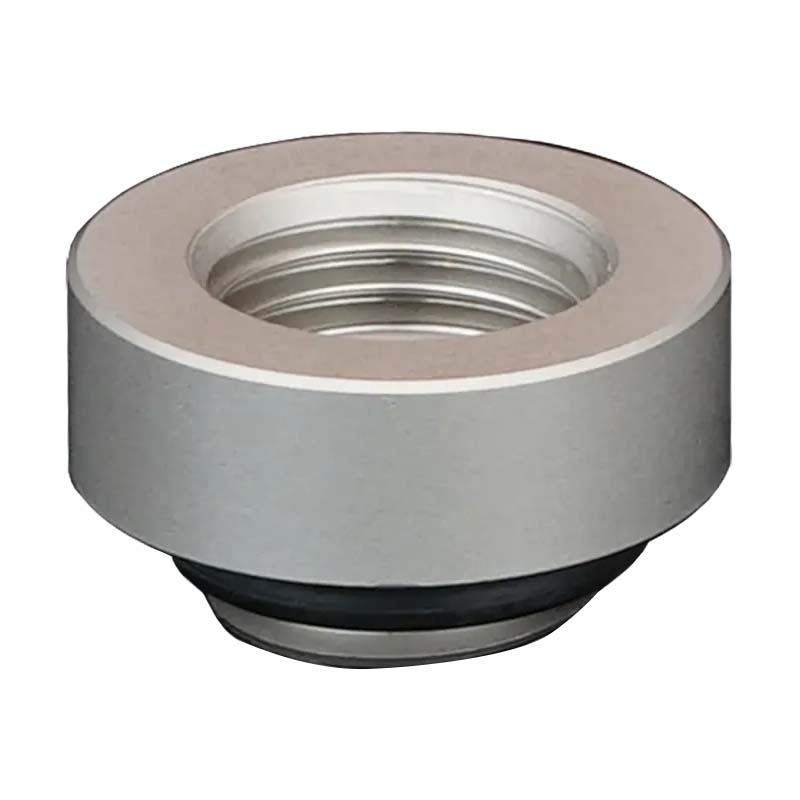

DeltaMate Extender - MF7 - Matt Nickel

Machined brass extender fitting with EPDM O-ring, G1/4" threads.

DeltaMate Extender Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper.

General Information

The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.

The DeltaMate Extender - MF7 features one G1/4″ male thread and one G1/4″ female thread, and is finished with a matt nickel plating that’s both premium in appearance and easy to clean. Used as an extension fitting, it’s installed between the water-cooling component’s port and the fitting, increasing the spacing by 7 mm. Can be combined with two DeltaMate Rotary - 90° to create a Double Rotary with an offset of 28mm.

Properties

• Can be combined with two DeltaMate Rotary - 90° to create a Double Rotary with an offset of 28mm.
• Practical fixed length extender to increase the spacing between ports and fittings by 7mm.
• Consistent outer diameter with all DeltaMate fittings for completely seamless integration.
• Robust design allows installation with an 8mm hex key.

Note: Maximum thread depth 4.5mm!
