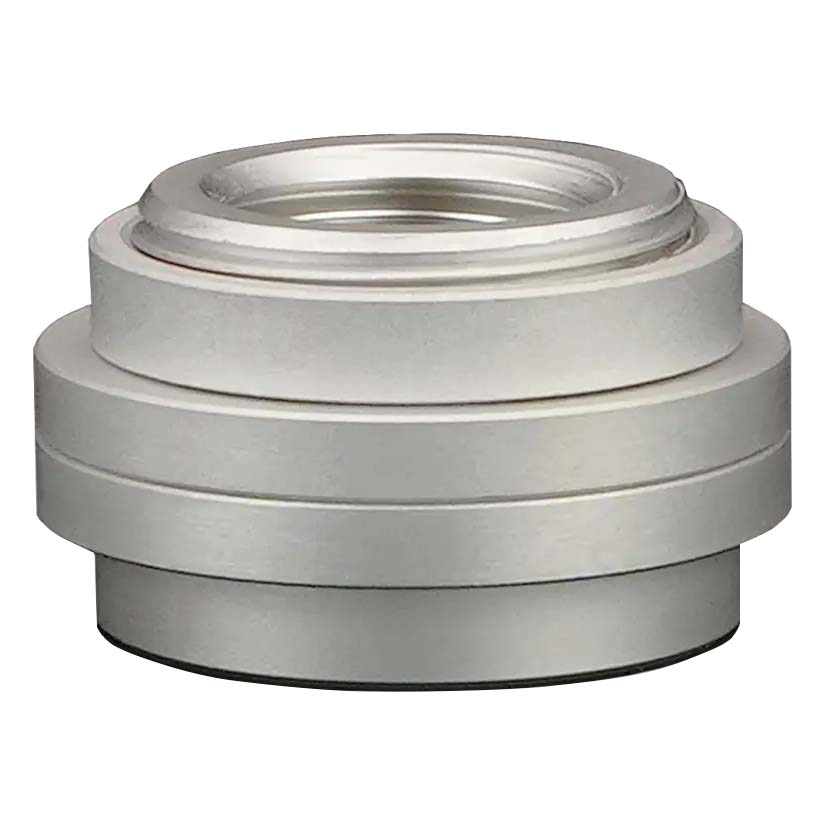

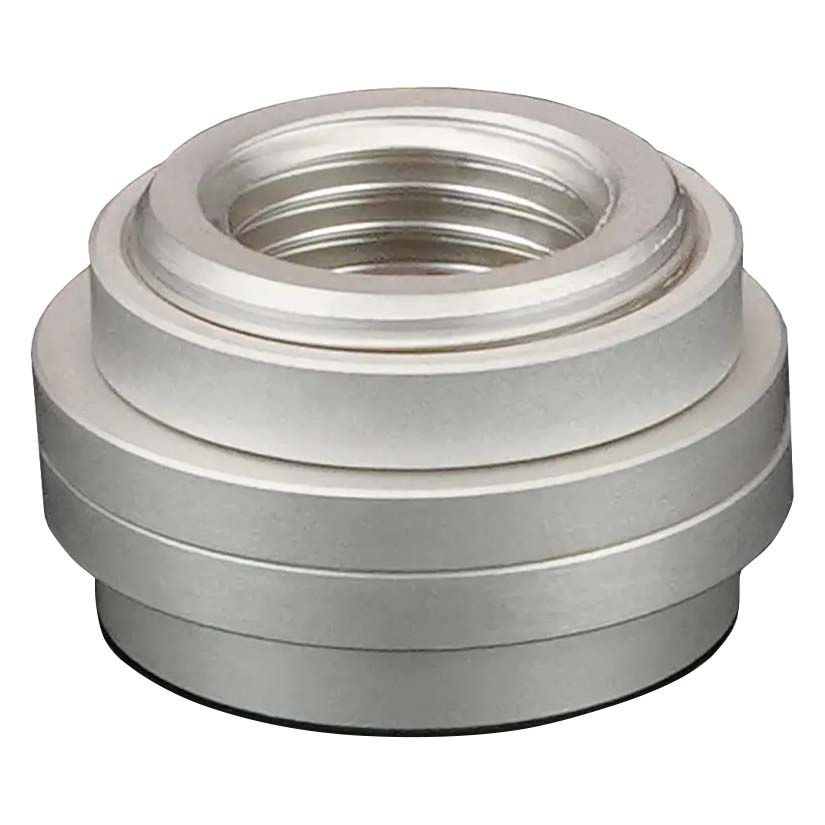

Thermal Grizzly DeltaMate Pass Through Matt Nickel

The Thermal Grizzly DeltaMate Pass Through Matt Nickel features a machined brass pass-through fitting for creating neat water cooling ports through case panels, distro plates or custom mounting points. Configurable spacers allow the fitting to suit different panel thicknesses, giving more flexibility for refined custom loop routing. The matt nickel finish adds a premium appearance while keeping the build visually consistent with other DeltaMate parts.

Features

---

DeltaMate Pass Through Fitting - Matt Nickel

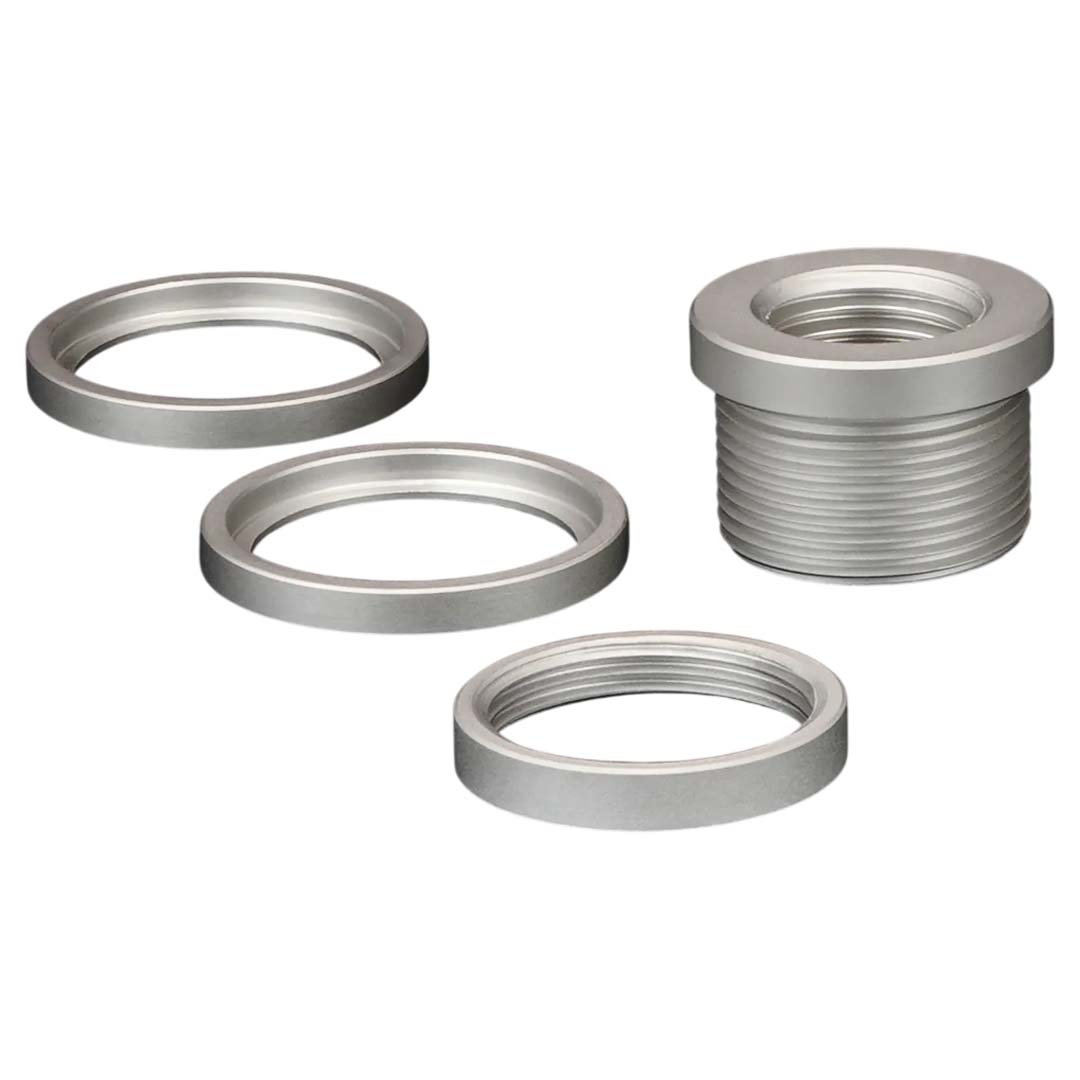

Machined pass-through fitting made of brass. Configurable spacers enable a clean installation across a wide range of different panel thicknesses.

DeltaMate fittings are water-cooling hose fittings for the individual components of a custom water-cooling system. In the usual Thermal Grizzly quality, the fittings are precision-machined from brass. As an alloy of copper and zinc, brass offers the advantage of being anodically compatible with other metals while also being harder and more corrosion-resistant than copper. The robust design of DeltaMate fittings allows installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate ports enables seamless integration of the individual products.

General Information

The matt nickel-plated DeltaMate Pass Through Fitting is used in a pass-through opening in a panel, such as a case wall or a PCI slot bracket. The panel thickness can be up to 5.5 mm, and the diameter of the opening can be between 18 and 22 mm. Pass-through openings of this type are present on the case (usually on the rear) or can be retrofitted in the form of a PCI slot bracket. They are designed to connect two chambers within a case or to enable the use of an external radiator.

Properties

• Simple adaptor that enables the connection of two male-thread fittings through a panel.
• Configurable spacers enable a clean installation across a wide range of different panel thicknesses.
• Uniform outer diameter across all DeltaMate ports for completely seamless integration.
• Robust construction allows installation using an 8 mm hex key.
