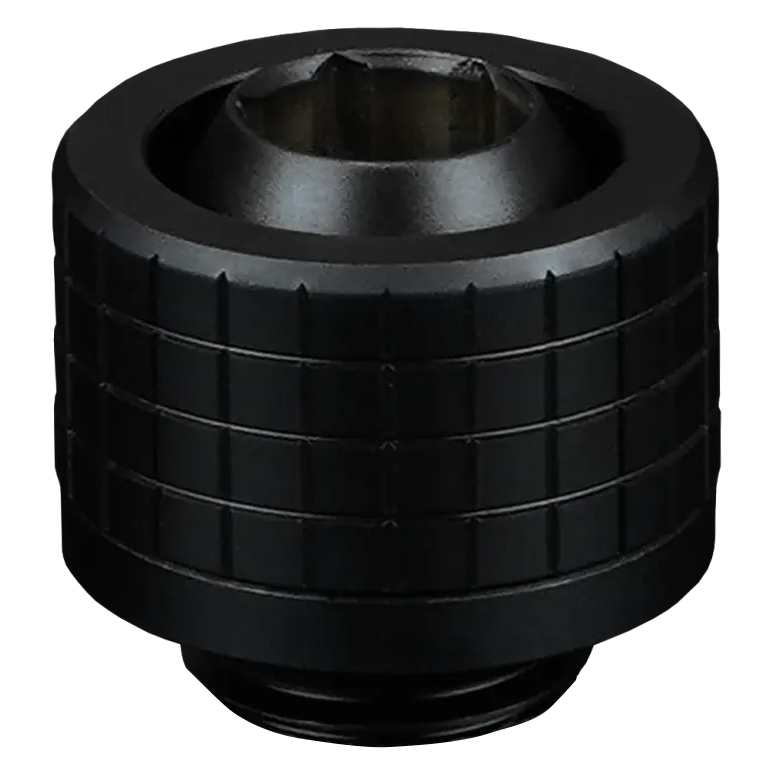

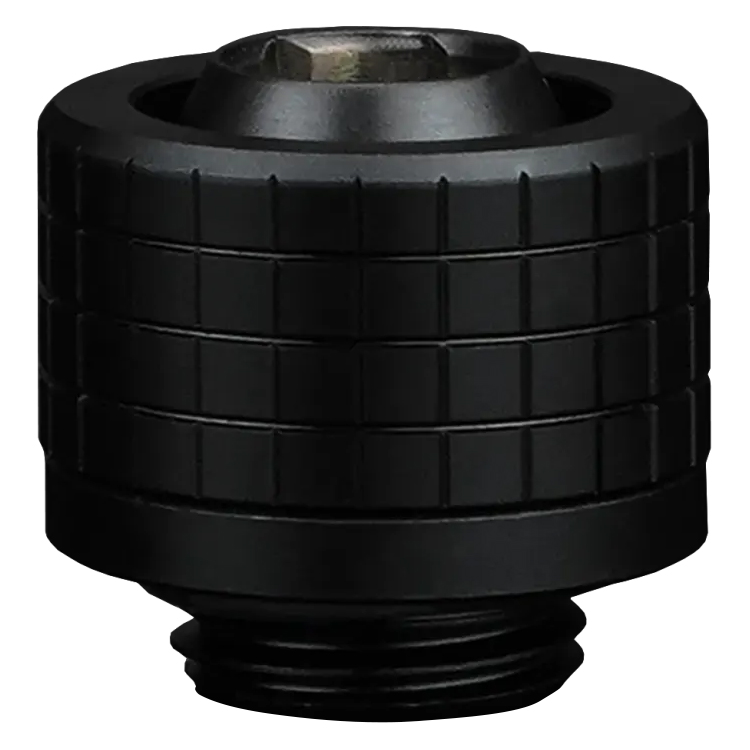

Thermal Grizzly DeltaMate Fitting ST13 Black

The Thermal Grizzly DeltaMate Fitting ST13 Black features a brass soft tube fitting with a G1/4 thread for 10/13mm tubing in custom water cooling systems. A tapered barb and knurled compression ring help provide easy installation and strong tube retention, while the compact body supports clean builds in tighter spaces. The matt black finish and EPDM sealing complete a durable premium fitting design.

Features

---

DeltaMate Fitting - ST13 - Black

Machine-made brass fitting with EPDM O-ring and knurled compression ring. Available for soft tubes (ST) and hard tubes (HT).

DeltaMate fittings are water cooling hose connectors for the individual components of a custom water cooling system. Made from brass, they are of the usual high Thermal Grizzly quality. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals and is both harder and more corrosion-resistant than copper.

General Information

The sealing rings (O-rings) are made of highly elastic EPDM (ethylene propylene diene monomer) rubber, which is also resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm Allen key. The uniform outer diameter of all DeltaMate fittings enables seamless integration of the individual products.

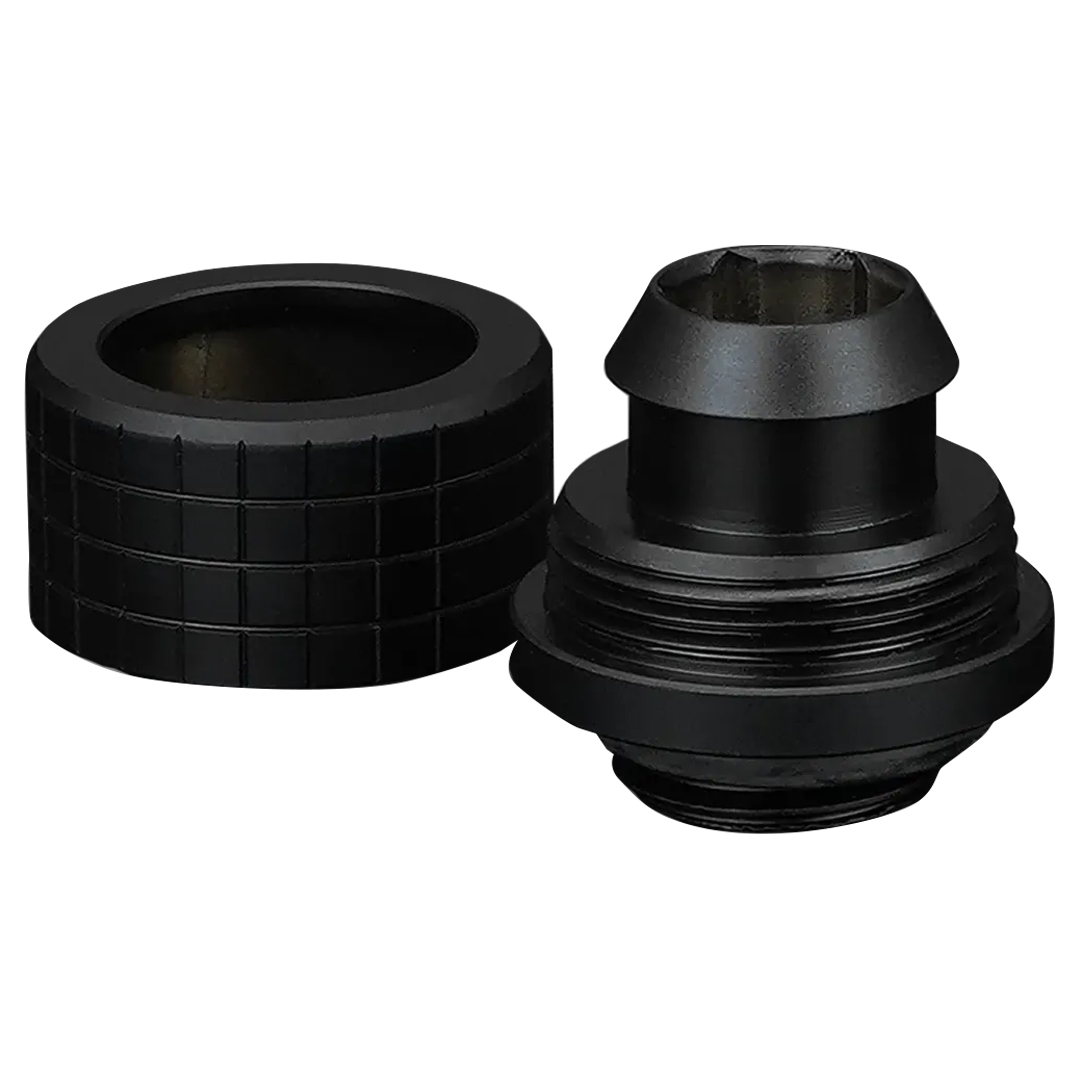

The DeltaMate ST13 fitting in black with a G1/4-inch thread is suitable for soft plastic tubing with a 10/13 mm diameter. For a sleek and easy-to-clean finish, the fittings are coated with a matte black chrome finish. A single conical hose connector, combined with a knurled compression ring, ensures a secure and strong connection.

Properties

• A single, conical hose connector allows for easy installation of a variety of flexible hoses.
• The knurled compression ring securely holds the hose with high holding force.
• Compact overall dimensions facilitate installation in almost any water cooling circuit.
• Uniform outer diameter of all DeltaMate connectors for seamless integration.
• Robust design allows for assembly with an 8 mm Allen key.

Note: Only for hoses with a 10 mm inner diameter / 13 mm outer diameter.
