Thermal Grizzly DeltaMate Extender FF14 Matt Nickel

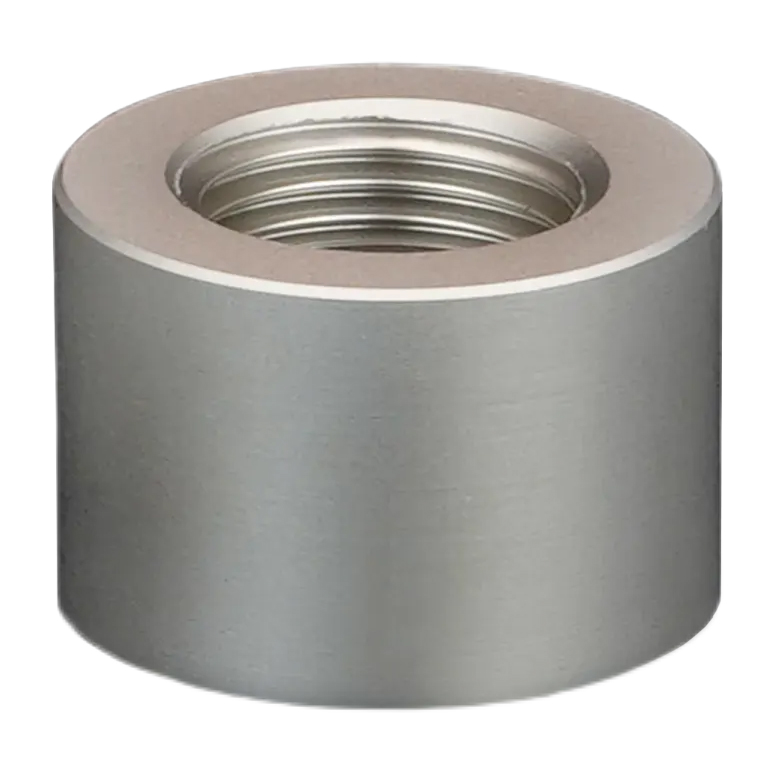

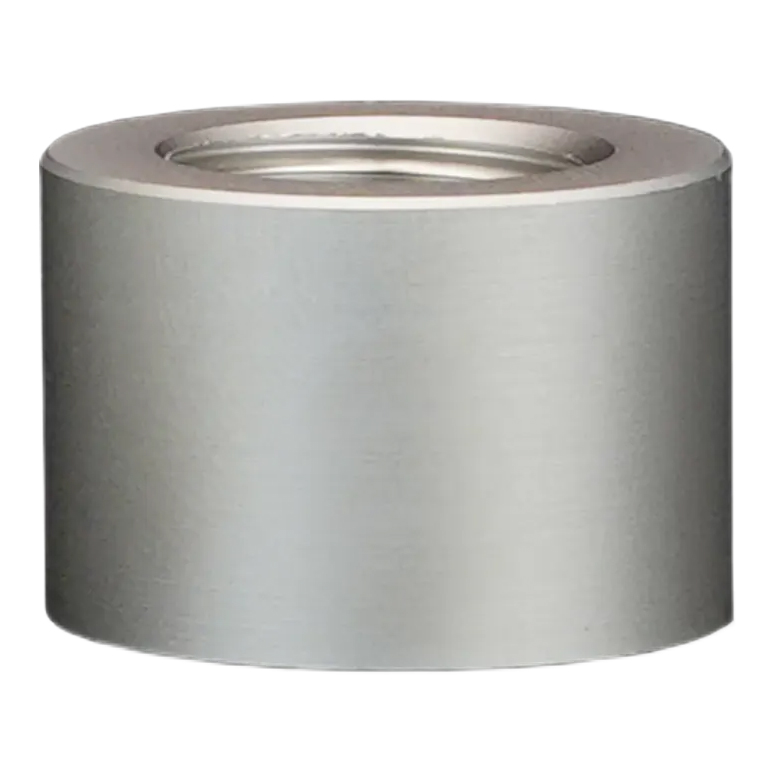

The Thermal Grizzly DeltaMate Extender FF14 Matt Nickel features a precision-machined brass body with two G1/4 female threads, making it ideal for adding clearance within custom water cooling loops. The extender increases spacing by 14mm and uses durable EPDM O-rings for a reliable seal, while the matt nickel finish delivers a clean premium look.

Features

---

DeltaMate Extender - FF14 - Matt Nickel

Machined brass extender fitting, G1/4" threads.

DeltaMate Extender Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper.

General Information

The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.

The DeltaMate Extender - FF14 features two G1/4″ female threads, and is finished with a matt nickel plating that’s both premium in appearance and easy to clean. Used as an extension fitting, it’s installed between the water-cooling component’s port and the fitting, increasing the spacing by 14 mm.

Properties

• Practical fixed length extender to increase the spacing between ports and fittings by 14mm.
• Consistent outer diameter with all DeltaMate fittings for completely seamless integration.
• Robust design allows installation with an 8mm hex key.

Note: Maximum thread depth 4.5mm!
