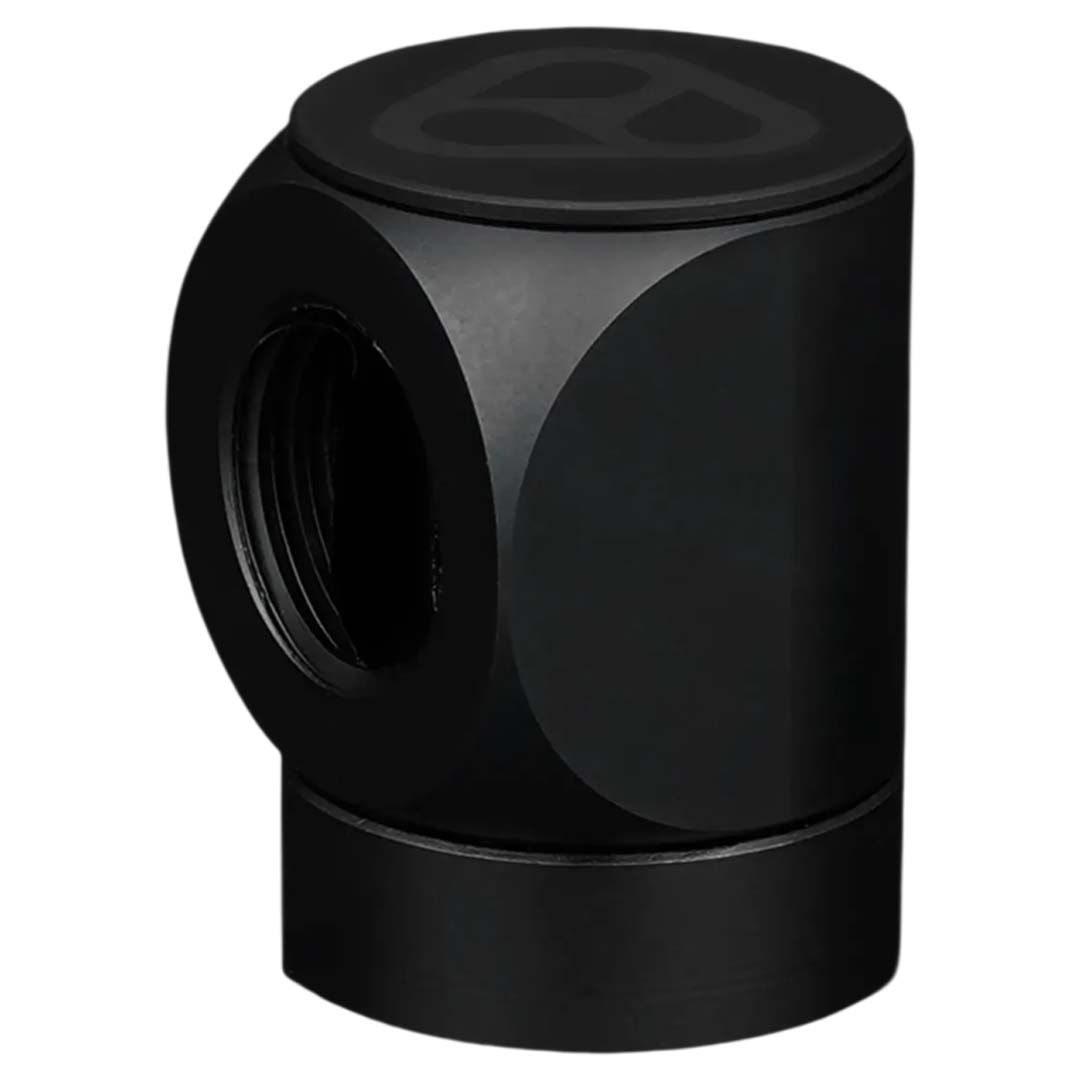

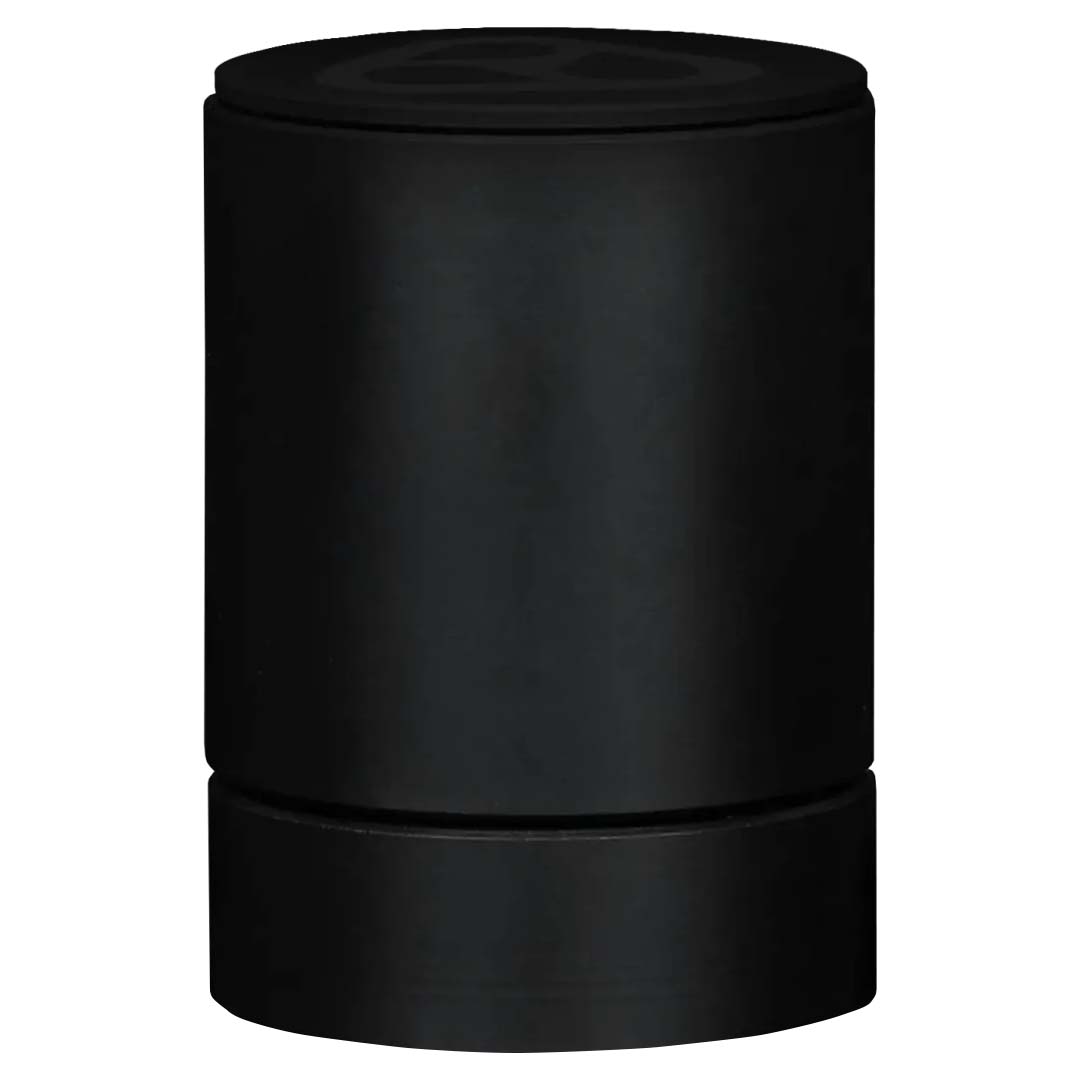

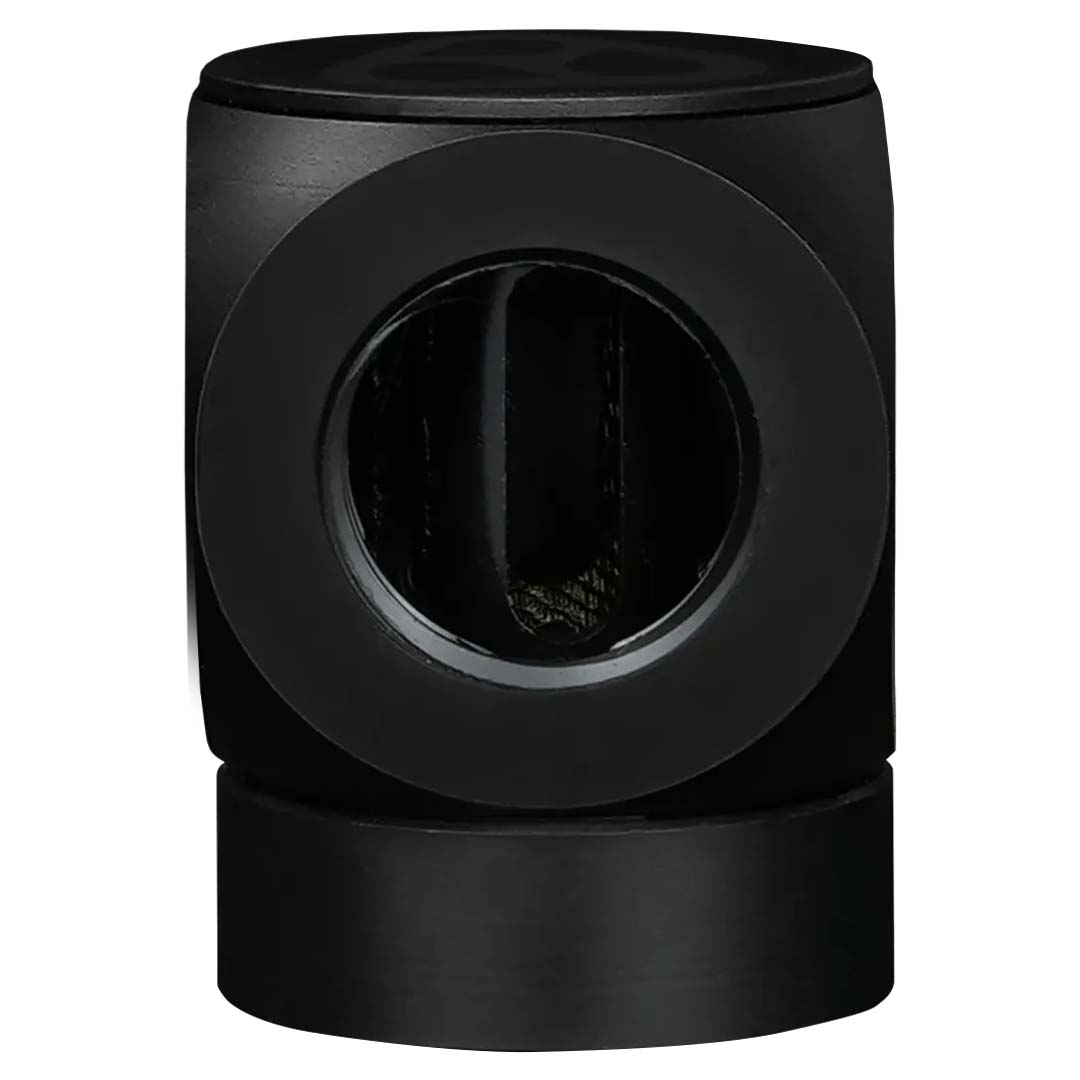

Thermal Grizzly DeltaMate Rotary FF90 Degree Fitting Black

The Thermal Grizzly DeltaMate Rotary FF90 Degree Fitting Black features a compact rotary fitting with two G1/4 female threads for modular connection between other DeltaMate rotary and extender components. The 90 degree angle and swivel design help create cleaner tighter routing paths in custom water cooling systems without sacrificing flexibility during installation. Its brass construction, EPDM sealing and matt black finish deliver a durable premium fitting for advanced loop layouts.

Features

---

DeltaMate Rotary - FF90° - Black

Machined brass rotary fitting with EPDM O-ring, G1/4" threads.

DeltaMate Rotary Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the rotary fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper.

General Information

The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.

The DeltaMate Rotary - FF90° in black allows for modular combination with other DeltaMate Rotary and Extender Fittings due to its compact dimensions. The DeltaMate Rotary - FF90° has one male and one female G1/4” thread and offers a premium finish in the form of a matt black chromium plating that is also easy to clean. When using additional fittings, they mechanically lock the rotary joint together for maximum security. An optional aesthetic cover with the DeltaMate logo is included, which can be rotated to any orientation.

Properties

• Small dimensions allow modular combination with other DeltaMate Rotary and Extender Fittings.
• Subsequent fittings mechanically lock the rotary joint together for maximum security.

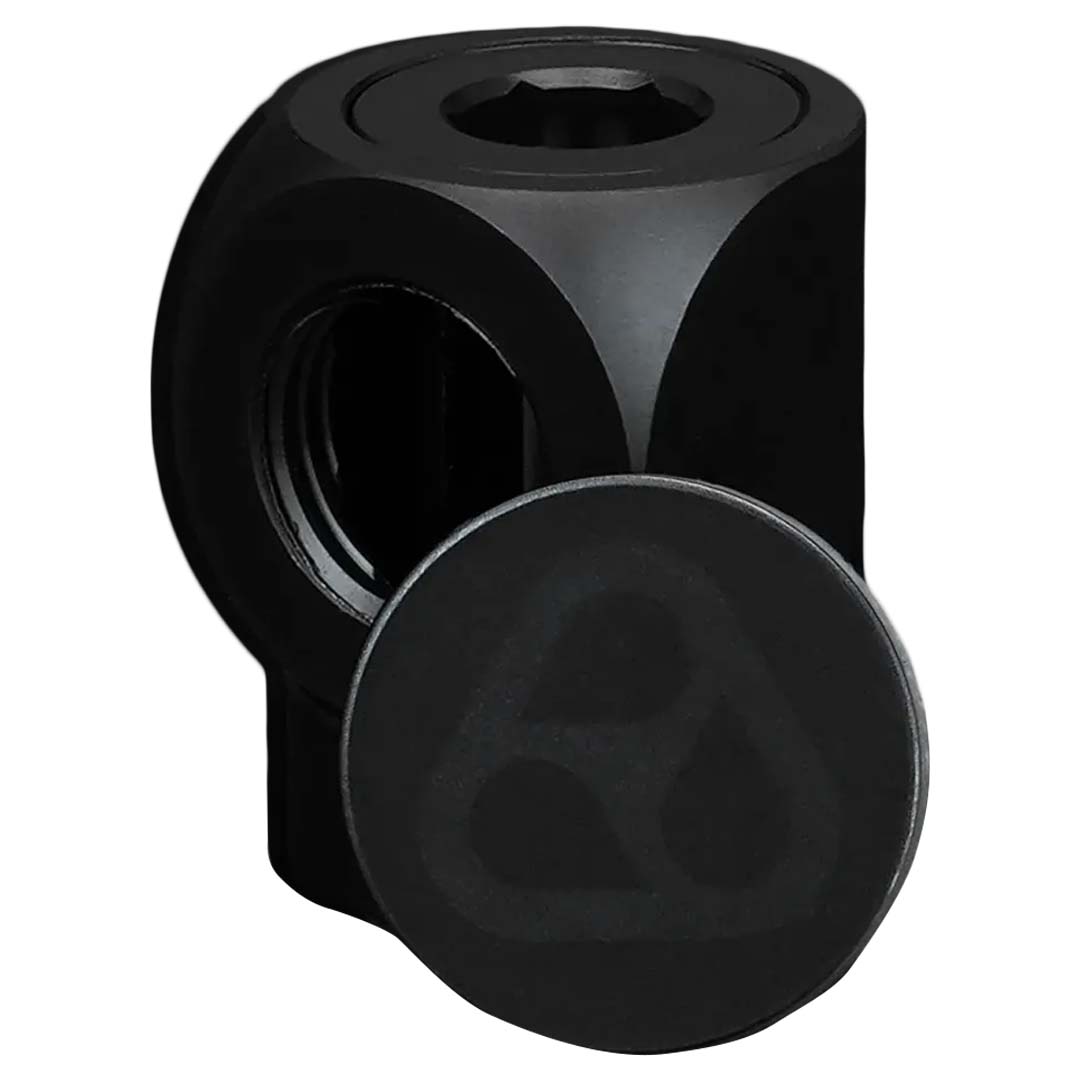

• Includes an optional aesthetic cover with DeltaMate logo that can be rotated to any orientation.
• Elegant and minimal design integrates seamlessly with all DeltaMate fittings.
• Easy to install in tight places and SFF builds using an 8mm hex key.

Note: Maximum thread depth 4.5mm! Installation requires 8mm Straight End Hex Key.
