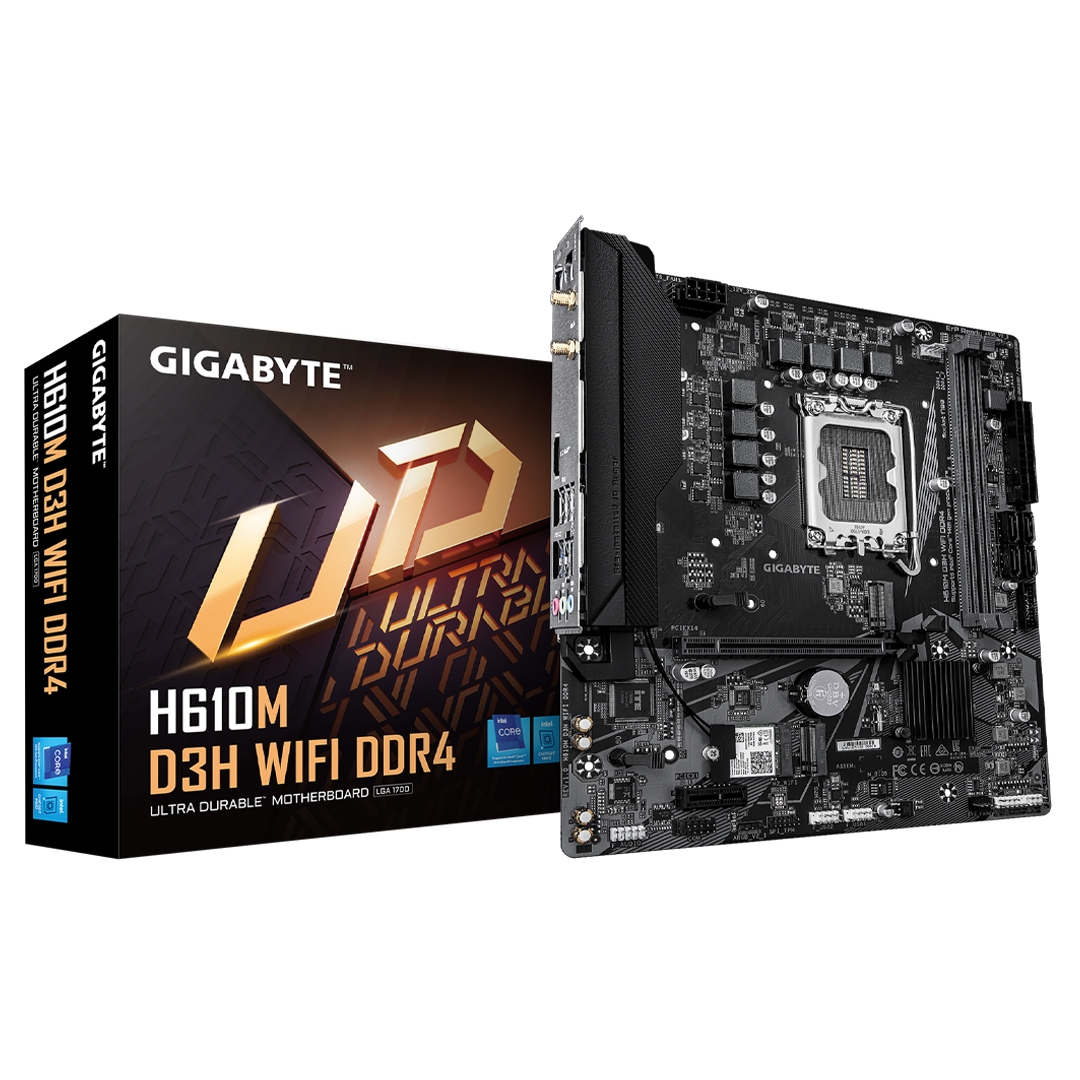

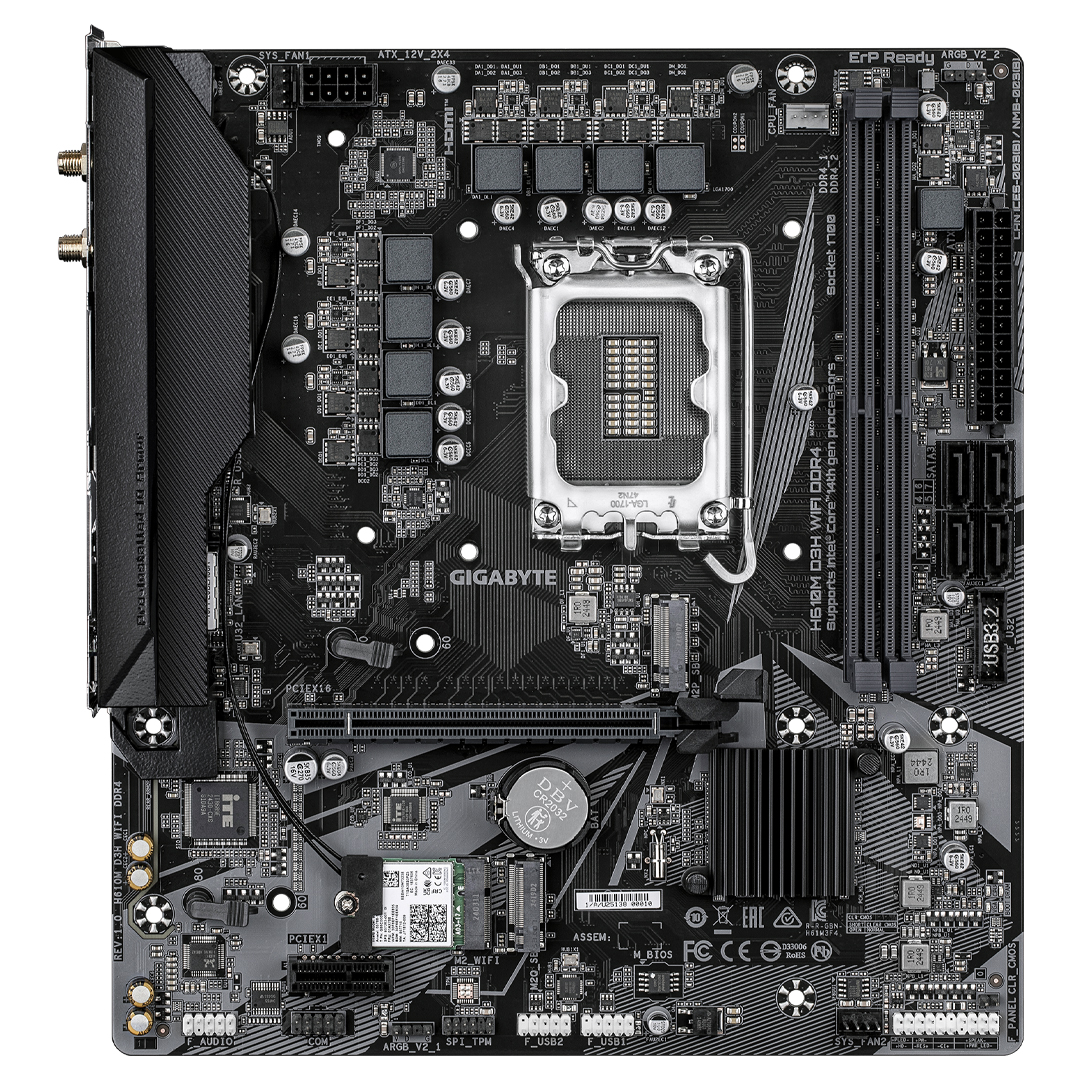

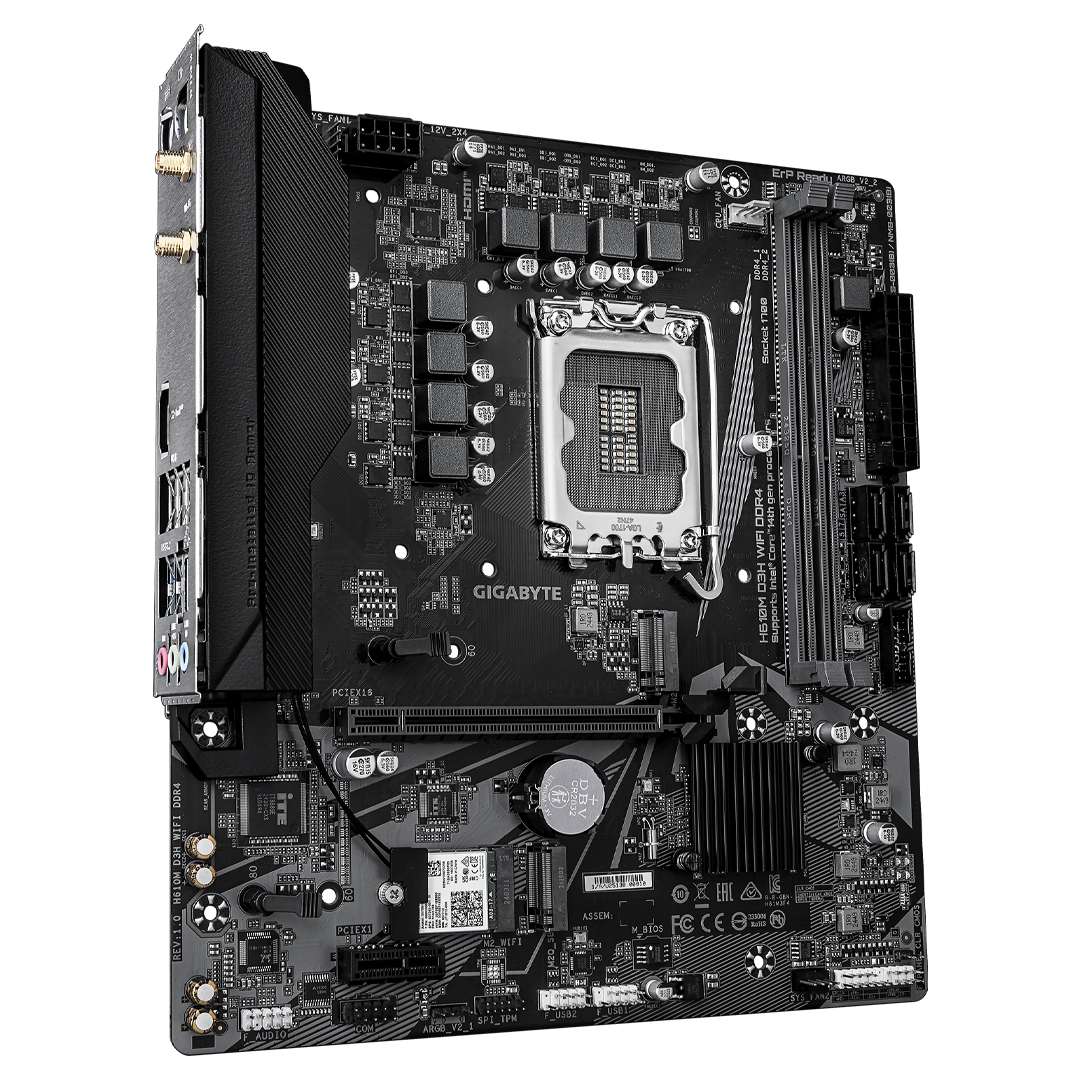

The Gigabyte H610M D3H WIFI DDR4 Motherboard delivers reliable performance with support for Intel Core 12th, 13th and 14th processors on the LGA 1700 socket. Featuring support for dual channel DDR4 memory, PCIe 4.0, this micro-ATX motherboard ensures smooth gaming and productivity. The built-in WiFi and Gigabit LAN port provide seamless networking while Smart Fan 6 keeps your system cool. Also featuring high-quality audio capacitors, fast connectivity and versatile storage options including multiple USB ports, M.2 slots and 4x SATA 6Gbps ports.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
H610M D3H WIFI DDR4
Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, Wi-Fi 802.11ac, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6.
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 6+1+1 Hybrid Digital VRM Design
- Fast Networks: Wi-Fi 802.11ac & GbE LAN
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
* Actual support may vary by CPU.

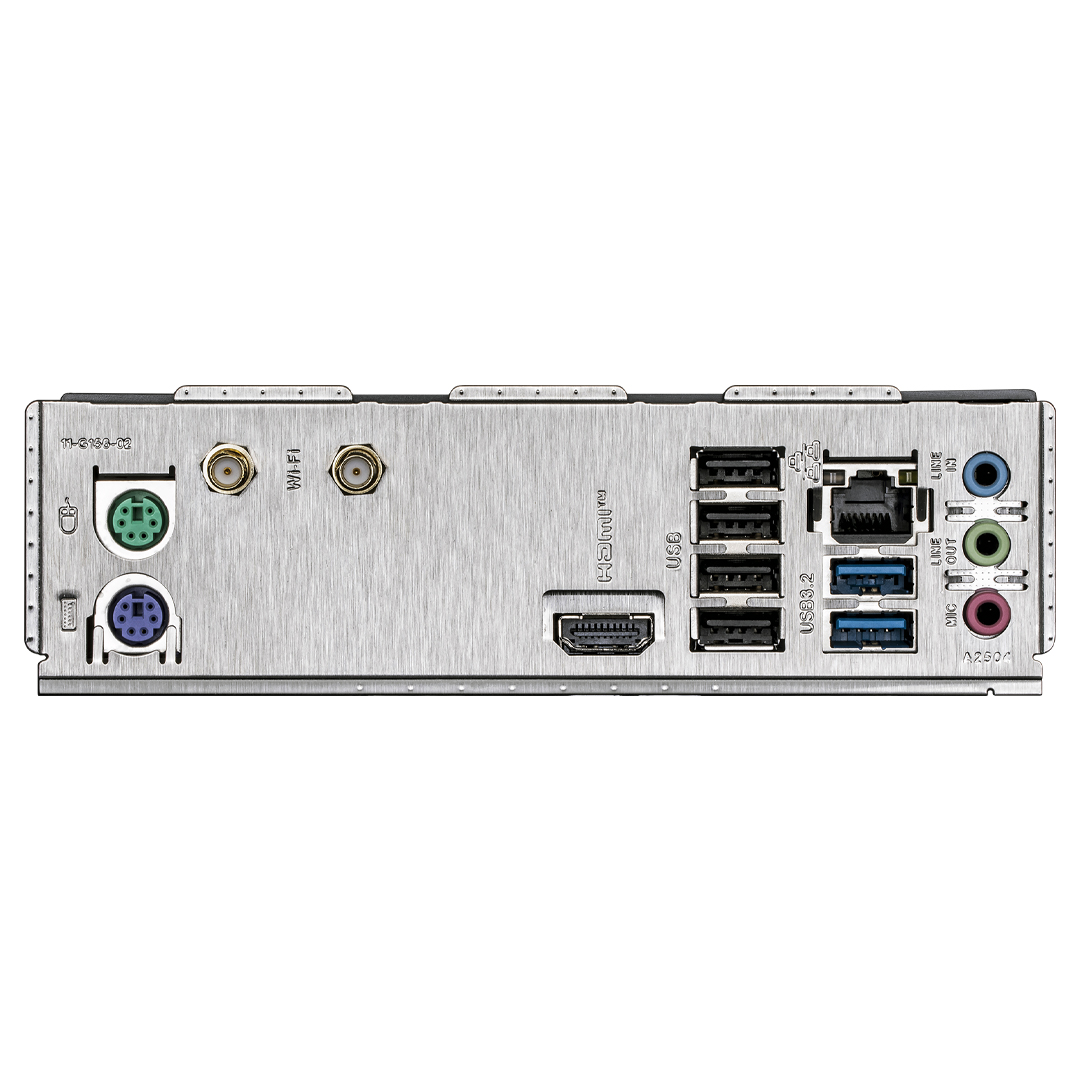

Overview
- Solid Pin Power Connector
8 pin CPU Power Connector
- Wi-Fi 802.11ac
- HDMI
- USB 3.2 Gen1
- GbE LAN
- M.2 Connector
2 x PCIe 3.0 M.2
- Audio Solutions
8-ch HD Audio
Audio Noise Guard
High-End Audio Capacitors
- 6+1+1 Phases Hybrid Power Design
50A Low RDS(on) MOSFETs
PCIe 4.0 Ready PCB
- Supports 14th/13th/12th Gen. Intel Core™ Processors
- 4 x SATA 6Gb/s
- Dual Channel DDR4, 2 DIMMs
- PCIe 4.0 Design
1 x PCIe 4.0 x16 slot
Power
6+1+1 Phases Hybrid Power Design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
- 6+1+1 Phases Low RDS(on) MOSFETs
- Solid capacitors to improve transient response and minimise oscillation.
- 8-pin Solid Pin CPU Power Connector.
Performance
PCIe 4.0 Design
Slot Signal Stability*
- PCIe 4.0 Slot - 3.3x Higher
- PCIe 3.0 Slot - Differential Impedance
*Based on PCIe 4.0 differential impedance specification
Single 32GB Support
The maximum memory capacity on the H610 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
- Faster Speed
- 32GB Capacity
- Multi-Tasking
- RAM Intensive
- Quick Response
- Lower Usage
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Headers & Sensors
- 3 PWM/DC Fan Headers
- 4 Internal Temperature Sensors
Cooling Features
High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
Precision Control
Up to 7 temperature/fan speed control points for precise fan curve.
Dual Curve Mode
Slope/Stair dual mode for different user scenario.
Fan Stop
Fan can stop completely below users' specified temperature point.
Smart Fan 6 BIOS UI
Improve Fan Curve UI
We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair Dual Graph Mode
Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input
For advanced users, fan speed manual input control is provided.
EZ Tuning
Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan Curve Profile
Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
Fan Stop
Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customised to your liking.
Hybrid Cores Optimisation
With new Intel Hybrid technology, GIGABYTE exclusively creates two new "CPU Upgrade" in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
Gaming
- Deactivate all E-Core
- Zero compromise on gaming performance
- Up to 20% lower CPU package power
- Up to 5°C lower CPU temperature
Max Performance
- Activate all P-Core and E-Core
- Maximise full multi-cores performance
Connectivity
802.11ac Wi-Fi
The onboard 802.11ac Wi-Fi module supports Dual Band and up to 1.73Gbps, 5x faster Wi-Fi speed than 802.11n and also supports BLUETOOTH 4.2 and above.
* Photo for reference only.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 3.0 M.2 Slot - NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximise their system's potential.
Hi-Fi Audio
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level.
* Photo for reference only.
Ultra Durable
Solid Pin
Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power Connector Advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
* Photo for reference only.
Anti-Sulfur
Start Sulfurization Protection
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
Software
Gigabyte Control Center (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularised control components only for installed hardware
- Auto update function to keep system up to date and support future products
Backed by a 3 year Gigabyte warranty.
