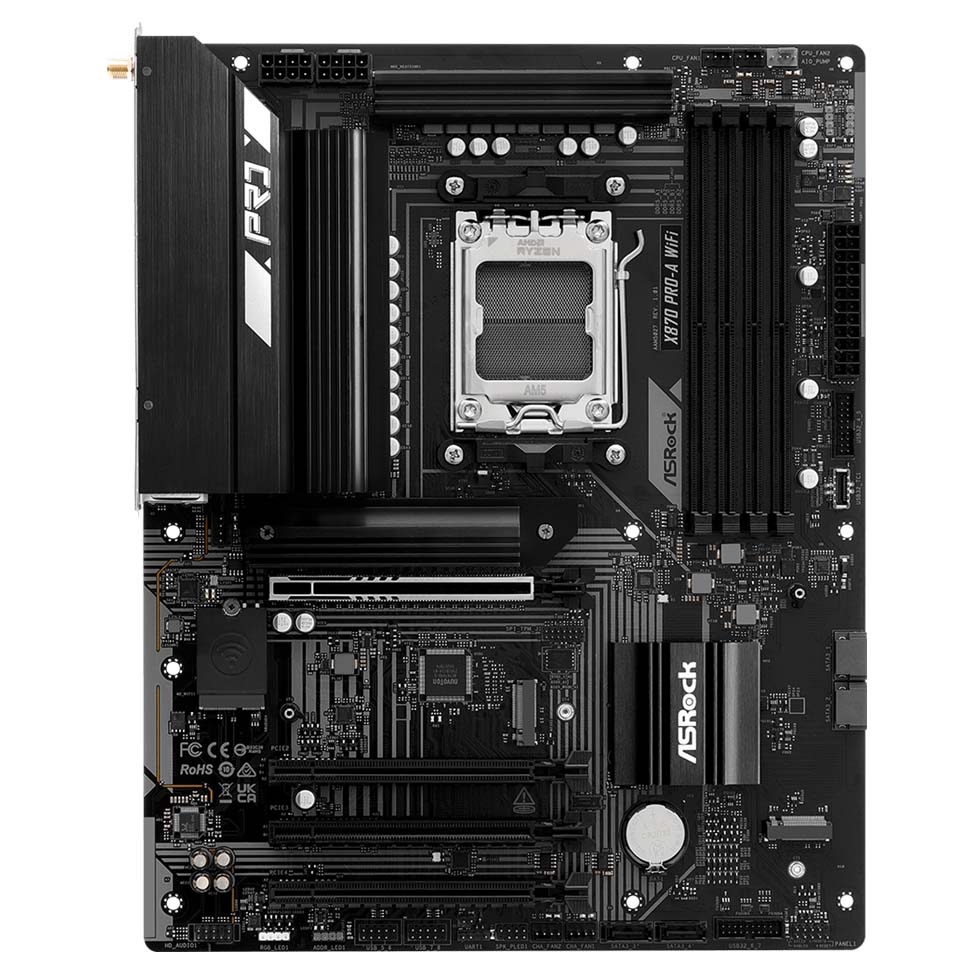

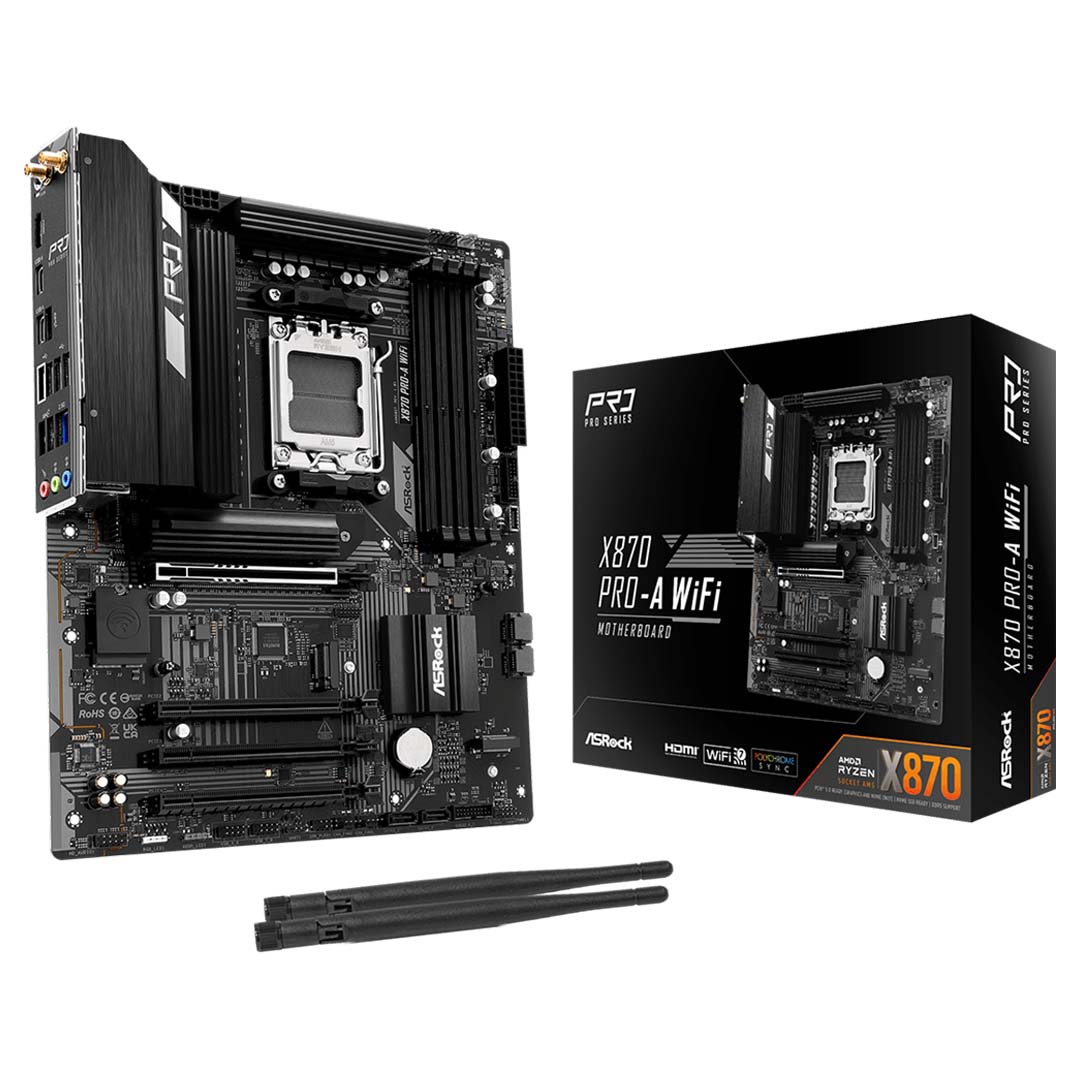

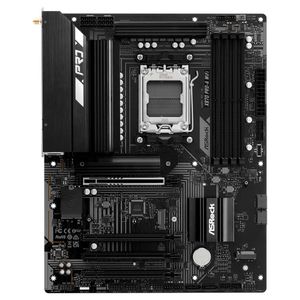

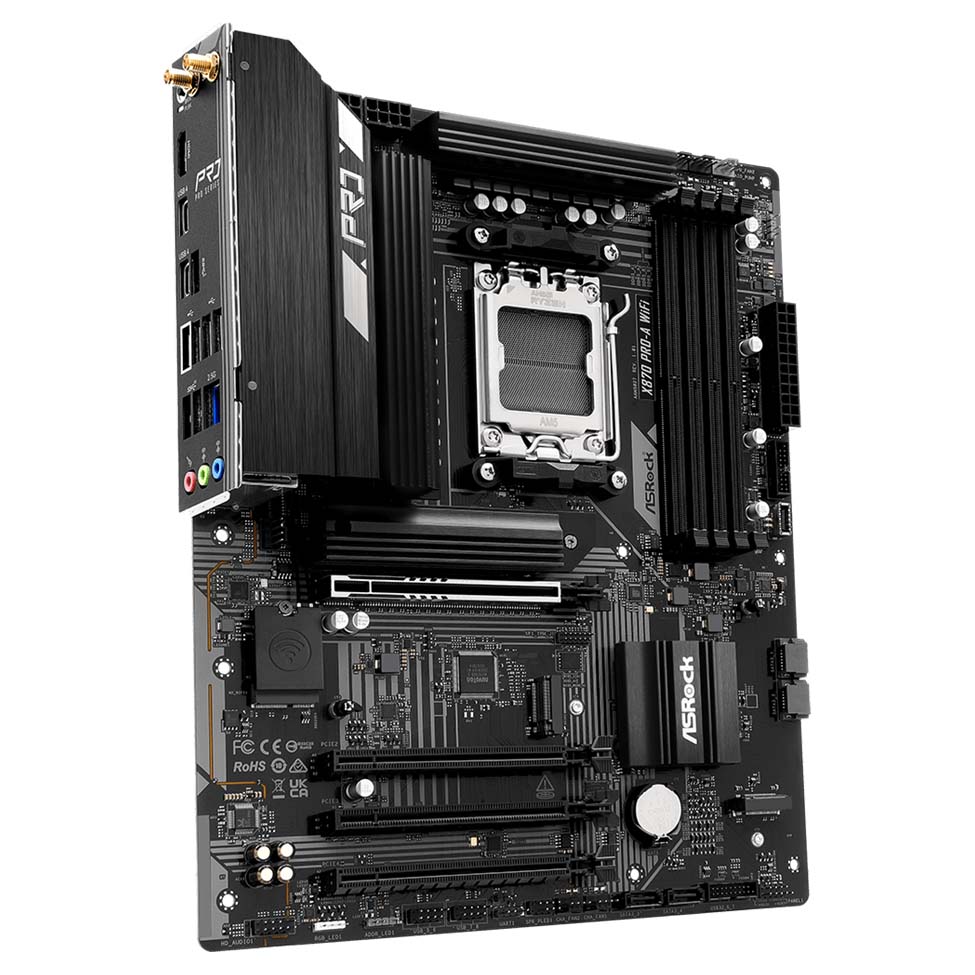

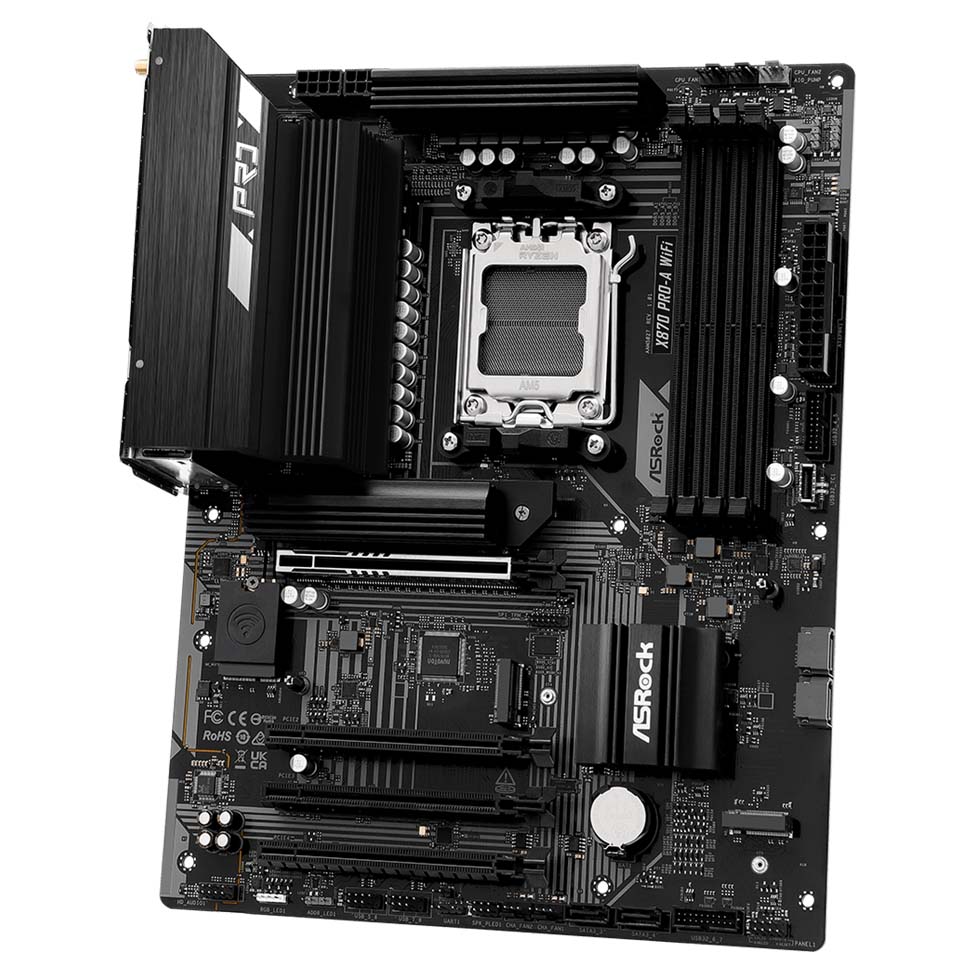

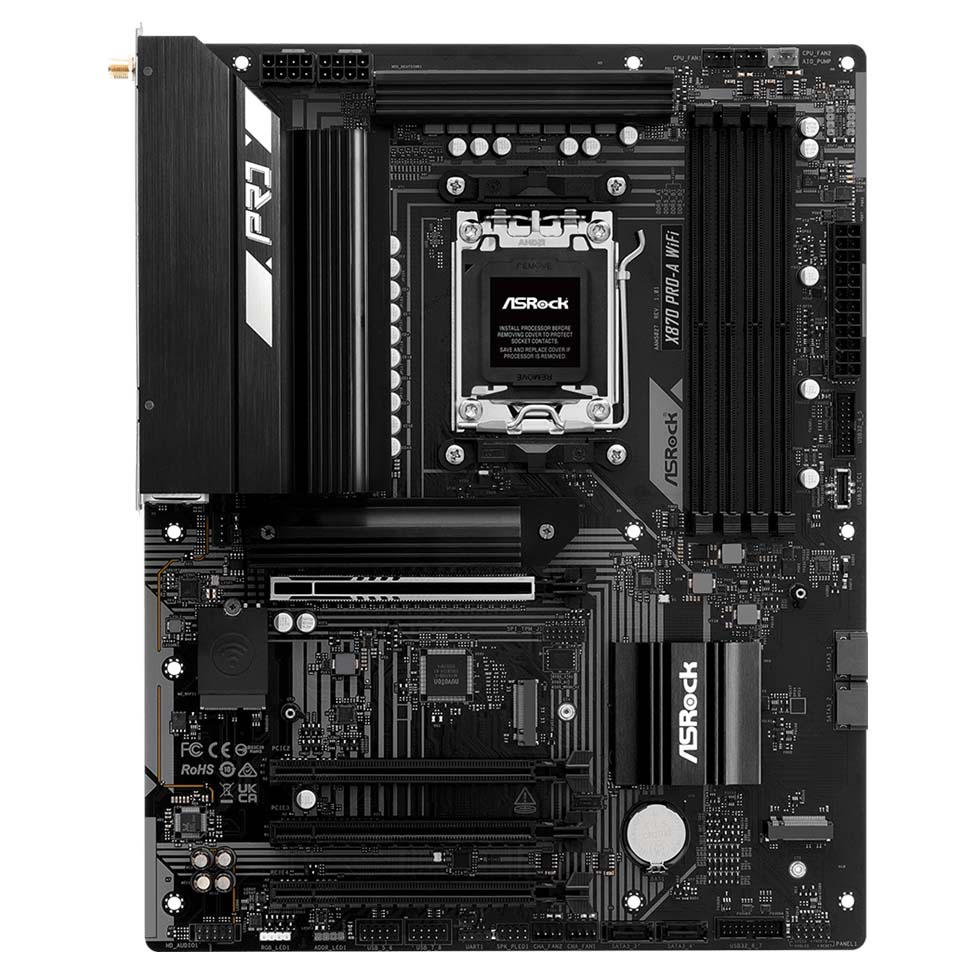

The ASRock X870 Pro-A WiFi AM5 Motherboard features AMD's X870 chipset with an AM5 socket that supports Ryzen 7000, 8000 and 9000 Series processors with dual-channel DDR5 memory up to 256GB and 8000 MHz+ (OC) for strong performance and future-proof upgrades. This ATX motherboard includes PCIe 5.0 x16 slot for next-gen GPUs, blazing Gen5 NVMe storage support from a dedicated M.2 slot with additional Gen4 and Gen3 M.2/SATA options for flexible storage layouts. Robust connectivity comes from built-in WiFi 7 with Bluetooth 5.4, 2.5 GbE LAN, USB4 Type-C ports, USB 3.2 and HDMI 2.1 outputs alongside premium audio and BIOS Flashback support for easy updates. Comprehensive I/O and cooling options, and support for ASRock Polychrome RGB, make this board a capable foundation for high-end AMD gaming and creator systems.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
X870 Pro-A WiFi
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs - Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 5.0 x16, 3 PCIe 4.0 x16
- Graphics Output Options: 1 HDMI, 2 USB4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3
- 2 USB4 Type-C (Rear), 2 USB 3.2 Gen2 (Rear), 1 USB 3.2 Gen1 Type-C (Front), 5 USB 3.2 Gen1 (1 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
- Realtek 2.5GbE LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports M.2 Bottom Heatsink

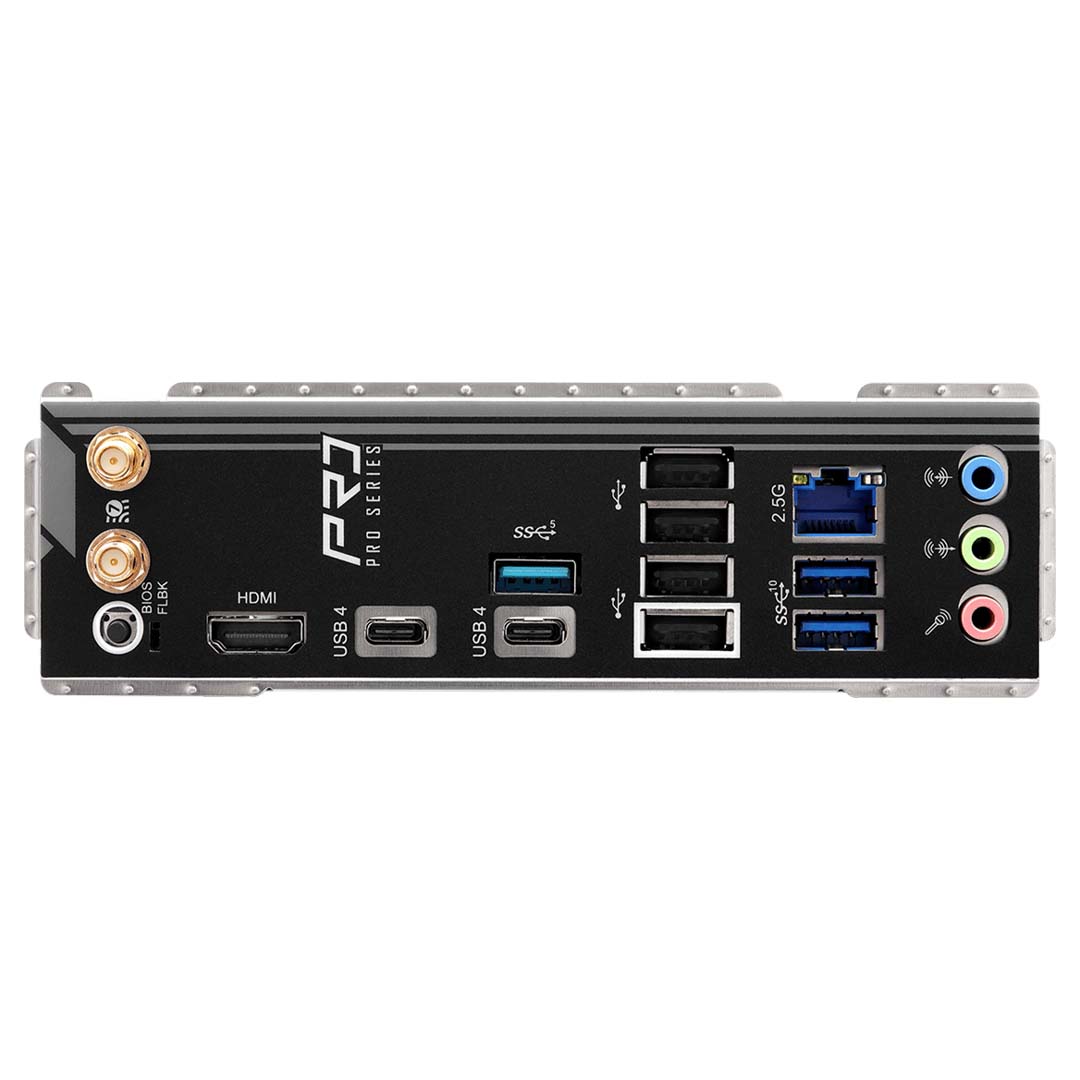

Overview
- 802.11be Wi-Fi 7 + Bluetooth
- BIOS Flashback Button
- HDMI Port
- 2 x USB4 Type-C Ports
- 2.5Gbps LAN
- Flexible Integrated I/O Shield
- 2 x Addressable LED Headers
- Front USB 3.2 Gen1 Type-C
- 1 x RGB LED Header
- 1 x Addressable LED Header
- Enlarged VRM Heatsinks
- 3 x Chassis Fan Connectors
Smart Fan Speed Control
- 2 x CPU Fan Connectors
Smart Fan Speed Control
- 1 x AIO Pump Fan Connector
Smart Fan Speed Control
- Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
- Chipset Heatsink
- Hi-Density Power Connector
8+8 pin 12V Power Connectors
- Supports AMD Socket AM5 Ryzen™ Series Processors
- 1 x Blazing M.2 Socket (PCIe Gen5 x4)
- PCIe Gen5 x16 Slot
SMT Technology
Reinforced Steel Slot
- 1 x M.2 Socket (PCIe Gen3 x2 & SATA3)
- Premium Audio
- Realtek ALC897 7.1 CH HD Audio Codec
Nahimic Audio
- Premium PCB
8-Layer PCB
- 16+2+1 VRM Design
80A Dr.MOS for VCore+SOC+MISC
Durable Caps with 1000uF Capacitance
- 4 x DIMMs DDR5
- Dual Channel
- 1 x Hyper M.2 Socket (PCIe Gen4 x4)
- 4 x SATA3 6Gbps
Performance
Optimised VRM Design
Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits:
- Higher Capacitance: Greater charge storage for better support under high loads.
- Lower Ripple: Reduced power output fluctuations, improving quality.
- More Stable Output Current: Stable power supply, minimising voltage impacts.
- Better Performance & System Stability: Increased reliability and consistent performance.
VRM Design
16+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
- 16 VCORE Phase - 80A Dr.MOS
- 2 SOC Phase - 80A Dr.MOS
- 1 VDD MISC Phase - 80A Dr.MOS
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Power Connector
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
- 8+8 Pin HI-Density Power Connector
8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realise that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
High Speed M.2 Solution
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Cooling
Intelligent Cooling Design
Aluminium Heatsink
The first thing that catches the eye is the optimised Aluminium Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
1. CPU Fan Connector
2. AIO Pump Fan Connector
3. Chassis Fan Connector
Fan-Tastic Tuning
ASRock Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualised UI interface, meeting their system's cooling performance and noise reduction requirements.
Enhanced M.2 Cooling
M.2 Bottom Heatsink
The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximise performance while maintaining system stability.
Connectivity
Wi-Fi 7
Enhanced VR Experience
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Wi-Fi 7 802.11be
Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.
- 6GHZ bands
- 4096 QAM
- Multi Link Operation
Multi-Link Operation(MLO)
Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.
Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Nahimic Audio
Audio that Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analogue output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabiliser
Ultimate Gaming Experience
Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on Any Devices!
Enjoy the vibrant and high-quality Surround Sound on all your favourite audio devices. Nahimic is compatible with all of your favourite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimise ASRocks technology and offer you the best experience.
Stylish Design
Polychrome RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 metres.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 metres.
SignalRGB
SignalRGB unifies your RGB devices, offering seamless customisation, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customisation flexibility.
DIY Friendly
EZ Setting
Auto Driver Installer
No need to worry about lack of disc drive! ASRock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- Step1 : Install Auto Driver Installer
- Step2 : Update drivers needed
- Step3 : Done!
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
Flexible Integrated I/O Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy colour schemes. ASRock reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
Backed by 3 year ASRock warranty.
