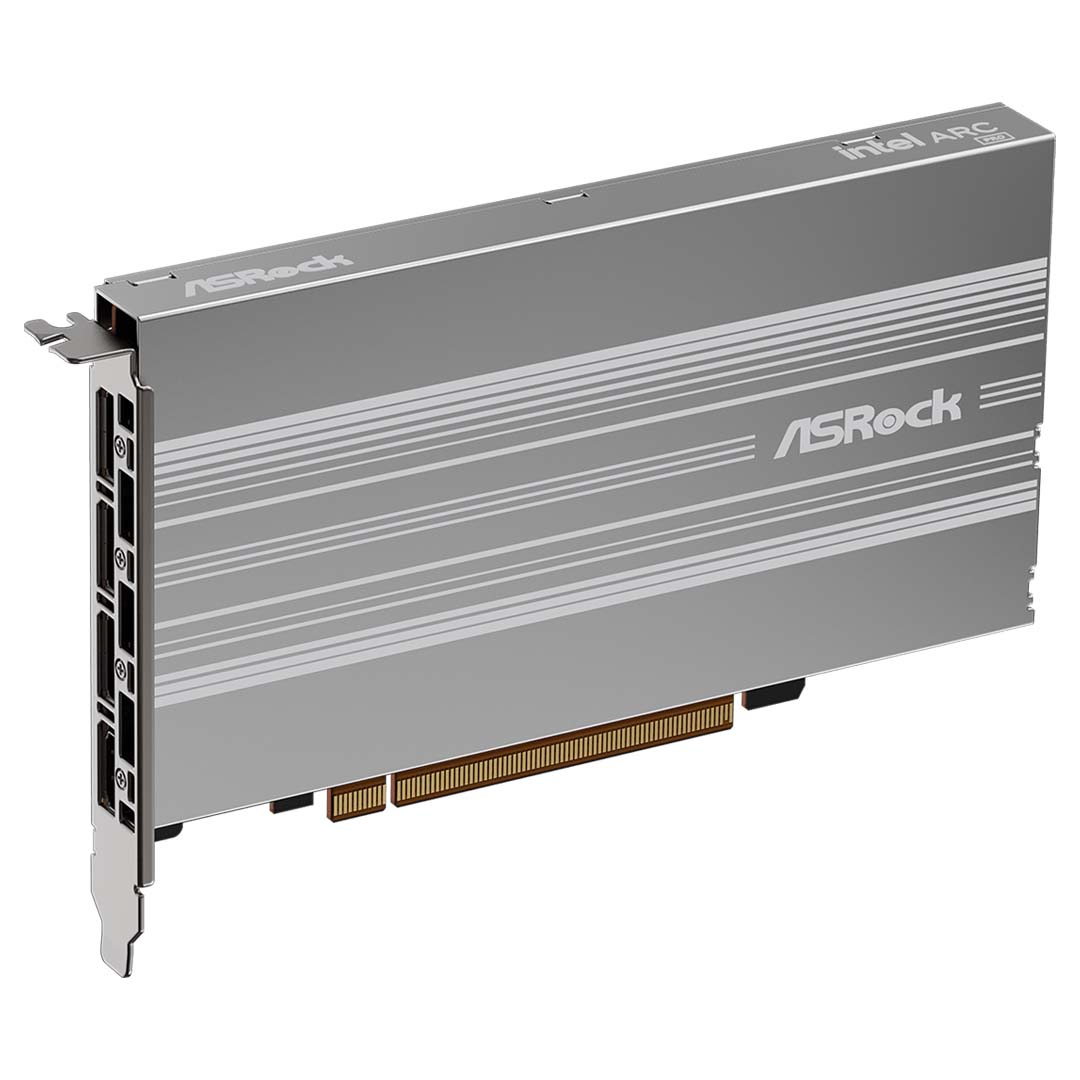

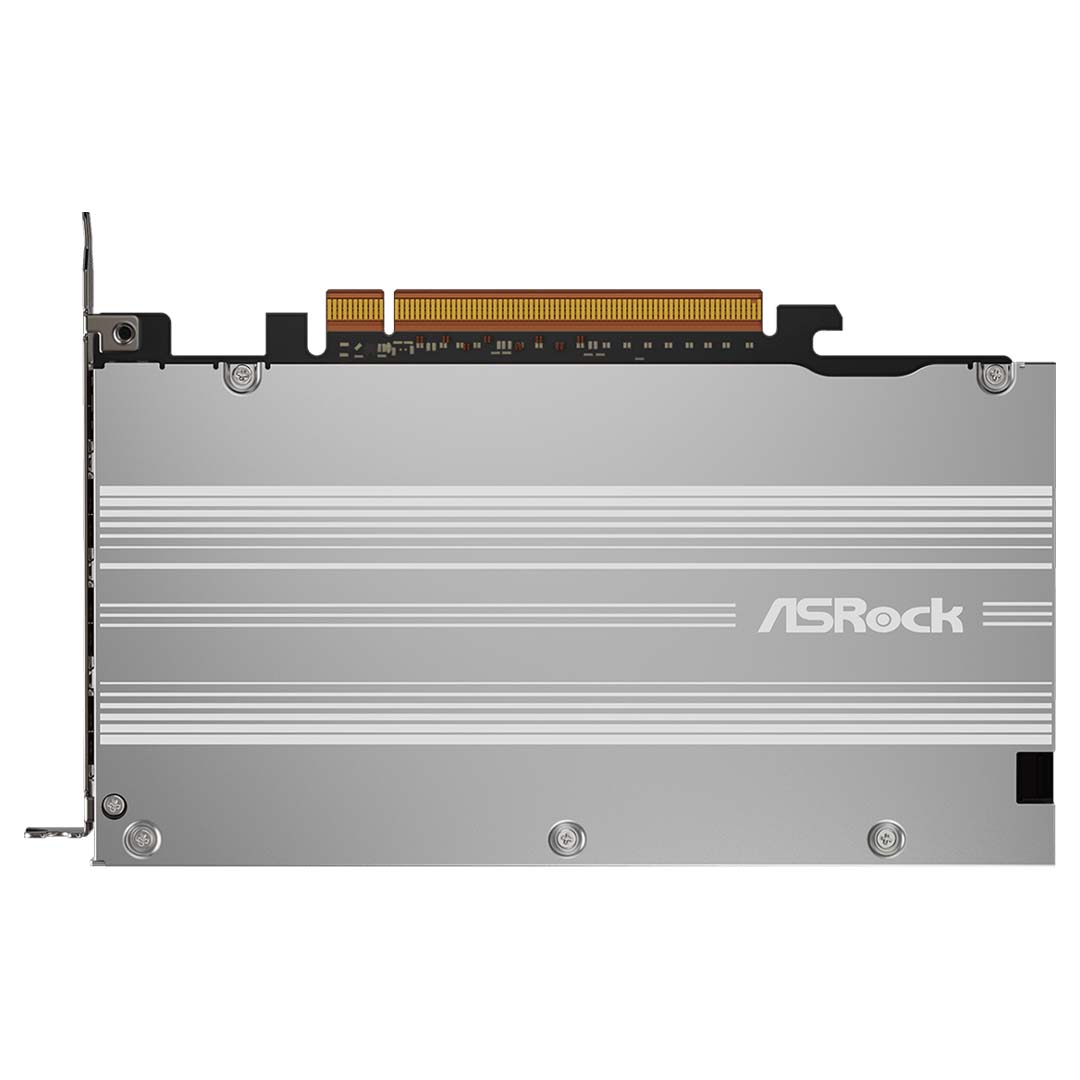

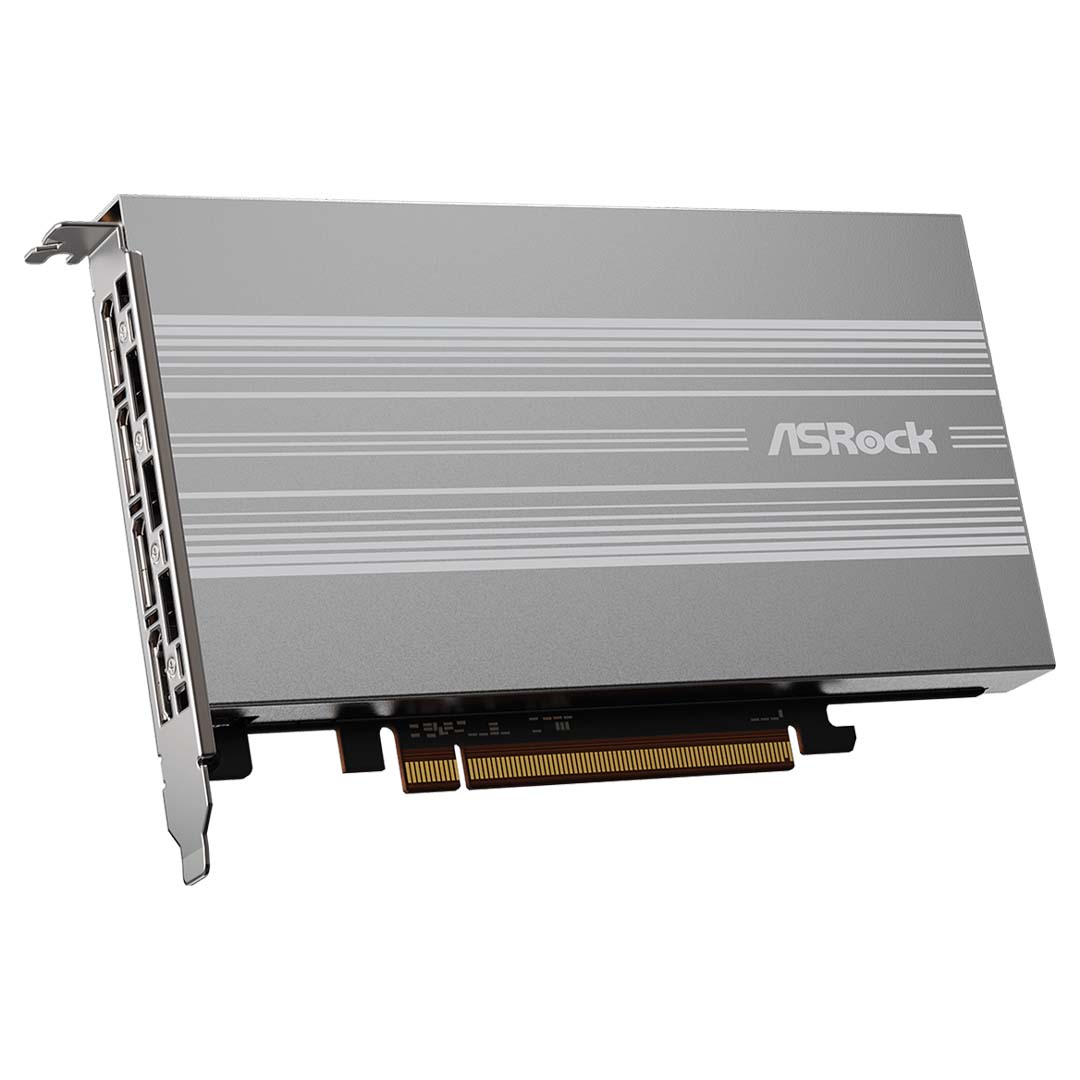

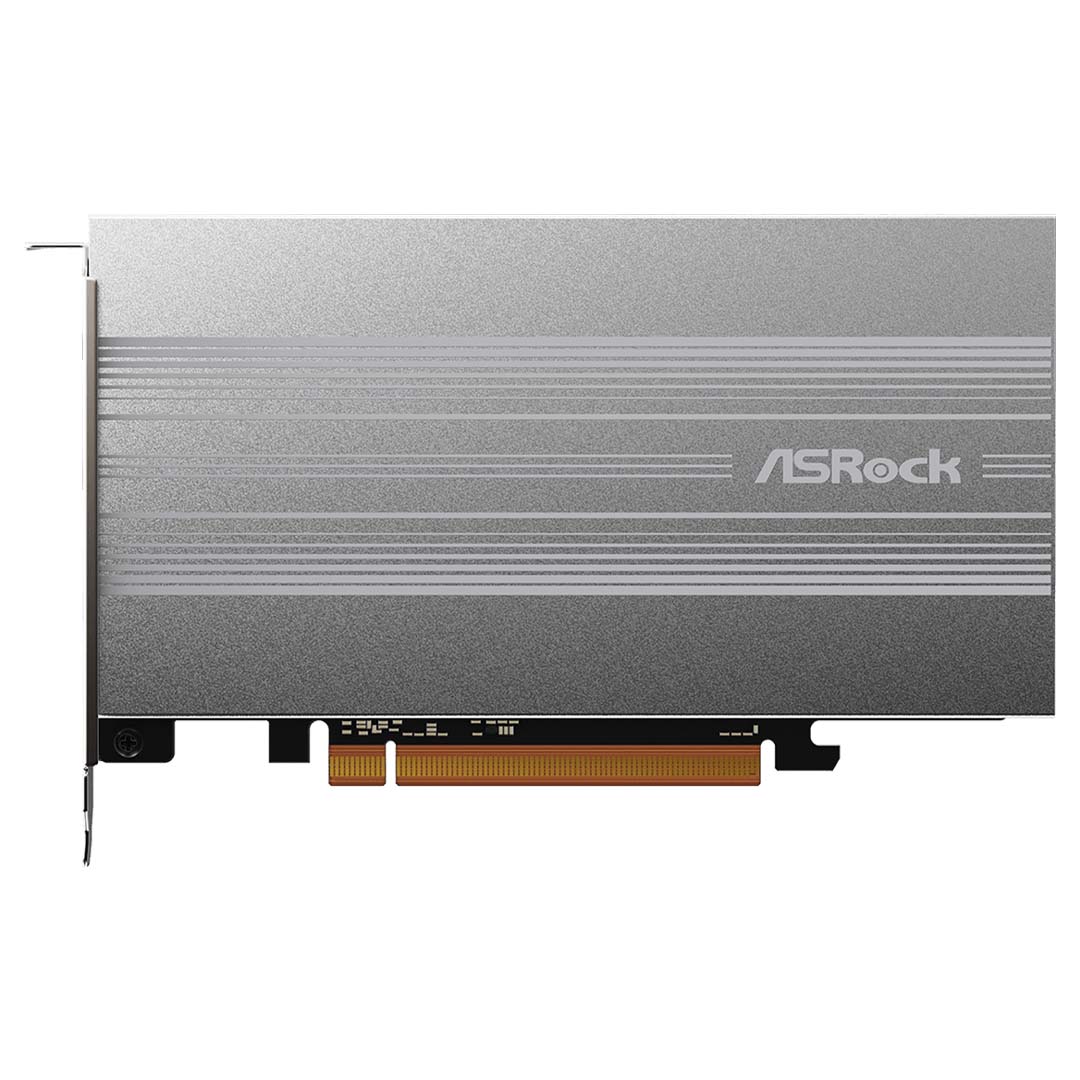

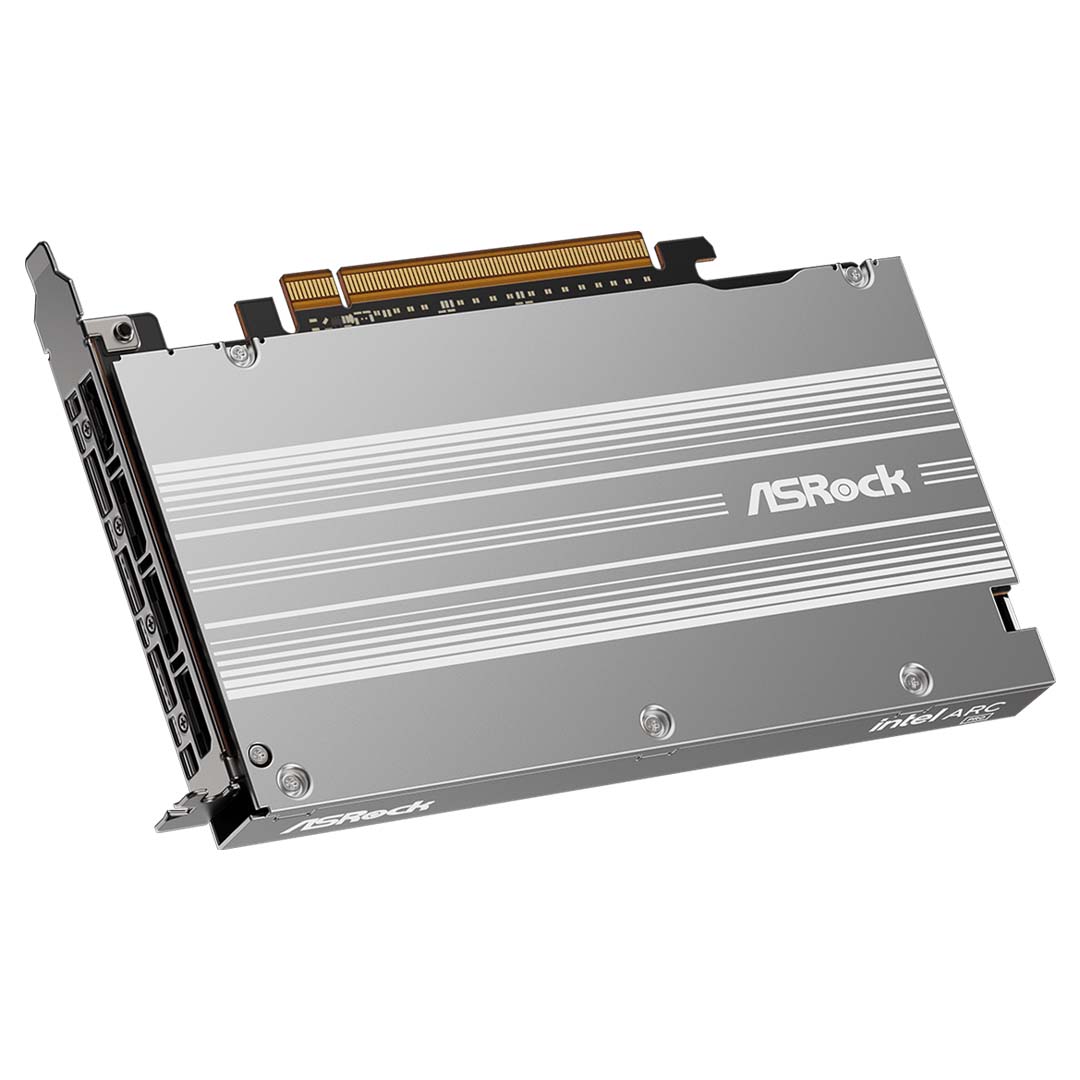

ASRock Intel Arc Pro B60 Passive 24GB OEM

The ASRock Intel Arc Pro B60 Passive 24GB features Intel Xe2 HPG architecture with 24GB of GDDR6 memory and up to 456GB/s bandwidth, delivering powerful performance for AI inference, 3D rendering, simulation, and professional content creation. The workstation graphics card includes 160 Intel XMX AI engines and a 2400MHz GPU clock for accelerated compute and media workloads. The passive single slot design with a metal shroud and heatpipe cooling is optimised for server or workstation chassis with strong airflow. With PCIe 5.0 support and four DisplayPort 2.1 outputs, the graphics card enables multi display professional environments and high resolution workflows up to 8K.

Note: This GPU required a high airflow chassis, with direct forced airflow to keep temperatures under control. The passive cooling nature of the design is not intended for silent operation, it will quickly overheat without adequate auxiliary cooling.

Features

---

Intel Arc Pro B60 Passive 24GB

GPU for AI Workstations

• GPU Clock: 2400 MHz
• Memory Speed: 19 Gbps
• Intel® Arc™ Pro B60 GPU
• Intel® Xe2-HPG Architecture
• 24GB 192-bit GDDR6
• 160 Intel® XMX Engines
• Microsoft® DirectX® 12 Ultimate
• PCI® Express 5.0 Support
• 1x 8-pin Power Connector
• 4x DisplayPort™ 2.1
• Passive Cooling Design
• Metal Shroud
• Nickel-plated Copper Base
• Ultra-fit Heatpipe
• Metal Backplate
• 1-slot Design
• Super Alloy Graphics Card

Powerful Local Inference

Offering 24 GB of dedicated memory, up to 456 GB/s bandwidth and 160 XMX AI engines, Intel® Arc™ Pro B60 GPUs are tailored for the increased memory usage and processing demands required by modern professional projects like AI, generative design, 3D simulation, ray tracing, and editing tasks.

Scalable AI Performance

Gain scalable performance with Linux multi-GPU LLM support from the Intel® Arc™ Pro B60 GPU, optimised to run larger, more advanced AI for higher quality and faster outputs.

Optimised Software. ISV Certified.

Ensure reliable, precise performance for common AI, design, engineering, architectural, and manufacturing software with a workstation-focused, validated, and robust graphics driver. Paired with trusted ISV (Independent Software Vendor) certified ( Subject to ISV certification completion and specific configuration requirements. Go to https://www.intel.com/content/www/us/en/support/topics/certified-graphics-hardware-and-drivers-by-isv.html for more details. Intel® Arc™ Pro graphics driver support for systems with Intel® Arc™ Pro B60 may vary by provider. Check with system vendor for further details.) Intel® Arc™ Pro B60 GPU hardware benefits, the professional graphics driver substantially boosts raw performance over the standard Intel® graphics driver across a broad range of APIs.

A Versatile Creator Toolkit

Save time and export videos quickly with twin media transcoders supporting dual-encode.

Create content with support for the most popular media formats including cutting-edge AV1.

The powerful Xe media engine enables you to create and edit content quickly in high-res.
