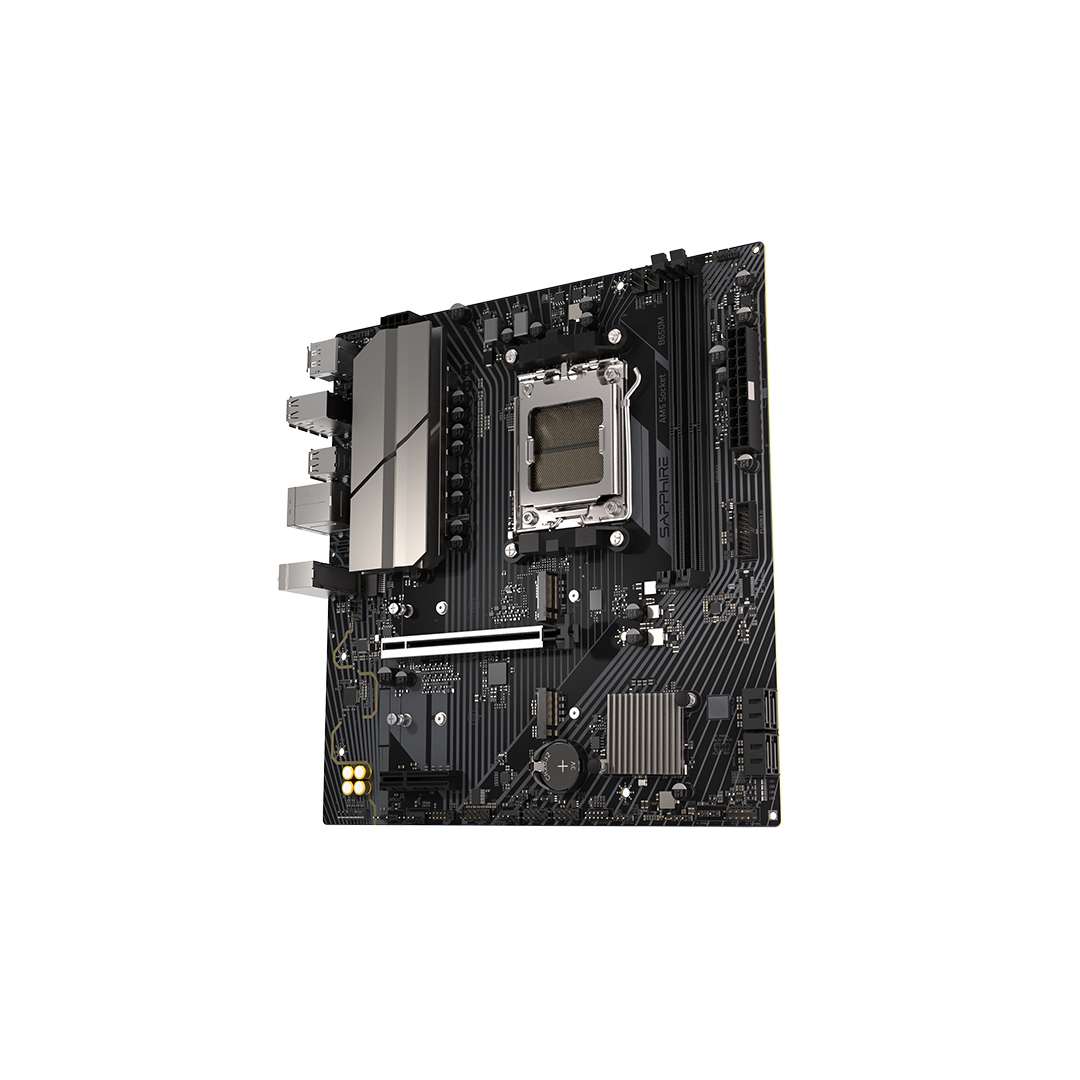

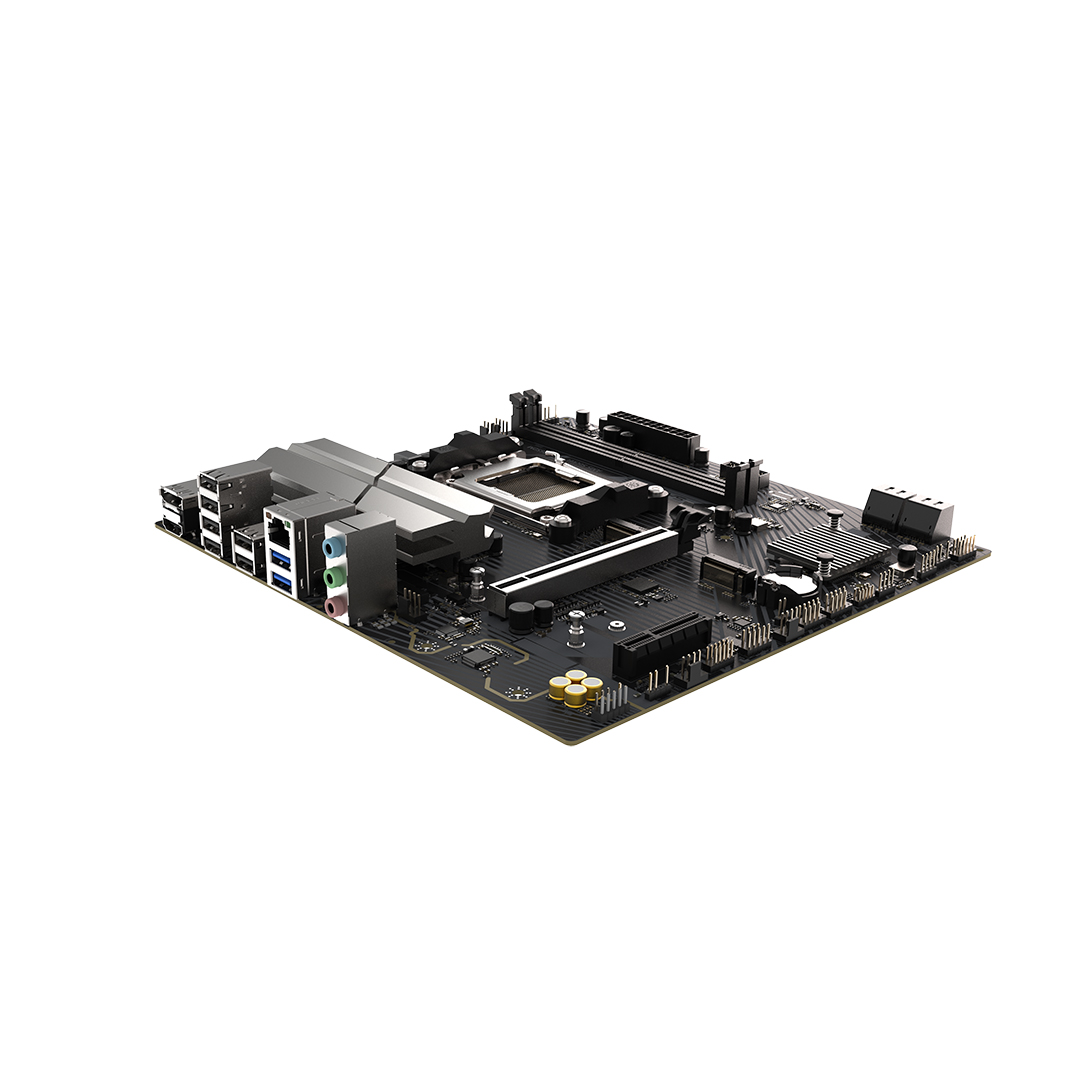

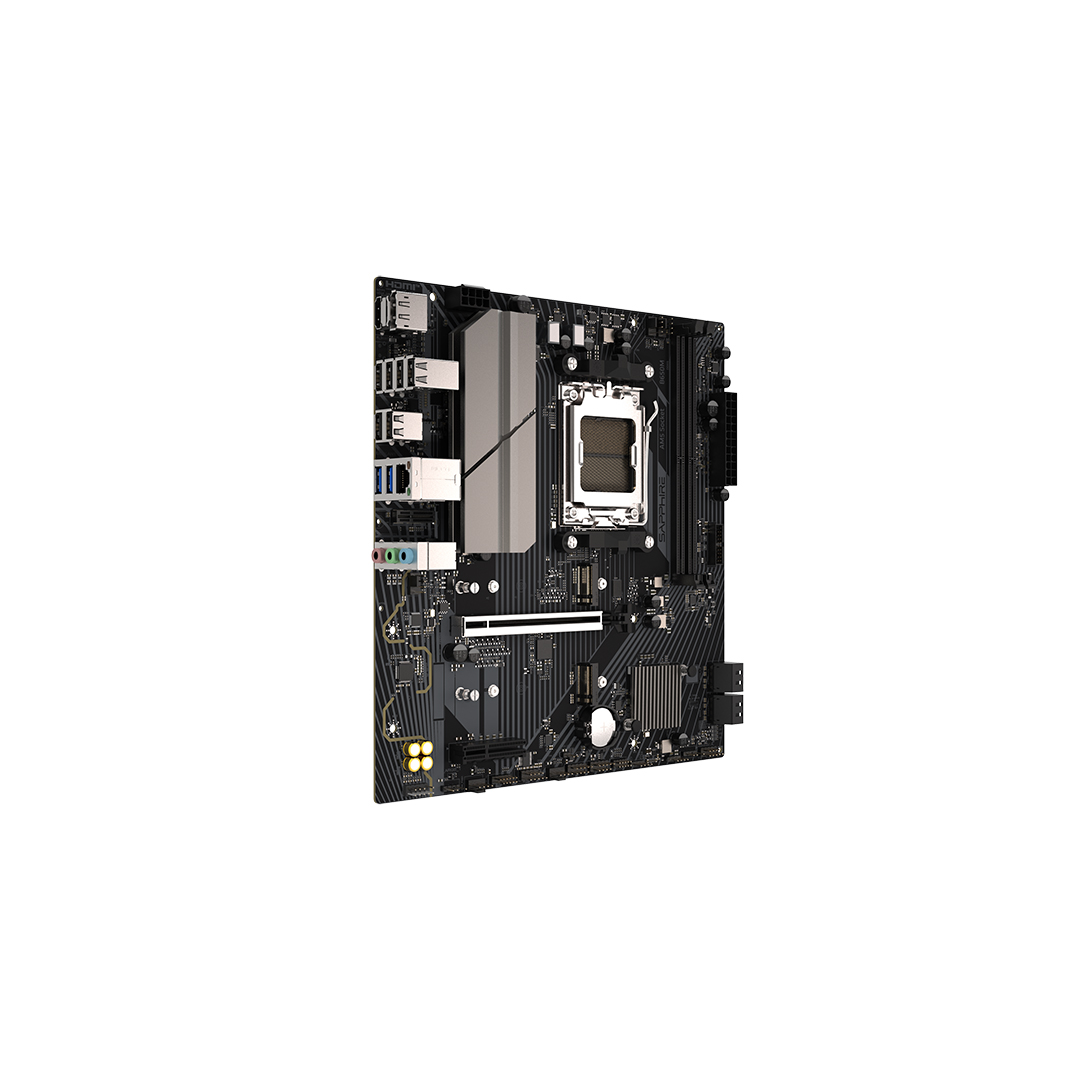

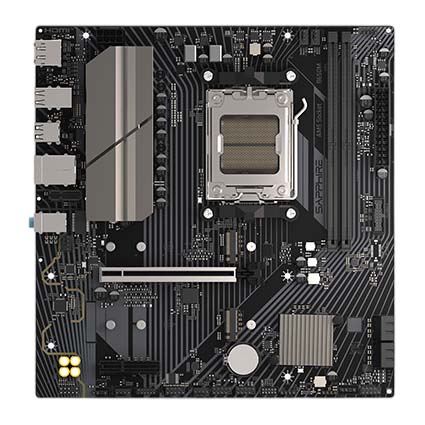

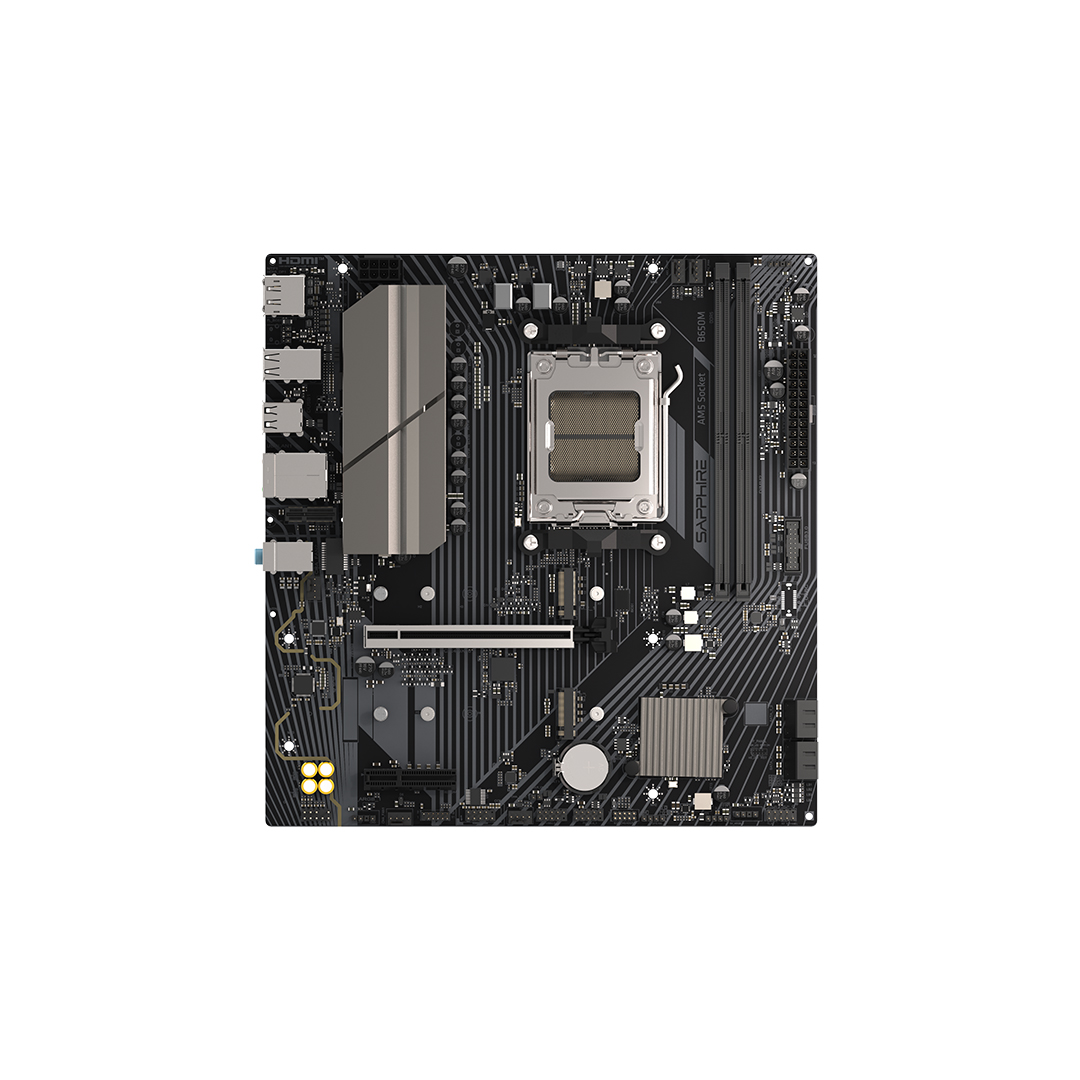

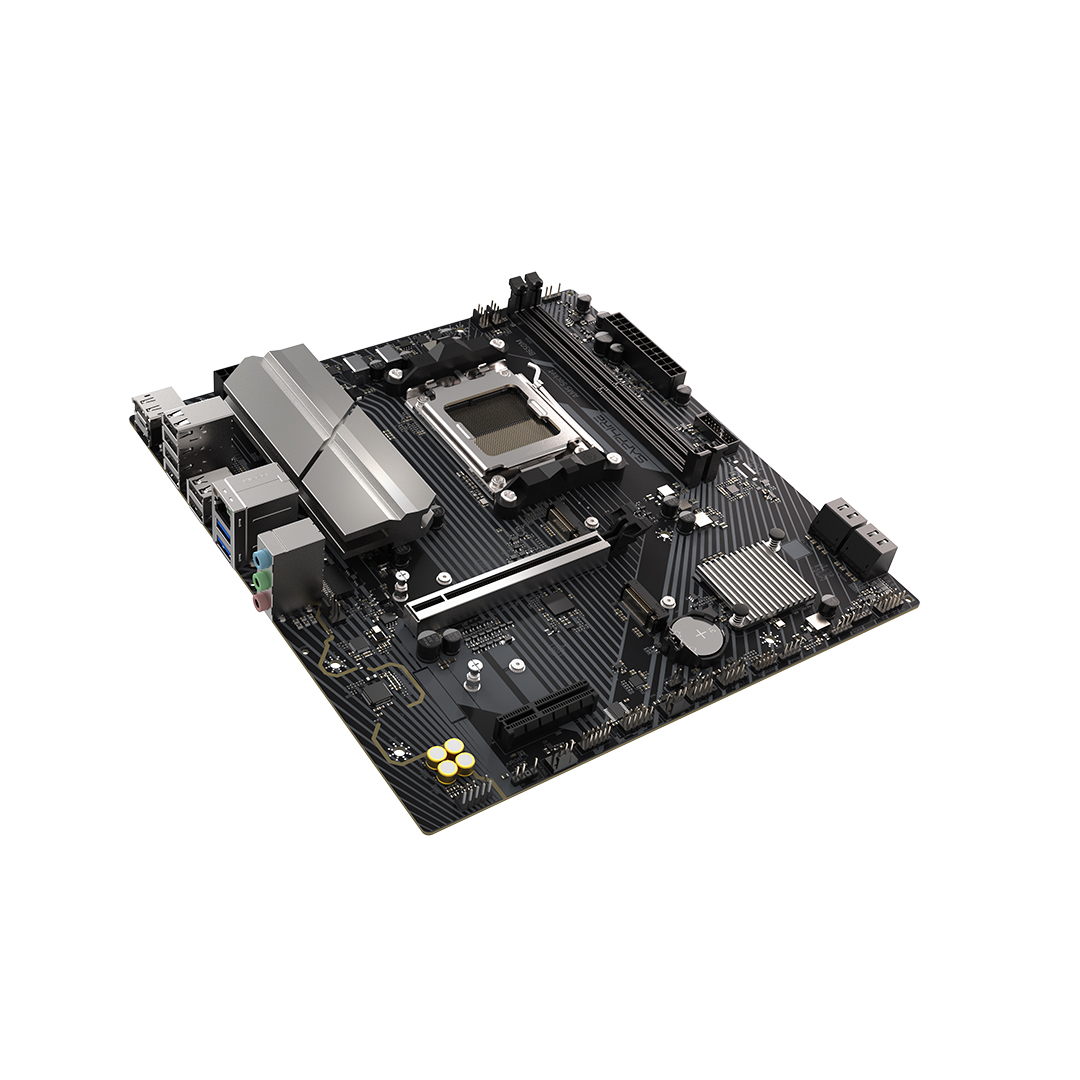

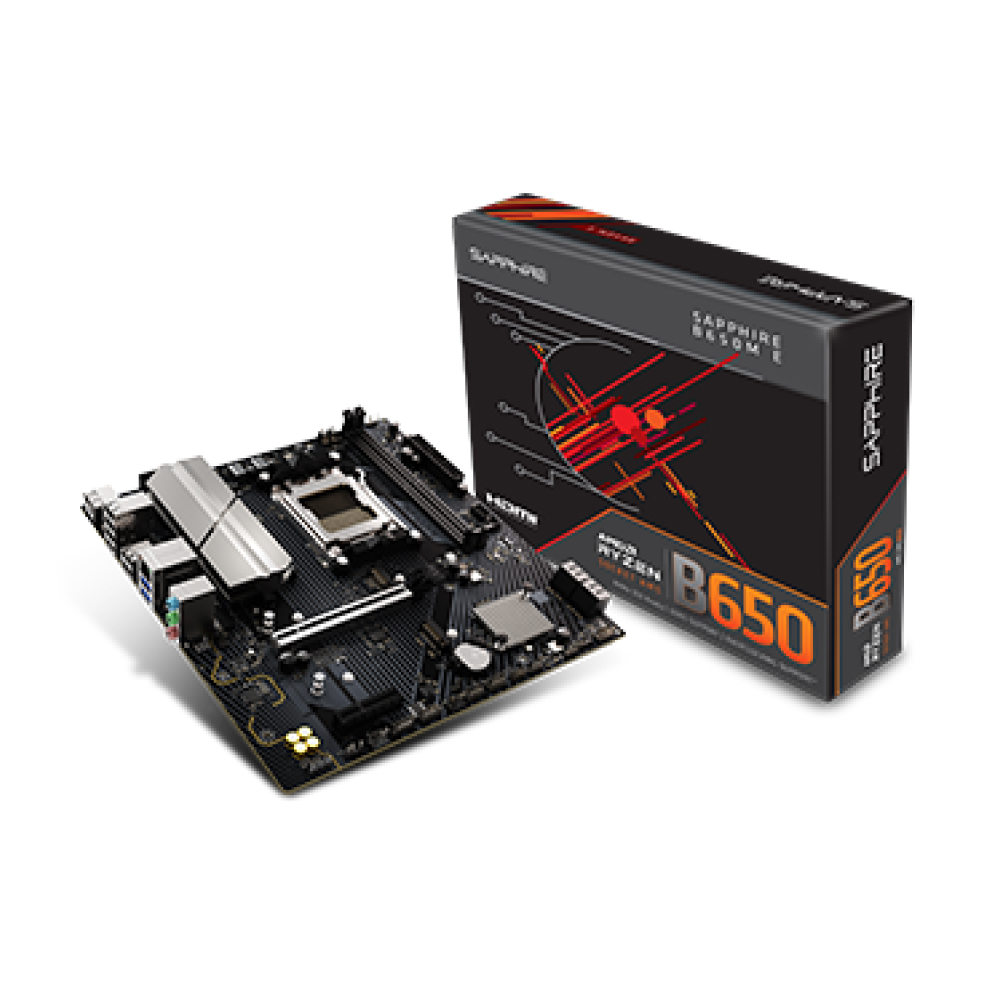

Sapphire B650M-E DDR5 Motherboard

The Sapphire B650M-E DDR5 Motherboard features the AMD B650 chipset with Socket AM5 support for Ryzen 7000, 8000 and 9000 series processors. It offers dual channel DDR5 with up to 96GB capacity and memory overclocking up to 7600MHz, plus PCIe 4.0 x16 and PCIe 5.0 M.2 for modern GPUs and fast storage. The Micro ATX design includes 2.5GbE LAN, DisplayPort and HDMI, and robust VRM and M.2 cooling for stable everyday performance.

Warning: This product contains a button battery - If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours. - Keep batteries out of reach of children. - If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.

Features

---

Sapphire B650M-E

Smart Performance. Solid Foundation.

• AMD AM5 CPU SUPPORT
• SAPPHIRE CORE BIOS
• 6+2+1 Phase CPU Power, 60A Per Phase
• Robust VRM, M.2 and PCH Cooling
• Dual Channel, 7600 MHz Memory OC
• PCI Express 4.0 x16
• PCIe 5.0 M.2 Support
• Smart Power Delivery
• High-speed Memory
• Versatile Expansion

Versatile Expansion and Connectivity

Smart Power Delivery

6 + 2 + 1 (60A) Smart Power Phase Design with Titanium Inductors

Delivers clean, stable power to fully unlock the performance potential of Ryzen™ processors.

High-Efficiency Heat Dissipation

High-Efficiency Custom Cooling Armour

Delivers continuous thermal management to ensure stable, reliable performance for Ryzen™ processors.

High-Speed Storage

Adopts future-orientated standards, bigger, faster and more durable.

Ensures Peak Bandwidth for Cutting-Edge Storage Performance

Wi-Fi Card Expansion Slot

Easily upgrade your wireless network card without removing the heatsink armour.

TriXX-M Software

Flexible lighting control lets you build a next-gen showcase rig with style.

Debug Indicator

Debug indicator facilitates troubleshooting.
