The j5create USB-C Dual 4K HDMI Dock JCD3199 features a compact, driverless design that expands the connectivity of USB-C laptops through a single port. It supports dual 4K displays at 60Hz for Windows computers via Multi-Stream Transport (MST), allowing for a high resolution extended desktop setup. The dock includes two USB Type-A ports and one USB-C data port, all capable of 10Gbps transfer speeds, ensuring rapid file management for external drives. Additionally, it offers up to 100W of pass through charging via USB-C power delivery, keeping the host device powered during intensive tasks.
VIDEO
Features
JCD3199 USB-C® Dock Dual 4K HDMI™
140W Power Delivery 3.1 / 15W Wireless Charger / Dual 4K HDMI™/ Gigabit Ethernet / USB™ 10Gbps Windows® / macOS® Compatible
This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV.
With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adaptor even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port’s location.
Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adaptor provides all the essential connectivity you need to create a workstation virtually anywhere!
Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
Supports Power Delivery 3.1 140W power in
Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals
Built-in magnetic wireless charger provides up to 15W fast wireless charging. Compatible with iPhone® MagSafe®, Samsung® S23/S22/S21, Google™ Pixel™ 5/6/7, AirPods®, and more. The 15W wireless charging will only work when a USB-C® 60W or above power adaptor is connected to the dock.
Reliable network connectivity via the Gigabit Ethernet
Cable storage compartment
Security lock
Two USB™ 10Gbps and two USB™ 5Gbps ports for transferring data at ultra-high speeds and connect various peripherals
Break free from the limitation, effortlessly connect two additional displays to your M1/M2/M3 MacBook® or Windows® laptop
Versatile 12-in-1 Expansion, Excellent Companion for Office
Easily add Dual 4K Display, Extend Your Display Area and Maximise Product
Integrates a Wireless Charger Compatible with iPhone® MagSafe®, Charge Smart Devices Conveniently with Up to 15W Power
The wireless charging will not work when connected to a USB-C power adaptor rated at 60W or less
Exclusive PD 3.1 Power Distribution Technology Ensures Optimal PD 3.1 Power Utilisation, Even when Used with Computers Supporting Only PD 3.0
Supports a Super-Fast Gigabit Network. Ensures a Stable and Dependable Internet Connection
A Built-in Cable Organiser for Easy Cable Management

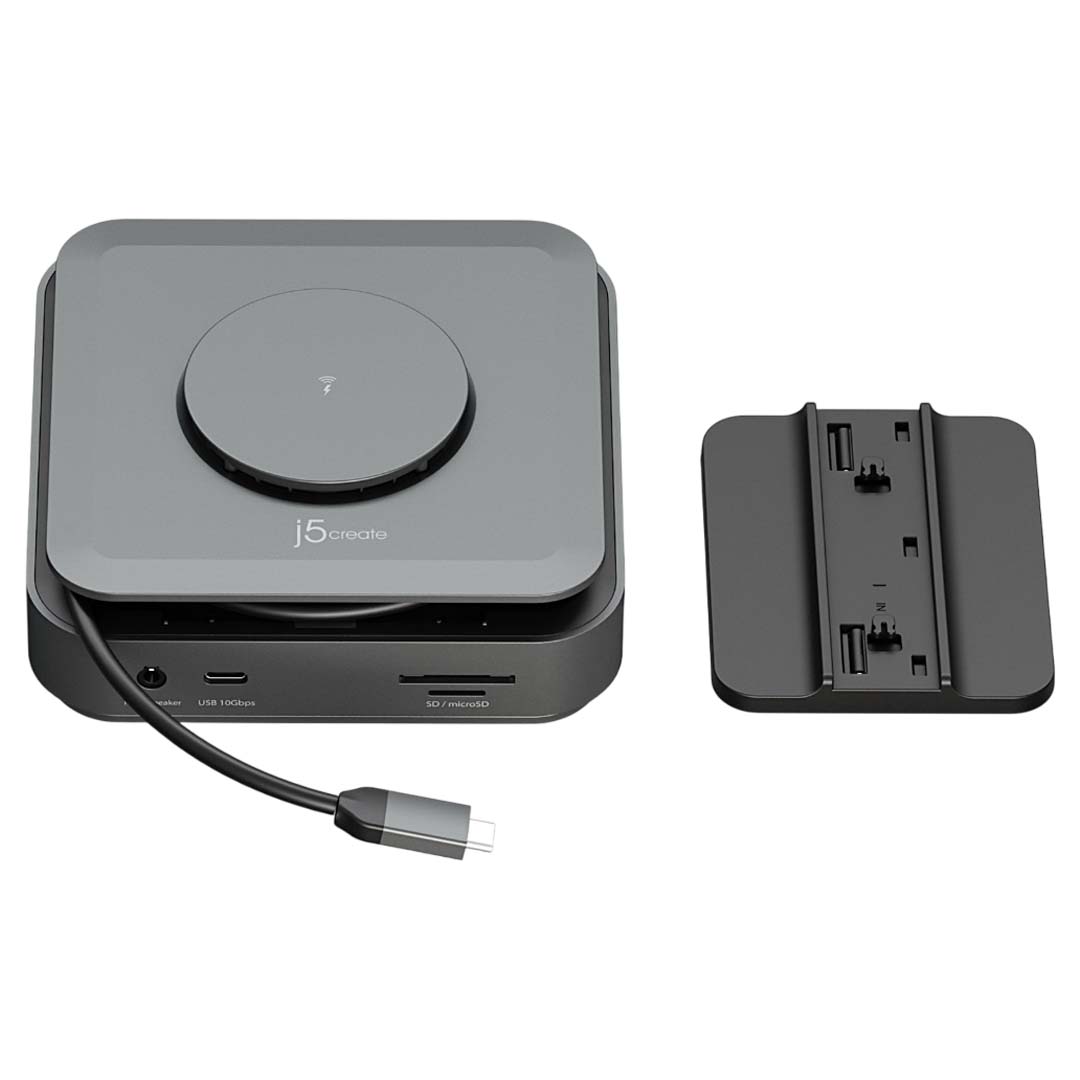

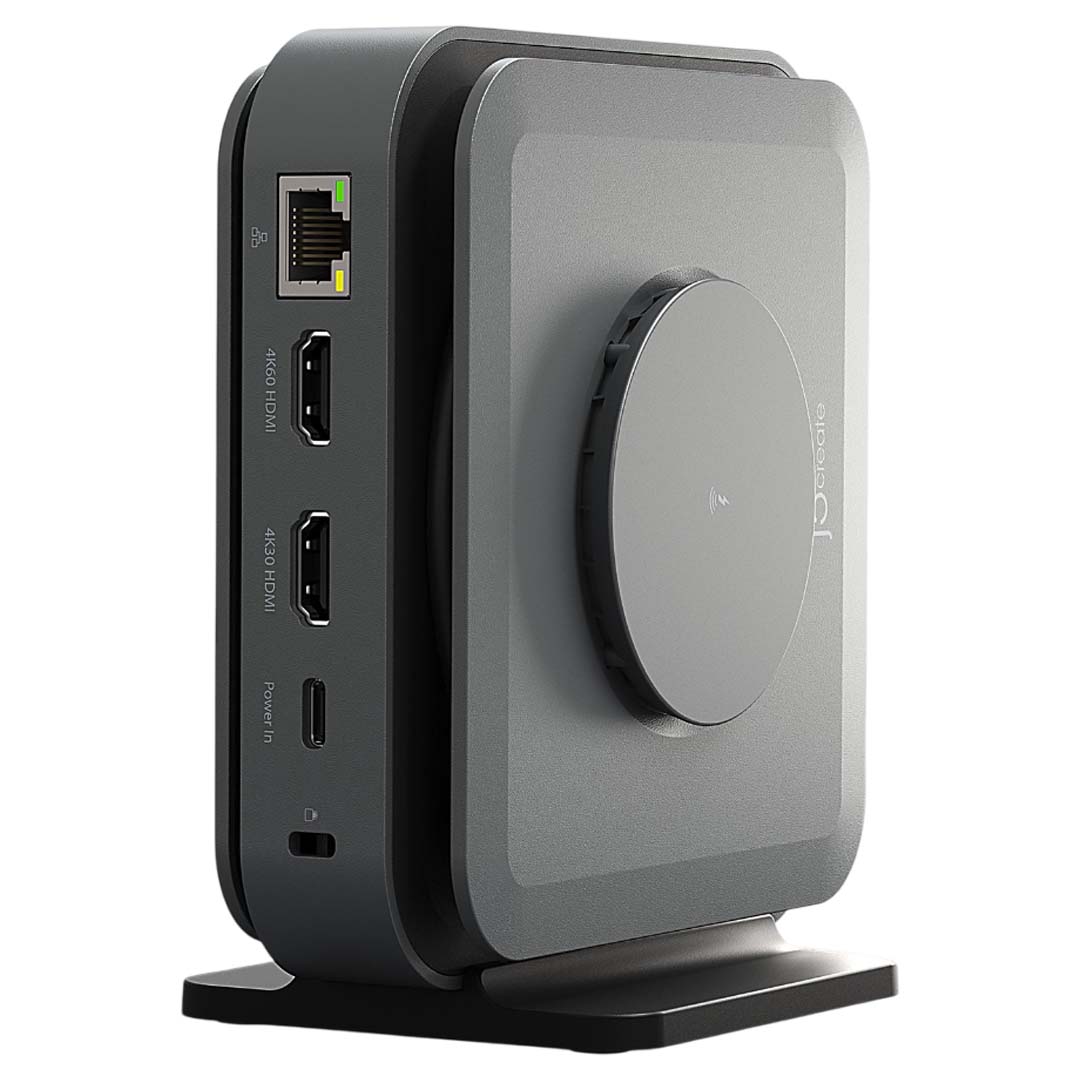

Includes a Holder for Vertical Use, Freeing Up Desk Space for Enhanced Efficiency
Universal Compatibility
Support Windows® 11/10, macOS® 13/12/11, or later
Using with a PD 3.1 140W or Higher Charger is Recommended for Optimal Performance
Specifications
General Data
Model Number
JCD3199
Cable Length
2.28 ft (69.5 cm)
Colour
Space Grey
Enclosure Type
Plastic
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (-1 to 41°C)
Product Depth
Body: 5.12 in. (130 mm)
Product Height
Body: 1.71 in. (43.5 mm)
Product Weight
Body:14.7 oz (416 g)
Product Width
Body: 5.12 in. (130 mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155°F (-17 to 68°C)
What's Included
1 - JCD3199 USB-C® Dock Dual 4K HDMI™
System Requirements
Windows® 11 / 10
Special Notes
Driver installation is required for macOS® and Windows®. If the computer has network access and
Hardware
Audio Supported
Yes
Host Connector
1 - USB-C® Male (PD3.1 100W, 20V/5A)
Network Interface
Yes
Output
Perfect for Google™ Pixel™, iPhone® with MagSafe®, and AirPods®
Ports
1 - USB-C® PD-in PD3.1 140W (28V/5A)
Power Source
Bus-powered or self-powered
Video Output
2- HDMI™ Female
Warranty
2 Year Limited
Performance
Audio Channel
2.1 via HDMI™
Compatible Networks
10/100/1000 Mbps
Displays Supported
2
Max Data Transfer Rate
10Gbps
Max Display Refresh Rate
60 Hz
Max Display Resolution
3840 x 2160
Power
Input Current
Up to 5A
Input Voltage
Up to 28V
Output Current
Up to 5A
Output Voltage
Up to 20V
Power Consumption
≤ 900 mA
Power Delivery
Up to 140W via USB-C®
Backed by a 2 year j5create warranty.
