The j5create USB4 Triple 4K Display Docking Station features the latest USB4 connectivity, delivering up to 40Gbps bandwidth for next generation performance. It supports up to three 4K displays simultaneously or a single 8K screen, catering to high end creative workflows and multitasking setups. The device includes a 2.5 gigabit ethernet port for ultra fast networking and multiple USB ports capable of 10Gbps transfer speeds. With USB-C power delivery 3.0 pass through, it allows for charging the host computer with up to 98W of power while connecting various peripherals.
VIDEO
Features
JCD554 USB4® Triple 4K Display Docking Station
Featuring Intel® USB4® 40Gbps Controller Thunderbolt™ 4 and USB4® Compatible
This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution.
With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™ , HDMI™ or USB-C® and access data faster without affecting system performance.
Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.
Includes the latest Intel® USB4® controller ensures industry-leading quality
Provides 3 USB™ ports and a USB-C® port to offer ultimate connectivity and performance
Integrates a Gigabit Ethernet port, SD™ / microSD™ 4.0 card reader, and audio combo
Offers up to 85W of pass-through charging
Plug & Play, compatible with Windows® and macOS®
Security Lock Design
Supports up to MST three 4K displays with Thunderbolt™ 4 or USB4® host laptops
Reference Triple Display Combinations
Mac® systems do not support MST, may only supports mirror screen on some external displays
Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays
Supports DSC maximum resolution: Triple 4K60Hz monitors/display
Latest Intel® USB4® High-Performance Controller
Include A USB-C® Port Supports 4K60 Display And 10Gbps Transfer Speed
Supports USB™ 3.2 Gen 2 10Gbps Ultra-High Speed
Integrate A Ultra-High Speed SD™/ microSD™ 4.0 Card Reader
Premium Aluminium Construction with Exquisite Leather Craftsmanship
Compatible with Thunderbolt™ 4 and USB4®, Works With Windows® and macOS®
12 Functions in One Sleek Design for All Your Needs
Supports Up to Triple 4K60 Display for Improved Productivity
It's recommended to connect to Thunderbolt™ 4 or USB4® computers for the best performance.
Connect Your Peripherals Without Hassle
Supports a Gigabit Ethernet for Faster and More Stable Internet Connection
Offers Powerful Pass-Through Charging for Your Laptop
Equipped with a K-Slot to Protect Against Theft

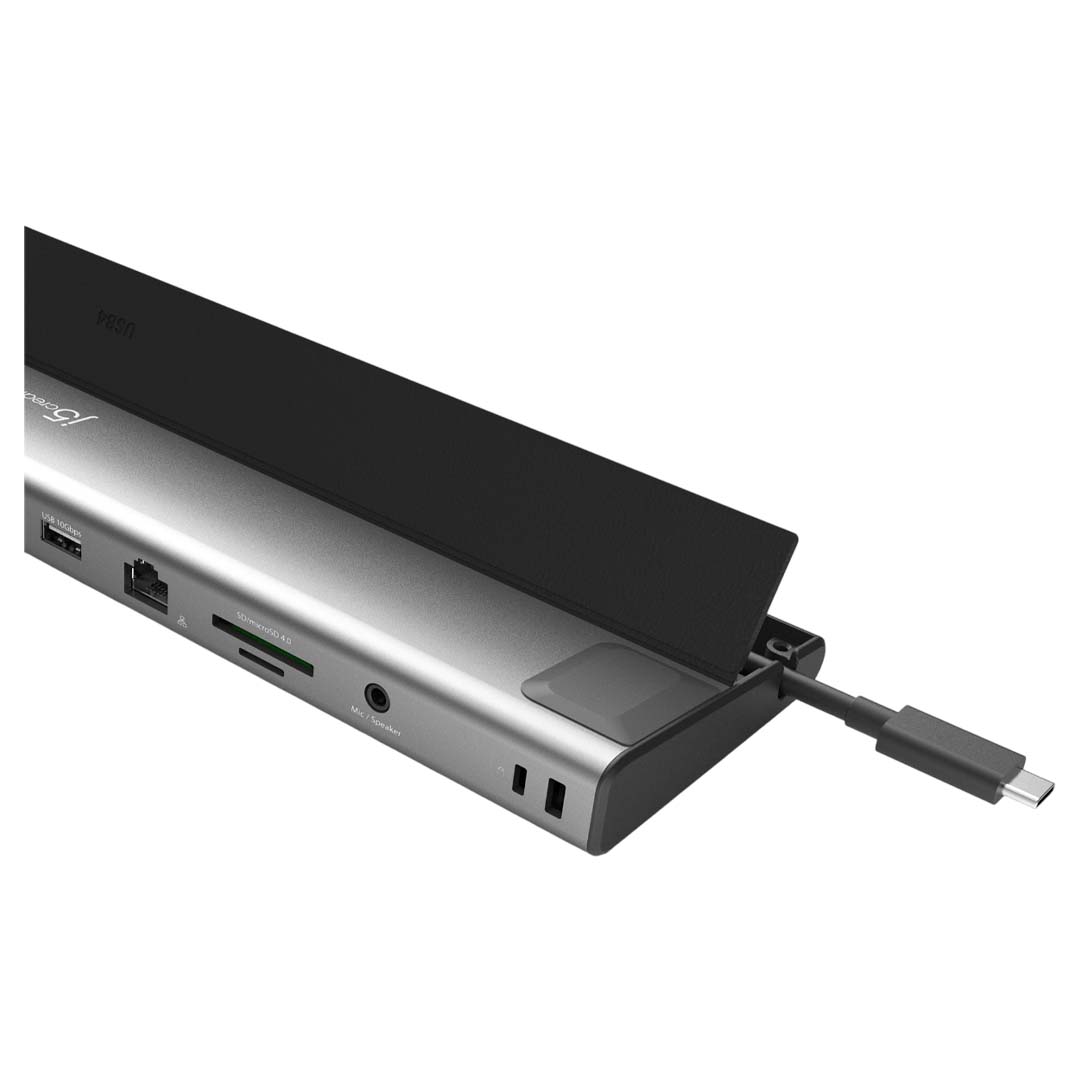

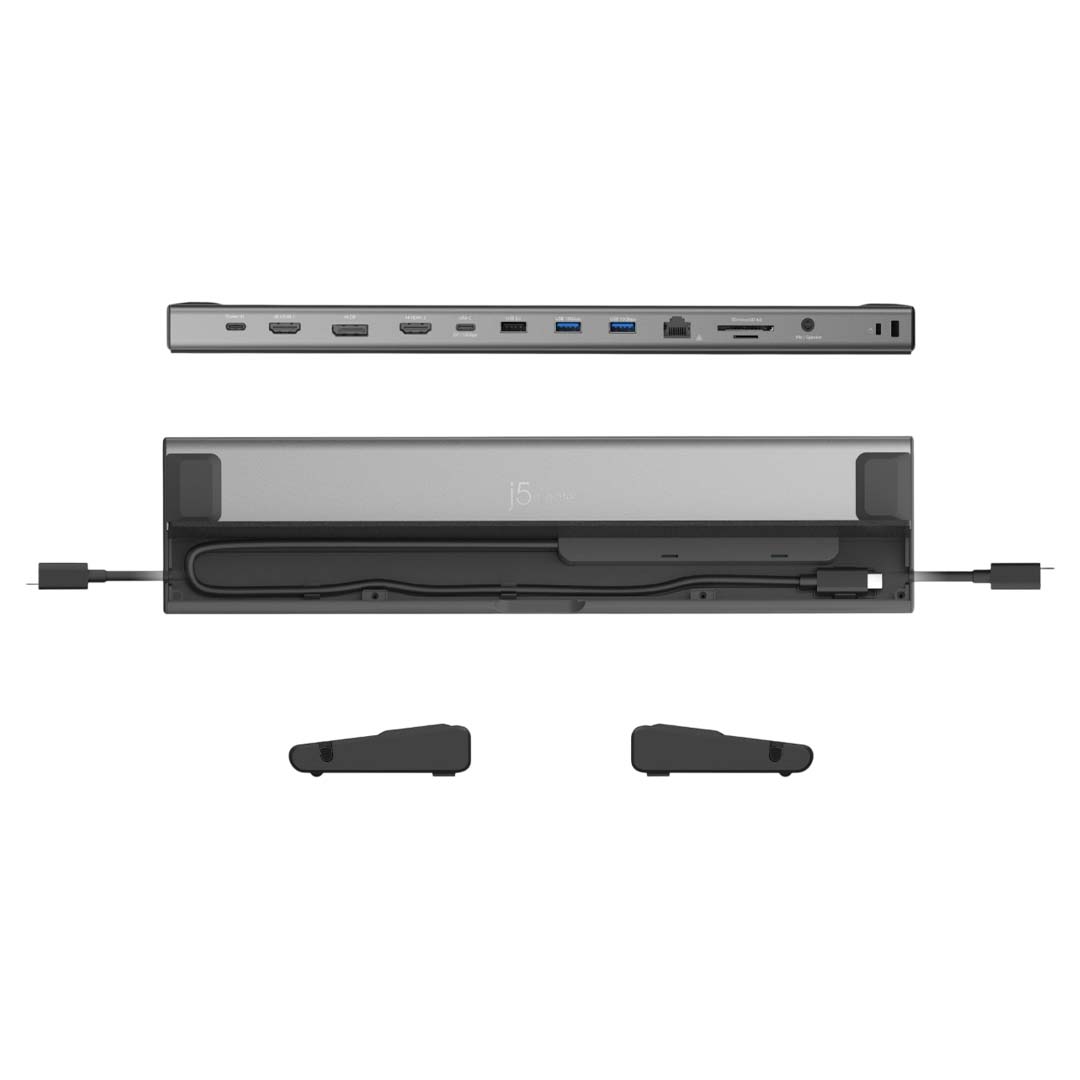

Cable Storage with Dual Openings, Allows You to Connect a Laptop with Ease
Elevate Your Workspace with this Perfect Companion for Optimal Productivity
Specifications
General Data
Model Number
JCD554
Cable Length
1.64 ft (50 cm)
Colour
Space Grey & Black
Enclosure Type
Aluminium
Operating Humidity
< 85% non-condensing
Operating Temperature
30 to 116°F (-1 to 41°C)
Product Depth
3.20 in. (81.39 mm)
Product Height
0.93 in. (23.56 mm)
Product Weight
≈ 16.33 oz (463g)
Product Width
13.54 in. (344mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
0 to 155°F (-17 to 68°C)
What's Included
1 - JCD554 USB4® Triple 4K Display Docking Station
System Requirements
Available USB4® or Thunderbolt™ 4 port on host.
Special Notes
A 4K-capable display is required for obtaining the 3840 x 2160 resolution
Hardware
Audio Supported
Yes
Host Connector
1 – USB4® Male
Network Interface
RJ45 (Gigabit Ethernet)
Ports
1 – USB-C® 10Gbps with DP™ Alt mode
Power Source
Bus-powered or self-powered
Video Output
1 – DisplayPort™ Female
Warranty
2 Year Limited
Performance
Audio Channel
2.1 via HDMI™ / DP™ / USB-C®
Compatible Networks
Yes
Displays Supported
3
Max Data Transfer Rate
10Gbps
Max Display Refresh Rate
4K @ 60 Hz
Max Display Resolution
Single Display with DSC:
Power
Input Current
Up to 3A
Input Voltage
Up to 20V
Output Current
Up to 4.25A
Output Voltage
Up to 20V
Power Consumption
900 mA
Power Delivery
Up to 85W via USB-C®
Backed by a 2 year j5create warranty.
