The j5create USB-C Triple Display Docking Station with 100W PD adaptor features a versatile 13-in-1 design that transforms a single USB-C port into a full workstation capable of driving three simultaneous external monitors. It supports flexible video configurations through a combination of HDMI, DisplayPort, and VGA interfaces, allowing users to connect a wide variety of legacy and modern displays. The docking station comes with a dedicated 100W USB-C power adapter, ensuring the host laptop remains fully charged while efficiently powering all connected peripherals. Its unique wedge shaped housing functions as a laptop riser, improving typing ergonomics and increasing airflow for better cooling performance.
Features
JCD543P USB-C™ Triple Display Docking Station with 100W PD Adaptor
The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.
These multi-adaptors allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adaptor.
- USB-C™ power delivery 100W pass-through
- USB-C™ downstream port Gen 1 5G x1；Power delivery adaptor in port x1
- USB™ Type-A downstream port Gen 1 5G x3
- DisplayPort™ Alt mode supported
- DisplayPort™/HDMI™ output 4K @ 30 Hz
- USB™ graphic HDMI™ resolution 4K @ 30 Hz; VGA Resolution 1920 x 1080 dual output
- RJ45 Gigabit Ethernet
- SD™/microSD™ card slots allow for external memory access
- Combo audio jack mic/speaker
- Cable length 1.5 ft/45 cm
- 13 Port Types in One Sleek Design for All Your Needs
USB-C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. USB-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB-C™ offers greater power delivery and faster data transfer rates of up to 5 Gbps.
Simultaneous DisplayPort™, HDMI™ and VGA Output
Supports Mirror and Extended modes on both Mac® & Windows® The easiest way to add a second or third display
Keep Your Workspace Organised
- Multi Display Technology Patent
- MCT is a patent owner of USB™ Multi Display Technology
- Enhancing user experience through unique technology

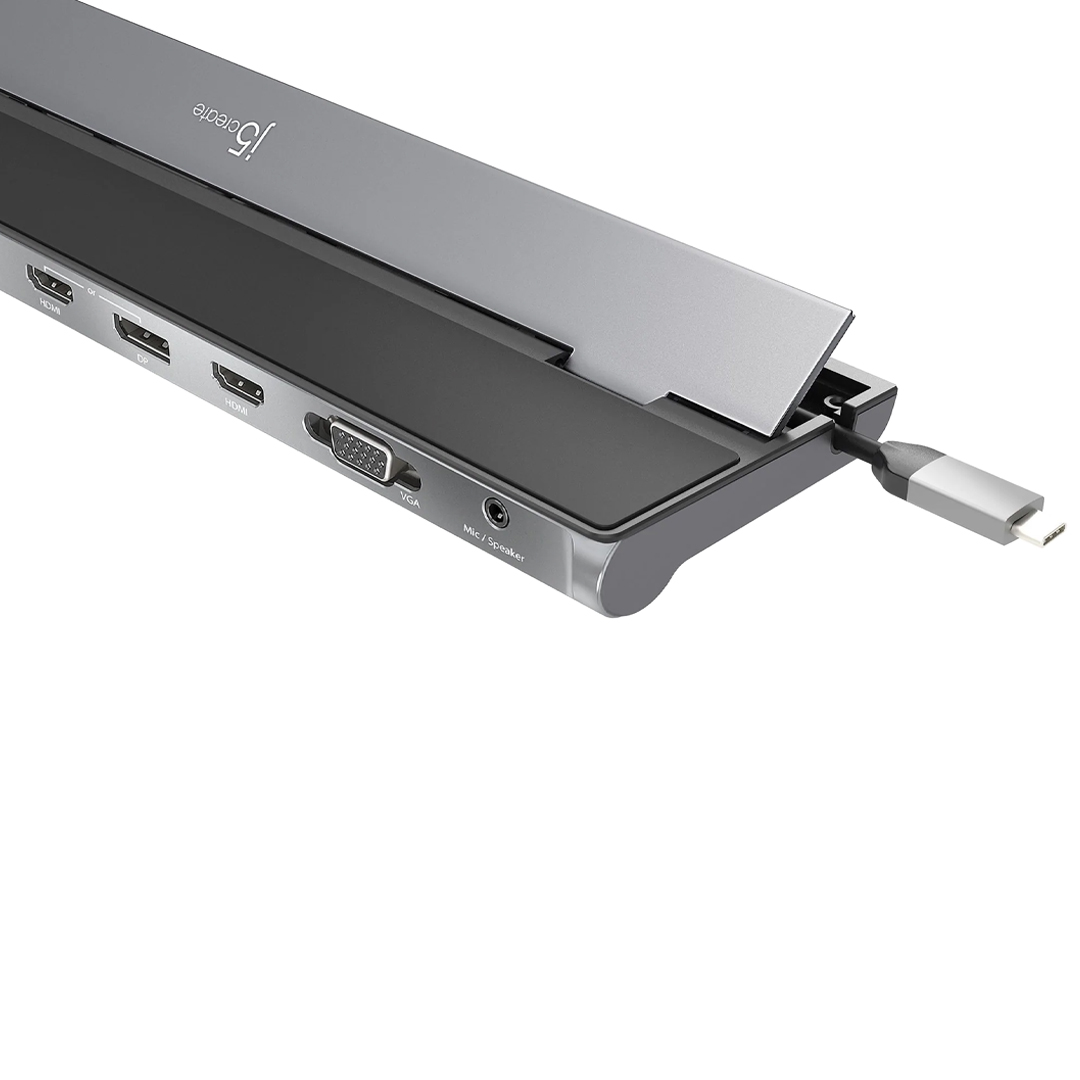

HDMI™/DisplayPort™/VGA Output Port
Supports 3 Video Interfaces
DisplayPort™ Alt mode for HDMI™ or DisplayPort™ resolution up to 4K @ 30 Hz, HDMI™ resolution up to 4K @ 30 Hz and VGA resolution up to 1920 x 1080 via dual output
USB-C™ Power Delivery 100W Pass-Through
Charge your notebook or desktop through the JCD543P
SD™/microSD™ Card Reader
Easily manage and backup your data from your camera, video recorder and more
SuperSpeed USB™ 3.0 Ports

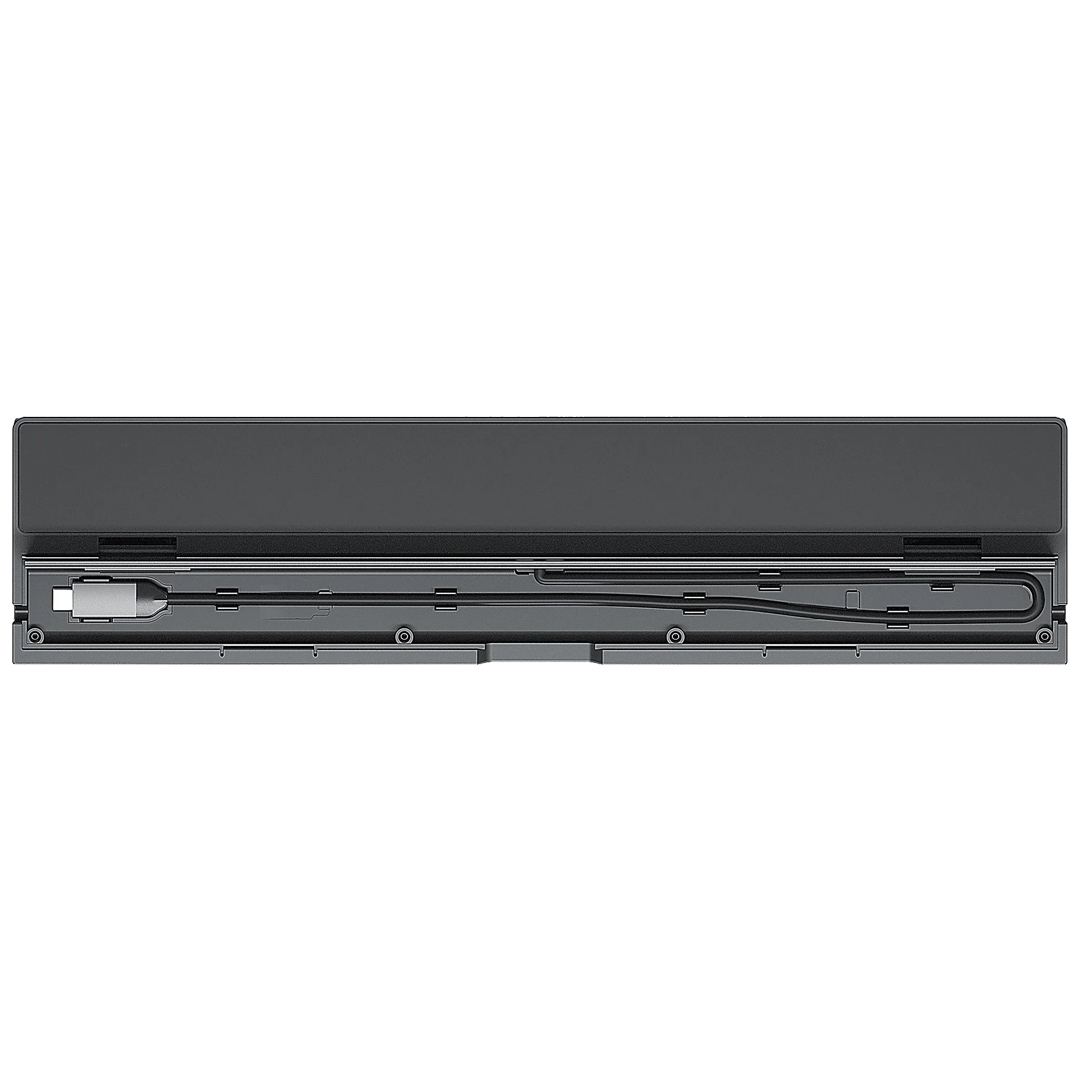

Double Sided Cable Storage Compartment
Place the cable anyway you like
Cutting-Edge Design
The advanced heat-eliminating design makes the JCD543P the perfect solution for expanding any laptop into a full-sized workstation without the worry of overheating.

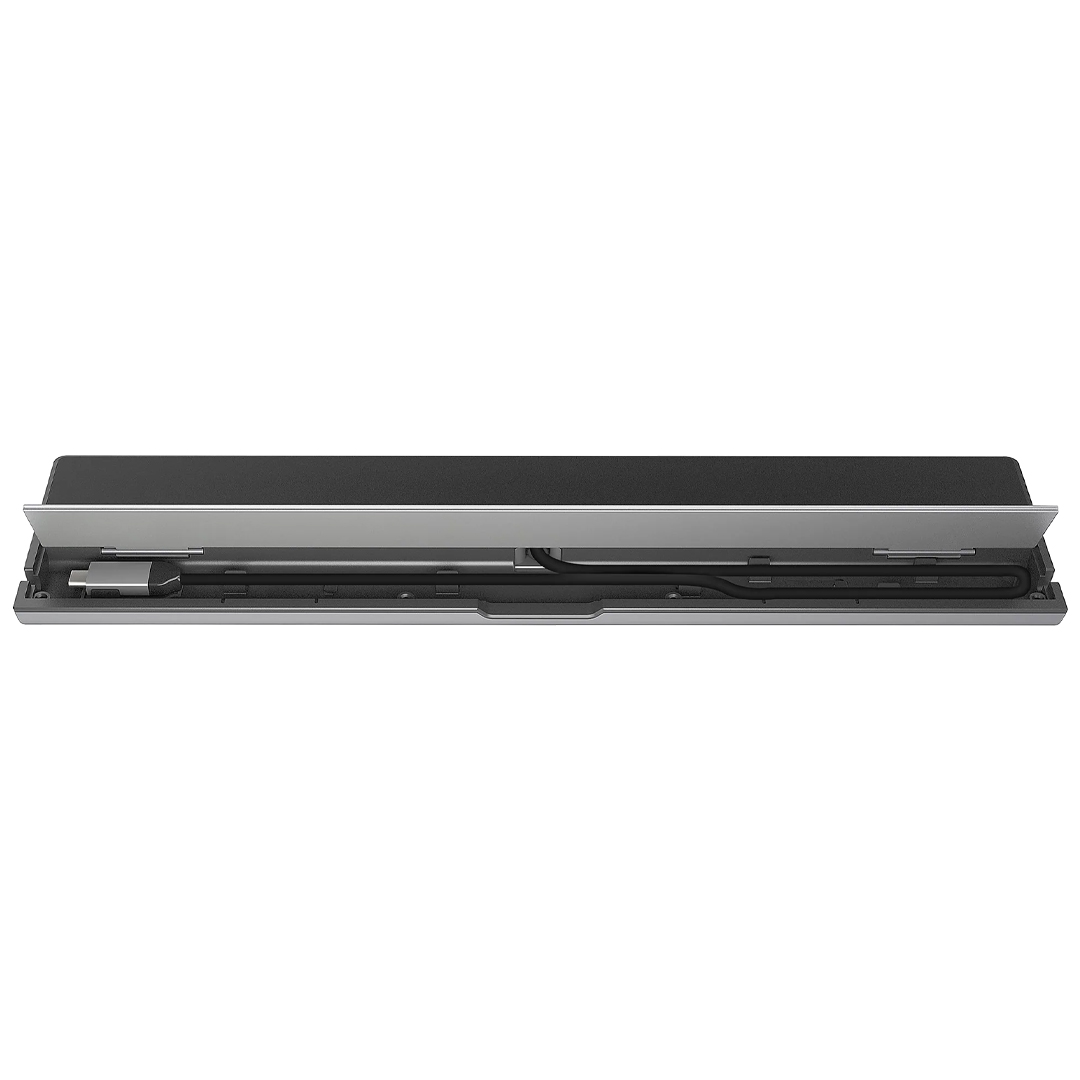

Cable Storage with Dual Openings
Universal Compatibility
Compatible with both Mac® & Windows®

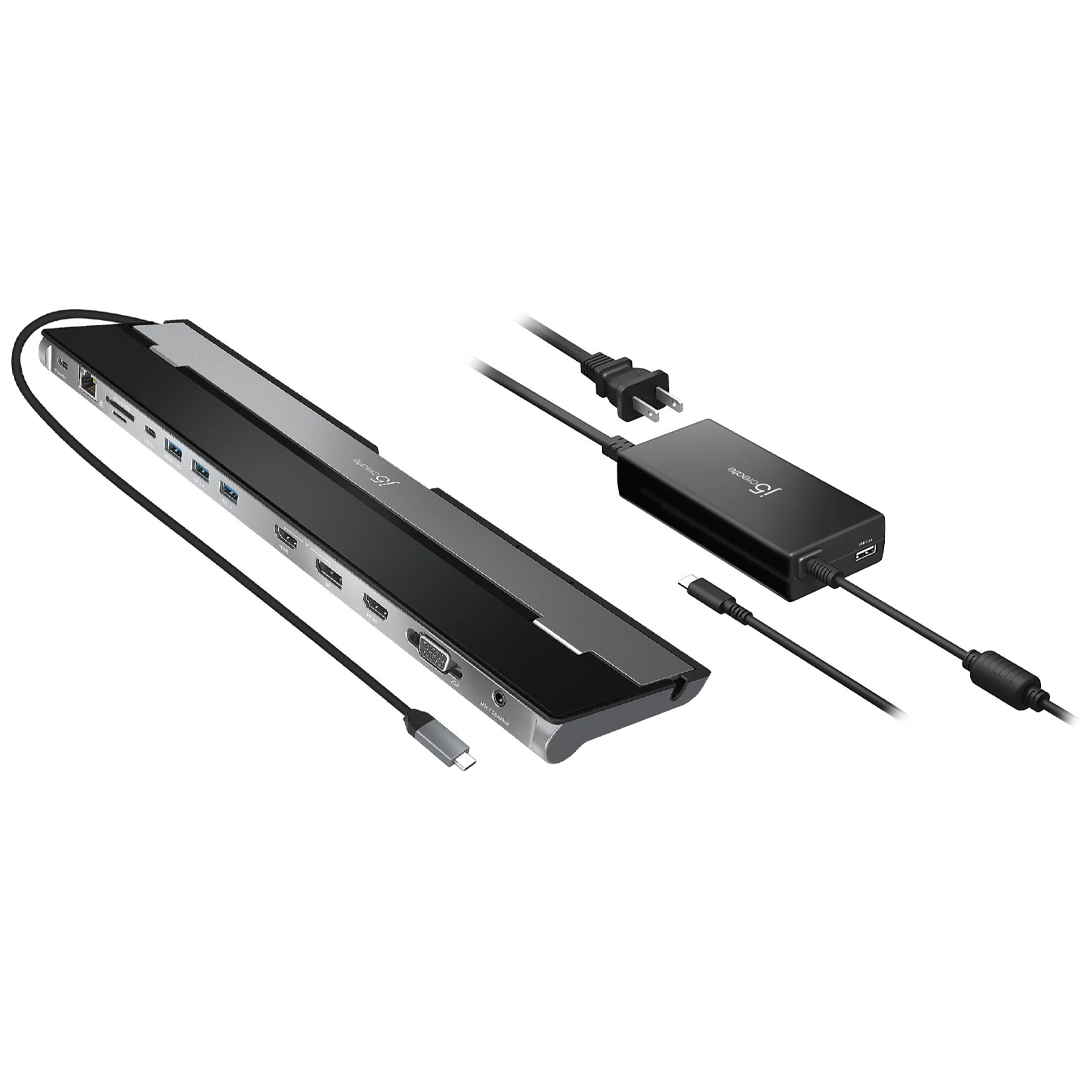

USB-C™ 100W PD USB™ Type-A 5V/2A Power Adaptor Included
Physical Specifications
Backed by a 1 year j5create warranty.
