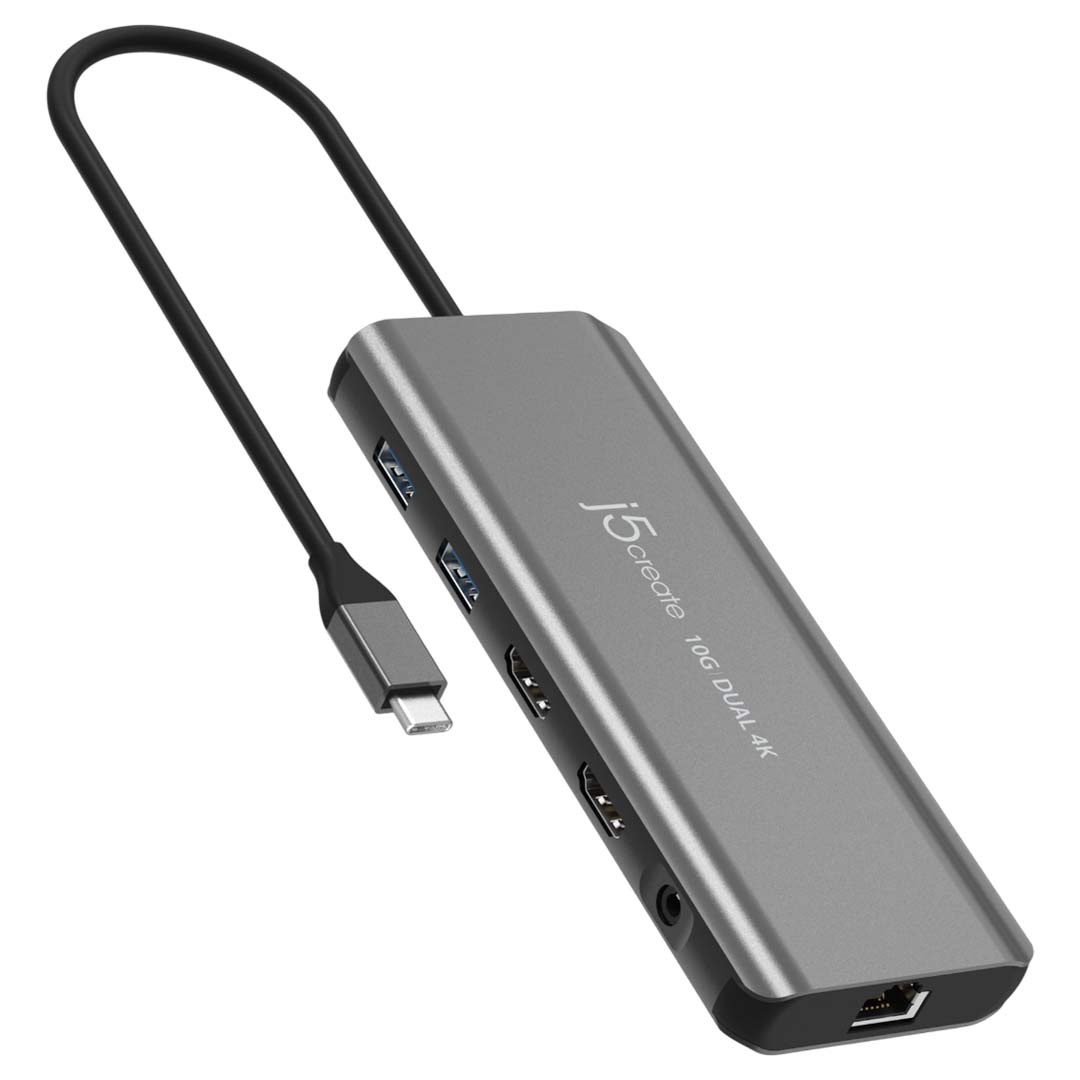

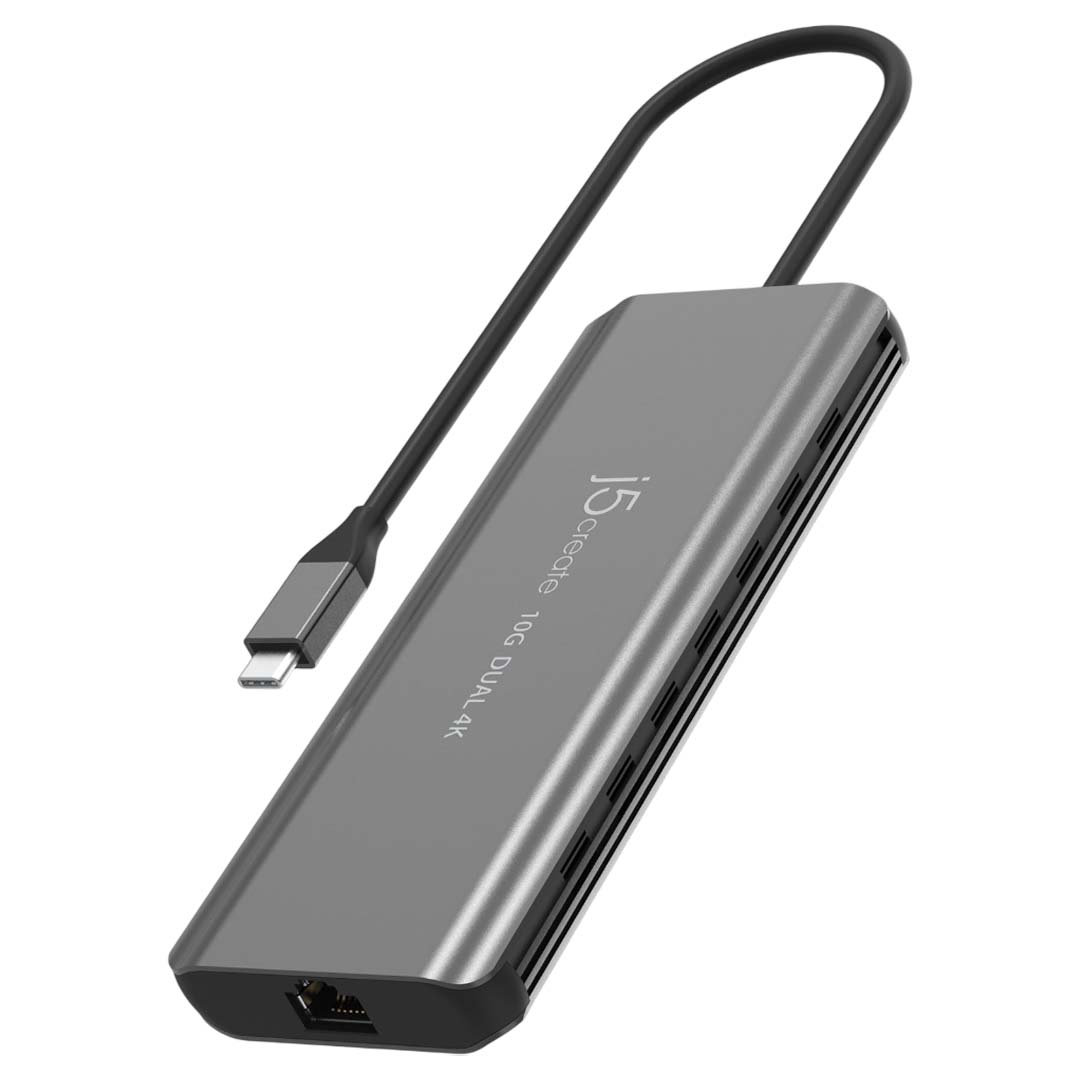

The j5create USB-C Dual 4K HDMI 10Gbps Mini Dock features dual 4K HDMI outputs that let you extend or mirror two UHD displays from a single USB-C port (one at 4K60Hz and one at 4K30Hz) for enhanced productivity with laptops and compatible devices. It includes two USB-A 3.2 Gen 2 ports with up to 10 Gbps throughput for high-speed storage and peripherals, a gigabit ethernet port for reliable wired networking, and a 3.5mm combo audio jack for headphones or speakers. The dock supports power delivery up to 100W to charge your laptop while in use, and has a compact aluminium design that is compatible with Windows and macOS systems with USB-C DisplayPort Alt Mode.
Features
JCD398 USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
4K HDMI™ / Gigabit Ethernet / Power Delivery 3.0 / USB™ 10Gbps - Windows® and macOS® Compatible - 7-in-1 Functions
The JCD398 USB-C® Dual 4K HDMI™ 10Gbps Mini Dock is great for adding two 4K UHD displays to your laptop PC including MacBook® computers with the Apple® M-Series chip. Its compact size makes it suitable for desk environments that lack space. The USB™ ports support up 10Gbps data transfer rates for connect high speed storage devices and other devices. Supports Power Delivery 3.0 for up to 100W of power passthrough for laptop and tablets. One Gigabit Ethernet port is included for high-speed network connectivity.
- Easily add two displays via HDMI™ 4K60 Hz and 4K30 Hz
- Power Delivery 3.0 offers up to 100W of charging pass-through
- Connect or charge your USB™ devices with 2 x USB™ ports
- Combo 3.5mm Audio Jack
- SuperSpeed+ USB™ 3.2 Gen 2 provides up to 10Gbps transfer rates
- Hot-swappable USB™ enables you to add or remove monitors without rebooting your system
- Reliable network connectivity via the Gigabit Ethernet port
Massive Expansion, Designed for Both Mac® and Windows® Users
Upgrade your connectivity with 2 x USB Type-A 10Gbps, 2 x 4K HDMI, Gigabit ethernet, PD charging, and 3.5mm combo audio jack.
Supercharge Productivity with Dual 4K Display
Seamlessly connect dual 4K screens, extend your display area and optimise productivity.
Break Free from the Limitation of M1/M2/M3 MacBook®
Effortlessly connect two additional displays to your M1/M2 MacBook®, support extended displays on both Mac® and Windows®.
Supports USB™ 3.2 Gen 2 10Gbps Ultra-High Speed
- Mouse
- Keyboard
- Webcams
- Camera
- Flash Drive
- HDD
- SSD
* Transfer speed may vary based on user and computing conditions.
Delivering Twice Performance
Compared to USB-C 3.1 Hubs.
- USB 3.2 Gen 2 - 10Gbps
- USB 3.1 - 5Gbps
- USB 2.0 - 480Mbps
Transfer 10Gb file in
- 14 sec. USB™ 10Gbps
- 28 sec. USB™ 5Gbps
Super-Fast Gigabit Ethernet
Supports super-fast Gigabit network speed. Provides a stable and rapid internet connection.
Powerful PD Pass-Through Charging
Supports 100W power delivery pass-through for charging your laptop.
Built-In 3.5mm Combo Audio Jack
Connect your headphones or a speaker and listen to music from your laptop.
Universal Compatibility
- Supports Windows® & macOS®
Specifications
General Data
| Model Number |
JCD398 |
| What's Included |
1 - JCD398 USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
1 - Quick Installation Guide (QIG) |
| System Requirements |
Windows® 10 / 11
macOS® 10.14 or later
Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0/3.0 or 3.1 Please refer to the manufacturer of your computer for more information about your device
The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz. |
| Special Notes |
Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
The adaptor can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device.
A 4K-capable display is required for obtaining the 3840 x 2160 resolution
If you are using a high-powered USB™ device, attach a USB-C® power adaptor to the power delivery port to ensure maximum performance. When using the USB-C® power adaptor, the multi-adaptor powers both the adaptor (with attached peripherals) and your laptop. |
Hardware
| Audio Supported |
Yes |
| Host Connector |
1 - USB-C® Male |
| Network Interface |
RJ45 (Gigabit Ethernet) |

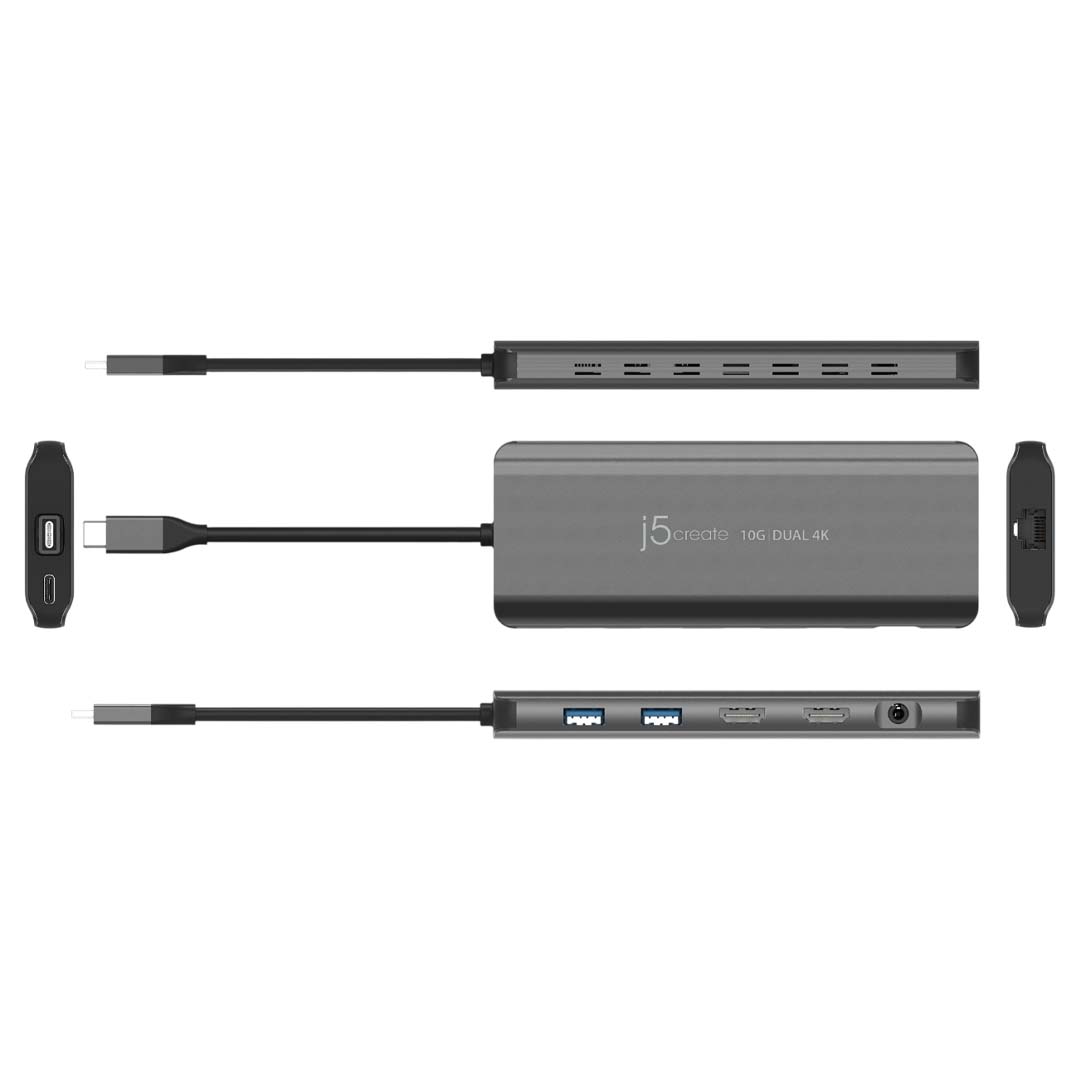

| Ports |
1 - HDMI™ 4K @ 60 Hz
1 - HDM™ 4K @ 30 Hz
2 - USB™ Type-A 3.2 Gen 2 (10Gbps)
1 - Combo 3.5mm Audio Jack
1 - RJ45 Gigabit Ethernet

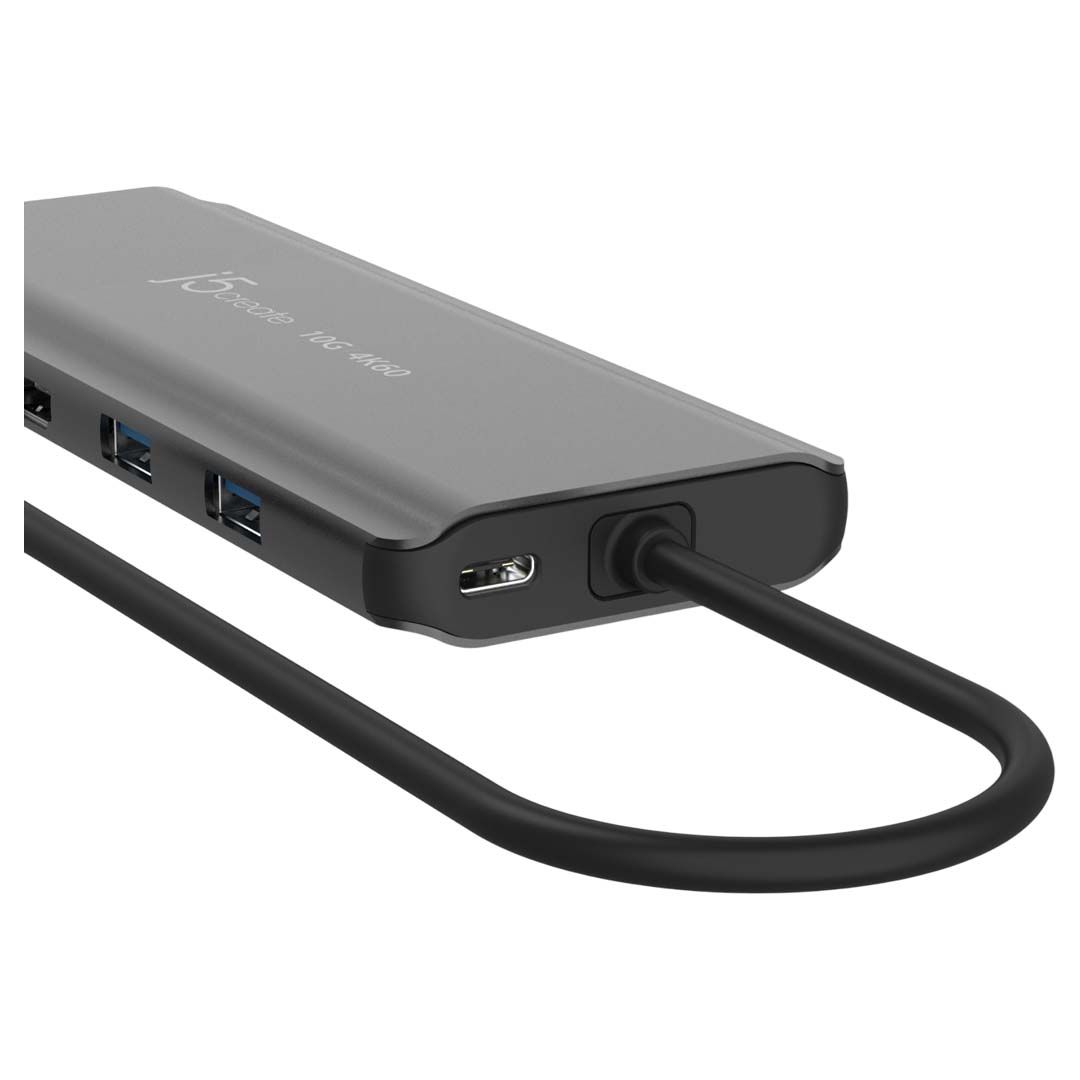

1 - USB-C® PD-in with PD 3.0 up to 100W |
| Power Source |
Bus-powered or self-powered |
| Video Output |
2 - HDMI™ Female |
| Warranty |
2 Year Limited |
Performance
| Audio Channel |
2.1 via HDMI™ |
| Compatible Networks |
10/100/1000 Mbps |
| Displays Supported |
2 |
| Max Data Transfer Rate |
10 Gbps |
| Max Display Resolution |
Single DP™ Alt:
3840 x 2160 @ 60 Hz
2560 x 1440 @ 120 Hz
1920 x 1080 @ 144 Hz
Single USB™ Graphics:
3840 x 2160 @ 30 Hz
2560 x 1440 @ 60 Hz
1920 x 1080 @ 60 Hz
Dual Display:
3840 x 2160 @ 60 Hz via DP™ Alt
3840 x 2160 @ 30 Hz via USB™ Graphics |
Power
| Input Current |
5A |
| Input Voltage |
20V |
| Output Current |
4.5A |
| Output Voltage |
20V |
| Power Consumption |
≤ 700 mA |
| Power Delivery |
Up to 100W via USB-C® |
Physical
| Cable Length |
7.8 in. (198.12 mm) |
| Colour |
Space Grey |
| Enclosure Type |
Aluminium |
| Operating Humidity |
< 85% non-condensing |
| Operating Temperature |
32 to 98°F (0 to 37°C) |
| Product Depth |
2.24 in. (56.98 mm) |
| Product Height |
0.58 in. (14.85 mm) |
| Product Weight |
4.00 oz (113.5 g) |
| Product Width |
5.8 in. (147.25 mm) |
| Storage Humidity |
< 85% non-condensing |
| Storage Temperature |
14 to 140°F (-10 to 65°C) |
Backed by a 1 year j5create warranty.
