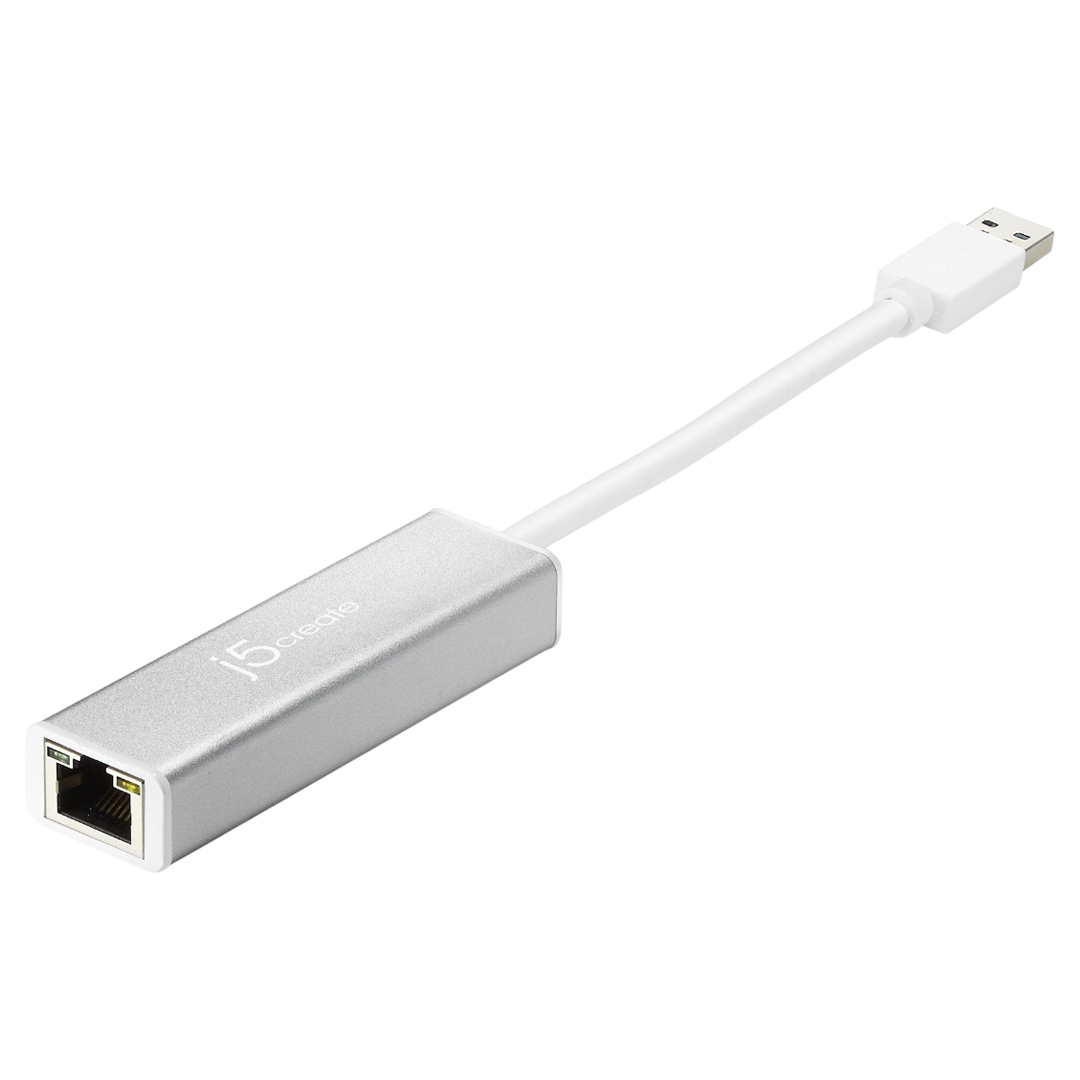

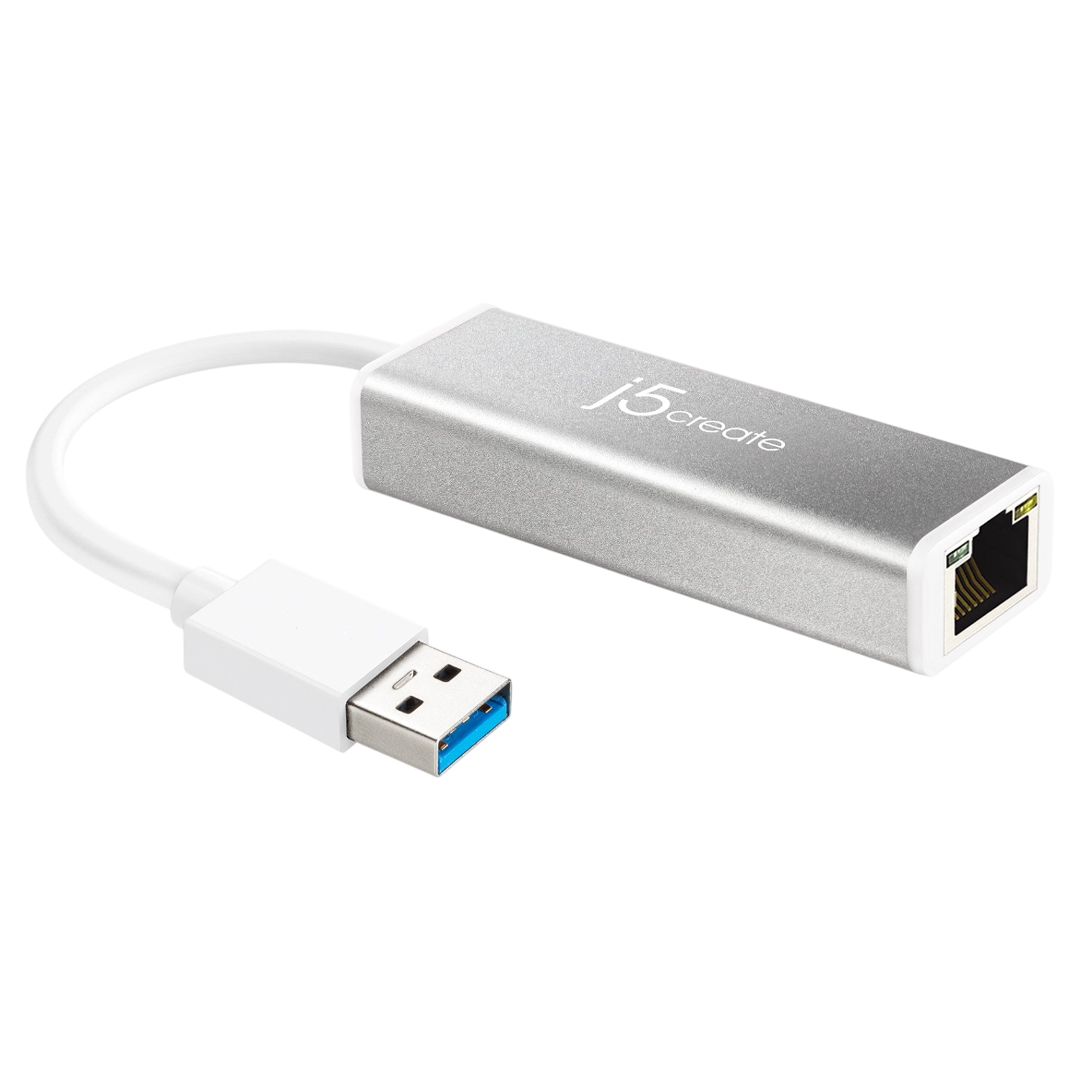

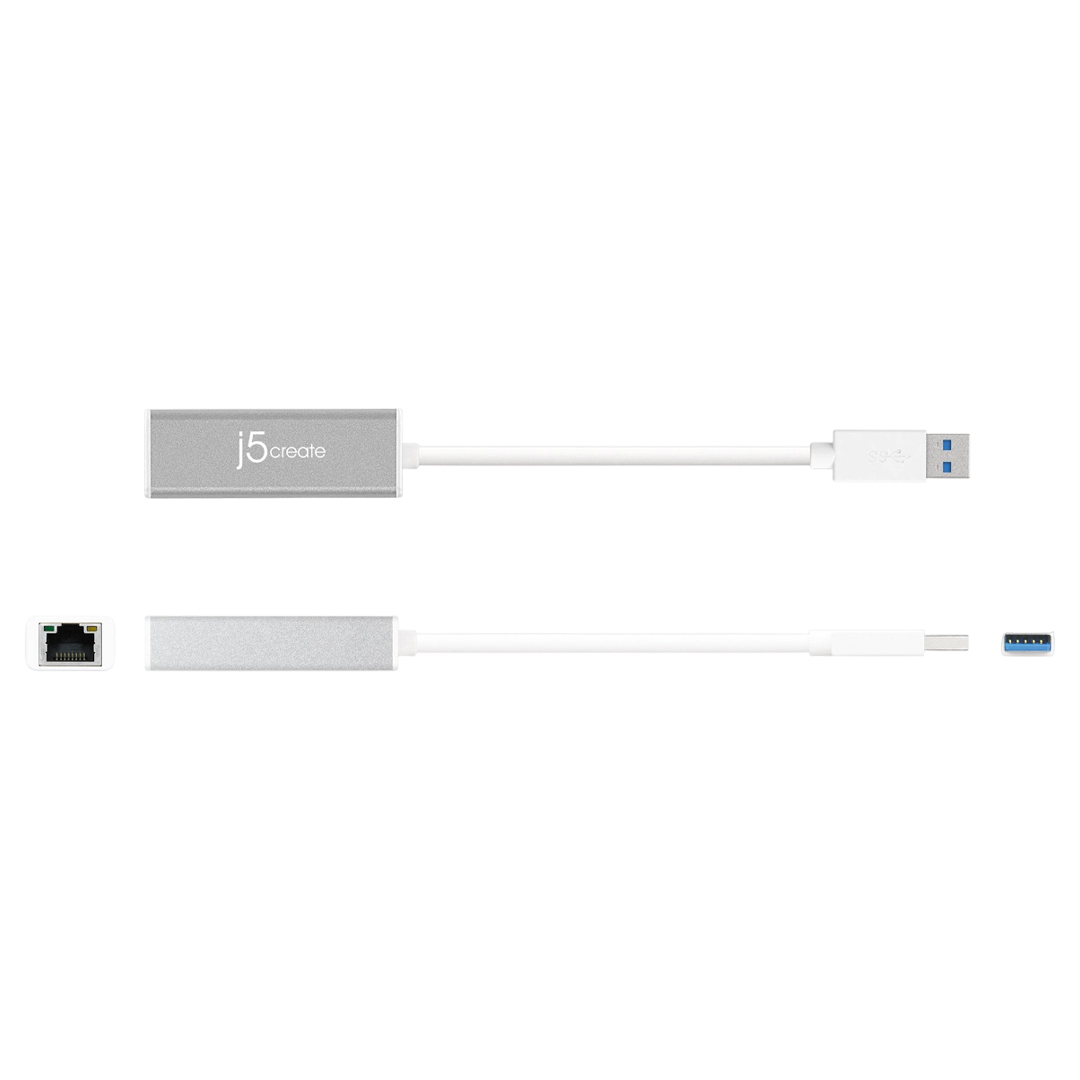

The j5create USB 3.0 Gigabit Ethernet Adapter features a USB 3.0 Type-A connector that instantly adds a 10/100/1000 Mbps Gigabit Ethernet port to laptops or desktops without a built-in LAN jack. This adaptor is bus-powered and features backward compatibility with USB 2.0/1.1, so you can plug it into older ports and still enjoy wired networking with full IEEE 802.3/802.3u/802.3ab support and full-duplex operation. The slim aluminium body includes link and activity LED indicators and supports Windows, macOS, Linux and Chrome OS for broad system compatibility.
Features
JUE130 USB™ 3.0 Gigabit Ethernet Adaptor
Deluxe Silver Aluminium to Match Your Laptop
The USB™ 3.0 Gigabit Ethernet Adaptor gives you the ability to add a Gigabit Ethernet port to your laptop or MacBook® though a single USB™ 3.0 Type-A port, supporting 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3/az/u/ab/x standards.
This ethernet adaptor provides full gigabit bandwidth and offers backward compatibility with USB™ 2.0. It also supports features such as IPv4/IPv6/TCP/UDP packet Checksum Offload Engine (COE) and TCP Large Send Offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation, VLAN tagging and 2 VLAN ID filtering are also supported, making this an ideal replacement LAN adaptor or laptop accessory in areas without Wi-Fi® or if you just want to increase your Internet speed.
- Instant connection to a wired network over USB™
- USB™ 3.0 provides up to 5 Gbps transfer rate, which is 10x faster than USB™ 2.0
- Backwards compatible with USB™ 3.0, 2.0, and 1.1 hosts and devices
- LED activity indicator
Easier Connection
The easiest way to add a 10/100/1000 Gigabit Ethernet connection over USB™.
Check Connection Status
Activity and link LED indicator.
Greater Compatibility
Backward compatible with 2.0 standard.
Slim Design
The perfect partner for your notebook.
Specifications
General Data
| Model Number |
JUE130 |
| What's Included |
1 - JUE130 USB™ 3.0 Gigabit Ethernet Adaptor
1 - Quick Installation Guide
1 - Driver Installation CD |
| System Requirements |
Microsoft® Windows® 7 or later
macOS® 10.8 or later (Driver required)
Linux® Kernel up to 5.x
Chrome OS™
Available USB™ Type-A port (USB™ 3.0 is recommended) |
Hardware
| Warranty |
2 Year Limited |
| Host Connector |
USB™ 3.0 Male |
| Network Interface |
RJ45 Female (Gigabit Ethernet) |
| Industry Standards |
IEEE 802.3az/802.3/802.3u/802.3ab/802.3x |
| Power Source |
Bus-powered |
| LED Indicators |
Green: Link
Amber: Activity |
Performance
| Type and Rate |
Up to 5 Gbps via USB™ 3.0 |
| Compatible Networks |
10/100/1000 Base-T, auto-negotiating |
| Full Duplex Support |
Yes |
| Maximum Data Transfer Rate |
1000 Mbps |
| Maximum Distance |
330 ft (100m) |
| Surge Protection |
Yes |
Physical
| Colour |
Silver |
| Enclosure Type |
Aluminium |
| Cable Length |
5.71 in. (145 mm) |
| Product Height |
0.91 in. (23 mm) |
| Product Width |
2.68 in. (68 mm) |
| Product Depth |
0.57 in. (14.5 mm) |
| Product Weight |
1.41 oz (40g) |
| Storage Temperature |
-40 to 180°F (-40 to 82°C) |
| Storage Humidity |
< 85% non-condensing |
| Operating Temperature |
32 to 138°F (0 to 59°C) |
| Operating Humidity |
< 85% non-condensing |
Backed by a 1 year j5create warranty.
