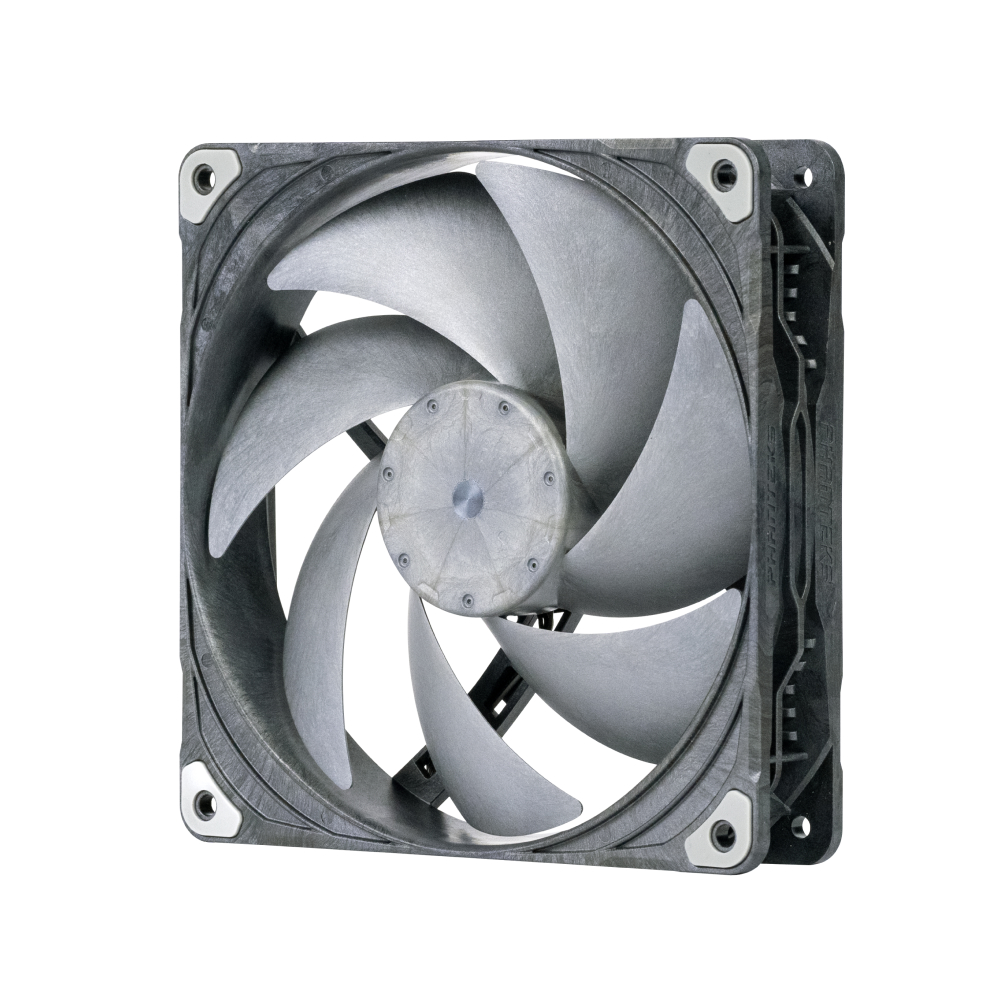

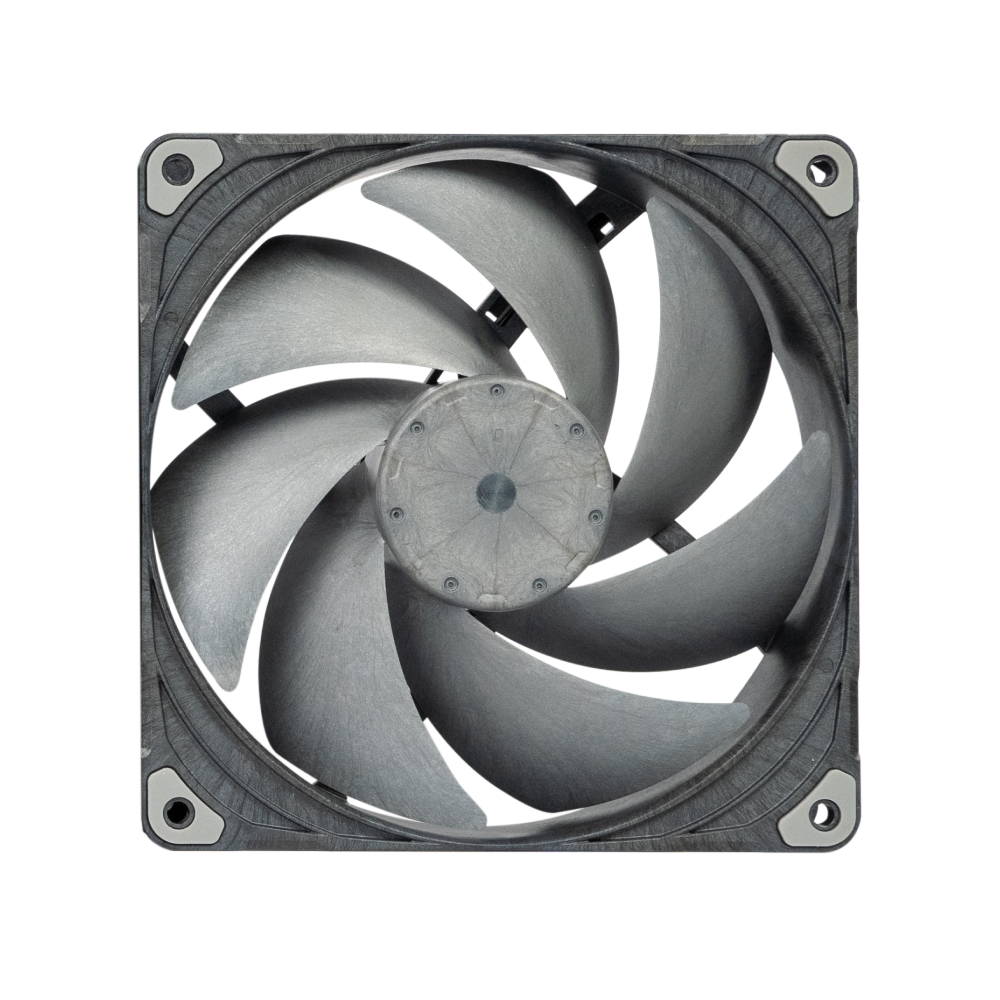

The Phanteks T30-140 fan is a premium 140mm cooling solution developed in partnership with SUNON to deliver professional-grade performance through industrial-level engineering. Built with glass fiber reinforced Liquid Crystal Polymer (LCP) for both the frame and blades, the T30-140 features a unique 30mm thickness that allows for 25% larger fan blades compared to standard 25mm fans, resulting in significantly higher static pressure and airflow. For ultimate versatility, the fan includes a hardware-based tri-mode switch on the hub, allowing builders to toggle between Hybrid (1200 RPM with 0 RPM mode), Performance (2000 RPM), and Advanced (2500 RPM) profiles to suit silent or extreme cooling scenarios. This high-performance design is further refined by a smooth 3-phase, 6-pole motor and Dual VAPO bearings with magnetic levitation, ensuring industry-leading sound quality and a long-term MTTF of 150,000 hours
Features
Premium LCP 6-Pole Performance Fan
The Phanteks T30 fan brings unparalleled performance to PC cooling for any scenario. With its built-in fan profiles and wide RPM range, the T30 can be tuned for silent, balanced, or extreme performance operation via a simple switch. With many years of development, extensive testing and experience in chassis and air/water cooler design, the T30 combines the best aerodynamic design and quality components.
Both the fan blades and fan frame are made from the absolute best glass fiber reinforced LCP (Liquid Crystal Polymer) material. This makes the blades and frame extremely rigid and durable. The T30 is designed with exceptional aerodynamic features, which requires high precision manufacturing. LCP enables this thanks to its great material properties. The tip of the fan blade has a continuous and small clearance (0.8mm) to reduce turbulence and deliver unparalleled noise-normalised performance.
The Phanteks T30 features a unique 30 mm fan frame that results in a 25% larger fan blade. Combined with the LCP material, 3-phase motor, magnetic levitated DUAL VAPO bearing and three PWM fan profiles, the T30 fan brings the best in silence, the best airflow performance and the best in high pressure for the PC market.
- Uncompromising quality using glass fiber reinforced LCP (Liquid Crystal Polymer) for the fan blades and fan frame.
- Easy and accessible switch to change fan profiles for silent, balanced or extreme performance operation: Hybrid Mode (1200RPM), Performance Mode (2000RPM), Advanced Mode (2500/3000RPM).
- Smooth and powerful 3-Phase motor (6 poles) operates with a lower frequency response for excellent sound quality.
- Increased frame thickness of 30mm results in 25% thicker fan blades from the standard 16mm to 20mm for much higher airflow performance.
- Designed for PC cooling with aerodynamic optimisations for uncompromised performance in dust filter equipped chassis and dense radiators.
Uncompromising Quality with LCP Construction
The T30 fan is built to last using the very best glass fiber reinforced LCP (Liquid Crystal Polymer) material for both the frame and the blades. This premium material provides very high mechanical strength to reduce vibrations and ensures long-term dimensional stability for high-precision production. The increased rigidity of the LCP frame increases stiffness and prevents oscillations while offering very high temperature stability for extreme longevity.

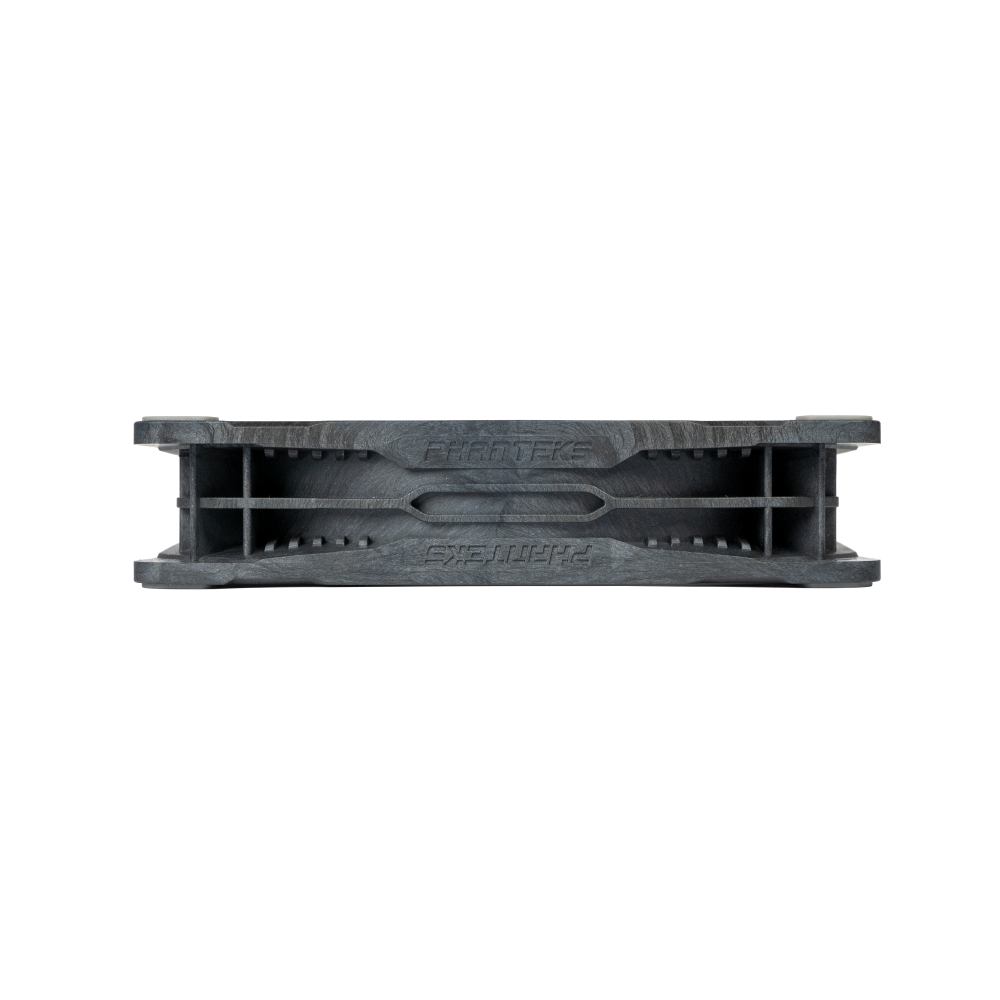

25% Larger Fan Blades
By increasing the total height of the T30 fan frame to 30mm, the actual fan blades are 25% thicker compared to the industry standard, moving from 16mm to 20mm. This design choice results in significantly higher airflow performance and a better airflow vs noise ratio.

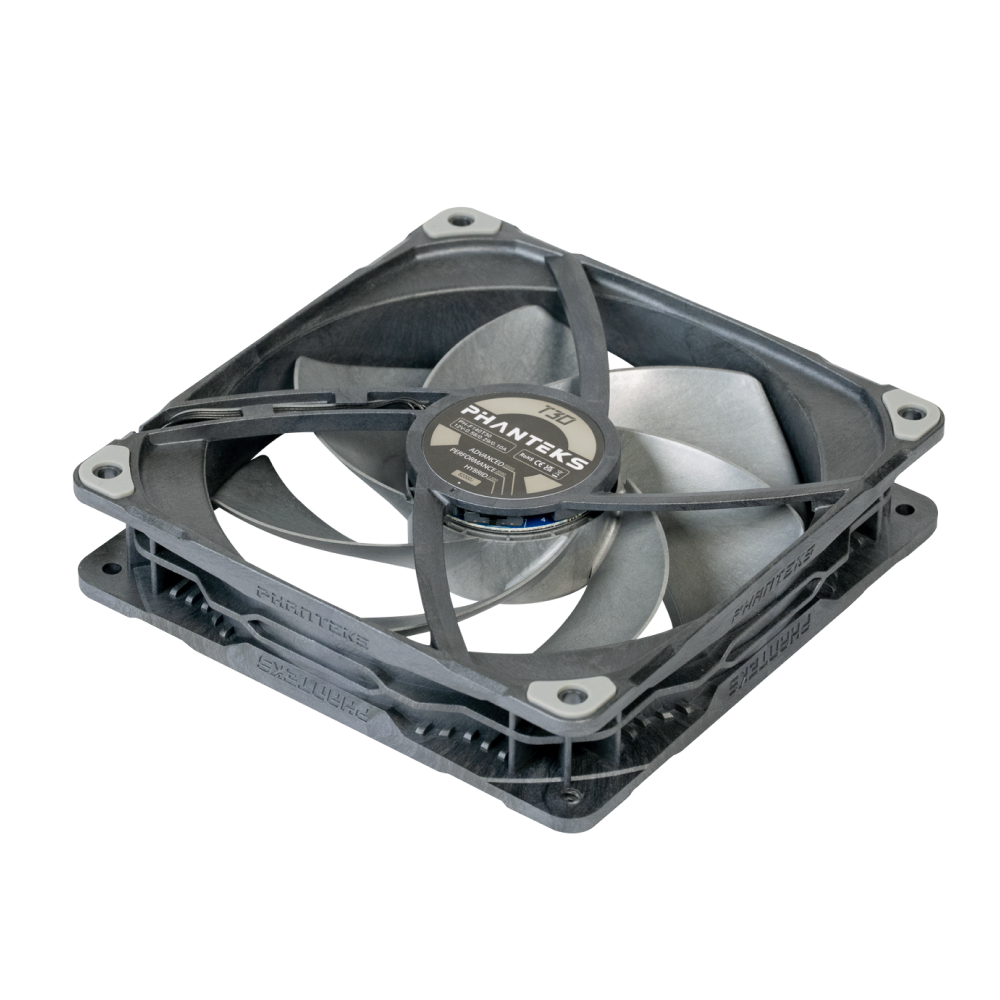

Versatile Three-Mode Switch
The T30 features a software-free switch on the fan hub that allows you to toggle between three different fan profiles to suit your specific needs:
- Hybrid Mode: Operates up to 1200 RPM and includes a 0 RPM mode when the PWM signal is below 50% for silent operation.
- Performance Mode: The recommended default setting, reaching up to 2000 RPM for a perfect balance of performance and noise.
- Advanced Mode: Delivers extreme performance with speeds up to 2500/3000 RPM for the most demanding cooling scenarios.
Optimal Aerodynamics for PC Cooling
Designed specifically for overall PC performance, the fan blades feature an aerofoil-shaped design with a smooth curve to guide air efficiently and improve static pressure. These optimisations allow the T30 to perform exceptionally well even when installed in high-resistance cases with multiple obstacles such as mesh, dust filters, and radiators.
Professional-Grade Industrial Motor
Developed in collaboration with SUNON, a leading industrial fan company, the T30 utilises an industrial-grade 3-phase, 6-pole motor design. This motor generates a smooth, low-frequency sound that is perceived as more pleasant than the high-frequency sounds of standard fans. It is paired with SUNON's dust-resistant Maglev technology and a DUAL VAPO bearing for long-term reliability.
Class-Leading Noise-Normalised Performance
Independent testing shows the T30 delivers significantly higher airflow than its competitors when noise-normalised. In standardised wind tunnel tests, the T30-120 beats the closest competitor with 13% higher airflow at 37.7 dBA, while the T30-140 outperforms elite 140mm fans by 19% when tested on radiators at 42.1 dBA.
Backed by a 6 year Phanteks warranty.
