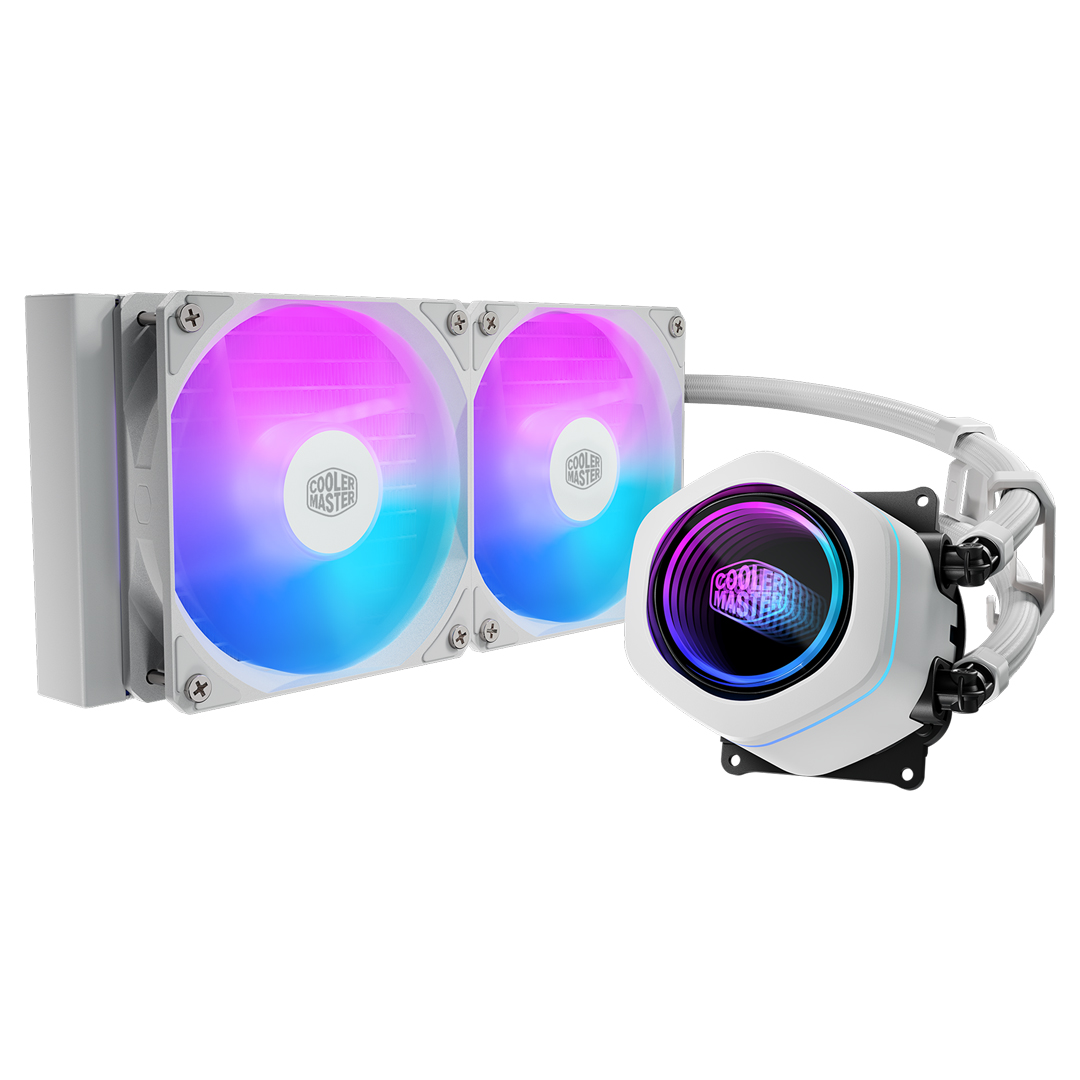

The Cooler Master MasterLiquid Core NEX 240 ARGB All-in-One Cool AIO liquid cooler features a 240mm aluminium radiator with two 120 mm ARGB fans and an addressable RGB pump head for vibrant lighting and solid thermal performance. It supports a wide range of Intel sockets including LGA 1851, 1700, 1200, 1150, 1151, 1155 and 1156, plus AMD AM5 and AM4 platforms for broad compatibility. The dual-chamber pump and rifle bearing fans deliver balanced cooling with airflow up to about 71.9 CFM while keeping noise modest, and 400mm tubing gives flexible mounting options in most mid and full tower cases.
Features
MasterLiquid Core Nex Series
360 Degrees of Cool
Introducing the redesigned MasterLiquid Core II Series from Cooler Master. Built on the trusted Introducing the redesigned MasterLiquid Core Nex Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core Nex brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimised tubing for easy installation, the MasterLiquid Core Nex Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.
- Dual Chamber Pump
- Innovative Design
- Flexible Pump Orientation
- Easy Installation
- Universal Socket Support
- Optimum Tubing Length
- Tube Clips Included
- 5 Years Warranty
Innovative Design
An infinity mirror pump cover design brings stylish lighting and a modern touch to your build.
Flexible Pump Orientation
Featuring a rotatable pump cover that allows users to customise the orientation for the perfect look.
Dual Chamber Pump
Our patented dual chamber design delivers a compact cooler with efficient and reliable performance.
Patented Design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimises water flow directly to CPU hot spot.
Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.
Optimum Tubing Length
400 mm tubing allows for effortless cooler installation in any orientation.
Easy Installation
With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless.
Universal Socket Support
Broad compatibility with both Intel and AMD CPU sockets.
Pre-Applied CryoFuze Thermal Paste
Specifications
| Model Number |
MLX-D24M-A18PA-RW |
| Product Name |
MasterLiquid Core Nex Series |
| Colour |
White |
| CPU Socket |
Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
AMD® AM5 / AM4 |
| Radiator Material |
Aluminium |
| Radiator Dimensions |
277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch) |
| Pump Dimensions |
83.6 x 78.5 x 62.9 mm (3.3 x 3.1 x 2.5 inch) |
| Pump Profiles |
Addressable RGB |
| Pump Speed |
2800 ±10% RPM |
| Pump MTTF |
>35,000 Hours |
| Pump Noise Level |
25 dBA (Max) |
| Pump Rated Voltage |
12 VDC |
| Pump Power Consumption |
7.2 W |
| Pump Connector |
3-Pin ARGB + 4-Pin PWM |
| Tube Length |
400 mm |
| Fan Dimensions (L x W x H) |
120 x 120 x 25 mm / 4.7 x 4.7 x 1.0 inch |
| Fan LED |
Addressable RGB |
| Fan Quantity |
2 PCS |
| Fan Speed |
650-1750 RPM ± 10% |
| Fan Airflow |
122.4 m³/h (71.9 CFM) (Max) |
| Fan Air Pressure |
1.86 mmH2O (Max) |
| Fan MTTF |
>40,000 Hours |
| Fan Noise Level |
27.2 dBA (Max) |
| Fan Bearing Type |
Rifle Bearing |
| Fan Connector |
7-Pin PWM + ARGB |
| Fan Rated Voltage |
12 VDC |
| Fan Rated Current |
0.26 A |
| Fan Safety Current |
0.37 A |
| Fan Power Consumption |
3.12W |
| Warranty |
5 years |
Backed by a 5 year Cooler Master warranty.
