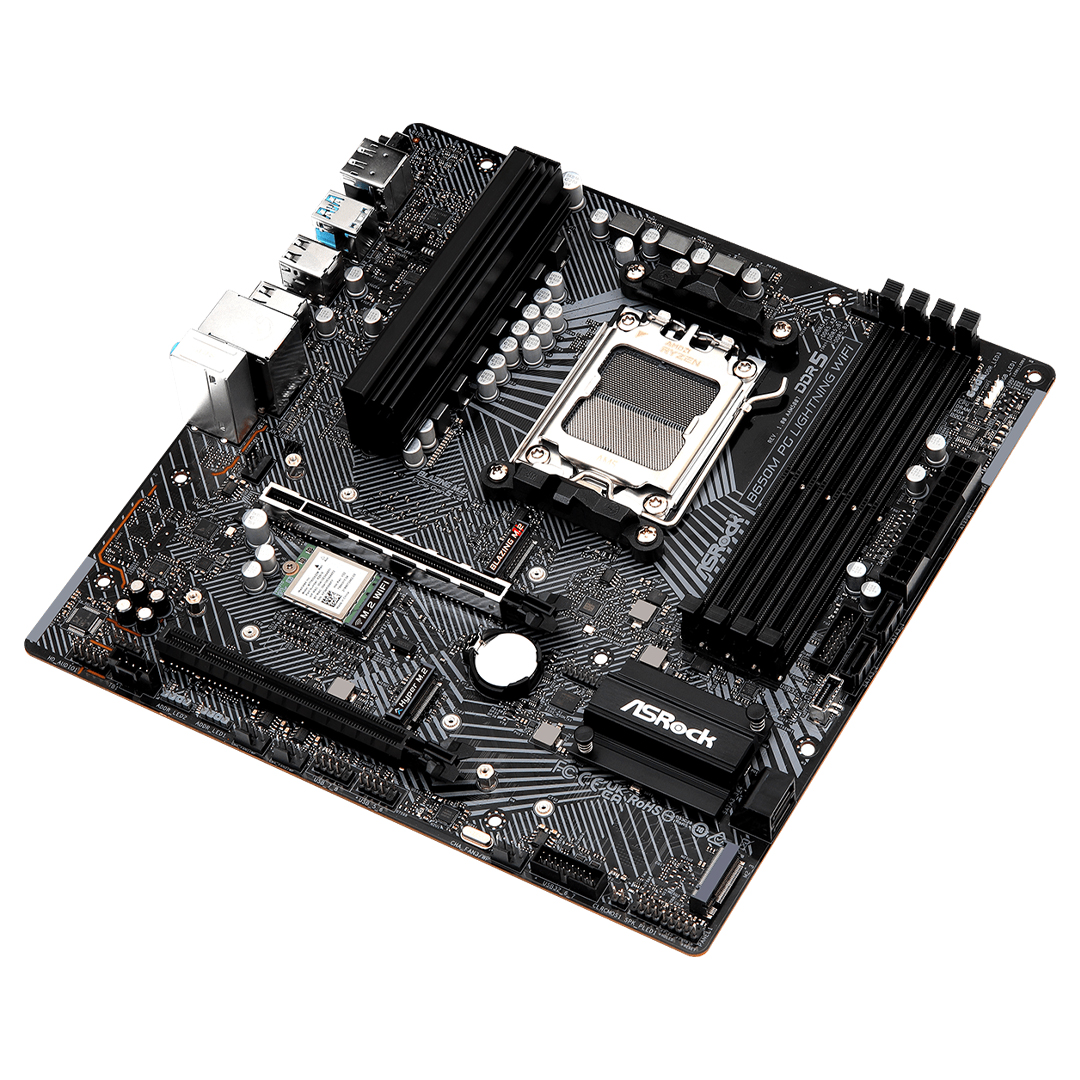

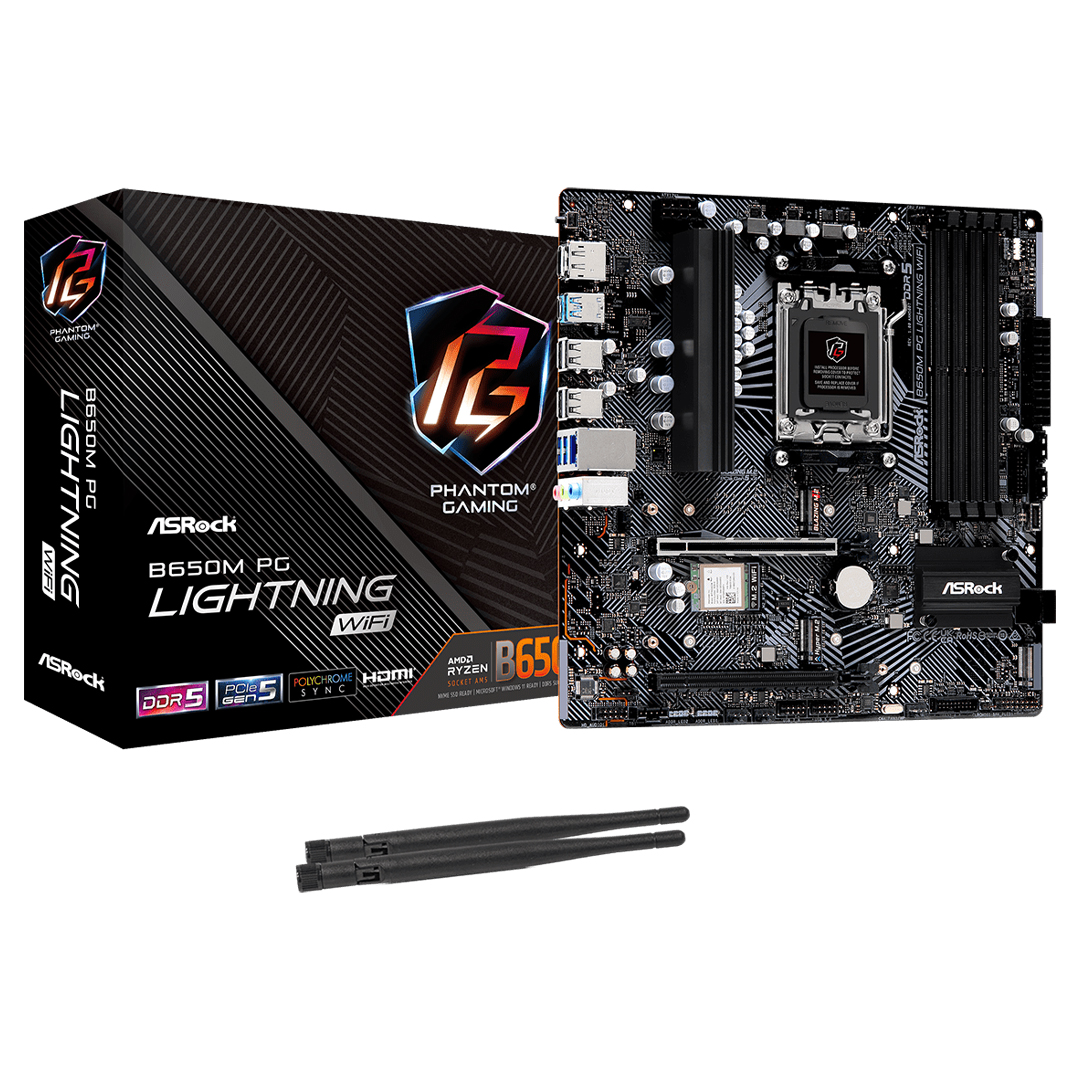

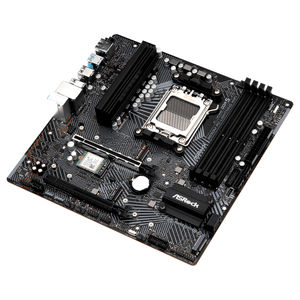

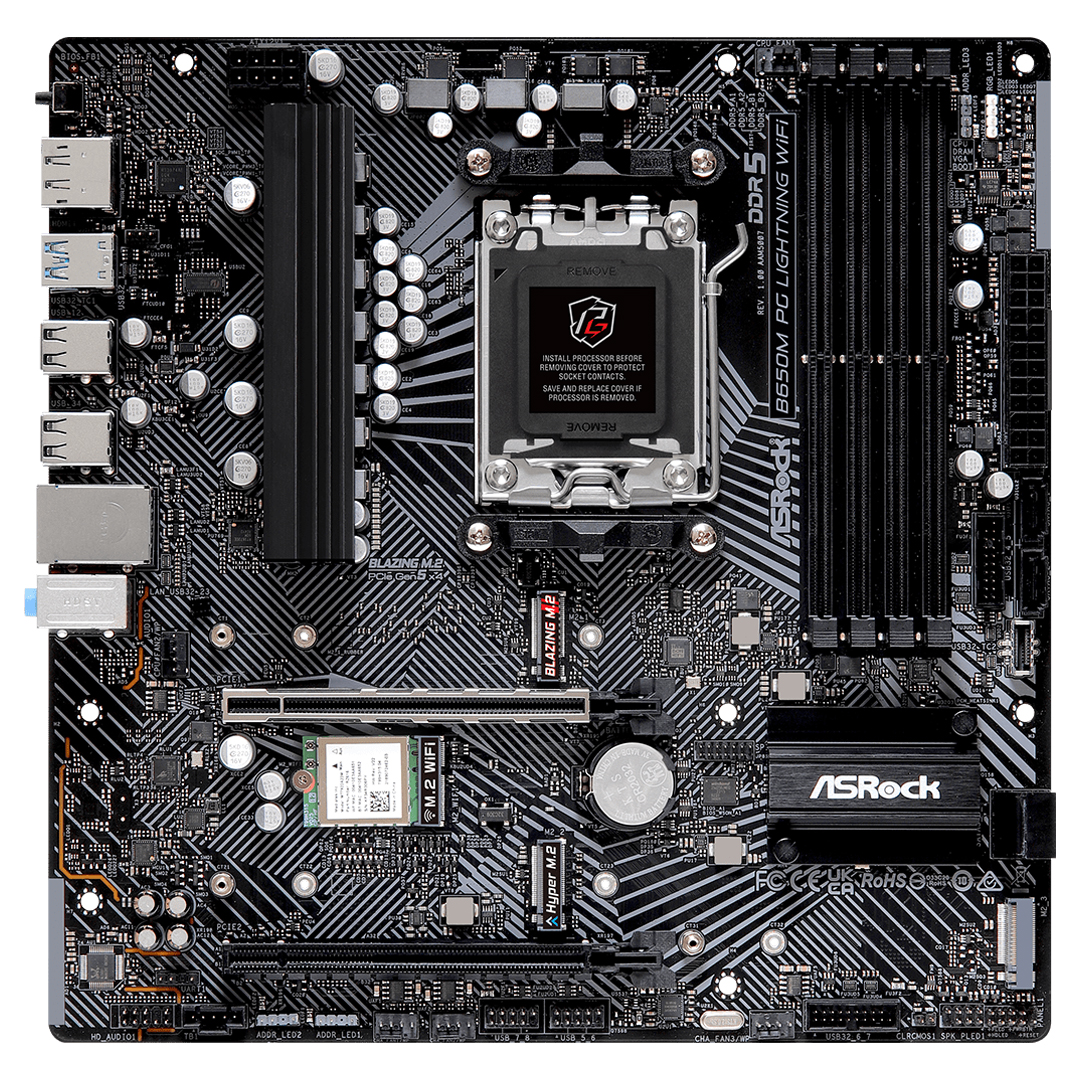

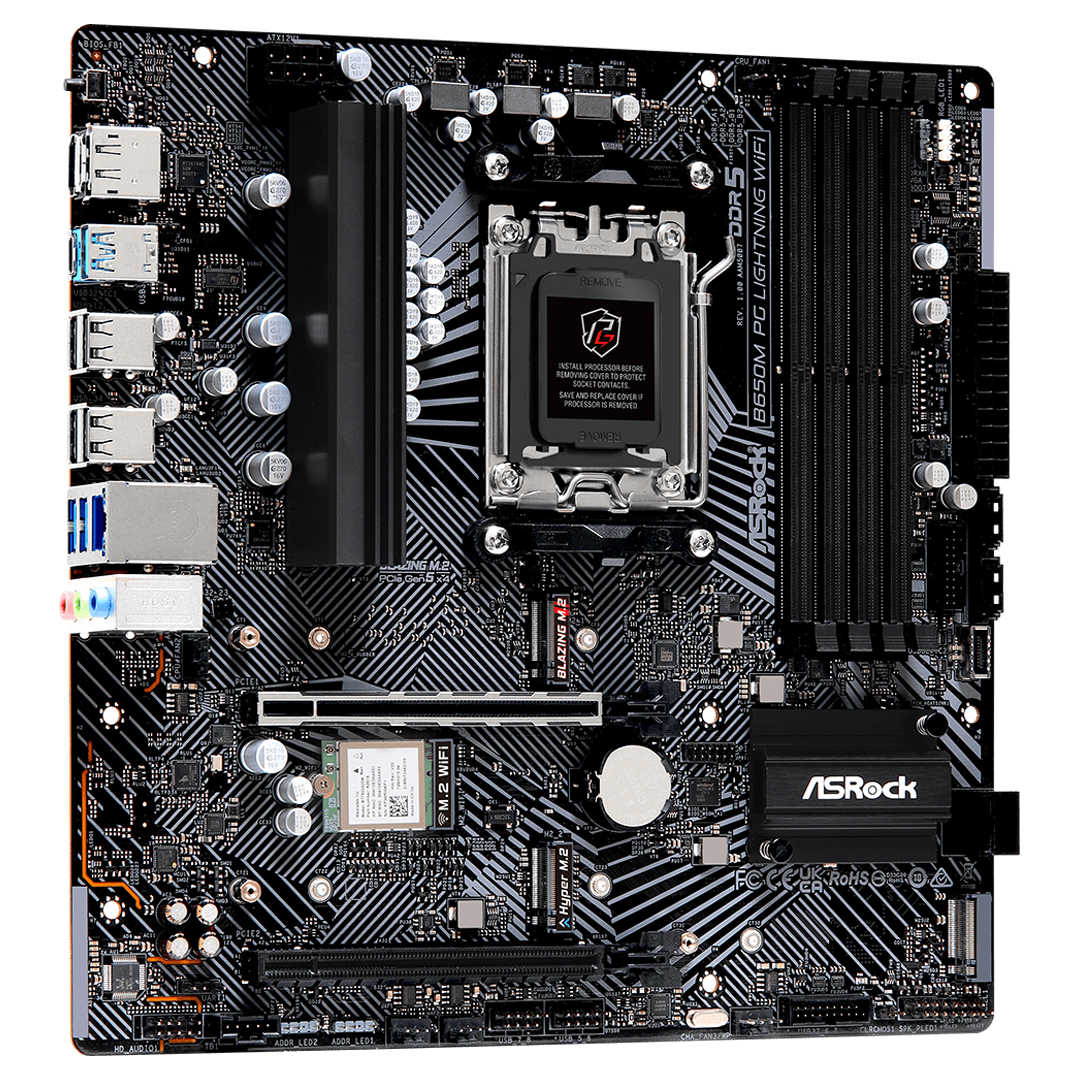

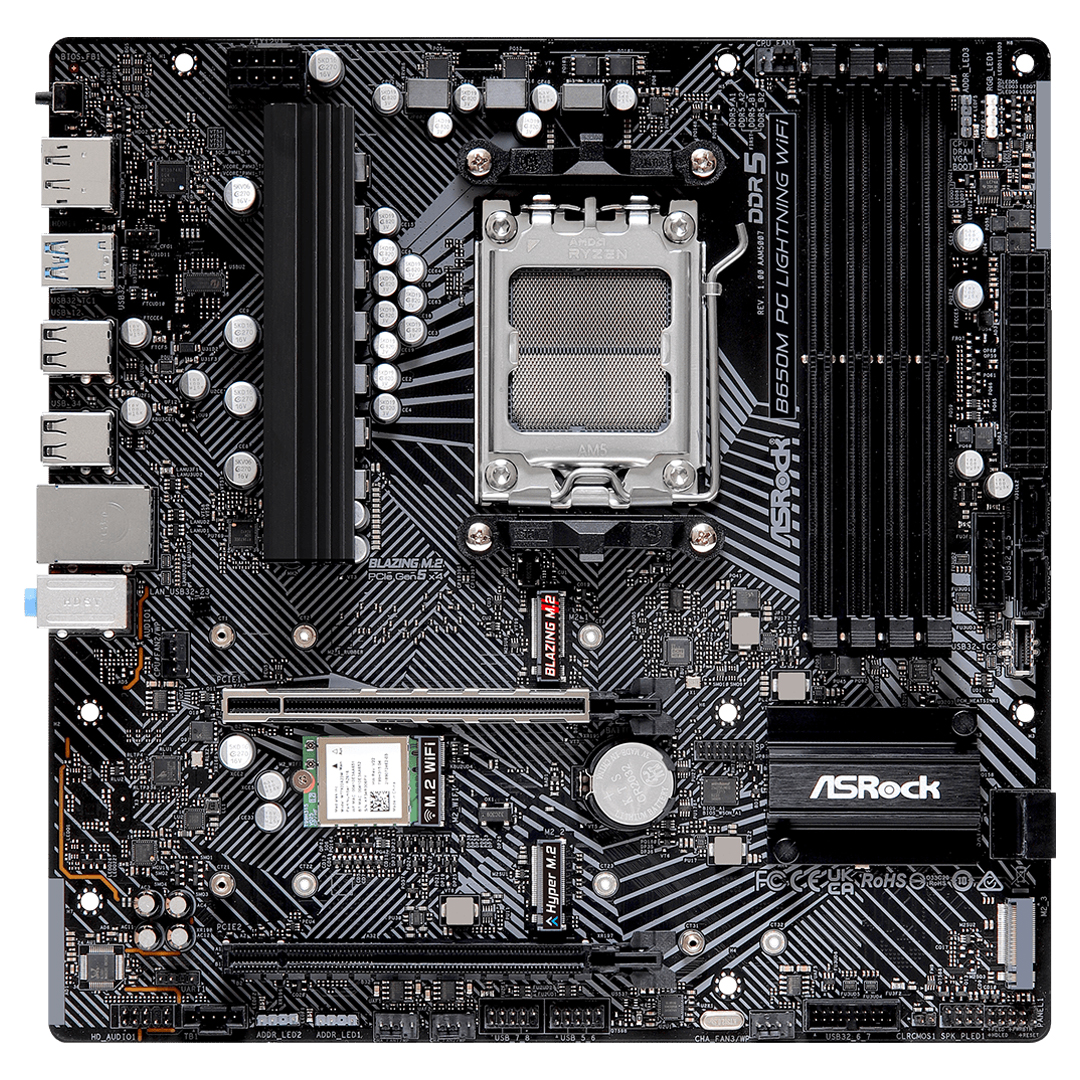

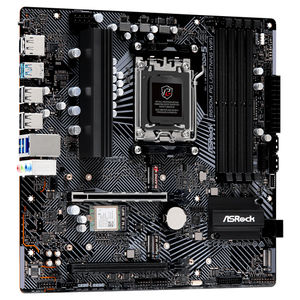

The ASRock B650M PG Lightning WiFi features the AMD B650 chipset and AM5 socket supporting Ryzen 7000, 8000 and 9000 series processors with solid power delivery from its 6 + 2 + 1 phase Dr.MOS design. It supports 4x DDR5 DIMMs up to around 7200 MHz and includes a PCIe 4.0 x16 slot for graphics plus a PCIe 3.0 x16 for additional expansion. The board offers one blazing M.2 PCIe 5.0 x4 slot and two PCIe 4.0 M.2 slots for high-speed storage, along with four SATA3 ports. For connectivity it has 2.5 Gigabit LAN, 802.11ax WiFi 6E with Bluetooth, USB-C and USB-A ports, HDMI and DisplayPort outputs and audio via Realtek ALC897 with Nahimic enhancements.
Warning: This product contains a button battery
- If swallowed, a lithium battery can cause severe or fatal injuries with 2 hours.
- Keep batteries out of reach of children.
- If you think batteries may have been swallowed or placed inside any of the body, seek immediate medical attention.
|
Features
B650M PG Lightning WiFi
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 6+2+1 Power Phase, Dr.MOS
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 7200+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
- Graphics Output: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
- 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)

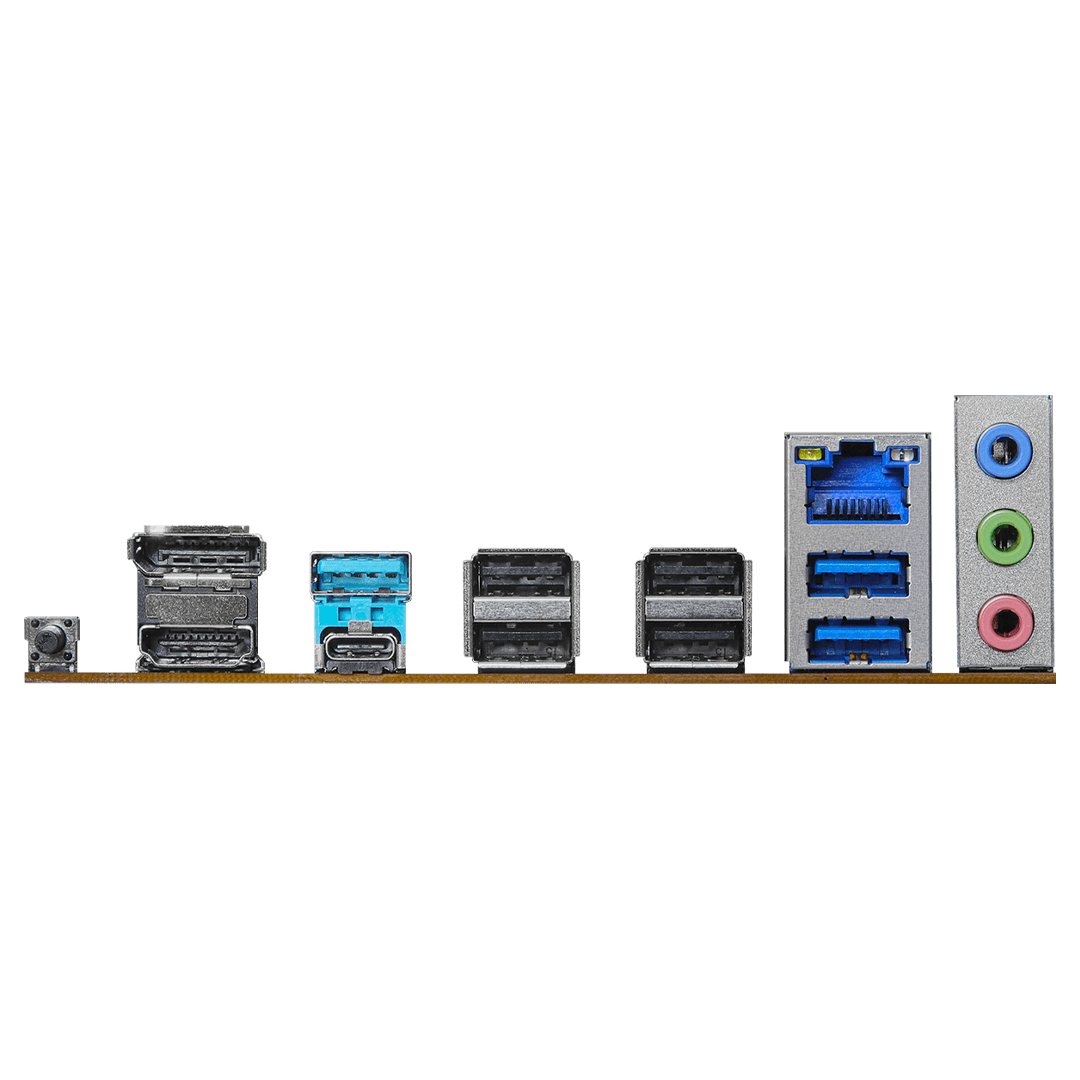

- 1 USB 3.2 Gen2 Type A+C (Rear),
- 1 USB 3.2 Gen1 Type-C (Front),
- 6 USB 3.2 Gen1 Type-A (2 Rear, 4 Front),
- Phantom Gaming 2.5G LAN,
- 802.11ax WiFi 6E + Bluetooth
- Supports ASRock Auto Driver Installer, BIOS Flashback
Overview
- BIOS Flashback
- USB 3.2 Gen2 Type-C
- Phantom Gaming 2.5Gbps LAN
- PCIe Gen4 x16 Slot
- Reinforced Steel Slot
- WIFI 6E (802.11ax)
- Premium Audio
- Realtek ALC897 7.1ch HD Audio
- Nahimic Audio
- 6+2+1 Phase Dr.MOS Design
- Blazing M.2 Socket (PCIe Gen5x4)
- Front USB 3.2 Gen 1 Type-C
Optimised VRM Design
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
6+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
Extreme Overclocking Performance
DDR5 EXPO & XMP Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. All B650 motherboards are built with 6-Layer PCB design, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 6000MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realise that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
AMD PBO Technology
PBO(Precision Boost Overdrive) is an automatic performance-maximising technology that is able to improve your PC’s performance by raising clock speeds based on the conditions inside your PC, AMD’s processors is equipped with intelligent thermal sensors designed to analyse conditions inside your PC and make the “go faster” decision as often as possible, please ensure system cooling is sufficient before enabling PBO.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Nahimic Audio
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analogue output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
- Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabiliser
Ultimate Gaming Experience
Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on Any Devices!
Enjoy the vibrant and high-quality Surround Sound on all your favourite audio devices. Nahimic is compatible with all of your favourite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimise ASRock's technology and offer you the best experience.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Phantom Gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.
Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Dual USB 3.2 Gen2 ( Type-A + Type-C )
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
*Charge speed may vary due to controller protocol, please make sure your device can support 3.0A charging.
- 10 Gb/s - USB3.2 Gen2 2X FASTER
- 5 Gb/s - USB3.2 Gen1
- 3.0A - USB3.2 Gen2 Type-C 2X FASTER
- 1.5A - USB3.2 Gen1 Type-A
Auto Driver Installer
No need to worry about lack of disk drive! ASRock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- Step1: Install Auto Driver Installer
- Step2: Update drivers needed
- Step3: Done!
Backed by a 3 year ASRock warranty.
